EKC1 Mini AC magnetic Contactor
Inquire

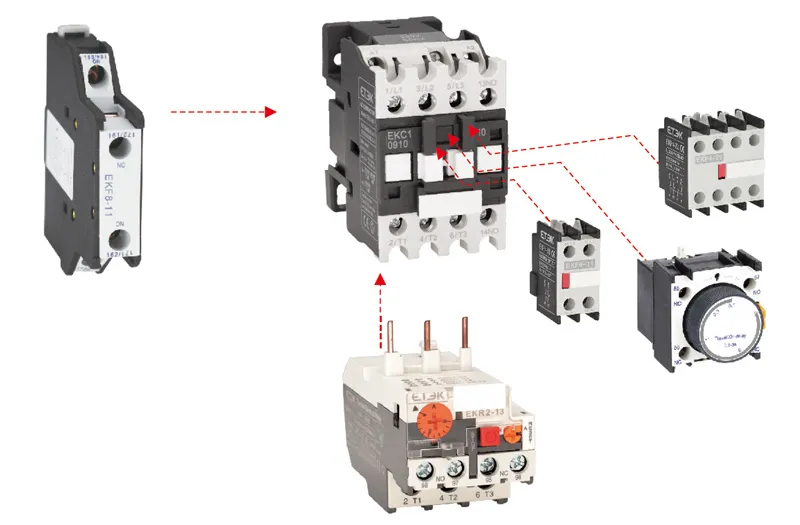

Contactor accessories are parts and components that are designed to be used with contactors.
Contractor accessories are all the component parts that are used alongside contactor devices. Primarily, they are either a replacement for a part or are used to tweak or enhance the function of contactors. For example, they may improve safety, or assist in connecting the device to the circuit.
There is a wide range of contactor accessories, but some common categories include:

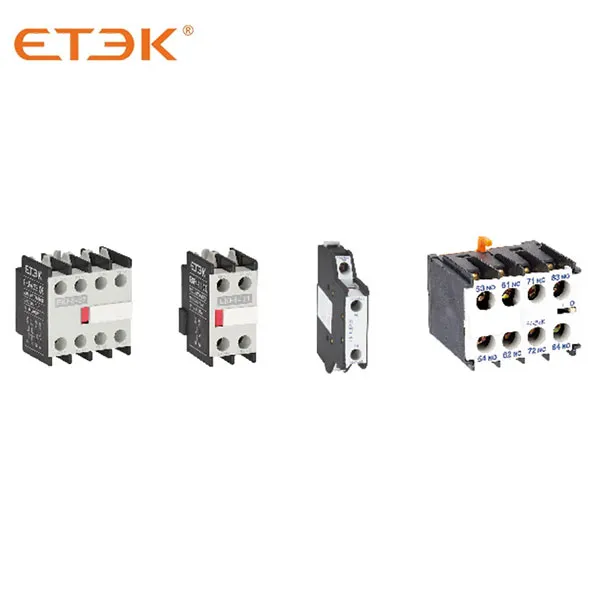

1.Component parts, such as auxiliary contacts.
2.Mounting accessories, depending on where the contactor needs to be displayed.
3.Safety accessories, such as terminal covers, are designed to prevent contact with the circuit.
4.Wiring accessories, which help in connecting the contactor to the circuit.
| Sepecification | Model | Contact Number | Contactor Matched | |
 |
Auxiliary Contact 4-pole Front mount |
EKF4-40 | 4NO | EKC1-09~95 EKC1-115~800 |
| EKF4-31 | 3NO+1NC | |||
| EKF4-22 | 2NO+2NC | |||
| EKF4-13 | 1NO+3NC | |||
| EKF4-04 | 4NC | |||
 |
Auxiliary Contact 2-pole Front mount |
EKF4-20 | 2NO | |
| EKF4-11 | 1NO+1NC | |||
| EKF4-02 | 2NC | |||
 |
Auxiliary Contact 2-pole Side mount |
EKF8-20 | 2NO | EKC1-09~95 |
| EKF8-11 | 1NO+1NC | |||
| EKF8-02 | 2NC | |||
 |
1NO+1NC Pneumatic timer ON-delay |
EKF5-T0 | 0.1~3s | EKC1-09~95 EKC1-115~800 |
| EKF5-T2 | 0.1~30s | |||
| EKF5-T4 | 10~180s | |||
| 1NO+1NC Pneumatic timer OFF-delay |
EKF5-D0 | 0.1~3s | ||
| EKF5-D2 | 0.1~30s | |||
| EKF5-D4 | 10~180s | |||
 |
Auxiliary Contact 4-pole Front mount |
EKF4-40M | 4NO | EKC1-09~12M |
| EKF4-31M | 3NO+1NC | |||
| EKF4-22M | 2NO+2NC | |||
| EKF4-13M | 1NO+3NC | |||
| EKF4-04M | 4NC | |||
 |
Auxiliary Contact 2-pole Front mount |
EKF4-20M | 2NO | |
| EKF4-11M | 1NO+1NC | |||
| EKF4-02M | 2NC | |||
 |
Contactor Coil | EKX1-2 | AC Volts | EKC1-09~18 |
| EKX1-4 | AC Volts | EKC1-25~32 | ||
| EKX1-6 | AC Volts | EKC1-40~95 | ||
 |
Contactor Coil Water Proof |
EKX1-6N | AC Volts | EKC1-40~95 |
| EKX1-FF | AC Volts | EKC1-115~150 | ||
| EKX1-FG | AC Volts | EKC1-185~225 | ||
| EKX1-FH | AC Volts | EKC1-265 | ||
| EKX1-FJ | AC Volts | EKC1-400 | ||
| EKX1-FK | AC Volts | EKC1-500 | ||
| EKX1-FL | AC Volts | EKC1-630 | ||
| EKX1-FX | AC Volts | EKC1-780 | ||
 |
Sepecification | Model | Contactor Matched | |
|
Accessories for Reversing/change-over type contactor |
EKA9-0932 | EKC1-09~32 | ||
| EKA9-4095 | EKC1-40~95 | |||
| EKA9-FF970 | EKC1-115~150 | |||
| EKA9-FG970 | EKC1-185~225 | |||
| EKA9-FJ970 | EKC1-330~400 | |||
| EKA9-FL970 | EKC1-630 | |||
 |
Sepecification | Model | TOR Matched | |
| Mounting Block for Thermal Overload Relay |
EKA9-1064 | EKR2-13 | ||
| EKA9-2064 | EKR2-23 | |||
| EKA9-3064 | EKR2-33 | |||
| Reference No. | Specification |
| EKF4-40 | Auxiliary Contacts for EKC1 Contactors 4NO |
| EKF4-31 | Auxiliary Contacts for EKC1 Contactors 3NO+1NC |
| EKF4-22 | Auxiliary Contacts for EKC1 Contactors 2NO+2NC |
| EKF4-13 | Auxiliary Contacts for EKC1 Contactors 1NO+3NC |
| EKF4-20 | Auxiliary Contacts for EKC1 Contactors 2NO |
| EKF4-11 | Auxiliary Contacts for EKC1 Contactors 1NO+1NC |
| EKF4-02 | Auxiliary Contacts for EKC1 Contactors 2NC |
| EKF4-04 | Auxiliary Contacts for EKC1 Contactors 4NC |
| EKF8-20 | Auxiliary Contacts for EKC1 Contactors 2NO -Side mount |
| EKF8-11 | Auxiliary Contacts for EKC1 Contactors 1NO+1NC-Side mount |
| EKF8-02 | Auxiliary Contacts for EKC1 Contactors 2NC-Side mount |
| EKF4-40M | Auxiliary Contacts for EKC1-M Mini Contactors 4NO |
| EKF4-31M | Auxiliary Contacts for EKC1-M Mini Contactors 3NO+1NC |
| EKF4-22M | Auxiliary Contacts for EKC1-M Mini Contactors 2NO+2NC |
| EKF4-13M | Auxiliary Contacts for EKC1-M Mini Contactors 1NO+3NC |
| EKF4-20M | Auxiliary Contacts for EKC1-M Mini Contactors 2NO |
| EKF4-11M | Auxiliary Contacts for EKC1-M Mini Contactors 1NO+1NC |
| EKF4-02M | Auxiliary Contacts for EKC1-M Mini Contactors 2NC |
| EKX1-2-24 | Contactor Coil for EKC1-09-18 Voltage 24VAC |
| EKX1-2-42 | Contactor Coil for EKC1-09-18 Voltage 42VAC |
| EKX1-2-48 | Contactor Coil for EKC1-09-18 Voltage 48VAC |
| EKX1-2-110 | Contactor Coil for EKC1-09-18 Voltage 110VAC |
| EKX1-2-220 | Contactor Coil for EKC1-09-18 Voltage 220VAC |
| EKX1-2-230 | Contactor Coil for EKC1-09-18 Voltage 230VAC |
| EKX1-2-240 | Contactor Coil for EKC1-09-18 Voltage 240VAC |
| EKX1-2-380 | Contactor Coil for EKC1-09-18 Voltage 380VAC |
| EKX1-2-415 | Contactor Coil for EKC1-09-18 Voltage 415VAC |
| EKX1-4-24 | Contactor Coil for EKC1-25-32 Voltage 24VAC |
| EKX1-4-42 | Contactor Coil for EKC1-25-32 Voltage 42VAC |
| EKX1-4-48 | Contactor Coil for EKC1-25-32 Voltage 48VAC |
| EKX1-4-110 | Contactor Coil for EKC1-25-32 Voltage 110VAC |
| EKX1-4-220 | Contactor Coil for EKC1-25-32 Voltage 220VAC |
| EKX1-4-230 | Contactor Coil for EKC1-25-32 Voltage 230VAC |
| EKX1-4-240 | Contactor Coil for EKC1-25-32 Voltage 240VAC |
| EKX1-4-380 | Contactor Coil for EKC1-25-32 Voltage 380VAC |
| EKX1-4-415 | Contactor Coil for EKC1-25-32 Voltage 415VAC |
| EKX1-6-24 | Contactor Coil for EKC1-40-95 Voltage 24VAC |
| EKX1-6-42 | Contactor Coil for EKC1-40-95 Voltage 42VAC |
| EKX1-6-48 | Contactor Coil for EKC1-40-95 Voltage 48VAC |
| EKX1-6-110 | Contactor Coil for EKC1-40-95 Voltage 110VAC |
| EKX1-6-220 | Contactor Coil for EKC1-40-95 Voltage 220VAC |
| EKX1-6-230 | Contactor Coil for EKC1-40-95 Voltage 230VAC |
| EKX1-6-240 | Contactor Coil for EKC1-40-95 Voltage 240VAC |
| EKX1-6-380 | Contactor Coil for EKC1-40-95 Voltage 380VAC |
| EKX1-6-415 | Contactor Coil for EKC1-40-95 Voltage 415VAC |
| EKX1-6N-24 | Contactor Coil Water-proof for EKC1-40-95 Voltage 24VAC |
| EKX1-6N-42 | Contactor Coil Water-proof for EKC1-40-95 Voltage 42VAC |
| EKX1-6N-48 | Contactor Coil Water-proof for EKC1-40-95 Voltage 48VAC |
| EKX1-6N-110 | Contactor Coil Water-proof for EKC1-40-95 Voltage 110VAC |
| EKX1-6N-220 | Contactor Coil Water-proof for EKC1-40-95 Voltage 220VAC |
| EKX1-6N-230 | Contactor Coil Water-proof for EKC1-40-95 Voltage 230VAC |
| EKX1-6N-240 | Contactor Coil Water-proof for EKC1-40-95 Voltage 240VAC |
| EKX1-6N-380 | Contactor Coil Water-proof for EKC1-40-95 Voltage 380VAC |
| EKX1-6N-415 | Contactor Coil Water-proof for EKC1-40-95 Voltage 415VAC |
| EKX1-FF-110 | Contactor Coil for EKC1-115-150 Voltage 110VAC |
| EKX1-FF-220 | Contactor Coil for EKC1-115-150 Voltage 220VAC |
| EKX1-FF-230 | Contactor Coil for EKC1-115-150 Voltage 230VAC |
| EKX1-FF-240 | Contactor Coil for EKC1-115-150 Voltage 240VAC |
| EKX1-FF-380 | Contactor Coil for EKC1-115-150 Voltage 380VAC |
| EKX1-FF-415 | Contactor Coil for EKC1-115-150 Voltage 415VAC |
| EKX1-FG-110 | Contactor Coil for EKC1-185-225 Voltage 110VAC |
| EKX1-FG-220 | Contactor Coil for EKC1-185-225 Voltage 220VAC |
| EKX1-FG-230 | Contactor Coil for EKC1-185-225 Voltage 230VAC |
| EKX1-FG-240 | Contactor Coil for EKC1-185-225 Voltage 240VAC |
| EKX1-FG-380 | Contactor Coil for EKC1-185-225 Voltage 380VAC |
| EKX1-FG-415 | Contactor Coil for EKC1-185-225 Voltage 415VAC |
| EKX1-FH-110 | Contactor Coil for EKC1-265-330 Voltage 110VAC |
| EKX1-FH-220 | Contactor Coil for EKC1-265-330 Voltage 220VAC |
| EKX1-FH-230 | Contactor Coil for EKC1-265-330 Voltage 230VAC |
| EKX1-FH-240 | Contactor Coil for EKC1-265-330 Voltage 240VAC |
| EKX1-FH-380 | Contactor Coil for EKC1-265-330 Voltage 380VAC |
| EKX1-FH-415 | Contactor Coil for EKC1-265-330 Voltage 415VAC |
| EKX1-FJ-110 | Contactor Coil for EKC1-400 Voltage 110VAC |
| EKX1-FJ-220 | Contactor Coil for EKC1-400 Voltage 220VAC |
| EKX1-FJ-230 | Contactor Coil for EKC1-400 Voltage 230VAC |
| EKX1-FJ-240 | Contactor Coil for EKC1-400 Voltage 240VAC |
| EKX1-FJ-380 | Contactor Coil for EKC1-400 Voltage 380VAC |
| EKX1-FJ-415 | Contactor Coil for EKC1-400 Voltage 415VAC |
| EKX1-FK-110 | Contactor Coil for EKC1-500 Voltage 110VAC |
| EKX1-FK-220 | Contactor Coil for EKC1-500 Voltage 220VAC |
| EKX1-FK-230 | Contactor Coil for EKC1-500 Voltage 230VAC |
| EKX1-FK-240 | Contactor Coil for EKC1-500 Voltage 240VAC |
| EKX1-FK-380 | Contactor Coil for EKC1-500 Voltage 380VAC |
| EKX1-FK-415 | Contactor Coil for EKC1-500 Voltage 415VAC |
| EKX1-FL-110 | Contactor Coil for EKC1-630 Voltage 110VAC |
| EKX1-FL-220 | Contactor Coil for EKC1-630 Voltage 220VAC |
| EKX1-FL-230 | Contactor Coil for EKC1-630 Voltage 230VAC |
| EKX1-FL-240 | Contactor Coil for EKC1-630 Voltage 240VAC |
| EKX1-FL-380 | Contactor Coil for EKC1-630 Voltage 380VAC |
| EKX1-FL-415 | Contactor Coil for EKC1-630 Voltage 415VAC |
| EKX1-FX-110 | Contactor Coil for EKC1-780 Voltage 110VAC |
| EKX1-FX-220 | Contactor Coil for EKC1-780 Voltage 220VAC |
| EKX1-FX-230 | Contactor Coil for EKC1-780 Voltage 230VAC |
| EKX1-FX-240 | Contactor Coil for EKC1-780 Voltage 240VAC |
| EKX1-FX-380 | Contactor Coil for EKC1-780 Voltage 380VAC |
| EKX1-FX-415 | Contactor Coil for EKC1-780 Voltage 415VAC |
| EKX1-2-12Z | Contactor Coil for EKC1-09-18 Voltage 12VDC |
| EKX1-2-24Z | Contactor Coil for EKC1-09-18 Voltage 24VDC |
| EKX1-2-36Z | Contactor Coil for EKC1-09-18 Voltage 36VDC |
| EKX1-2-48Z | Contactor Coil for EKC1-09-18 Voltage 48VDC |
| EKX1-2-110Z | Contactor Coil for EKC1-09-18 Voltage 110VDC |
| EKX1-2-220Z | Contactor Coil for EKC1-09-18 Voltage 220VDC |
| EKX1-4-12Z | Contactor Coil for EKC1-25-32 Voltage 12VDC |
| EKX1-4-24Z | Contactor Coil for EKC1-25-32 Voltage 24VDC |
| EKX1-4-36Z | Contactor Coil for EKC1-25-32 Voltage 36VDC |
| EKX1-4-48Z | Contactor Coil for EKC1-25-32 Voltage 48VDC |
| EKX1-4-110Z | Contactor Coil for EKC1-25-32 Voltage 110VDC |
| EKX1-4-220Z | Contactor Coil for EKC1-25-32 Voltage 220VDC |
| EKX1-6-12Z | Contactor Coil for EKC1-40-95 Voltage 24VAC |
| EKX1-6-24Z | Contactor Coil for EKC1-40-95 Voltage 42VAC |
| EKX1-6-36Z | Contactor Coil for EKC1-40-95 Voltage 48VAC |
| EKX1-6-48Z | Contactor Coil for EKC1-40-95 Voltage 110VAC |
| EKX1-6-110Z | Contactor Coil for EKC1-40-95 Voltage 220VAC |
| EKX1-6-220Z | Contactor Coil for EKC1-40-95 Voltage 230VAC |
Contactor accessories are parts and components that are designed to be used with contactors.
Contractor accessories are all the component parts that are used alongside contactor devices. Primarily, they are either a replacement for a part or are used to tweak or enhance the function of contactors. For example, they may improve safety, or assist in connecting the device to the circuit.
There is a wide range of contactor accessories, but some common categories include:
1.Component parts, such as auxiliary contacts.
2.Mounting accessories, depending on where the contactor needs to be displayed.
3.Safety accessories, such as terminal covers, are designed to prevent contact with the circuit.
4.Wiring accessories, which help in connecting the contactor to the circuit.
