EKEC5 Series 7.3kW Mode 3 AC EV Charger

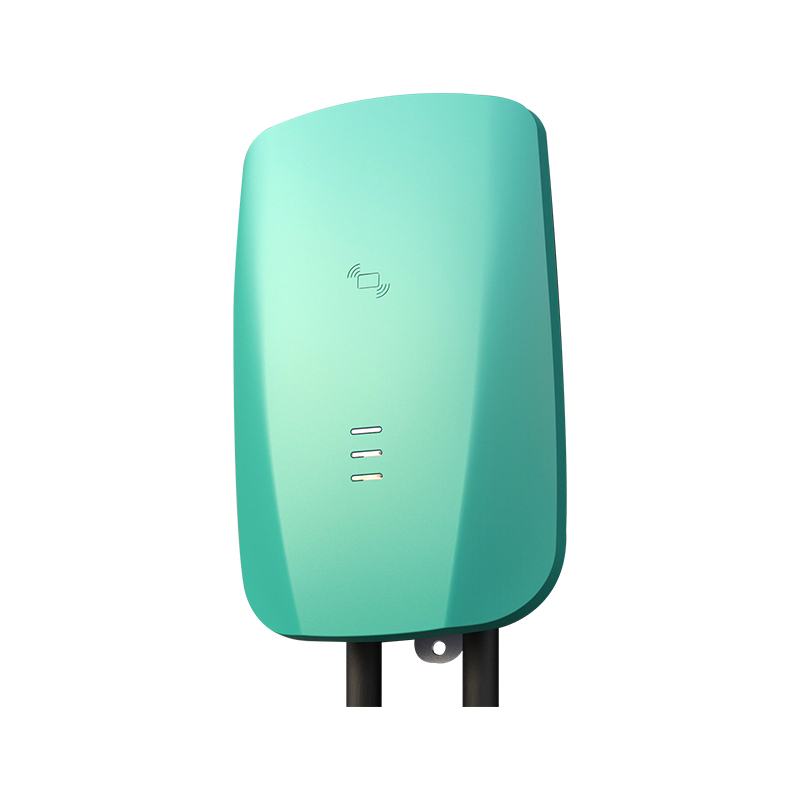

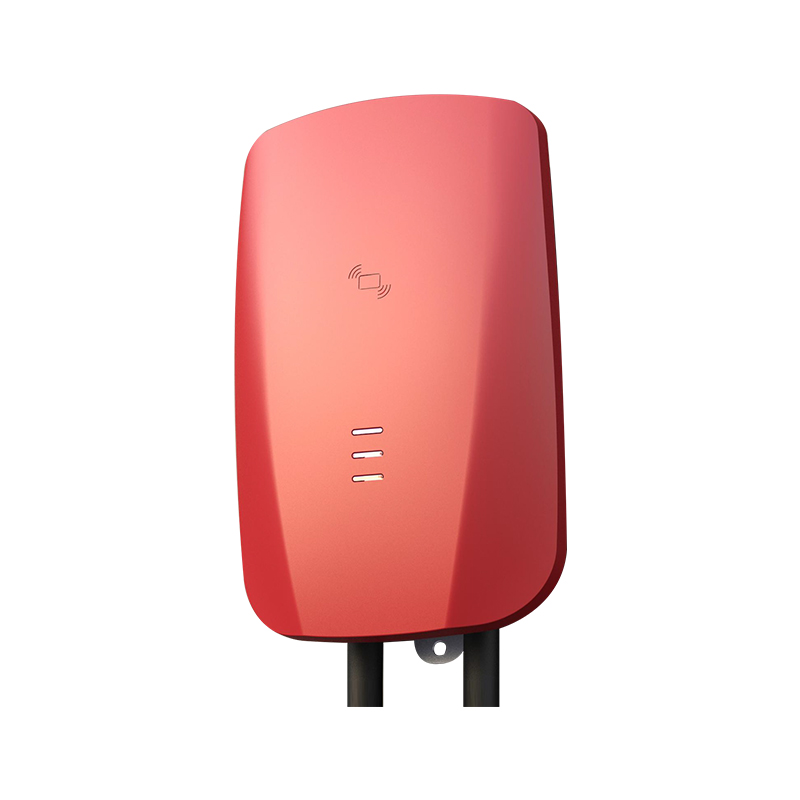

EKEC5 Series EV Charger adopts the latest appearance design and can be customized with different shell colors, it is a very convenient electric vehicle charger.

Inquire NOW PDF

EKEC5 Series 7.3kW Mode 3 AC EV Charger

Inquire NOW PDF

Product Profile

EKEC5 Series EV Charger adopts the latest appearance design and can be customized with different shell colors, it is a very convenient electric vehicle charger.

  • With swipe card start and remote stop start, with rechargeable IC card.

  • With overload protection, over voltage protection, under voltage protection, short, circuit protection, over temperature protection, emergency stop and other functions.

  • Convenient charging, plug and play.

  • There are also various installation options, with the option of wall-mounted or column-mounted installation depending on different EV charging scenarios. Simple installation and compact size make it easy for distributors to transport and store.

Technical Data

EV Charging Modes

Mode 3 Charging

Rated Voltage

AC 240V±10%

Rated Current

Max 32A

AC Power Output Rating Max 7.3 kW

Rated Frequency

50Hz

Over Voltage Category (OVC)

OVC III

Insulation Resistance

R>1MΩ

AC Withstand Voltage

1430V

Impulse Dielectric Withstand Voltage (1,2μs/50μs) (Uimp)

4kV

Protection Against Electric Shock

Class I

Electrical Life (Contactor)

100,000

Electrical Life (Interface)

100,000

Standby Power Consumption

<8W

Ocpp1.6J Protocol
Support Ethernet / WiFi Communication

Type of EV Connection

Case C (Cable Version)

Universal Interface

T1: SAE J1772, T2: IEC/EN 62196-2, GB/T:20234.2-2015

Pollution Degree

PD 3

IP Protection Class

IP54

Altitude During Operation (m)

<2000m

Altitude of Test Laboratory

<50m

Work Humidity

3%~95%

Operation Temperature

-25℃~55℃

Cooling

Natural Air Cooling

Mounting Method

Wall-Mounted / Ground-mounting Pole

Normal Environmental Conditions

Indoor or Outdoor

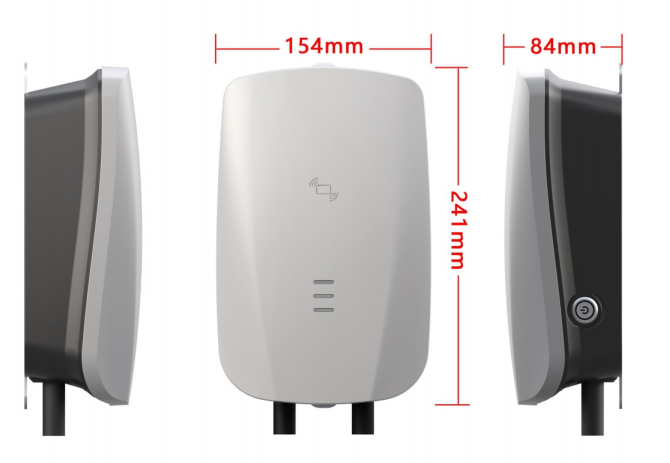

Product Dimension(mm)

241*154*84

Installation Dimension(mm)

245*130
The AC charging station needs an external MCB+type A type RCCB/Type A RCBO to be installed in the upstream distribution box.

Dimensions

Overall Installation Drawing

Product selection form
