ETEC EKEP3-T2-D-16 IEC 62196-2 Type 2 16A 11KW 400V Three Phase AC EV Charging Pile to Vehicle End Plug With 5 Meters Cable
ETEC EKEP3-T2-D-16 IEC 62196-2 Type 2 16A 11KW 400V Three Phase AC EV Charging Pile to Vehicle End Plug With 5 Meters Cable
ETEC EKEP3-T2-D-16 IEC 62196-2 Type 2 16A 11KW 400V Three Phase AC EV Charging Pile to Vehicle End Plug With 5 Meters Cable
ETEC EKEP3-T2-D-16 IEC 62196-2 Type 2 16A 11KW 400V Three Phase AC EV Charging Pile to Vehicle End Plug With 5 Meters Cable

ETEC EKEP3-T2-D-16 Type 2 16A 11KW 400V Three Phase AC EV Charging Pile to Vehicle End Plug With 5 Meters Cable

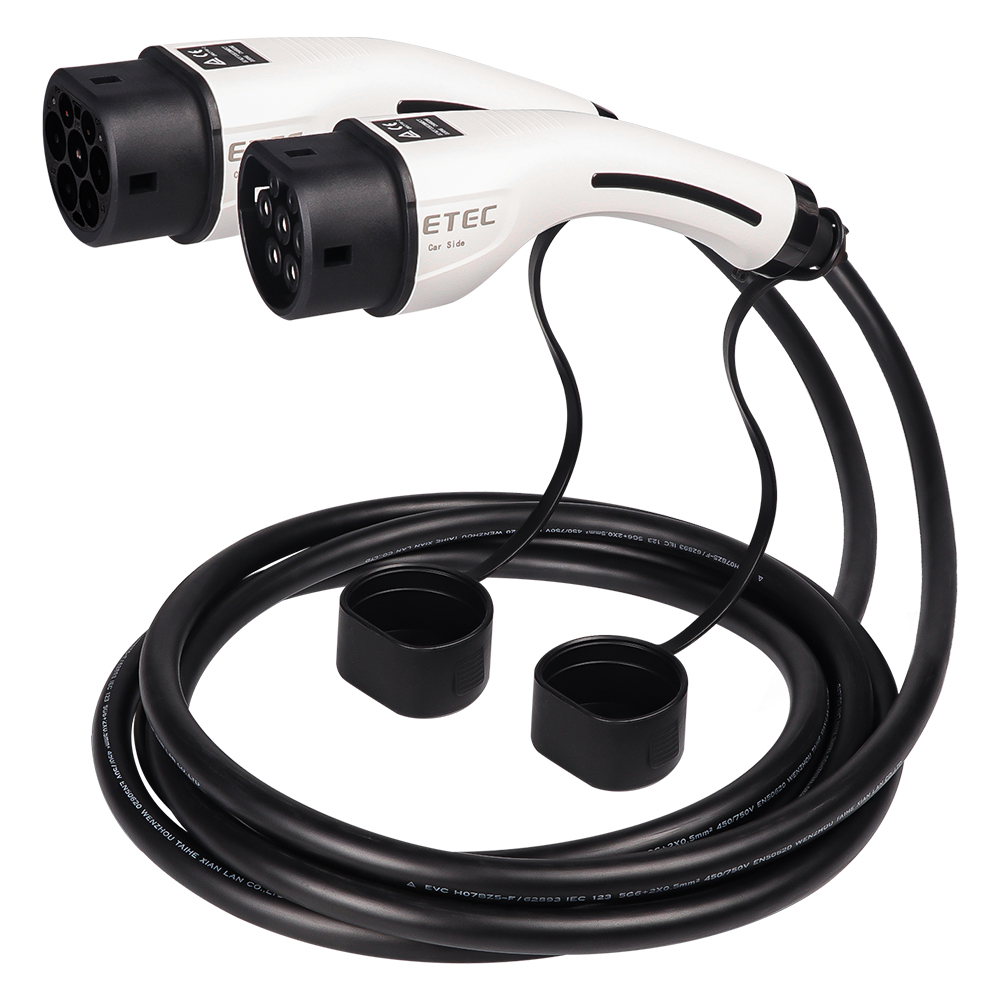

T2-T2 3PH 16A EV Double Charging Plugs with Cable 5*2.5mm²+2*0.5mm² L=5M

Inquire NOW PDF

ETEC EKEP3-T2-D-16 Type 2 16A 11KW 400V Three Phase AC EV Charging Pile to Vehicle End Plug With 5 Meters Cable

Inquire NOW PDF

Product Profile

EV charging cable is the carrier connecting electric vehicle and charging pile. And its basic function is to transmit electric energy. EV Charging cables are generally used in charging stations, parking lots, hotels, communities, garages, and other areas. At present, the safety of electric vehicles has become the focus of the industry. During electric vehicles' charging and discharging process, it is important to pay attention to safety issues because of the long usage time, high current intensity, and high frequency of cables. Based on ensuring good insulation performance, electric vehicle charging cable shall have high heat resistance and aging resistance. At the same time, it shall have good low smoke and flame-retardant characteristics during combustion to minimize loss and injury.

Type 2 AC charging cables double-plug version (Type 2 to Type 2 or Female to Male Extension Cable), which is used for the connection from the charging station end to the electric vehicle end. Product meets the IEC 62196-2 charging connector standards. They are mainly two current options of 16A and 32A, which are divided into single-phase and three-phase version and defaults to a 5m black straight cable.

Technical Data

Type 2 Female to Male Three Phase EV charging cable
Material
Case Material Thermoplastic, Flame Retardant Grade Ul94 V-0
Pin Copper Alloy, Silver + Thermoplastic on the Top
Electrical Performance
Rated Current 16A
Operation Voltage 400V±10%
Insulation Resistance >500MΩ(DC500V)

Conductive Terminal Temperature Rise

≤50K

Withstand Voltage

2500V/min

Contact Resistance

≤0.3Ω

Mechanical Performance
Mechanical Life No-load Plug in / Pull Out>50000 Times
Coupled Insertion Force

45N~80N

Withstanding Impact

Tolerable to 2-ton car rolling or 1m height drop without damage

Environmental Performance
Temperature Range

-40℃-+50℃

Protection Degree IP55
Humidity

<85%

Application
Professional Charging Station Berth
Parking Lots Parking Spaces Residential Parking Lot

Dimensions

Product selection form

Product Profile

EV charging cable is the carrier connecting electric vehicle and charging pile. And its basic function is to transmit electric energy. EV Charging cables are generally used in charging stations, parking lots, hotels, communities, garages, and other areas. At present, the safety of electric vehicles has become the focus of the industry. During electric vehicles' charging and discharging process, it is important to pay attention to safety issues because of the long usage time, high current intensity, and high frequency of cables. Based on ensuring good insulation performance, electric vehicle charging cable shall have high heat resistance and aging resistance. At the same time, it shall have good low smoke and flame-retardant characteristics during combustion to minimize loss and injury.

Type 2 AC charging cables double-plug version (Type 2 to Type 2 or Female to Male Extension Cable), which is used for the connection from the charging station end to the electric vehicle end. Product meets the IEC 62196-2 charging connector standards. They are mainly two current options of 16A and 32A, which are divided into single-phase and three-phase version and defaults to a 5m black straight cable.

Technical Data

Dimensions

Product selection form
