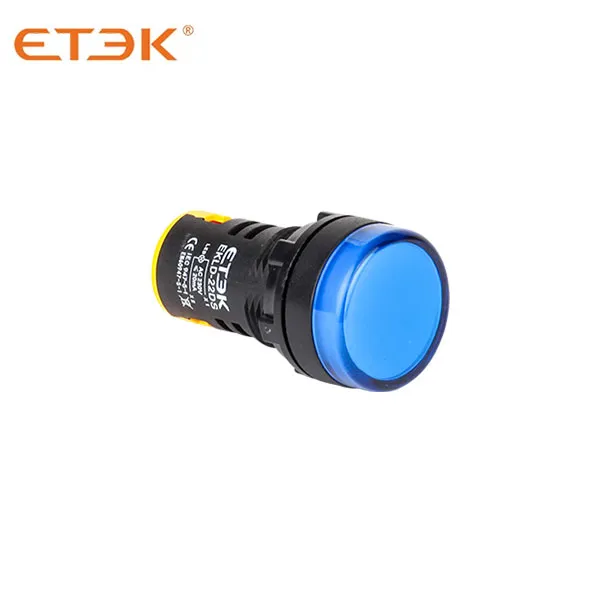

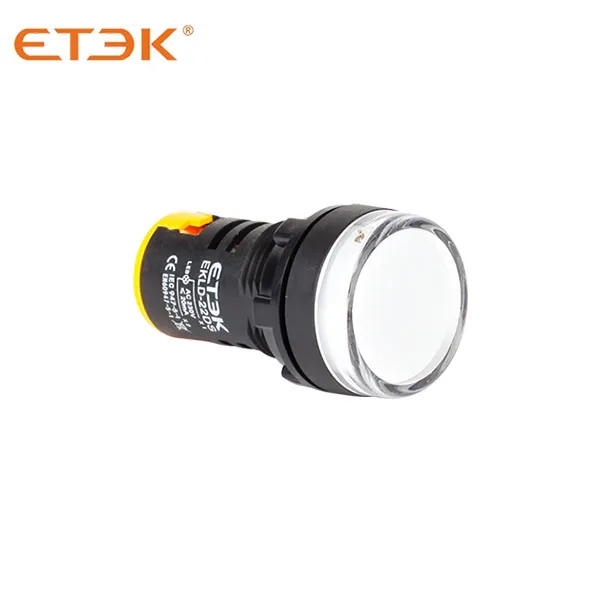

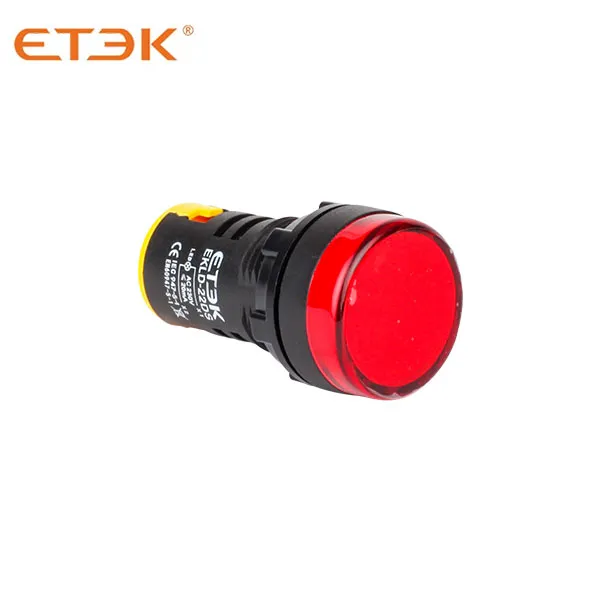

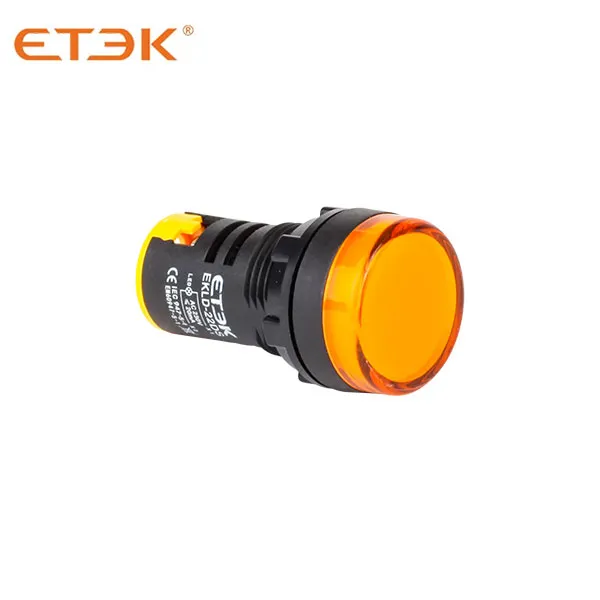

EKLD22 LED Indicator (φ22mm)

EKLD22 LED Indicator (φ22mm)
Technical Data

Application

EKLD22 series indicator light are used in the telecommuni- cation and electrical circuit of AC 50Hz or 60Hz, rated working voltage 380V and below DC working voltage 220V or below for indicator signal, accident signal, fault signal and other indicator signals, they meet with the standard: IEC60947-5-1.

Structure and Function

EKLD22 series indicator lights adopt LED lamp with the characteristic of long life and low energy consumption, its concealed terminal is both safe and creditable. The special locking nut structure makes the installation available in the dimension of EKLD22-22: φ22.5 mm to φ25.5mm,EKLD22-16: φ16.5 mm to φ16.5mm.

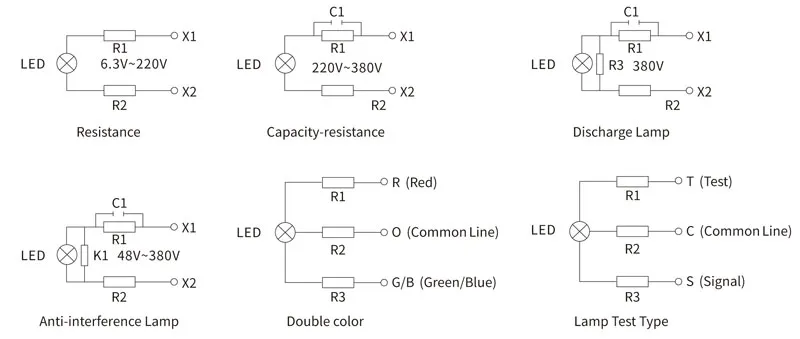

ELECTRIC Schematic Diagram

Man Technical Parameter

Operation temperature: -5℃~+40℃ Power-frequency withstand voltage: 2500V, min
Operation humidity: 45%~85% Installation degree: III
Pollution degree: 3 Degree of protection: IP65
Rated operation voltage (Ue) AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC
6.3V 12V 12V 24V 48V 110V 220V 380V
Rated operation current (Ie)≤80mA ≤20mA

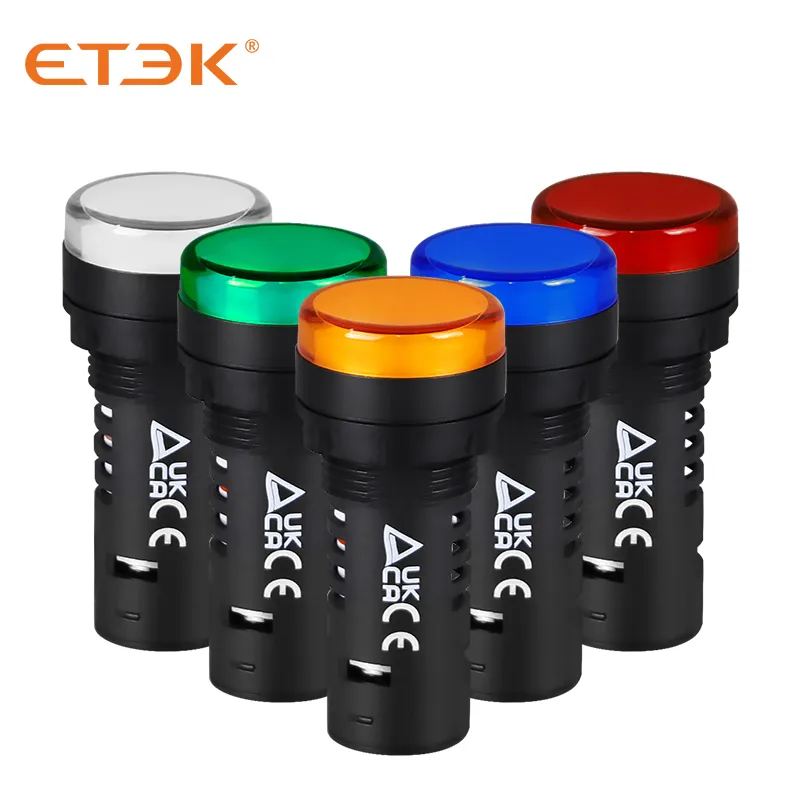

Base colour Green Yellow Red Blue White
Electrical Life(h) ≥3000
Brightness ≥60
