DescriptionA motor protection circuit breaker, or MPCB, is an electromechanical device that performs three important functions upstream of an electric motor: isolation, motor protection against overload and short circuit, control of the motor (on/off).
In the event of overload or short circuits, the MPCB automatically disconnects the circuit. It has internal contacts that connect the power supply line to the load. An internal coil detects the short-circuit currents (high or very high current values), while a heat-sensitive element, welded on the bimetal, detects overcurrent (current values slightly higher than the nominal value) which may damage the motor. In the event of overcurrent, the coil or the bimetal determines the opening of the contacts.
| EK | MS | 2 | 32 | 01 |
| Code of Rated current | Ac motor starter | Design sequence Number | Frame size rated current(A) | Code of rated current |
| Electric value | AC690V, 32A, 80A |
| Standard | IEC/EN 60947-2, IEC60947-4-1 |
| Temperature: | -5℃~+40℃, average temperature in 24 hours not exceed +35℃ |
| Altitude | does not exceed 2000m |
| Air conditions | at mounting site, relative humidity not exceed 50% at the max temperature of +40℃, higher relative humidity is allowable under lower temperature, for example, RH could be 90% at +20℃ |
| Release grade | Grade Ⅲ |
| 10A(EKMS2-32) 10A(EKMS2-80) | |
| Rated operational system | Continuous operational system |
| Mounting conditions | The inclination between the mounting plane and the vertical plane shall not exceed 5° |
| The product shall be installed and operated at a place without obvious shake, Impact and vibration |
| Overload Protection Properties | ||||||
| Series No. | Multiple of setting current | Initial status | Time | Expected results | Ambient temperature | |
| 1 | 1.05 | Cold status | t≥2h | non-tripping | +20℃±2℃ | |
| 2 | 1.2 | Heat status (right after test.1) | t＜2min | Tripping | +20℃±2℃ | |
| 3 | 1.5 | Heat status (right after test.1) | Tripping class | 10A t＜2min | Tripping | +20℃±2℃ |
| 10 t＜4min | ||||||
| 4 | 7.2 | Cold status | Tripping class | 10A 2s＜t≤10s | Tripping | +20℃±2℃ |
| 10 4s＜t≤10s | ||||||
| Phase failure protection properties | ||||||
| Series No. | Multiple of setting current | Initial status | Time | Expected results | Ambient temperature | |
| Any 2 phase | the other phase | |||||
| 1 | 1 | 0.9 | Cold status | t≥2h | non-tripping | +20℃±2℃ |
| 2 | 1.15 | 0 | Heat status (right after test.1) | t＜2h | Tripping | +20℃±2℃ |
| Temperature compensation properties | |||||
| Series No. | Multiple of setting current | Initial status | Time | Expected results | Ambient temperature |
| 1 | 1 | Cold status | t≥2h | non-tripping | +40℃±2℃ |
| 2 | 1.2 | Heat status (right after test.1) | t＜2min | Tripping | +40℃±2℃ |
| 3 | 1.05 | Cold status | t≥2h | non-tripping | -5℃±2℃ |
| 4 | 1.3 | Heat status (right after test.1) | t＜2min | Tripping | -5℃±2℃ |
| Model of overload relay | Code | Rated current(A) | Rated ultimate short-circuit breaking capacity lcu(kA) | Rated service short-circuit breaking capacity lcs(kA) | Standard rated power of three-phase motor (kW) | ||||||
| 230/ 240V |
400/ 415V |
660/ 690V |
230/ 240V |
400/ 415V |
660/ 690V |
230/ 240V |
400/ 415V |
660/ 690V |
|||
| EKMS2 -32 |
3201 | 0.1~0.16 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - |
| 3202 | 0.16~0.25 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - | |
| 3203 | 0.25~0.4 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | - | |
| 3204 | 0.4~0.63 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 0.37 | |
| 3205 | 0.63~1 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 0.55 | |
| 3206 | 1~1.6 | 100 | 100 | 100 | 100 | 100 | 100 | - | - | 1.1 | |
| 3207 | 1.6~2.5 | 100 | 100 | 3 | 100 | 100 | 2.25 | 0.37 | 0.75 | 1.5 | |
| 3208 | 2.5~4 | 100 | 100 | 3 | 100 | 100 | 2.25 | 0.75 | 1.5 | 3 | |
| 3210 | 4~6.3 | 100 | 100 | 3 | 100 | 100 | 2.25 | 1.1 | 2.2 | 4 | |
| 3214 | 6~10 | 100 | 100 | 3 | 100 | 100 | 2.25 | 2.2 | 4 | 7.5 | |
| 3216 | 9~14 | 100 | 15 | 3 | 100 | 7.5 | 2.25 | 3 | 5.5 | 9 | |
| 3220 | 13~18 | 100 | 15 | 3 | 100 | 7.5 | 2.25 | 4 | 9 | 11 | |
| 3221 | 17~23 | 50 | 15 | 3 | 50 | 6 | 2.25 | 5.5 | 11 | 15 | |
| 3222 | 20~25 | 50 | 15 | 3 | 50 | 6 | 2.25 | 5.5 | 11 | 18.5 | |
| 3232 | 24~32 | 50 | 15 | 3 | 50 | 6 | 2.25 | 7.5 | 12.5 | 22 | |
| EKMS2 -80 |
8025 | 16~25 | - | 15 | - | - | 7.5 | - | 5.5 | 11 | - |
| 8040 | 25~40 | - | 15 | - | - | 7.5 | - | 11 | 22 | - | |
| 8063 | 40~63 | - | 15 | - | - | 7.5 | - | 15 | 33 | - | |
| 8080 | 56~80 | - | 15 | - | - | 7.5 | - | 22 | 45 | - | |
| Under-Voltage Release | ||||
  |
Rated insulation voltage Ui(V) | Voltage range of operation | Model | Specification |
| 690 | 35%~70%Ue | EKMS2-UV110 | 110~115V 50Hz | |
| 690 | 35%~70%Ue | EKMS2-UV127 | 127V 60Hz | |
| 690 | 35%~70%Ue | EKMS2-UV220 | 220~240V 50Hz | |
| 690 | 35%~70%Ue | EKMS2-UV380 | 380~400V 50Hz | |
| 690 | 35%~70%Ue | EKMS2-UV440 | 440V 60Hz | |
| Shunt Release | ||||
  |
Rated insulation voltage Ui(V) | Voltage range of operation | Model | Specification |
| 690 | 70%~110%Ue | EKMS2-SH110 | 110~115V 50Hz | |
| 690 | 70%~110%Ue | EKMS2-SH127 | 127V 60Hz | |
| 690 | 70%~110%Ue | EKMS2-SH220 | 220~240V 50Hz | |
| 690 | 70%~110%Ue | EKMS2-SH380 | 380~400V 50Hz | |
| 690 | 70%~110%Ue | EKMS2-SH440 | 440V 60Hz | |
| Instantaneous auxiliary contact | ||||
  |
Rated insulation voltage Ui(V) | Conventional heating current Ith(A) | Model | Configuration |
| 250 | 2.5 | EKMS2-AE20 | 2N/O | |
| 250 | 2.5 | EKMS2-AE11 | 1N/O+1N/C | |
  |
Rated insulation voltage Ui(V) | Conventional heating current Ith(A) | Model | Configuration | Starter matched |
| 690 | 6 | EKMS2-AN20 | 2N/O | EKMS2-32 | |
| 690 | 6 | EKMS2-AN11 | 1N/O+1N/C | ||
| 690 | 6 | EKMS2-AU20 | 2N/O | EKMS2-80 | |
| 690 | 6 | EKMS2-AU11 | 1N/O+1N/C |
| Fault signal contact and instantaneous auxiliary contact | |||||
  |
Rated insulation voltage Ui(V) | Conventional heating current Ith(A) | Model | Configuration | |
| Instantaneous auxiliary contact | Fault signal contact | ||||
| 690 | 6 | 2.5 | EKMS2-FA0110 | 1N/C+1N/O | |
| 690 | 6 | 2.5 | EKMS2-FA0101 | 1N/C+1N/C | |
| 690 | 6 | 2.5 | EKMS2-FA1010 | 1N/O+1N/O | |
| 690 | 6 | 2.5 | EKMS2-FA1001 | 1N/O+1N/C | |
| Application class, rated operational voltage and tatted operational current of instantaneous auxiliary contact | |||||||
| Utilization category | AC-15 | DC-13 | |||||
| Rated operational voltage Ue(V) | 24 | 48 | 110/127 | 230/240 | 24 | 48 | 60 |
| Rated operational current Ie(A) | 2 | 1.25 | 1 | 0.5 | 1 | 0.3 | 0.15 |
| Normal operational power P(W) | 48 | 60 | 127 | 120 | 24 | 15 | 9 |
  |

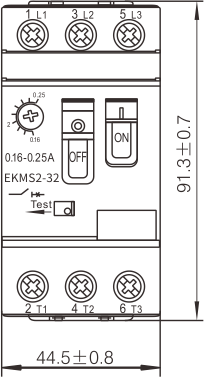

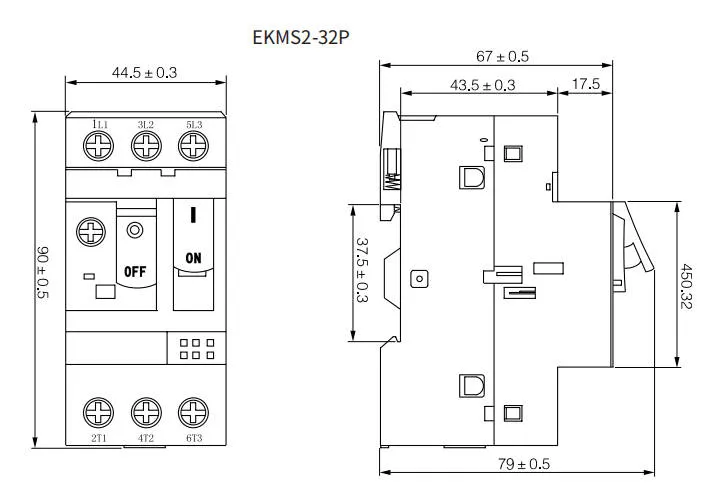

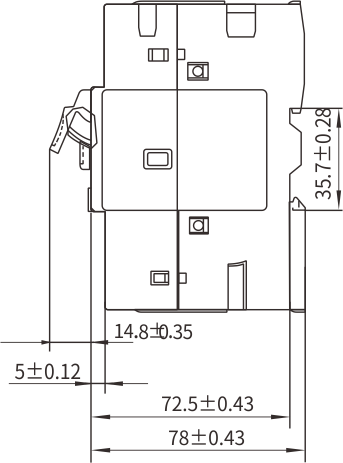

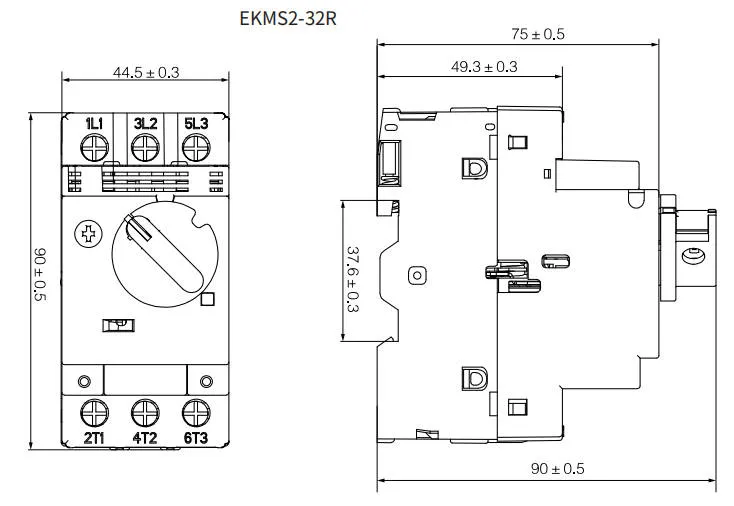

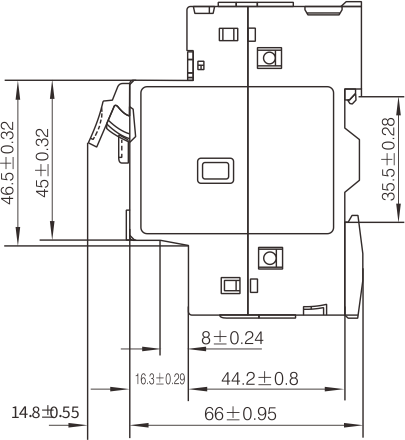

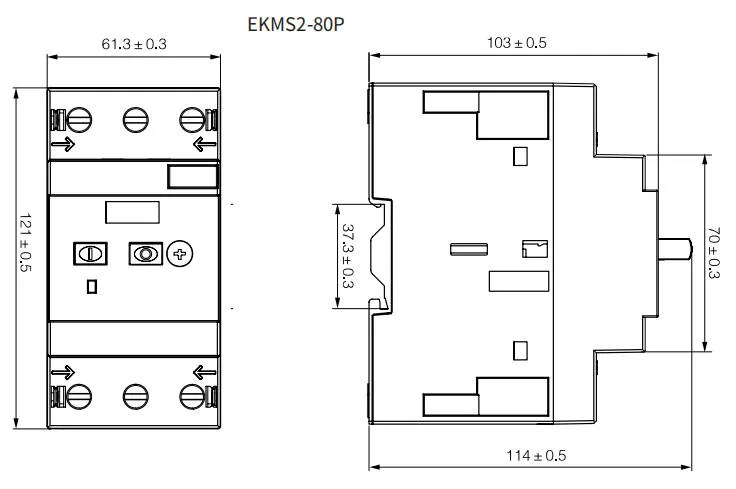

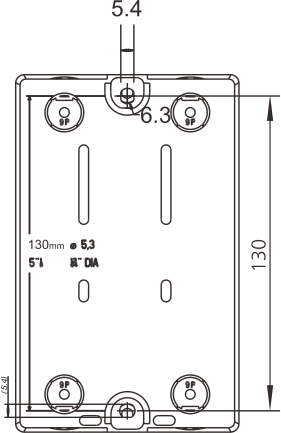

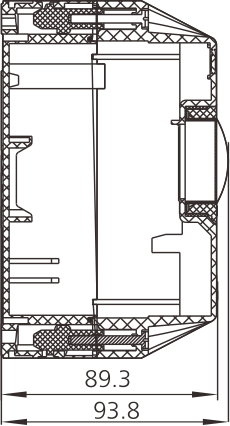

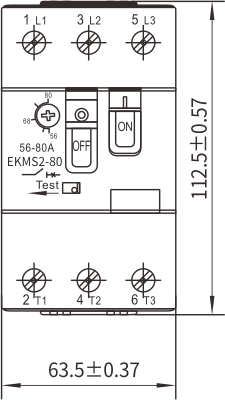

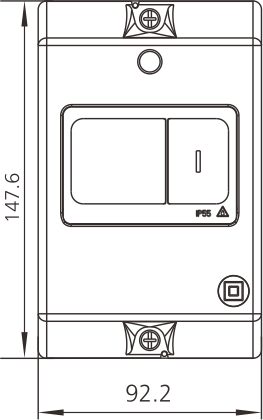

EKMS2-MC Installation box without pushbutton | IP55 |
| EKMS2-MC |  |
 |
 |
 |
| EKMS2-32 |  |
 |
||
| EKMS2-80 |  |
 |
||
| Reference No. | Specification |
| Motor Circuit Breaker | |
| EKMS2-3201P | MPCB Push Operation type 400/415V 0.1-0.16A |
| EKMS2-3202P | MPCB Push Operation type 400/415V 0.16-0.25A |
| EKMS2-3203P | MPCB Push Operation type 400/415V 0.25-0.4A |
| EKMS2-3204P | MPCB Push Operation type 400/415V 0.4-0.63A |
| EKMS2-3205P | MPCB Push Operation type 400/415V 0.63-1A |
| EKMS2-3206P | MPCB Push Operation type 400/415V 1-1.6A |
| EKMS2-3207P | MPCB Push Operation type 400/415V 1.6-2.5A |
| EKMS2-3208P | MPCB Push Operation type 400/415V 2.5-4A |
| EKMS2-3210P | MPCB Push Operation type 400/415V 4-6.3A |
| EKMS2-3214P | MPCB Push Operation type 400/415V 6-10A |
| EKMS2-3216P | MPCB Push Operation type 400/415V 9-14A |
| EKMS2-3220P | MPCB Push Operation type 400/415V 13-18A |
| EKMS2-3221P | MPCB Push Operation type 400/415V 17-23A |
| EKMS2-3222P | MPCB Push Operation type 400/415V 20-25A |
| EKMS2-3232P | MPCB Push Operation type 400/415V 24-32A |

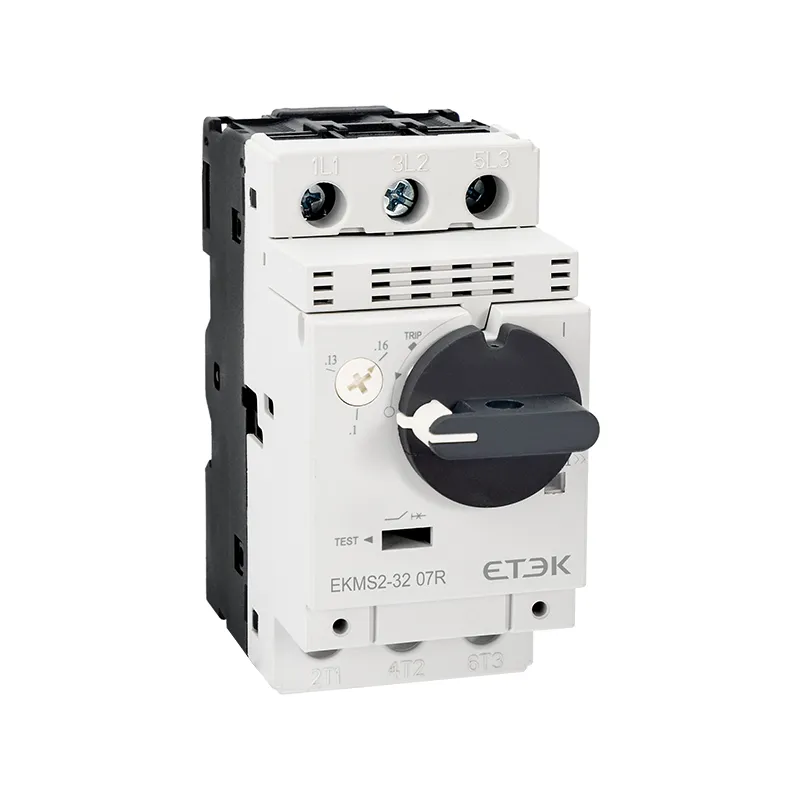

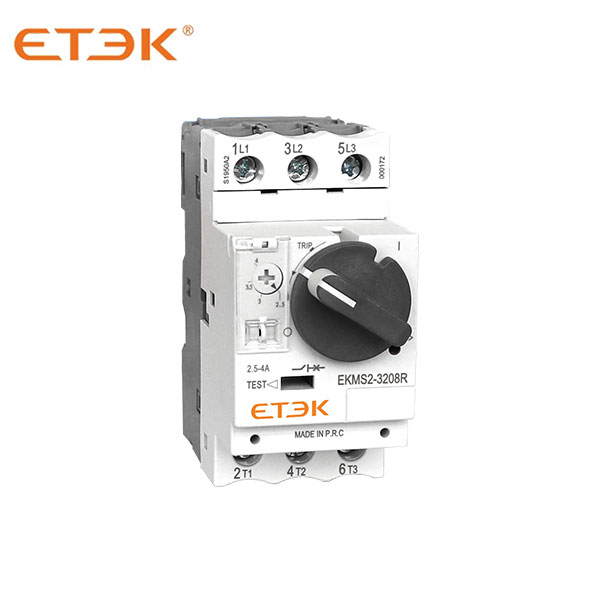

| EKMS2-3201R | MPCB Rotary Operation type 400/415V 0.1-0.16A |
| EKMS2-3202R | MPCB Rotary Operation type 400/415V 0.16-0.25A |
| EKMS2-3203R | MPCB Rotary Operation type 400/415V 0.25-0.4A |
| EKMS2-3204R | MPCB Rotary Operation type 400/415V 0.4-0.63A |
| EKMS2-3205R | MPCB Rotary Operation type 400/415V 0.63-1A |
| EKMS2-3206R | MPCB Rotary Operation type 400/415V 1-1.6A |
| EKMS2-3207R | MPCB Rotary Operation type 400/415V 1.6-2.5A |
| EKMS2-3208R | MPCB Rotary Operation type 400/415V 2.5-4A |
| EKMS2-3210R | MPCB Rotary Operation type 400/415V 4-6.3A |
| EKMS2-3214R | MPCB Rotary Operation type 400/415V 6-10A |
| EKMS2-3216R | MPCB Rotary Operation type 400/415V 9-14A |
| EKMS2-3220R | MPCB Rotary Operation type 400/415V 13-18A |
| EKMS2-3221R | MPCB Rotary Operation type 400/415V 17-23A |
| EKMS2-3222R | MPCB Rotary Operation type 400/415V 20-25A |
| EKMS2-3232R | MPCB Rotary Operation type 400/415V 24-32A |

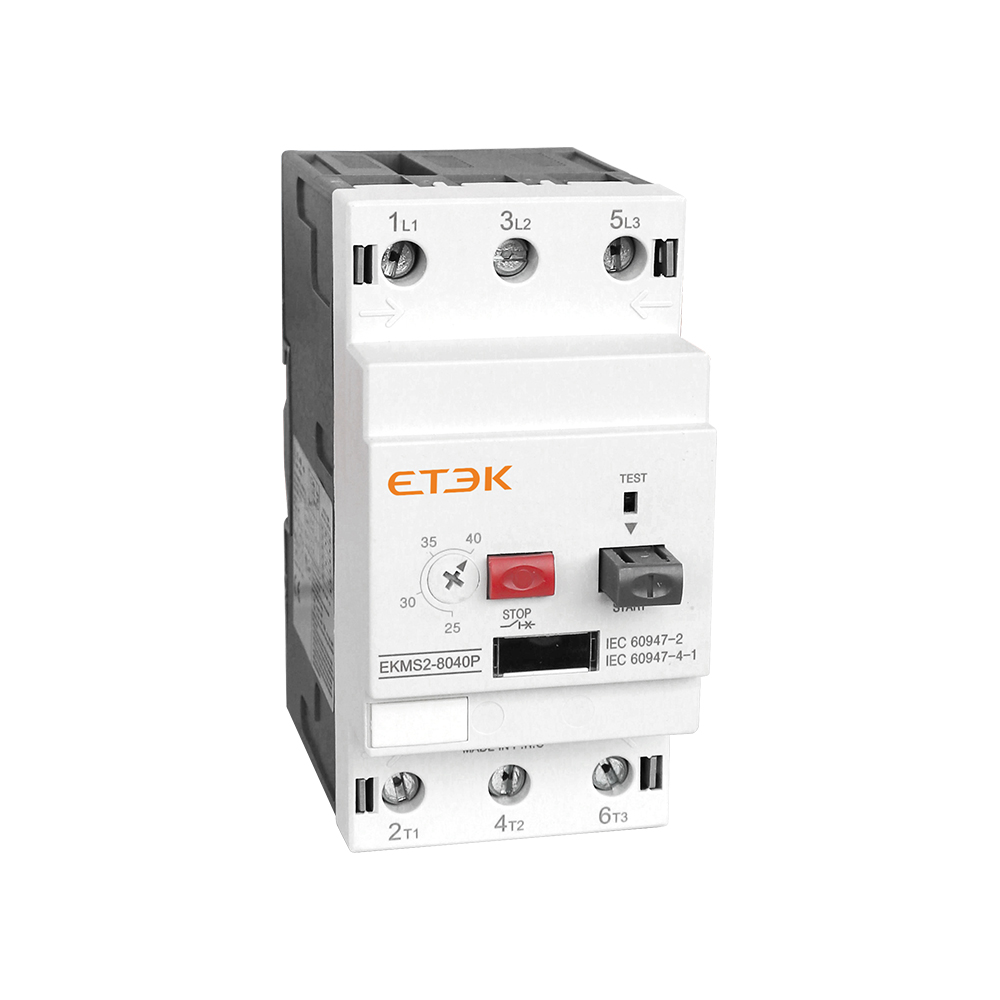

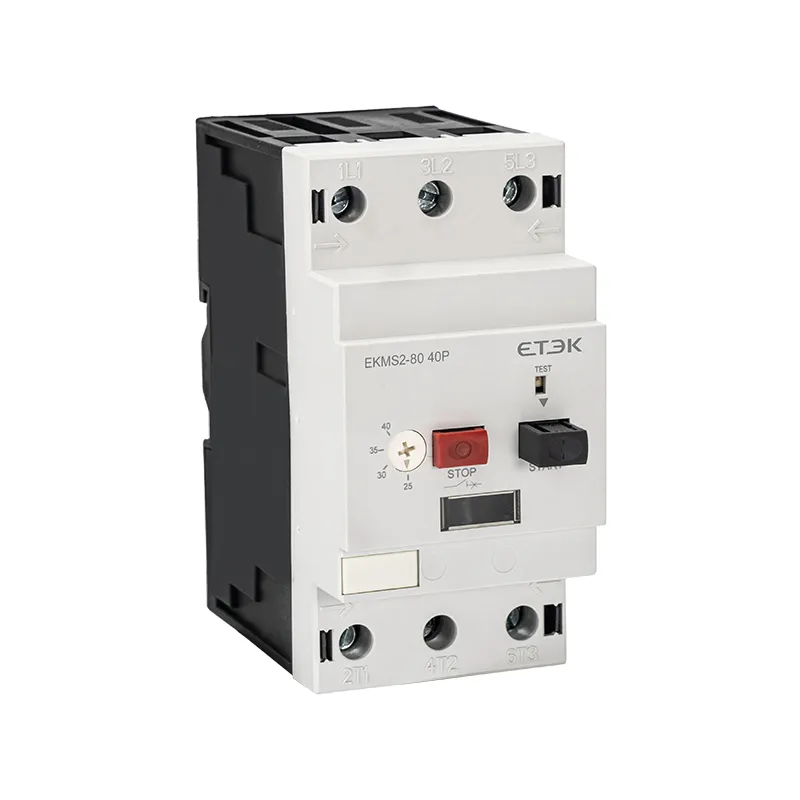

| EKMS2-8025P | MPCB Push Operation type 400/415V 16-25A |
| EKMS2-8040P | MPCB Push Operation type 400/415V 25-40A |
| EKMS2-8063P | MPCB Push Operation type 400/415V 40-63A |
| EKMS2-8080P | MPCB Push Operation type 400/415V 56-80A |
| Accessory | |
| EKMS2-UV110 | MPCB Under-voltage Release 110VAC |
| EKMS2-UV127 | MPCB Under-voltage Release 127VAC |
| EKMS2-UV220 | MPCB Under-voltage Release 220VAC |
| EKMS2-UV380 | MPCB Under-voltage Release 380VAC |
| EKMS2-UV415 | MPCB Under-voltage Release 415VAC |
| EKMS2-UV440 | MPCB Under-voltage Release 440VAC |
| EKMS2-SH110 | MPCB Shunt Release 110VAC |
| EKMS2-SH127 | MPCB Shunt Release 127VAC |
| EKMS2-SH220 | MPCB Shunt Release 220VAC |
| EKMS2-SH380 | MPCB Shunt Release 380VAC |
| EKMS2-SH415 | MPCB Shunt Release 415VAC |
| EKMS2-SH440 | MPCB Shunt Release 440VAC |
| EKMS2-AE20 | MPCB EKMS2-32 Auxiliary Contact top Mount 2NO |
| EKMS2-AE11 | MPCB EKMS2-32 Auxiliary Contact top Mount 1NO+1NC |
| EKMS2-AN20 | MPCB EKMS2-32 Auxiliary Contact side Mount 2NO |
| EKMS2-AN11 | MPCB EKMS2-32 Auxiliary Contact side Mount 1NO+1NC |
| EKMS2-AU20 | MPCB EKMS2-80 Auxiliary Contact side Mount 2NO |
| EKMS2-AU11 | MPCB EKMS2-80 Auxiliary Contact side Mount 1NO+1NC |
| EKMS2-FA0110 | MPCB EKMS2-32 Fault Signal Auxiliary Contact 1NC+1NO |
| EKMS2-FA0110 | MPCB EKMS2-32 Fault Signal Auxiliary Contact 1NC+1NC |
| EKMS2-FA1010 | MPCB EKMS2-32 Fault Signal Auxiliary Contact 1NO+1NO |
| EKMS2-FA1001 | MPCB EKMS2-32 Fault Signal Auxiliary Contact 1NO+1NC |
| EKMS2-MC | MPCB EKMS2-32 Empty Box IP55 without Pushbutton |
