● Standard: IEC60947-3
● Rated current: 25~125A
● Rated voltage: 230/400V~240/415V
● Number of poles: 1P,2P,3P,4P
● Utilization category: AC-22A
● Degree of protection: IP20(Normal installed)
● Connection: From top and bottom
● Certificates: CB, CE

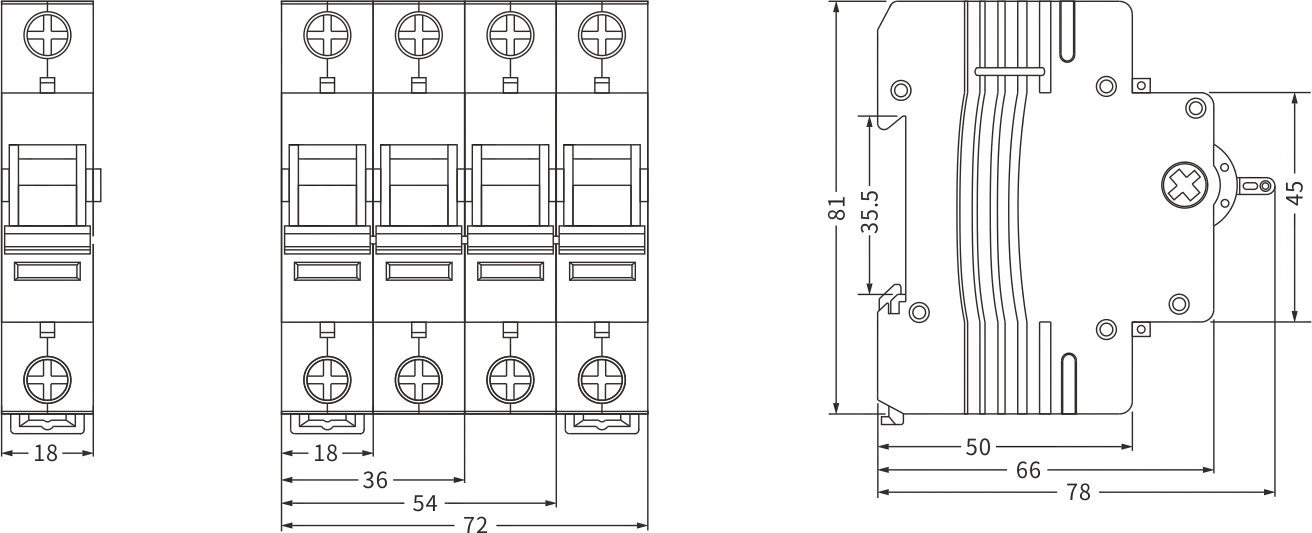

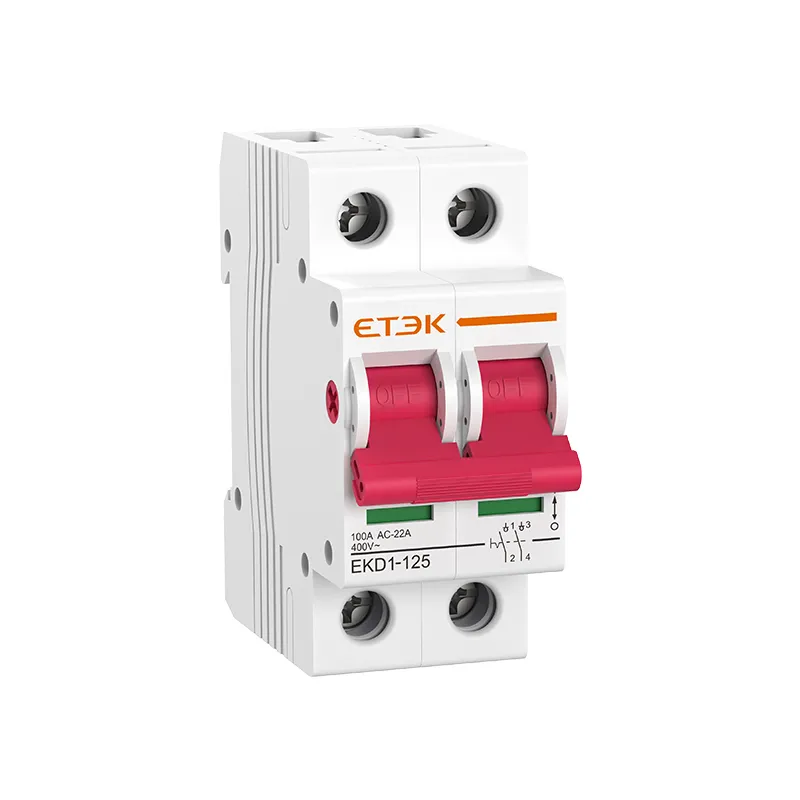

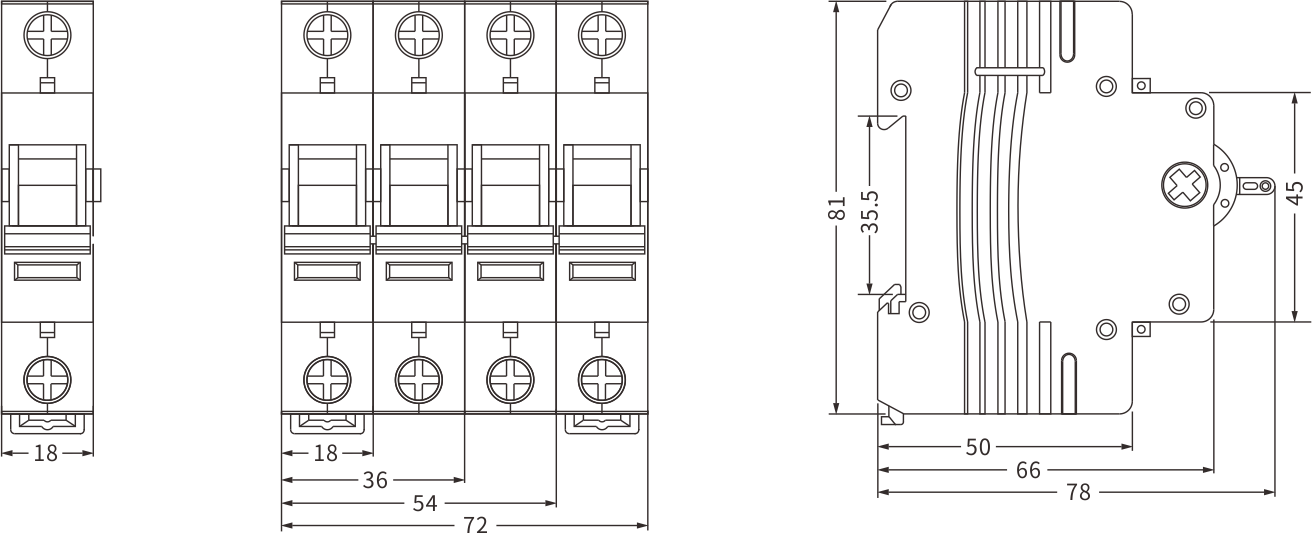

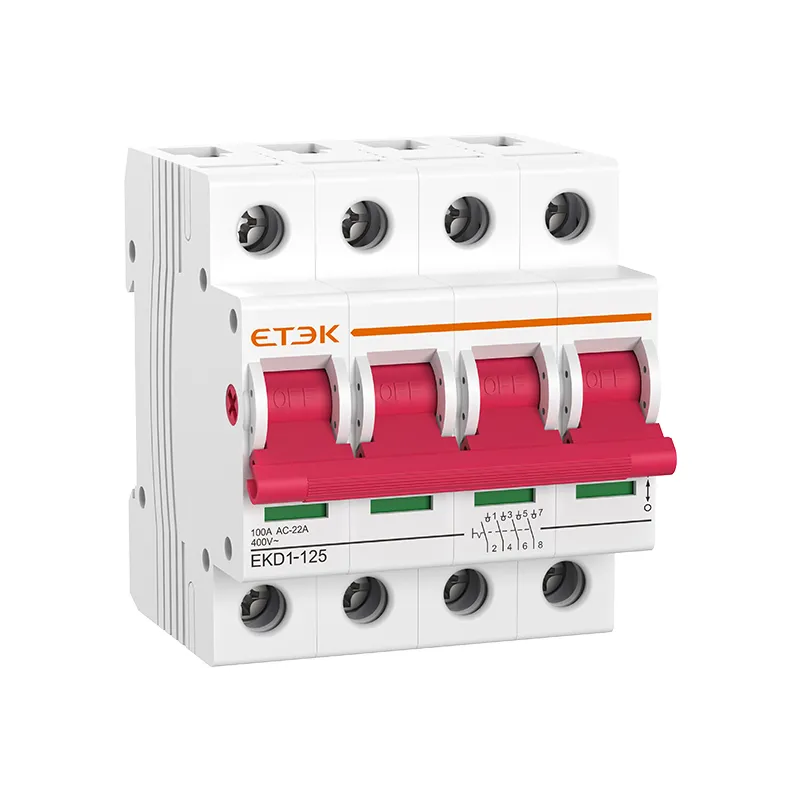

EKD1-125 Isolation Switch is suitable for AC 50Hz or 60Hz, rated current 125A, rated working voltage 230V and 400V or below in the power distribution; It is mainly used as the main switch of terminal electrical appliances and also control various types of electric motors, small power appliances and lighting places; Its mechanical life is 10,000 times, of which the electrical life is 4,000 times.
Standard | IEC/EN60947-3 |
Rated Current In | 25,32,40,50,63,80,100,125A |
Poles | 1P,2P,3P,4P |
Rated voltage Ue | 240/415V |
Rated frequency | 50/60Hz |
Utilization category | AC-22A |
Short-time withstand current Icw | 12Ie, t=1s |
Rated short circuit making capacity Icm | 20le, t=0.1s |
Rated making and breaking capacity | 3Ie,1.05Ue, cosφ=0.65 |
Rated impulse withstand voltage (1.2/50) Uimp | 4,000V |
Dielectric test voltage at ind.Freq. for 1min | 2kV |
Rated insulation voltage Ui | 690V |
Electrical life | 2,000 Cycles |
Mechanical life | 10,000 Cycles |
Contact position indicator | Yes |
Protection degree | IP20 |
Ambient temperature (with daily average≤35℃) | -5℃~+40℃, Max.95%humidity |
Terminal connection type | Cable/Pin-type busbar/Fork-type busbar |
Max. terminal size for cable | 50mm2 |
Max. Tightening torque | 3.5Nm |
Installation | Mounting on 35mmDIN rail |
Connection | From top and bottom |
EKD1-125 Isolation Switch is suitable for AC 50Hz or 60Hz, rated current 125A, rated working voltage 230V and 400V or below in the power distribution; It is mainly used as the main switch of terminal electrical appliances and also control various types of electric motors, small power appliances and lighting places; Its mechanical life is 10,000 times, of which the electrical life is 4,000 times.
