EKM2-125H MCB 10kA High Current Miniature Circuit Breaker
Inquire
● Standard: IEC60898-1
● Type of trip: Thermo-magnetic
● Rated current: 1~63A
● Rated voltage: 230/400V~240/415V
● Number of poles: 1P,2P,3P,4P,1P+N,3P+N
● Rated short-circuit breaking capacity: 4.5kA
● Tripping curve: B, C, D
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CB, CE

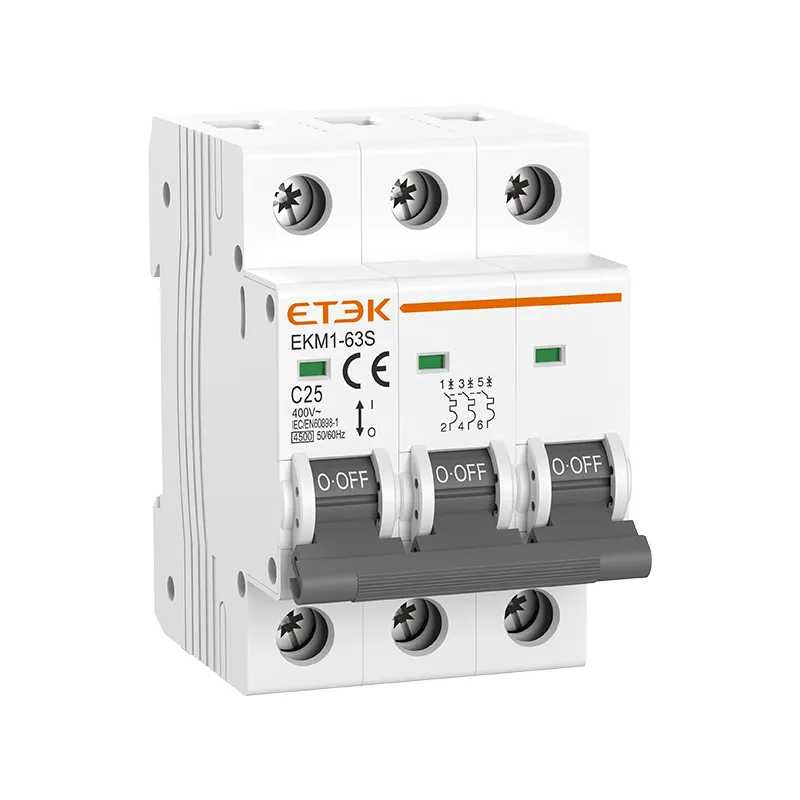

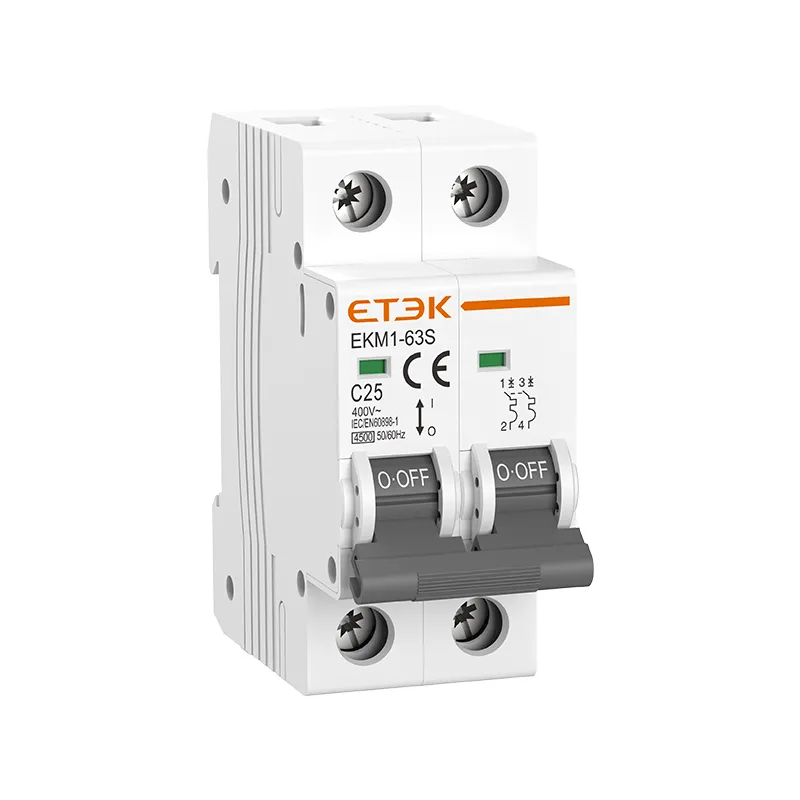

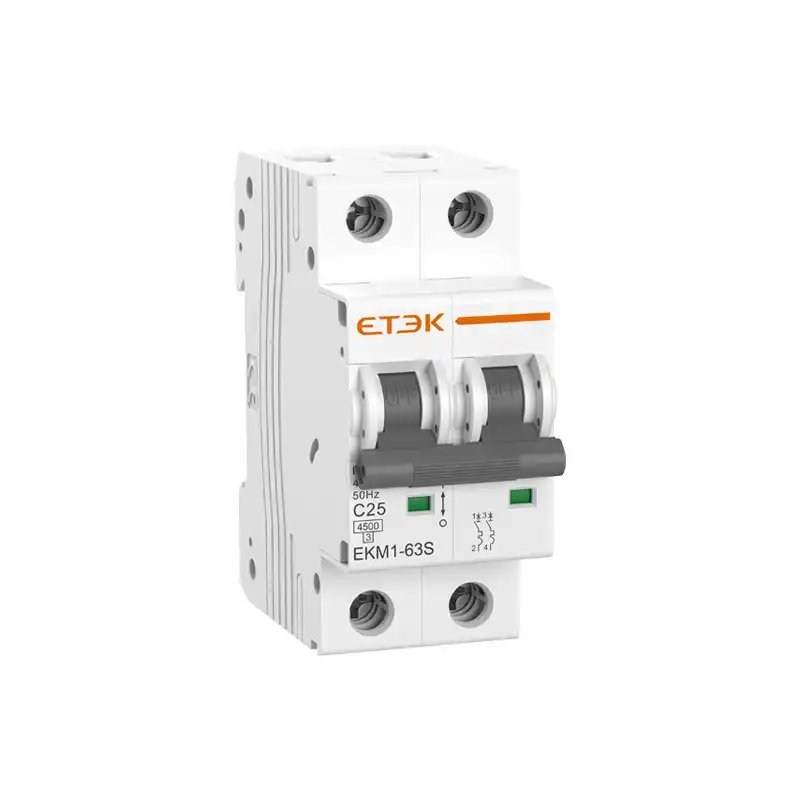

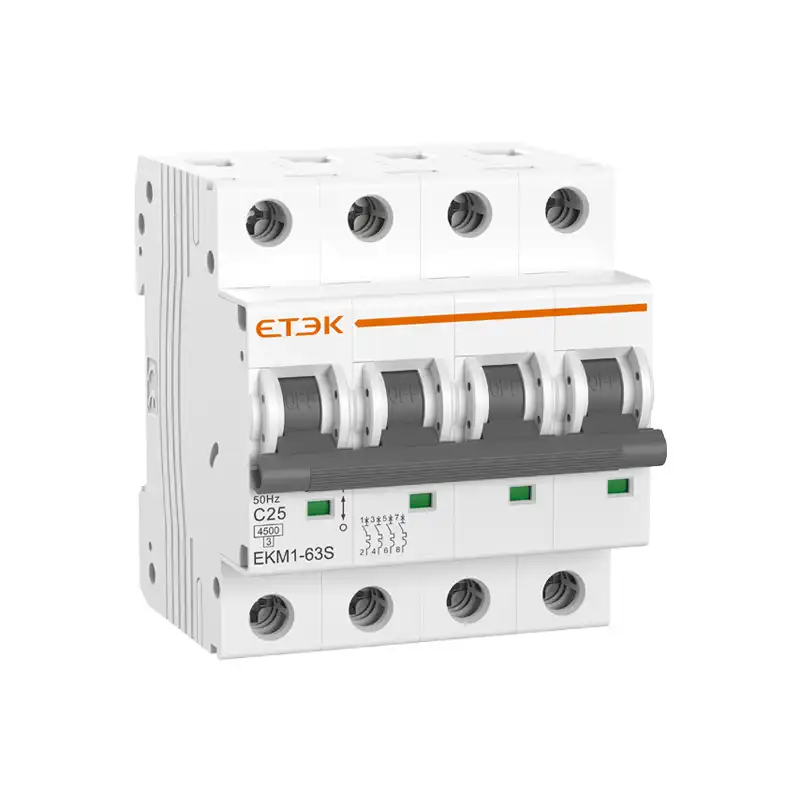

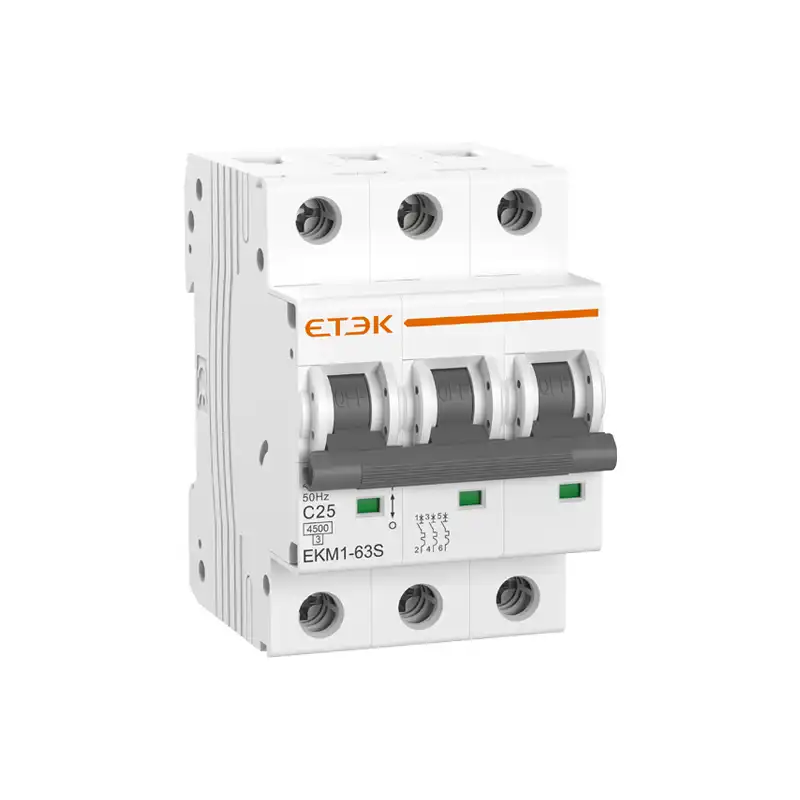

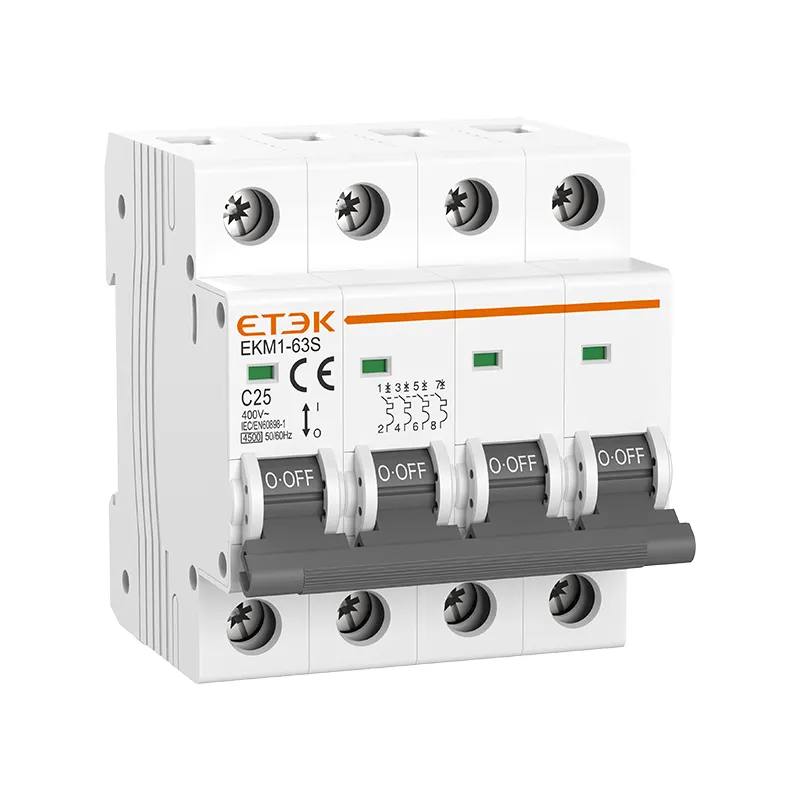

EKM1-63S Circuit Breaker has the characteristics of advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is mainly used for AC 50Hz or 60Hz, rated voltage 400V or below and rated working current 63A or below. It is used for overload and short-circuit protection of lighting, distribution lines, equipment in office buildings, residential buildings and etc.

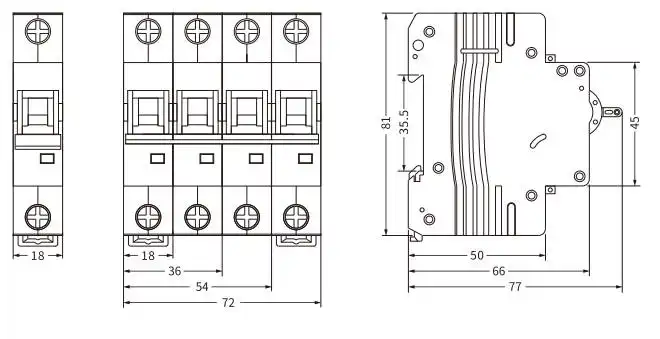

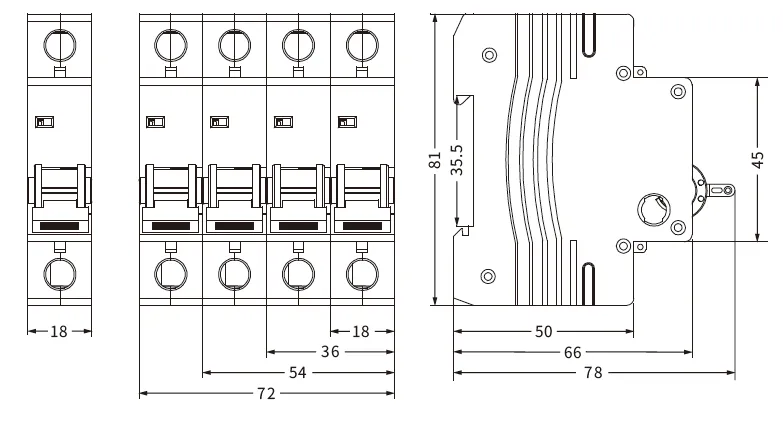

| Standard | IEC/EN60898-1 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |
| Rated Current In | 1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Poles | 1P, 1P+N, 2P, 3P,3P+N, 4P |
| Rated voltage Ue | 240/415V~ |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 4,500A |
| Rated impulse withstand voltage (1.2/50) Uimp | 4,000V |
| Dielectric test voltage at ind. Freq. for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In, D:(10-20) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature (with daily average≤35℃) | -5℃~+40℃, Max. 95%humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 25mm2 |
| Max. tightening torque | 2.5N.m |
| Installation | Mounting on 35mm Din rail |
| Connection | From top and bottom |
| EKM1-63S 4.5KA MCB Breaker | ||||
| Poles | Current(A) | B Curve | C Curve | D Curve |
| 1P | 1 | EKM1-63S-1B01 | EKM1-63S-1C01 | EKM1-63S-1D01 |
| 2 | EKM1-63S-1B02 | EKM1-63S-1C02 | EKM1-63S-1D02 | |
| 3 | EKM1-63S-1B03 | EKM1-63S-1C03 | EKM1-63S-1D03 | |
| 4 | EKM1-63S-1B04 | EKM1-63S-1C04 | EKM1-63S-1D04 | |
| 5 | EKM1-63S-1B05 | EKM1-63S-1C05 | EKM1-63S-1D05 | |
| 6 | EKM1-63S-1B06 | EKM1-63S-1C06 | EKM1-63S-1D06 | |
| 10 | EKM1-63S-1B10 | EKM1-63S-1C10 | EKM1-63S-1D10 | |
| 16 | EKM1-63S-1B16 | EKM1-63S-1C16 | EKM1-63S-1D16 | |
| 20 | EKM1-63S-1B20 | EKM1-63S-1C20 | EKM1-63S-1D20 | |
| 25 | EKM1-63S-1B25 | EKM1-63S-1C25 | EKM1-63S-1D25 | |
| 32 | EKM1-63S-1B32 | EKM1-63S-1C32 | EKM1-63S-1D32 | |
| 40 | EKM1-63S-1B40 | EKM1-63S-1C40 | EKM1-63S-1D40 | |
| 50 | EKM1-63S-1B50 | EKM1-63S-1C50 | EKM1-63S-1D50 | |
| 63 | EKM1-63S-1B63 | EKM1-63S-1C63 | EKM1-63S-1D63 | |
| 2P | 1 | EKM1-63S-2B01 | EKM1-63S-2C01 | EKM1-63S-2D01 |
| 2 | EKM1-63S-2B02 | EKM1-63S-2C02 | EKM1-63S-2D02 | |
| 3 | EKM1-63S-2B03 | EKM1-63S-2C03 | EKM1-63S-2D03 | |
| 4 | EKM1-63S-2B04 | EKM1-63S-2C04 | EKM1-63S-2D04 | |
| 5 | EKM1-63S-2B05 | EKM1-63S-2C05 | EKM1-63S-2D05 | |
| 6 | EKM1-63S-2B06 | EKM1-63S-2C06 | EKM1-63S-2D06 | |
| 10 | EKM1-63S-2B10 | EKM1-63S-2C10 | EKM1-63S-2D10 | |
| 16 | EKM1-63S-2B16 | EKM1-63S-2C16 | EKM1-63S-2D16 | |
| 20 | EKM1-63S-2B20 | EKM1-63S-2C20 | EKM1-63S-2D20 | |
| 25 | EKM1-63S-2B25 | EKM1-63S-2C25 | EKM1-63S-2D25 | |
| 32 | EKM1-63S-2B32 | EKM1-63S-2C32 | EKM1-63S-2D32 | |
| 40 | EKM1-63S-2B40 | EKM1-63S-2C40 | EKM1-63S-2D40 | |
| 50 | EKM1-63S-2B50 | EKM1-63S-2C50 | EKM1-63S-2D50 | |
| 63 | EKM1-63S-2B63 | EKM1-63S-2C63 | EKM1-63S-2D63 | |
| 3P | 1 | EKM1-63S-3B01 | EKM1-63S-3C01 | EKM1-63S-3D01 |
| 2 | EKM1-63S-3B02 | EKM1-63S-3C02 | EKM1-63S-3D02 | |
| 3 | EKM1-63S-3B03 | EKM1-63S-3C03 | EKM1-63S-3D03 | |
| 4 | EKM1-63S-3B04 | EKM1-63S-3C04 | EKM1-63S-3D04 | |
| 5 | EKM1-63S-3B05 | EKM1-63S-3C05 | EKM1-63S-3D05 | |
| 6 | EKM1-63S-3B06 | EKM1-63S-3C06 | EKM1-63S-3D06 | |
| 10 | EKM1-63S-3B10 | EKM1-63S-3C10 | EKM1-63S-3D10 | |
| 16 | EKM1-63S-3B16 | EKM1-63S-3C16 | EKM1-63S-3D16 | |
| 20 | EKM1-63S-3B20 | EKM1-63S-3C20 | EKM1-63S-3D20 | |
| 25 | EKM1-63S-3B25 | EKM1-63S-3C25 | EKM1-63S-3D25 | |
| 32 | EKM1-63S-3B32 | EKM1-63S-3C32 | EKM1-63S-3D32 | |
| 40 | EKM1-63S-3B40 | EKM1-63S-3C40 | EKM1-63S-3D40 | |
| 50 | EKM1-63S-3B50 | EKM1-63S-3C50 | EKM1-63S-3D50 | |
| 63 | EKM1-63S-3B63 | EKM1-63S-3C63 | EKM1-63S-3D63 | |
| 4P | 1 | EKM1-63S-4B01 | EKM1-63S-4C01 | EKM1-63S-4D01 |
| 2 | EKM1-63S-4B02 | EKM1-63S-4C02 | EKM1-63S-4D02 | |
| 3 | EKM1-63S-4B03 | EKM1-63S-4C03 | EKM1-63S-4D03 | |
| 4 | EKM1-63S-4B04 | EKM1-63S-4C04 | EKM1-63S-4D04 | |
| 5 | EKM1-63S-4B05 | EKM1-63S-4C05 | EKM1-63S-4D05 | |
| 6 | EKM1-63S-4B06 | EKM1-63S-4C06 | EKM1-63S-4D06 | |
| 10 | EKM1-63S-4B10 | EKM1-63S-4C10 | EKM1-63S-4D10 | |
| 16 | EKM1-63S-4B16 | EKM1-63S-4C16 | EKM1-63S-4D16 | |
| 20 | EKM1-63S-4B20 | EKM1-63S-4C20 | EKM1-63S-4D20 | |
| 25 | EKM1-63S-4B25 | EKM1-63S-4C25 | EKM1-63S-4D25 | |
| 32 | EKM1-63S-4B32 | EKM1-63S-4C32 | EKM1-63S-4D32 | |
| 40 | EKM1-63S-4B40 | EKM1-63S-4C40 | EKM1-63S-4D40 | |
| 50 | EKM1-63S-4B50 | EKM1-63S-4C50 | EKM1-63S-4D50 | |
| 63 | EKM1-63S-4B63 | EKM1-63S-4C63 | EKM1-63S-4D63 | |
