EKLK18 Handle Lock for MCB
Inquire
● Standard: IEC61095, IEC60947-4-1
● Rated current: 16~63A
● Rated operational voltage: 250V,1P(1NO,1NC),2P(2NO,2NC,1NO+1NC)
400V, 3P(3NO,3NC),4P(4NO,4NC,2NO+2NC,3NO+1NC)
● Coil Volatge: 12V,24V,48V,110V,230V AC/DC
● Utilization Category: AC-1, AC-3, AC-7a, AC-7b
● Method of Control: Automatic
● Mounting: 35mm Din rail
EKMF Series contactors are used to control single, and three-phases loads 16 A to 63 A. and can be operated by AC or DC voltages with AC/DC universal coils. These contactors are made for use in household applications as well as in the industrial environment. Widely used for switching and controlling lighting, heating, ventilation, EV charging stations, motors and pumps etc.

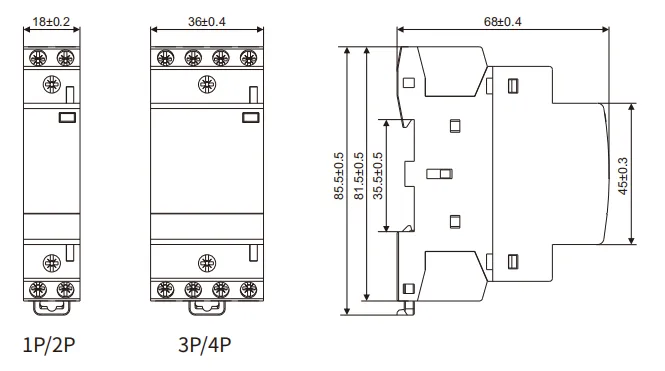

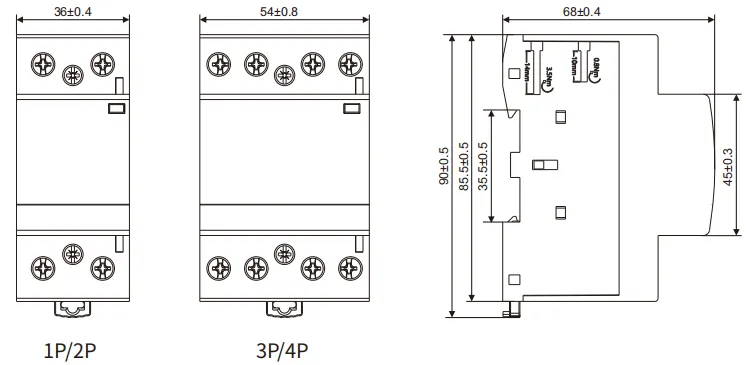

| Rated operational voltage (Ue) | 12,2P | 250VAC | |
| 3P,4P | 400VAC | ||
| Number of main contacts | 1P(1NO,1NC),2P(2NO,2NC,1NO+1NC) | ||
| 3P(3NO,3NC),4P(4NO,4NC,2NO+2NC,3NO+1NC) | |||
| Frequency | 50/60Hz | ||
| Rated Insulation voltage (Ui) | 500V AC | ||
| Coil Voltage | 12V,24V,48V,110V,230V AC/DC | ||
| Utilization Category | AC-1, AC-3, AC-7a, AC-7b | ||
| Rated impulse withstand voltage (Uimp) | 2.5kV (4kV for 12/24/48VAC) | ||
| Mechanical life | 1,000,000 cycles | ||
| Electrical life | 100,000 cycles | ||
| Maximum number of switching operation a day | 100 | ||
| Pollution degree | 2 | ||
| Degree of protection (IEC 60529) | IP20 | ||
| Operating temperature | -5℃~+60°C | ||
| Storage temperature | -40℃~+70°C | ||
| Mounting | 35mm Din rail | ||
| Coil voltage | Poles | Contacts NO+NC |
Contactor Model | Rated Current | |
| AC-1, AC-7a | AC-3, AC-7b | ||||
| 12V AC/DC 24V AC/DC 48V AC/DC 110V AC/DC 230V AC/DC |
1P | 1NO | EKMF7-1610 | 16A | 6A |
| EKMF7-2010 | 20A | 7A | |||
| EKMF7-2510 | 25A | 9A | |||
| EKMF7-3210 | 32A | 12A | |||
| 1NC | EKMF7-1601 | 16A | 6A | ||
| EKMF7-2001 | 20A | 7A | |||
| EKMF7-2501 | 25A | 9A | |||
| EKMF7-3201 | 32A | 12A | |||
| 2P | 2NO | EKMF7-1620 | 16A | 6A | |
| EKMF7-2020 | 20A | 7A | |||
| EKMF7-2520 | 25A | 9A | |||
| EKMF7-3220 | 32A | 12A | |||
| 1NO+1NC | EKMF7-1611 | 16A | 6A | ||
| EKMF7-2011 | 20A | 7A | |||
| EKMF7-2511 | 25A | 9A | |||
| EKMF7-3211 | 32A | 12A | |||
| 2NC | EKMF7-1602 | 16A | 6A | ||
| EKMF7-2002 | 20A | 7A | |||
| EKMF7-2502 | 25A | 9A | |||
| EKMF7-3202 | 32A | 12A | |||
| 12V AC/DC 24V AC/DC 48V AC/DC 110V AC/DC 230V AC/DC |
1P | 1NO | EKMF7-4010 | 40A | 18A |
| EKMF7-6310 | 63A | 25A | |||
| 1NC | EKMF7-4001 | 40A | 18A | ||
| EKMF7-6301 | 63A | 25A | |||

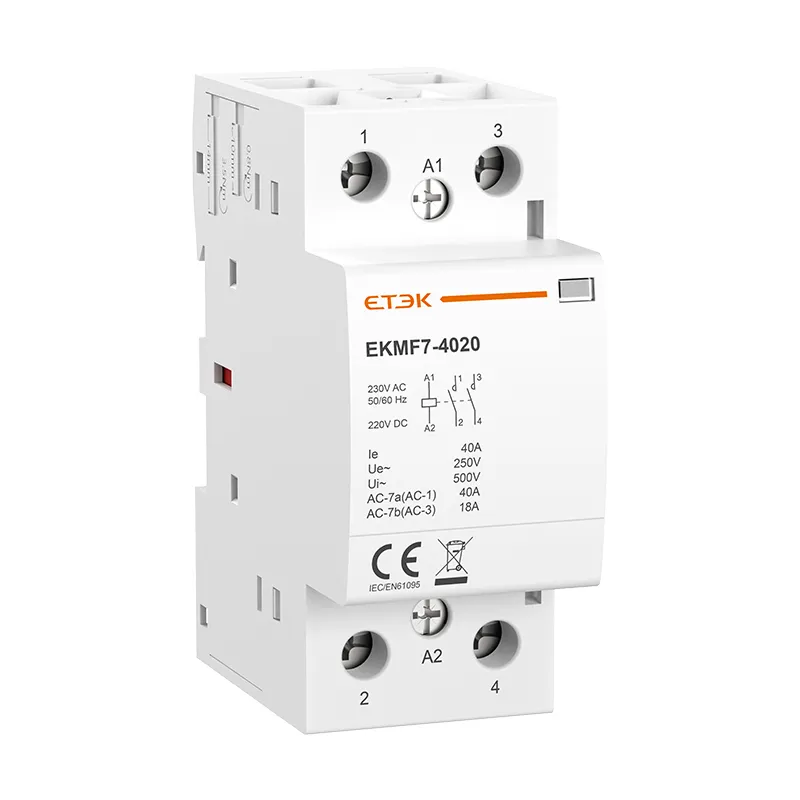

| 2P | 2NO | EKMF7-4020 | 40A | 18A | |
| EKMF7-6320 | 63A | 25A | |||
| 1NO+1NC | EKMF7-4011 | 40A | 18A | ||
| EKMF7-6311 | 63A | 25A | |||
| 2NC | EKMF7-4002 | 40A | 18A | ||
| EKMF7-6302 | 63A | 25A | |||
| 3P | 3NO | EKMF7-1630 | 16A | 6A | |
| EKMF7-2030 | 20A | 7A | |||
| EKMF7-2530 | 25A | 9A | |||
| EKMF7-3230 | 32A | 12A | |||
| 3NC | EKMF7-1603 | 16A | 6A | ||
| EKMF7-2003 | 20A | 7A | |||
| EKMF7-2503 | 25A | 9A | |||
| EKMF7-3203 | 32A | 12A | |||
| 4P | 4NO | EKMF7-1640 | 16A | 6A | |
| EKMF7-2040 | 20A | 7A | |||

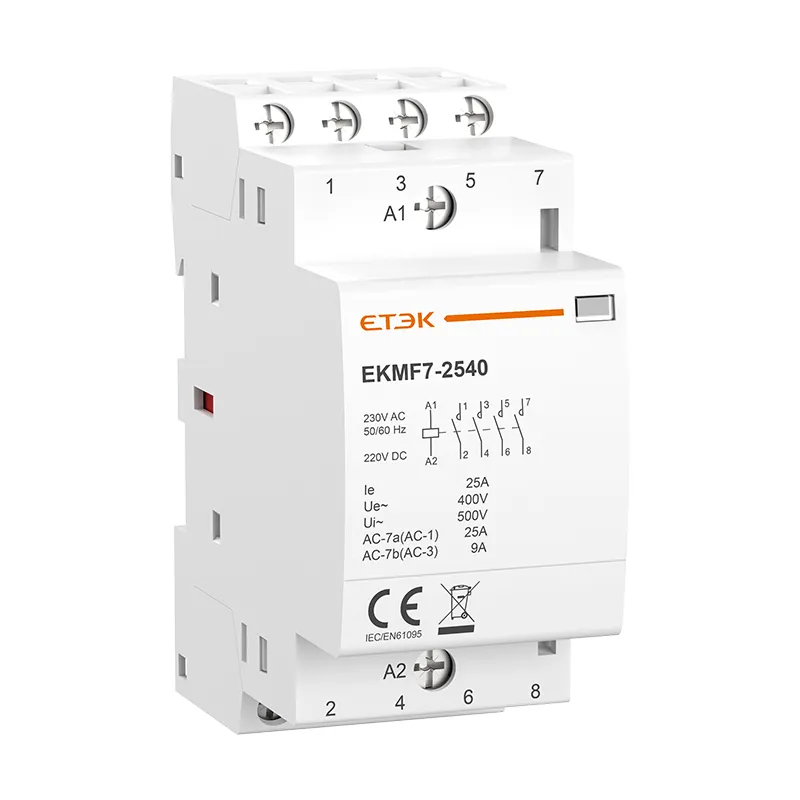

| EKMF7-2540 | 25A | 9A | |||
| EKMF7-3240 | 32A | 12A | |||
| 4NC | EKMF7-1604 | 16A | 6A | ||
| EKMF7-2004 | 20A | 7A | |||
| EKMF7-2504 | 25A | 9A | |||
| EKMF7-3204 | 32A | 12A | |||
| 2NO+2NC | EKMF7-1622 | 16A | 6A | ||
| EKMF7-2022 | 20A | 7A | |||
| EKMF7-2522 | 25A | 9A | |||
| EKMF7-3222 | 32A | 12A | |||
| 3NO+1NC | EKMF7-1631 | 16A | 6A | ||
| EKMF7-2031 | 20A | 7A | |||
| EKMF7-2531 | 25A | 9A | |||
| EKMF7-3231 | 32A | 12A | |||
| 12V AC/DC 24V AC/DC 48V AC/DC 110V AC/DC 230V AC/DC |
3P | 3NO | EKMF7-4030 | 40A | 18A |
| EKMF7-6330 | 63A | 25A | |||
| 3NC | EKMF7-4003 | 40A | 18A | ||
| EKMF7-6303 | 63A | 25A | |||
| 4P | 4NO | EKMF7-4040 | 40A | 18A | |

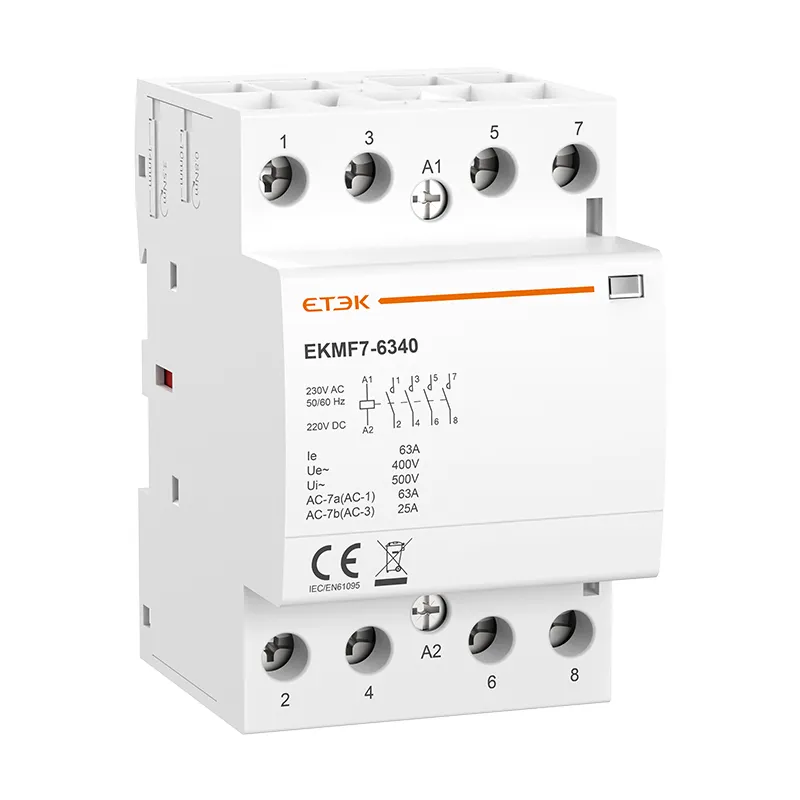

| EKMF7-6340 | 63A | 25A | |||
| 4NC | EKMF7-4004 | 40A | 18A | ||
| EKMF7-6304 | 63A | 25A | |||
| 2NO+2NC | EKMF7-4022 | 40A | 18A | ||
| EKMF7-6322 | 63A | 25A | |||
| 3NO+1NC | EKMF7-4031 | 40A | 18A | ||
| EKMF7-6331 | 63A | 25A | |||

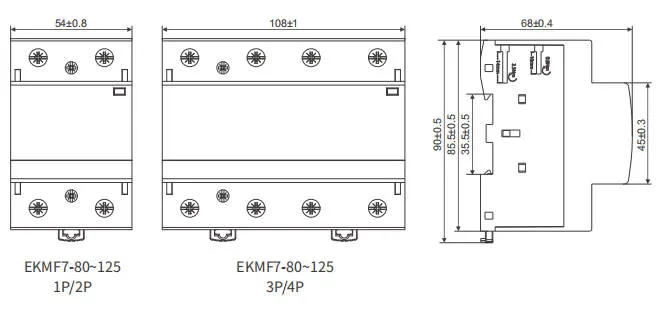

EKMF Series contactors are used to control single, and three-phases loads 16 A to 63 A. and can be operated by AC or DC voltages with AC/DC universal coils. These contactors are made for use in household applications as well as in the industrial environment. Widely used for switching and controlling lighting, heating, ventilation, EV charging stations, motors and pumps etc.
