EKFL Series Ceramic Fuse Link for circuit protection
Inquire
A time switch (also called a timer switch, or simply timer) is a timer that operates an electric switch controlled by the timing mechanism.
The analog time switch is also known as the manual or mechanical switch. The design is based on a spring that tracks the time. Also, because of its simplicity, it’s quite durable. Like EKTM181H.

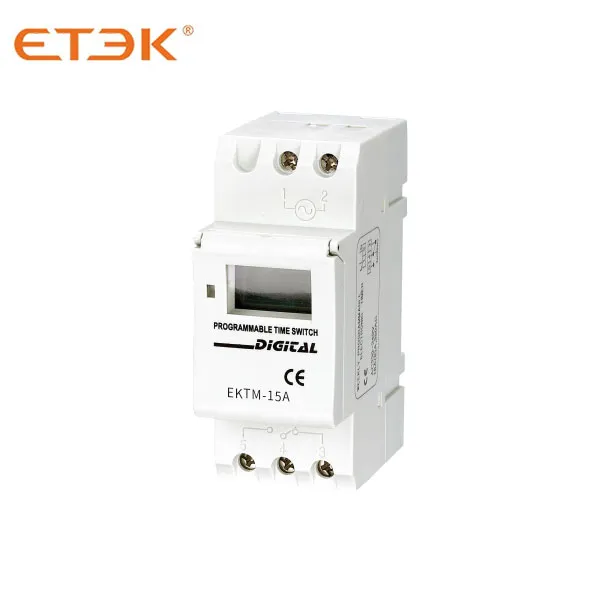

Lighting, heating, ventilation and watering of gardens can easily be controlled according to a customized schedule to only use the energy that is needed. Digital time switches are ideally suited to program the operation according to daily, weekly or annual schedules in residential, commercial and industrial applications. Like EKTM-15A it is a digital time switch.
Astronomic time switches are actually a type of digital switch. However, they use a different system compared to regular digital ones.
Astronomical switches work based on the time of the day. They have built-in technology that calculates the exact timing of sunrise and sunset. So, they turn the lights on or off based on those calculations.
Moreover, most models come with remote control.

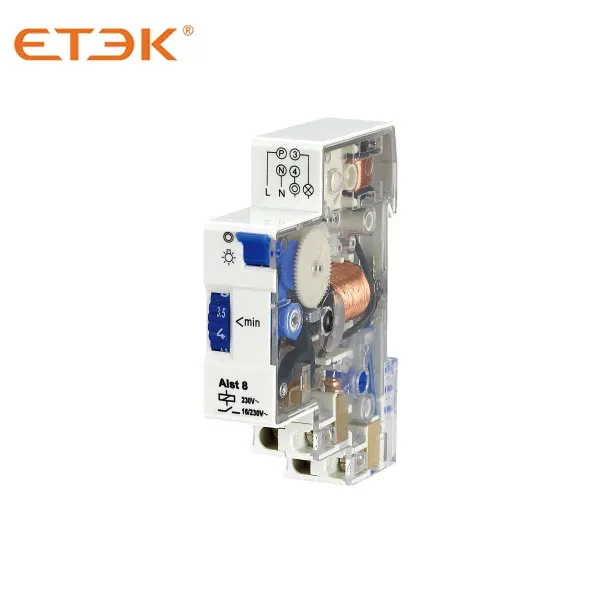

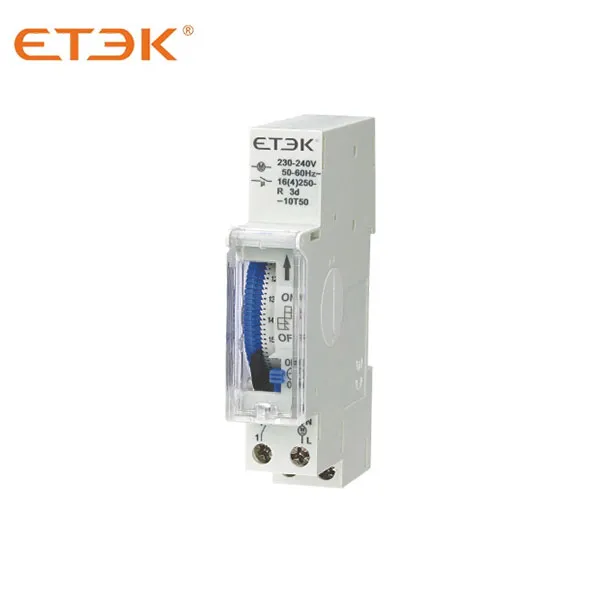

These three types of time switches are the most common. However, there are plenty of other types that you might find useful. Some of these are irrigation timers, water heater time switches, and staircase time switches (Like EKTM-E8), Daily time switch (EKTM-180A).
| Classification | 24 Hours Timer | Timer | Weekly Programmable Timer | ||
| Model | EKTM-181H | EKTM-180A | EKTM-E8 | EKTM-15A | |
| Appearance |   |
  |
  |
  |
|
| Contact Capacity | AC250V 16A | AC250V 16A | AC250V 16A | AC250V 16A | |
| Full Timing Range | 24h | 24h | 7m | per week or per day cycle | |
| Contact resistance | ≤50mΩ | ≤50mΩ | ≤50mΩ | ≤50mΩ | |
| Insulation Resistance | ≥100mΩ | ≥100mΩ | ≥100mΩ | ≥100mΩ | |
| Coil Voltage | 110,230V AC | 110,230V AC | 110,230V AC | 230V AC 85%~110% | |
| Life | Electrical | 105 times | 105 times | 105 times | 105 times |
| Mechanical | 107 times | 107 times | 107 times | 107 times | |
| Operating Temperature | -40℃+55℃ | -10℃+55℃ | -40℃+55℃ | -20℃+55℃ | |
|
|
|
|
|
||
| Storage Battery (Working Reserve) |
Time 150h | Time 70h | — | Rated Voltage: AC200V 50Hz 85%-110% Contact Form:1NC/1NO Accuracy : ≤2S/day(25℃) Expectancy Display:LCD Mounting Form: From panel,DIN Rail Programmable: 8time week or day Memory Backup:15days |
|
| Minimum Setting Unit | 30Minutes | 15Minutes | 0.5Minutes | ||
| Set up Times | 30m/per times 48 times |
15m/per times 96 times |
1M,1.5M2M,2.5M | ||
| 3M,3.5M,4.5M,5M | |||||
| 5.5M,6M,6.5M,7M | |||||
A time switch (also called a timer switch, or simply timer) is a timer that operates an electric switch controlled by the timing mechanism.
The analog time switch is also known as the manual or mechanical switch. The design is based on a spring that tracks the time. Also, because of its simplicity, it’s quite durable. Like EKTM181H.
Lighting, heating, ventilation and watering of gardens can easily be controlled according to a customized schedule to only use the energy that is needed. Digital time switches are ideally suited to program the operation according to daily, weekly or annual schedules in residential, commercial and industrial applications. Like EKTM-15A it is a digital time switch.
Astronomic time switches are actually a type of digital switch. However, they use a different system compared to regular digital ones.
Astronomical switches work based on the time of the day. They have built-in technology that calculates the exact timing of sunrise and sunset. So, they turn the lights on or off based on those calculations.
Moreover, most models come with remote control.
These three types of time switches are the most common. However, there are plenty of other types that you might find useful. Some of these are irrigation timers, water heater time switches, and staircase time switches (Like EKTM-E8), Daily time switch (EKTM-180A).
