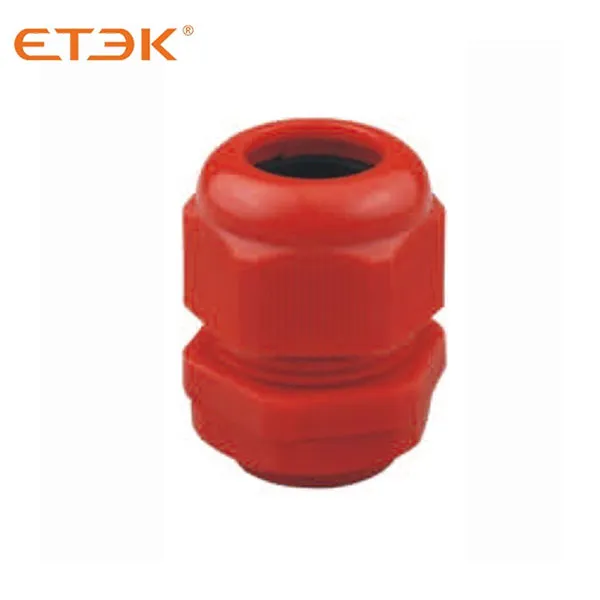

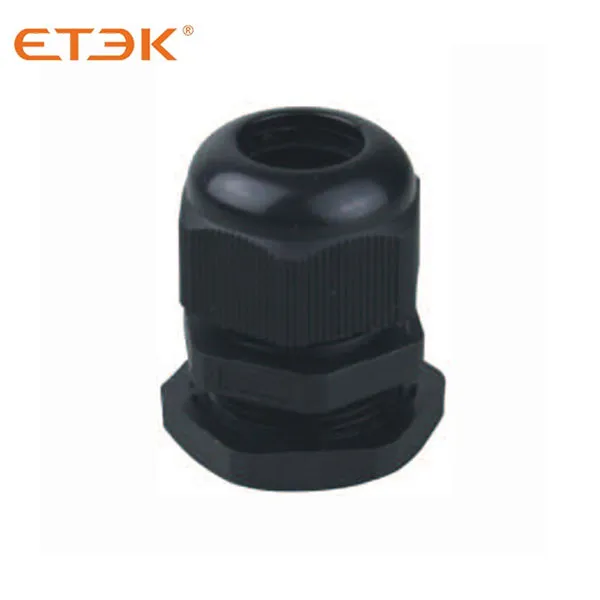

AC-M Series Plastic Waterproof Cable Gland

Material: UL approved nylon PA66, nitrile rubber; Thread Specifications: Metric, PG, G, NPT; Operating temperature: Static -40℃ ~ 100℃, instantaneous heat to 120℃, dynamic -20℃ ~ 80℃, instantaneous heat to 100℃

Inquire NOW PDF

AC-M Series Plastic Waterproof Cable Gland

Inquire NOW PDF

Product Profile

A waterproof cable gland (also known as a cord grip) is a device used to aid in the connection of cables or wires within an electrical or electronic enclosure. The cable gland helps to maintain the watertight seal where the cable or wire enters the enclosure. Consisting of a body and a nut, the glands could either contain a separate gasket and cable seal or these components could be integrated into the body of the gland. Poly case offers both varieties. The cable gland is then assembled within a circular cutout in the enclosure, capturing the wall of the enclosure between the body and nut creating that watertight seal.

Technical Data

Material

UL approved nylon PA66, nitrile rubber

Thread Specifications

Metric, PG, G, NPT

Operating temperature

Static -40℃~100℃, instantaneous heat to 120℃,

dynamic -20℃~80℃, instantaneous heat to 100℃

Features

Special clamping claws and rubber parts design, clamping range, especially tensile strength, waterproof, dustproof, salt, acid, alcohol, grease and common solvents

Color Category

Black, gray, special colors (white, red, blue, dark gray) can be customized

Protection class

IP68

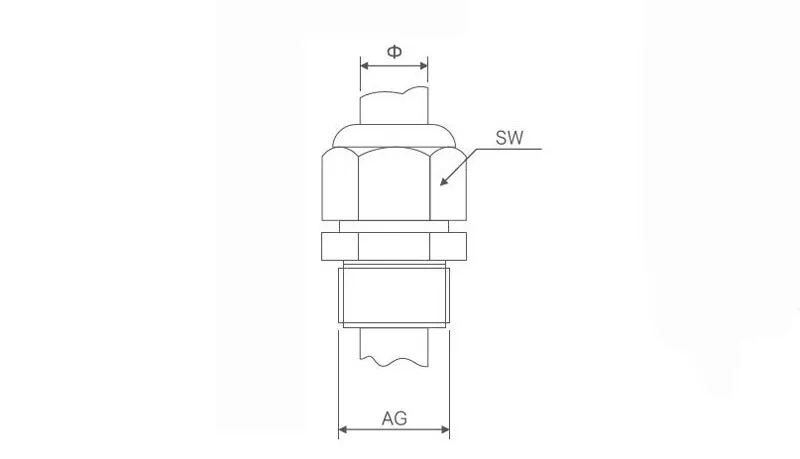

Dimensions

Product selection form

Model

Thread size (mm)

Hole size AG (mm)

Thread length (mm)

Wall thickness (mm)

Applicable cable Ф(mm)

Wrench size SW (mm)

AC-M12

M12×1.5

Φ12.2-12.5

9

3

3-7

18/16

AC-M16

M16×1.5

Φ16.2-16.5

9

3

4-8

22/19

AC-M18

M18×1.5

Φ18.2-18.5

9

3

5-10

24/22

AC-M20

M20×1.5

Φ20.2-20.5

9

5

6-12

27/24

AC-M22

M22×1.5

Φ22.2-22.5

10

5

10-14

30/27

AC-M24

M24×1.5

Φ24.2-24.5

10

5

12-15

33/28

AC-M25

M25×1.5

Φ25.2-25.5

10

5

13-15

33/28

AC-M25

M25×1.5

Φ25.2-25.5

12

5

13-18

33/30

AC-M27

M27×1.5

Φ27.2-27.5

12

5

13-18

35/33

AC-M30

M30×1.5

Φ30.2-30.5

12

6

16-21

37/37

AC-M32

M32×1.5

Φ32.2-32.5

12

6

16-21

39/35

AC-M36

M36×1.5

Φ36.2-37

12

6

18-25

45/42

AC-M40

M40×1.5

Φ40.2-41

17

7

20-26

52/52

AC-M50

M50×1.5

Φ50.5-51

19

10

32-39

60/60

AC-M63

M63×1.5

Φ63.5-64

19

10

37-44

74/69

AC-M72

M72×1.5

Φ72.5-73

27

15

42-52

83/77
