EKR8-5 Multi-function Time Relay
Inquire
1.Float less level switch relay is a kind of switch that controls the height of the liquid level in the container. It uses the conductivity of the liquid to turn on or off the contact output when the liquid level reaches a certain height, and automatically monitors the running or stop of the water pump to achieve the purpose of controlling the amount of liquid in the container.
2.Application:
It is generally used in homes, industries, commercial places, public places and other places where automatic monitoring of water supply and drainage systems are required. It has a small size and complete specification. It can be widely used in domestic water systems, sewage treatment systems, and special liquid supply systems.
Technical Data |
||||||
|
EKR8-6008
|
EKR8-6108
|
EKR8-6012
|

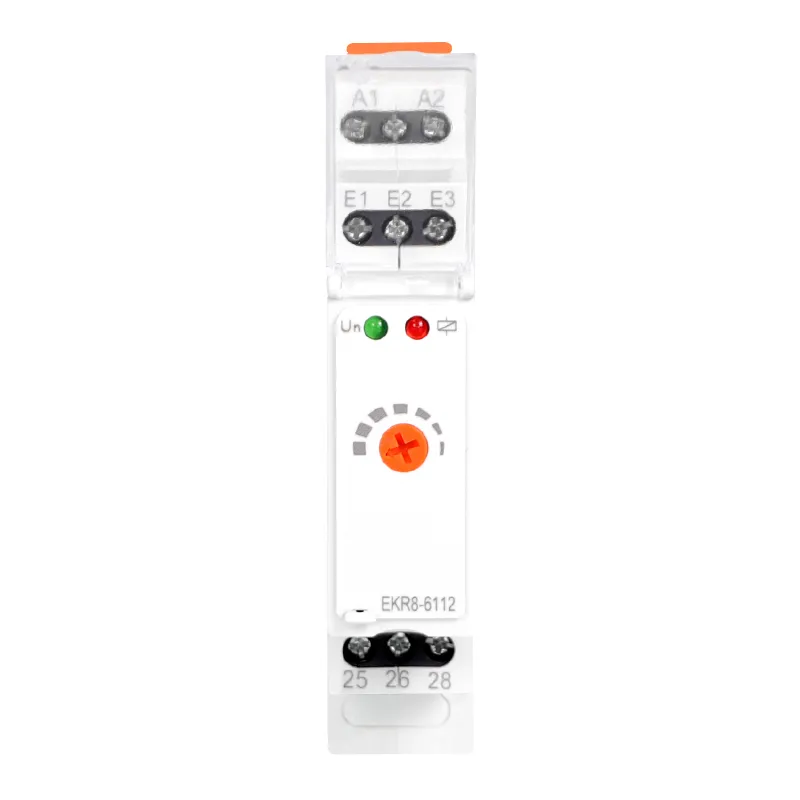

EKR8-6112
|
EKR8-6024
|
EKR8-6124
|
|
|
Output Characteristics
|
SPDT
|
|||||
|
Rated Current
|
5A | |||||
|
Working Voltage
|
AC110V, AC220V
|
|||||
|
Output Voltage
|
8V
|
12V
|
24V | |||
|
Applicable Environment
|
Used for liquids with low intrinsic resistance, such as salt water, sewage and Acid-based liquid medicine.
|
Used for normal purifed water and sewage.
|
Used for liquid with high intrinsic resistance, such as distilled water
|
|||

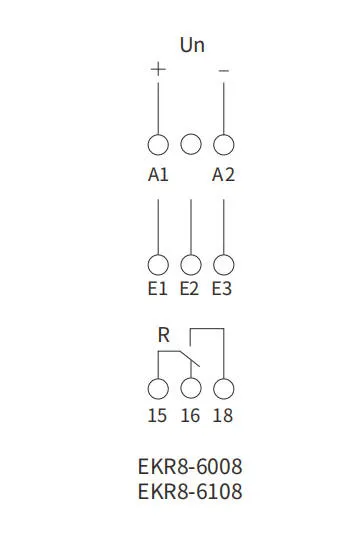

| EKR8-6008 6108 |
 |

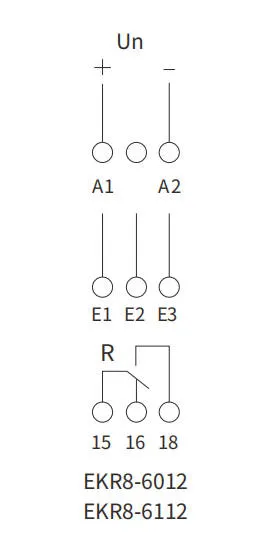

| EKR8-6012 6112 |
 |

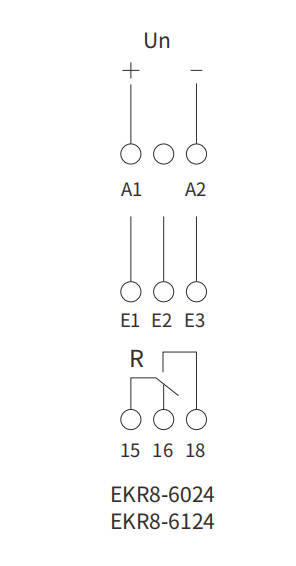

| EKR8-6024 6124 |
 |
| Reference No. | Specification |
| EKR8-600812 | Float less Level Switch type 0 knob output voltage 8V working voltage 12V |
| EKR8-600824 | Float less Level Switch type 0 knob output voltage 8V working voltage 24V |
| EKR8-6008110 | Float less Level Switch type 0 knob output voltage 8V working voltage 110V |
| EKR8-6008220 | Float less Level Switch type 0 knob output voltage 8V working voltage 220V |
| EKR8-601212 | Float less Level Switch type 0 knob output voltage 12V working voltage 12V |
| EKR8-601224 | Float less Level Switch type 0 knob output voltage 12V working voltage 24V |
| EKR8-6012110 | Float less Level Switch type 0 knob output voltage 12V working voltage 110V |
| EKR8-6012220 | Float less Level Switch type 0 knob output voltage 12V working voltage 220V |
| EKR8-602412 | Float less Level Switch type 0 knob output voltage 24V working voltage 12V |
| EKR8-602424 | Float less Level Switch type 0 knob output voltage 24V working voltage 24V |
| EKR8-6024110 | Float less Level Switch type 0 knob output voltage 24V working voltage 110V |
| EKR8-6024220 | Float less Level Switch type 0 knob output voltage 24V working voltage 220V |
| EKR8-610812 | Float less Level Switch type 1 knob output voltage 8V working voltage 12V |
| EKR8-610824 | Float less Level Switch type 1 knob output voltage 8V working voltage 24V |
| EKR8-6108110 | Float less Level Switch type 1 knob output voltage 8V working voltage 110V |
| EKR8-6108220 | Float less Level Switch type 1 knob output voltage 8V working voltage 220V |
| EKR8-611212 | Float less Level Switch type 1 knob output voltage 12V working voltage 12V |
| EKR8-611224 | Float less Level Switch type 1 knob output voltage 12V working voltage 24V |
| EKR8-6112110 | Float less Level Switch type 1 knob output voltage 12V working voltage 110V |

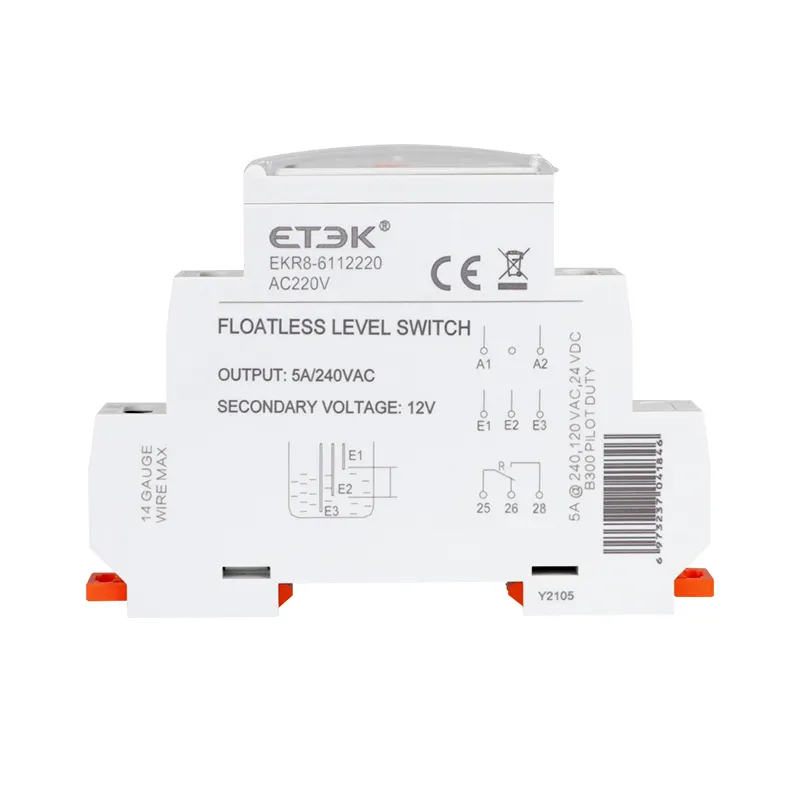

| EKR8-6112220 | Float less Level Switch type 1 knob output voltage 12V working voltage 220V |
| EKR8-612412 | Float less Level Switch type 1 knob output voltage 24V working voltage 12V |
| EKR8-612424 | Float less Level Switch type 1 knob output voltage 24V working voltage 24V |
| EKR8-6124110 | Float less Level Switch type 1 knob output voltage 24V working voltage 110V |
| EKR8-6124220 | Float less Level Switch type 1 knob output voltage 24V working voltage 220V |

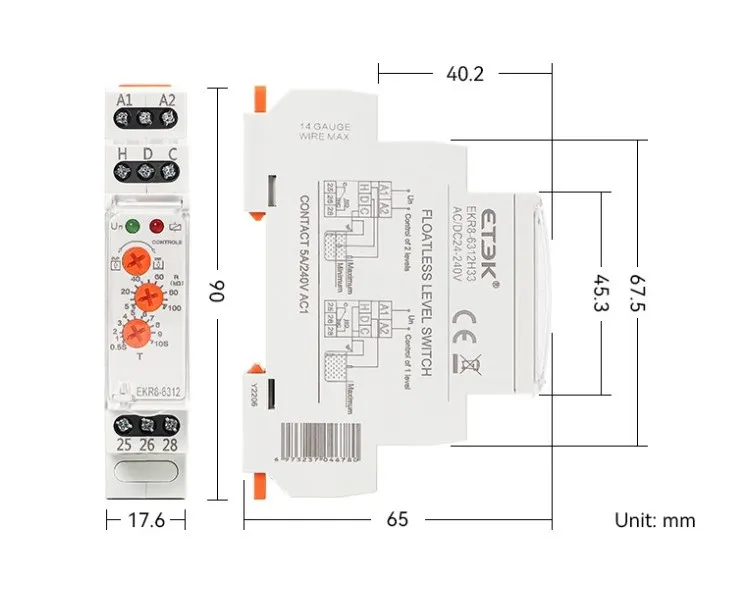

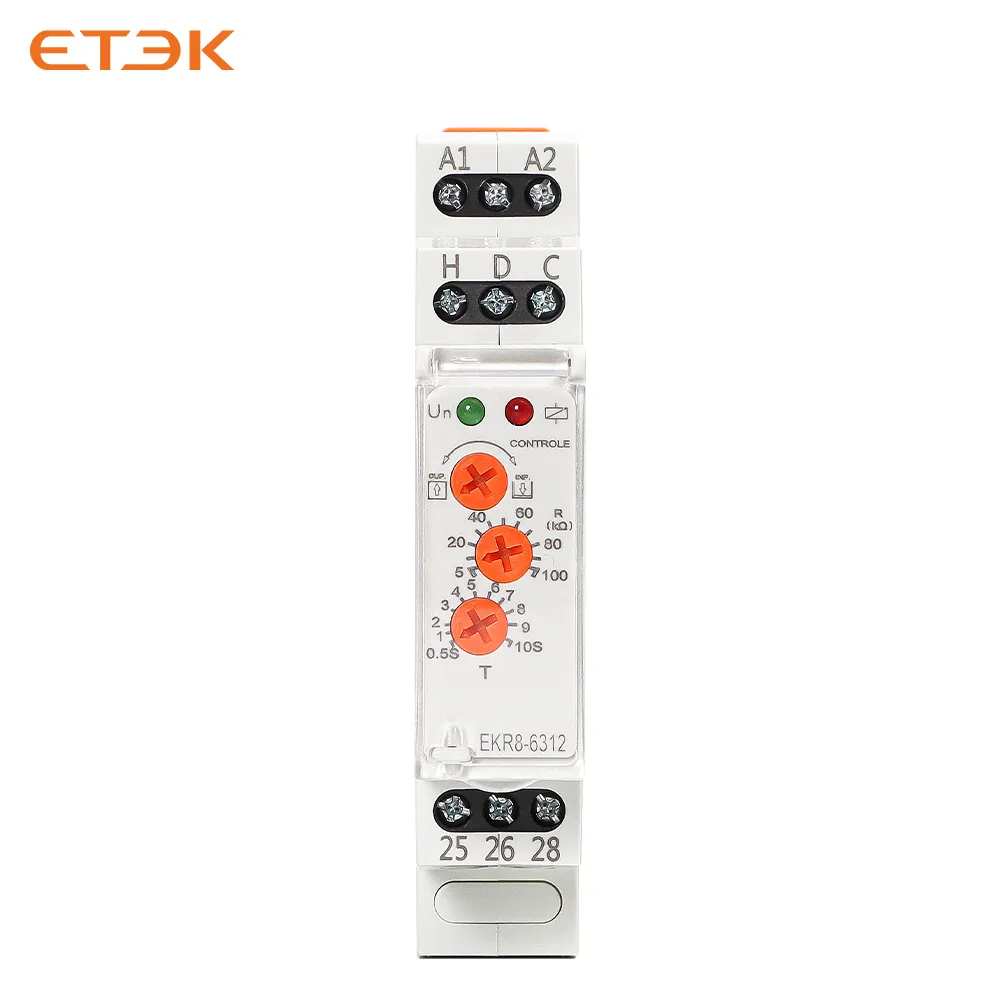

| EKR8-6312H33 | Float less Level Switch type 3 knob working voltage 24-240VAC/DC 0.5S-10S delay |
