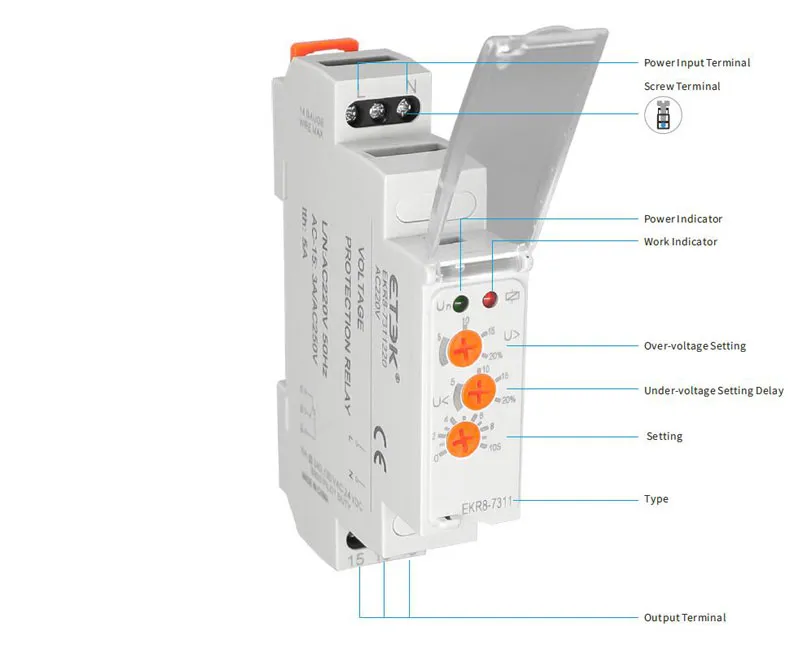

Single Phase Voltage Monitoring Relays are designed for protection of single-phase load against un-allowable voltage variations in the mains. They have a wide range of adjustments, including power on time delay for protection of refrigerating, compressor and air-conditioning equipment.
1. Cut off the line when Over & Under Voltage occurs, and automatically reset and connect the line after
returning to normal without manual operation.
2. When the line appears transient or transient Over& Under Voltage, the protector does not malfunction.
Technical Data |
|||
EKR8-7011
|
EKR8-7211
|
EKR8-7311
|
|
Monitoring Type
|
Single Phase
|
||
Output Characteristics
|
SPDT
|
||
Over Voltage
|
15%
|
0~20%
|
0~20%
|
Under Voltage
|
15%
|
0~20%
|
0~20%
|
Time Delay
|
3S | 3S | 0.1-10S |
Working Voltage
|
AC110V or 220V
|
||
Frequency
|
50/60Hz
|
||
Response Time of Relay
|
0.5S
|
||
Contact Rating
|
AC-15:3A/250VAC
|
||
Ambient Temperature |
-10°C~+55°C
|
||
Voltage Error
|
⼟2% Max
|
||
Temperature Error
|
⼠2% Max
|

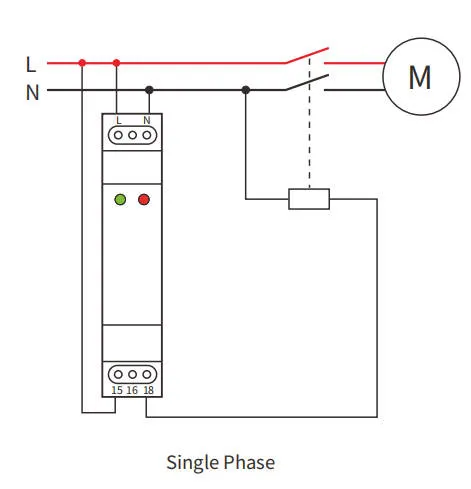

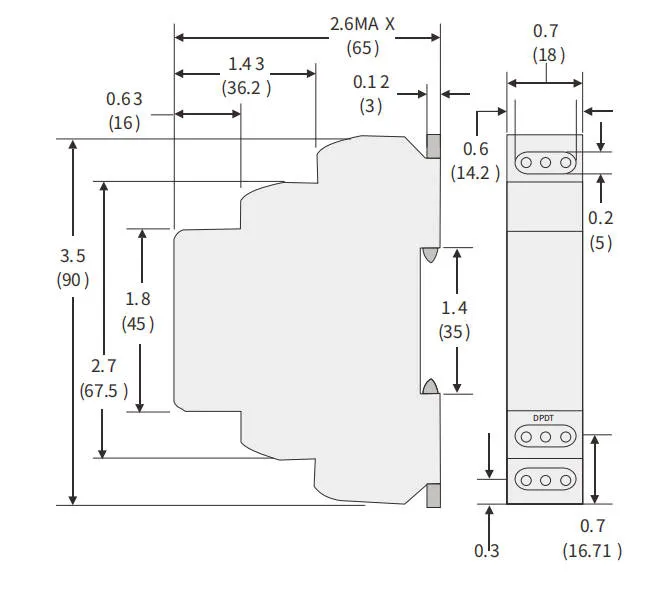

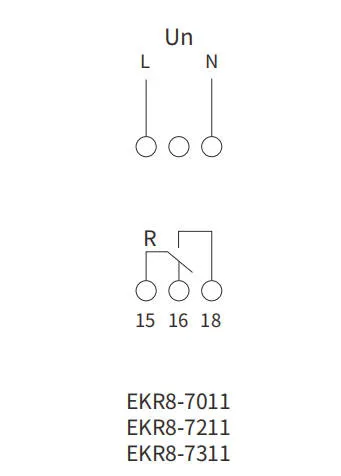

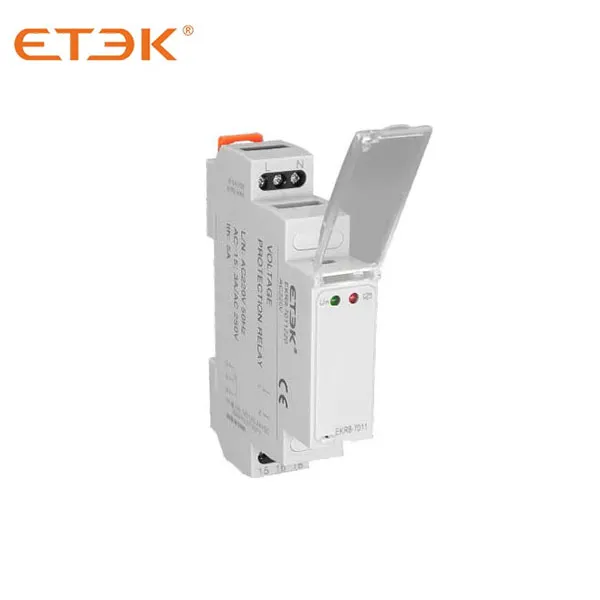

EKR8-7011110 | Voltage Protection Relay 0 knob SPDT single phase 110VAC |
EKR8-7011220 | Voltage Protection Relay 0 knob SPDT single phase 220VAC |
EKR8-7011380 | Voltage Protection Relay 0 knob SPDT single phase 380VAC |
EKR8-7011400 | Voltage Protection Relay 0 knob SPDT single phase 400VAC |
EKR8-7011415 | Voltage Protection Relay 0 knob SPDT single phase 415VAC |
EKR8-7011440 | Voltage Protection Relay 0 knob SPDT single phase 440VAC |

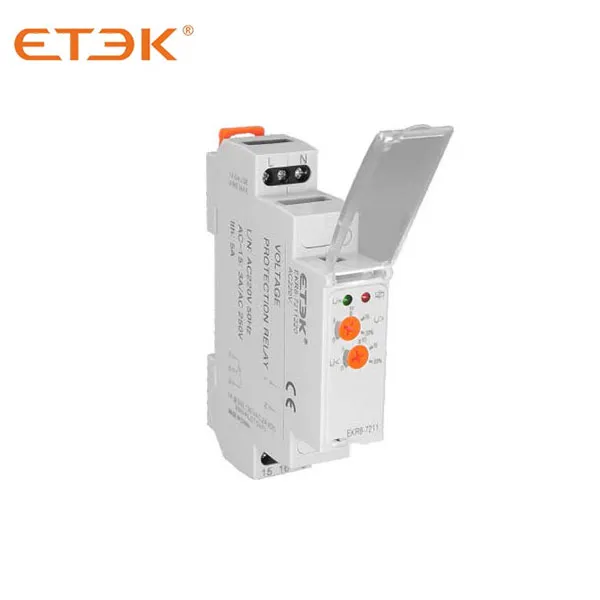

EKR8-7211110 | Voltage Protection Relay 2 knob SPDT single phase 110VAC |
EKR8-7211220 | Voltage Protection Relay 2 knob SPDT single phase 220VAC |
EKR8-7211380 | Voltage Protection Relay 2 knob SPDT single phase 380VAC |
EKR8-7211400 | Voltage Protection Relay 2 knob SPDT single phase 400VAC |
EKR8-7211415 | Voltage Protection Relay 2 knob SPDT single phase 415VAC |
EKR8-7211440 | Voltage Protection Relay 2 knob SPDT single phase 440VAC |
EKR8-7311110 | Voltage Protection Relay 3 knob SPDT single phase 110VAC |
EKR8-7311220 | Voltage Protection Relay 3 knob SPDT single phase 220VAC |
EKR8-7311380 | Voltage Protection Relay 3 knob SPDT single phase 380VAC |
EKR8-7311400 | Voltage Protection Relay 3 knob SPDT single phase 400VAC |
EKR8-7311415 | Voltage Protection Relay 3 knob SPDT single phase 415VAC |
EKR8-7311440 | Voltage Protection Relay 3 knob SPDT single phase 440VAC |
