A current relay is a type of electromagnetic switch used as part of the control systems for electrical equipment. These relays are commonly used as sensors (current sensor/monitoring relays) to monitor current flow within industrial and other safety-sensitive equipment. Such equipment utilizes current relays to prevent malfunctions due to excessive or insufficient amounts of electrical current (“overcurrent” and “undercurrent,” respectively).
If too much current flows through a machine equipped with a current relay, the relay will activate, switching off or otherwise altering the amount of energy allowed to flow through the circuit or circuits the relay is connected to. This lowers the amount of current that's allowed to move through the system. The same functionality can be provided to machines or other electrical apparatuses to prevent damage due to undercurrent.
Current relays can be used for both AC and DC set-ups, and their ability to prevent equipment failures due to overcurrent and undercurrent makes them an effective hazard control in workplaces where an equipment malfunction could cause injury.

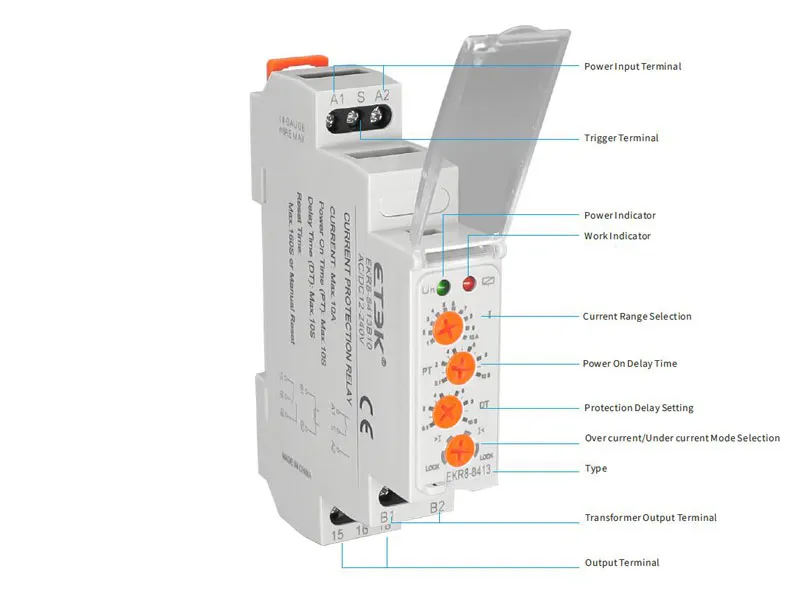

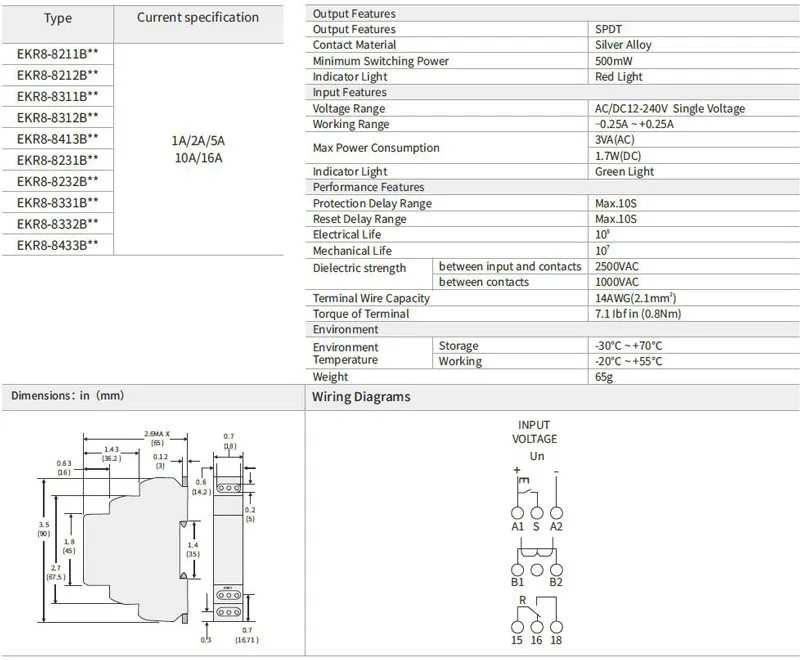

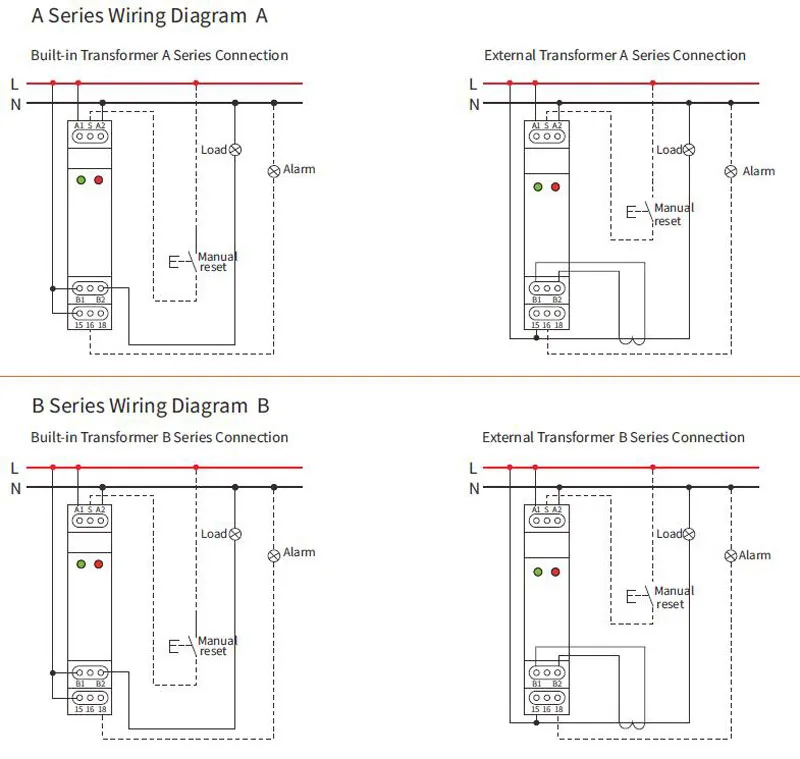

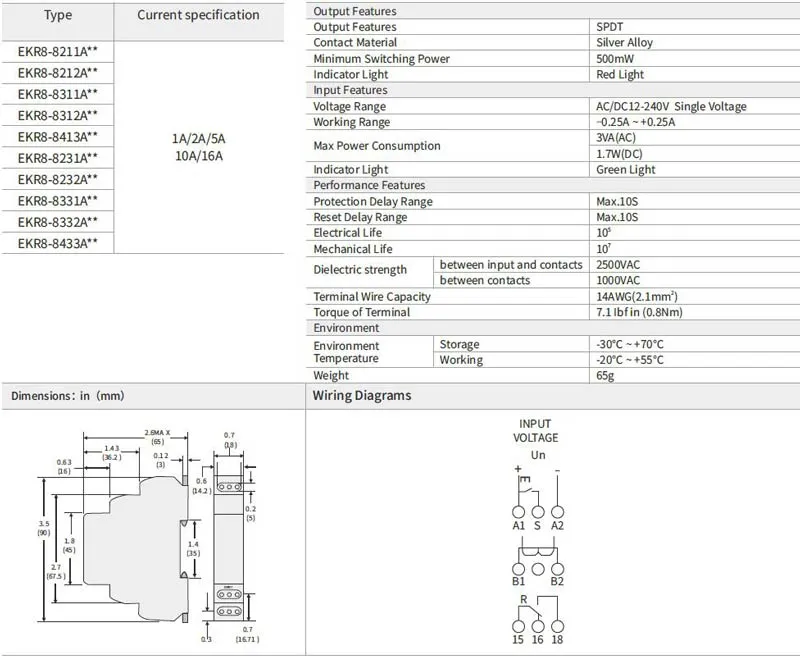

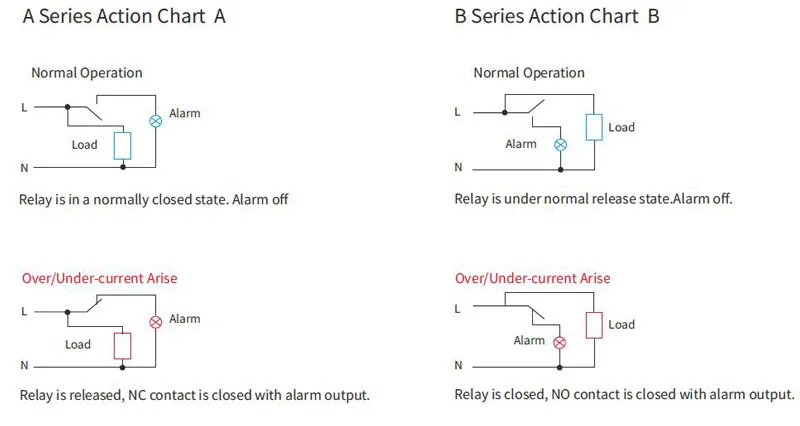

Wiring Diagram

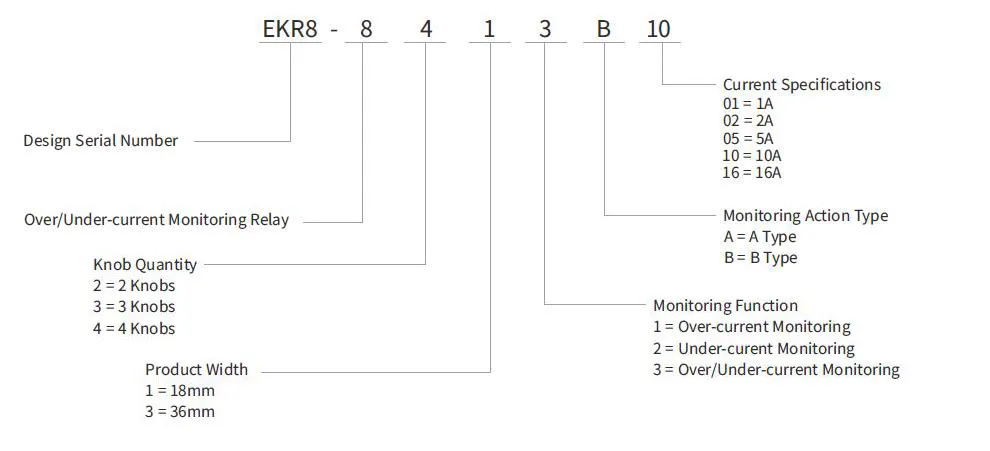

EKR8-8111A01 | Current Protection Relay 1 knob W=18 Overcurrent Protection NO 1A |
EKR8-8111A02 | Current Protection Relay 1 knob W=18 Overcurrent Protection NO 2A |
EKR8-8111A05 | Current Protection Relay 1 knob W=18 Overcurrent Protection NO 5A |
EKR8-8111A10 | Current Protection Relay 1 knob W=18 Overcurrent Protection NO 10A |
EKR8-8111A16 | Current Protection Relay 1 knob W=18 Overcurrent Protection NO 16A |
EKR8-8112A01 | Current Protection Relay 1 knob W=18 Undercurrent Protection NO 1A |
EKR8-8112A02 | Current Protection Relay 1 knob W=18 Undercurrent Protection NO 2A |
EKR8-8112A05 | Current Protection Relay 1 knob W=18 Undercurrent Protection NO 5A |
EKR8-8112A10 | Current Protection Relay 1 knob W=18 Undercurrent Protection NO 10A |
EKR8-8112A16 | Current Protection Relay 1 knob W=18 Undercurrent Protection NO 16A |
EKR8-8211A01 | Current Protection Relay 2 knob W=18 Overcurrent Protection NO 1A |
EKR8-8211A02 | Current Protection Relay 2 knob W=18 Overcurrent Protection NO 2A |
EKR8-8211A05 | Current Protection Relay 2 knob W=18 Overcurrent Protection NO 5A |
EKR8-8211A10 | Current Protection Relay 2 knob W=18 Overcurrent Protection NO 10A |
EKR8-8211A16 | Current Protection Relay 2 knob W=18 Overcurrent Protection NO 16A |
EKR8-8212A01 | Current Protection Relay 2 knob W=18 Undercurrent Protection NO 1A |
EKR8-8212A02 | Current Protection Relay 2 knob W=18 Undercurrent Protection NO 2A |
EKR8-8212A05 | Current Protection Relay 2 knob W=18 Undercurrent Protection NO 5A |
EKR8-8212A10 | Current Protection Relay 2 knob W=18 Undercurrent Protection NO 10A |
EKR8-8212A16 | Current Protection Relay 2 knob W=18 Undercurrent Protection NO 16A |
EKR8-8311A01 | Current Protection Relay 3 knob W=18 Overcurrent Protection NO 1A |
EKR8-8311A02 | Current Protection Relay 3 knob W=18 Overcurrent Protection NO 2A |
EKR8-8311A05 | Current Protection Relay 3 knob W=18 Overcurrent Protection NO 5A |
EKR8-8311A10 | Current Protection Relay 3 knob W=18 Overcurrent Protection NO 10A |
EKR8-8311A16 | Current Protection Relay 3 knob W=18 Overcurrent Protection NO 16A |
EKR8-8312A01 | Current Protection Relay 3 knob W=18 Undercurrent Protection NO 1A |
EKR8-8312A02 | Current Protection Relay 3 knob W=18 Undercurrent Protection NO 2A |
EKR8-8312A05 | Current Protection Relay 3 knob W=18 Undercurrent Protection NO 5A |
EKR8-8312A10 | Current Protection Relay 3 knob W=18 Undercurrent Protection NO 10A |
EKR8-8312A16 | Current Protection Relay 3 knob W=18 Undercurrent Protection NO 16A |
EKR8-8413A01 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NO 1A |
EKR8-8413A02 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NO 2A |
EKR8-8413A05 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NO 5A |
EKR8-8413A10 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NO 10A |
EKR8-8413A16 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NO 16A |
EKR8-8111B01 | Current Protection Relay 1 knob W=18 Overcurrent Protection NC 1A |
EKR8-8111B02 | Current Protection Relay 1 knob W=18 Overcurrent Protection NC 2A |
EKR8-8111B05 | Current Protection Relay 1 knob W=18 Overcurrent Protection NC 5A |
EKR8-8111B10 | Current Protection Relay 1 knob W=18 Overcurrent Protection NC 10A |
EKR8-8111B16 | Current Protection Relay 1 knob W=18 Overcurrent Protection NC 16A |
EKR8-8112B01 | Current Protection Relay 1 knob W=18 Undercurrent Protection NC 1A |
EKR8-8112B02 | Current Protection Relay 1 knob W=18 Undercurrent Protection NC 2A |
EKR8-8112B05 | Current Protection Relay 1 knob W=18 Undercurrent Protection NC 5A |
EKR8-8112B10 | Current Protection Relay 1 knob W=18 Undercurrent Protection NC 10A |
EKR8-8112B16 | Current Protection Relay 1 knob W=18 Undercurrent Protection NC 16A |
EKR8-8211B01 | Current Protection Relay 2 knob W=18 Overcurrent Protection NC 1A |
EKR8-8211B02 | Current Protection Relay 2 knob W=18 Overcurrent Protection NC 2A |
EKR8-8211B05 | Current Protection Relay 2 knob W=18 Overcurrent Protection NC 5A |
EKR8-8211B10 | Current Protection Relay 2 knob W=18 Overcurrent Protection NC 10A |
EKR8-8211B16 | Current Protection Relay 2 knob W=18 Overcurrent Protection NC 16A |
EKR8-8212B01 | Current Protection Relay 2 knob W=18 Undercurrent Protection NC 1A |
EKR8-8212B02 | Current Protection Relay 2 knob W=18 Undercurrent Protection NC 2A |
EKR8-8212B05 | Current Protection Relay 2 knob W=18 Undercurrent Protection NC 5A |
EKR8-8212B10 | Current Protection Relay 2 knob W=18 Undercurrent Protection NC 10A |
EKR8-8212B16 | Current Protection Relay 2 knob W=18 Undercurrent Protection NC 16A |
EKR8-8311B01 | Current Protection Relay 3 knob W=18 Overcurrent Protection NC 1A |
EKR8-8311B02 | Current Protection Relay 3 knob W=18 Overcurrent Protection NC 2A |
EKR8-8311B05 | Current Protection Relay 3 knob W=18 Overcurrent Protection NC 5A |
EKR8-8311B10 | Current Protection Relay 3 knob W=18 Overcurrent Protection NC 10A |
EKR8-8311B16 | Current Protection Relay 3 knob W=18 Overcurrent Protection NC 16A |
EKR8-8312B01 | Current Protection Relay 3 knob W=18 Undercurrent Protection NC 1A |
EKR8-8312B02 | Current Protection Relay 3 knob W=18 Undercurrent Protection NC 2A |
EKR8-8312B05 | Current Protection Relay 3 knob W=18 Undercurrent Protection NC 5A |
EKR8-8312B10 | Current Protection Relay 3 knob W=18 Undercurrent Protection NC 10A |
EKR8-8312B16 | Current Protection Relay 3 knob W=18 Undercurrent Protection NC 16A |
EKR8-8413B01 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NC 1A |
EKR8-8413B02 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NC 2A |
EKR8-8413B05 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NC 5A |
EKR8-8413B10 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NC 10A |
EKR8-8413B16 | Current Protection Relay 4 knob W=18 Over/Under Current Protection NC 16A |
A current relay is a type of electromagnetic switch used as part of the control systems for electrical equipment. These relays are commonly used as sensors (current sensor/monitoring relays) to monitor current flow within industrial and other safety-sensitive equipment. Such equipment utilizes current relays to prevent malfunctions due to excessive or insufficient amounts of electrical current (“overcurrent” and “undercurrent,” respectively).
If too much current flows through a machine equipped with a current relay, the relay will activate, switching off or otherwise altering the amount of energy allowed to flow through the circuit or circuits the relay is connected to. This lowers the amount of current that's allowed to move through the system. The same functionality can be provided to machines or other electrical apparatuses to prevent damage due to undercurrent.
Current relays can be used for both AC and DC set-ups, and their ability to prevent equipment failures due to overcurrent and undercurrent makes them an effective hazard control in workplaces where an equipment malfunction could cause injury.
