EKR8-7 Three Phase four wire Din rail automatic recovery over voltage and undervoltage protection relay

Voltage protection relay uses a high-speed and low power processor as its core. When the power supply line has over-voltage, under-voltage, or phase failure, phase reverse, the relay will cut off the circuit quickly and safely to avoid accidents caused by abnormal voltage being sent to the terminal appliance.

Inquire NOW PDF

EKR8-7 Three Phase four wire Din rail automatic recovery over voltage and undervoltage protection relay

Inquire NOW PDF

Product Profile

Voltage protection relay uses a high-speed and low power processor as its core. When the power supply line has over-voltage, under-voltage, or phase failure, phase reverse, the relay will cut off the circuit quickly and safely to avoid accidents caused by abnormal voltage being sent to the terminal appliance.


1. The product has protective functions: phase breaking, phase staggering, unbalanced voltage, zero line breaking.
2. Real-time monitoring of phase-staggered, phase-missing and voltage-unbalanced faults in three-phase four-wire circuit.
3. Voltage Monitor, the product enhances the anti-interference performance of frequency converter, and the performance is more stable.
4.Voltage Monitoring Relay, the phase sequence protector adopts standard modular structure and rail installation
5. Phase Sequence Protection Relay, the product has two indicator lights indicating various working conditions.

Technical Data

Technical Data

EKR8-741NA01
Monitoring Type
Three-phase Four-wire
Output Characteristics
SPDT
Over Voltage
0~20%
Under Voltage
0~20%
Time Delay
0.1~10S
Phase Sequence
Phase Failure
Asymmetric Voltage
5%~15%
Working Voltage/Frequency
L/N: AC127V-254V, 50/60Hz
Response Time of Relay
0.5S
Contact Rating
AC-15:3A/250VAC
Ambient Temperature
-10°C~+55°C
Voltage Error
⼠2% Max
Temperature Error
⼟2% Max

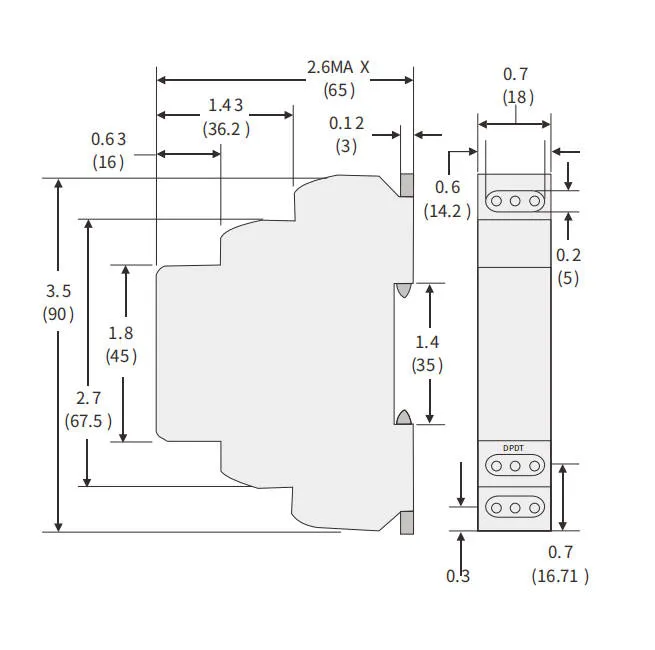

Dimensions

Dimension

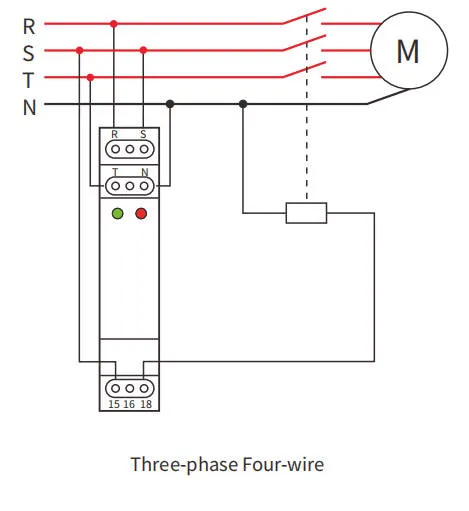

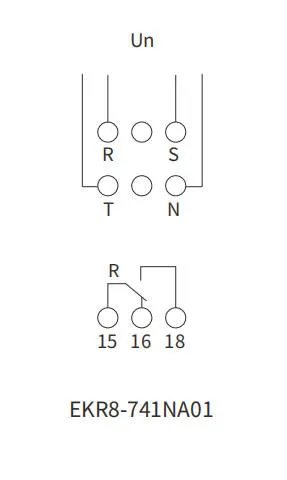

Wring Diagram
