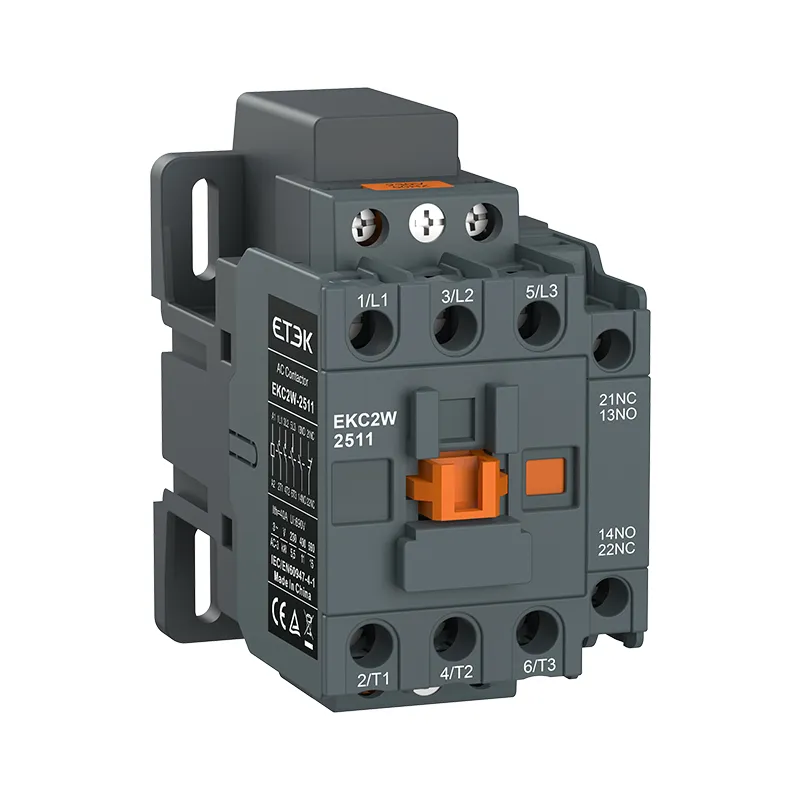

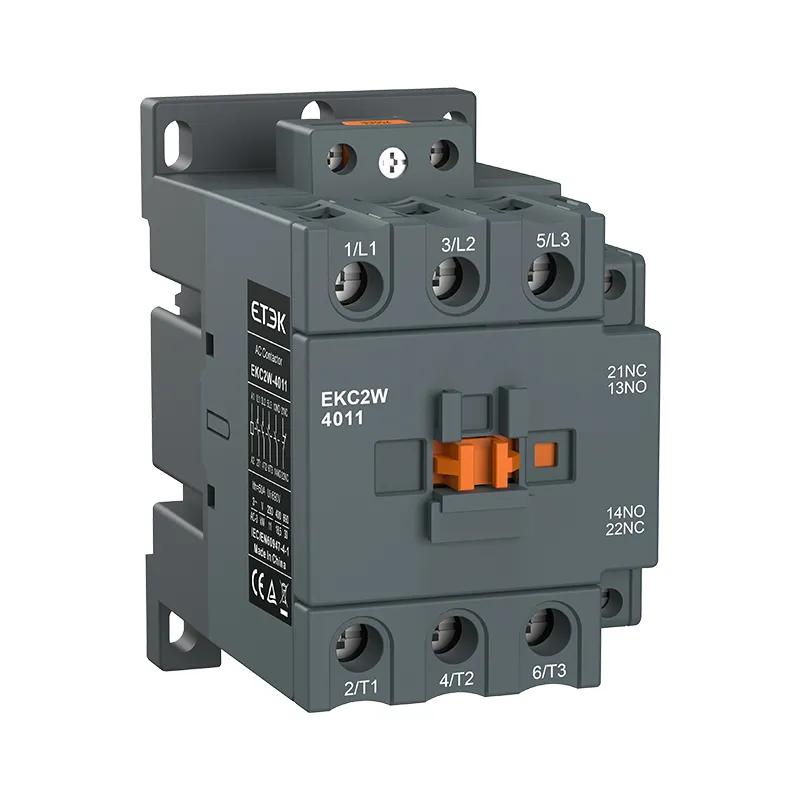

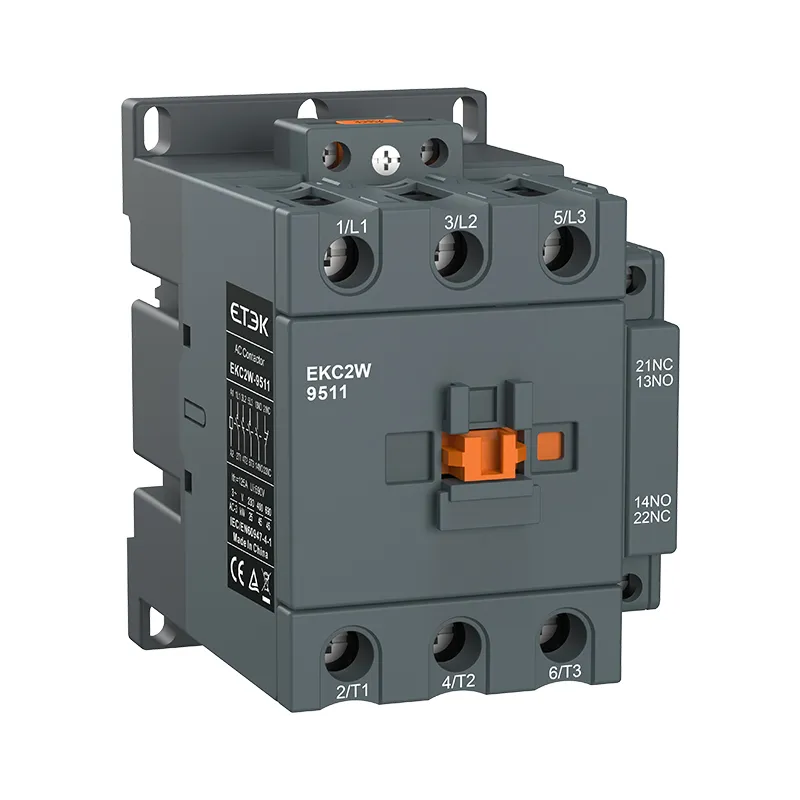

Name: EKC2W Wide Voltage Range Contactor with AC/DC Universal Coil
Brand: ETEK
SKU: 01322
Rating: 4.1 (711 reviews)

Product Profile

EKC2W Series wide voltage range contactors with AC/DC universal coil, are used for controlling 3-phase motors and power circuits up to 690 VAC and 250 VDC. These contactors are of the block type design with three main poles. Built-in 1NO+1NC auxiliary contact, resulting in installation time and cost savings.

Wide control voltage range: AC/DC: 24~60V, 110~250V
Can manage large control voltage variations: (85%~110%) Us
Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Technical Data

Table 1

AC/DC control supply	Type	EKC2W-09	EKC2W-12	EKC2W-18	EKC2W-25	EKC2W-32
Main circuit characteristic
Poles		3P
Main contact		3NO
Rated insulation voltage(Ui)		690V
Rated operating voltage(Ue)		AC220/230V; 380/400V; 660/690V
Rated thermal current(Ith), AC-1		20	20	32	40	50
Rated operation current(Ie)(A)	AC-3, 220/230V	9	12	18	25	32
	AC-4, 220/230V	3.5	5	7.7	8.5	12
	AC-3, 380/400V	9	12	18	25	32
	AC-4, 380/400V	3.5	5	7.7	8.5	12
	AC-3, 660/690V	6.6	8.9	12	18	22
	AC-4, 660/690V	1.5	2	3.8	4.4	7.5
Rated operational power(Pe)(A)	AC-3, 220/230V	2.2	3	4	5.5	7.5
	AC-4, 220/230V	0.6	1.1	1.5	2.2	3
	AC-3, 380/400V	4	5.5	7.5	11	15
	AC-4, 380/400V	1.5	2.2	3.3	4	5.4
	AC-3, 660/690V	5.5	7.5	10	15	18.5
	AC-4, 660/690V	1.1	1.5	3	3.7	5.5
Mechanical life(×10⁶times)		10	10	10	10	8
Electrical life (×10³ times)	AC-3	1000	1000	1000	1000	800
Electrical life (×10³ times)	AC-4	200	200	200	200	200
Frequency of operation (time/h)	AC-3	1200	1200	1200	1200	600
Frequency of operation (time/h)	AC-4	300	300	300	300	300
Control circuit characteristics
Rated control voltage(Us)	50Hz	AC/DC: 24~60V, 110~250V
Rated control voltage(Us)	50/60Hz	AC/DC: 24~60V, 110~250V
Allowed control circuit voltage	Operation	(85%~110%)Us
Allowed control circuit voltage	Release	(20%~75%)Us
Power consumption of coil AC/DC	Actuation(VA)	≤130	≤130	≤130	≤130	≤130
	Keep(VA)	≤2	≤2	≤2	≤2	≤2
	Consumption(W)	≤2	≤2	≤2	≤2	≤2
AC/DC24-60V AC/DC110-250V	Suction time(ms)	≤120
AC/DC24-60V AC/DC110-250V	Release time(ms)	≤90
Energy efficiency rating AC/DC		Level 2

Table 2

AC/DC control supply	Type	EKC2W-40	EKC2W-50	EKC2W-65	EKC2W-80	EKC2W-95
Main circuit characteristic
Poles		3P
Main contact		3NO
Rated insulation voltage(Ui)		690V
Rated operating voltage(Ue)		AC220/230V; 380/400V; 660/690V
Rated thermal current(Ith), AC-1		60	80	80	100	125
Rated operation current(Ie)(A)	AC-3, 220/230V	40	50	65	80	95
	AC-4, 220/230V	18.5	24	28	37	44
	AC-3, 380/400V	40	50	65	80	95
	AC-4, 380/400V	18.5	24	28	37	44
	AC-3, 660/690V	34	39	42	49	49
	AC-4, 660/690V	9	12	14	17.3	21.3
Rated operational power(Pe)(A)	AC-3, 220/230V	11	15	18.5	22	25
	AC-4, 220/230V	5.5	6	7.5	11	14
	AC-3, 380/400V	18.5	22	30	37	45
	AC-4, 380/400V	7.5	11	15	18.5	22
	AC-3, 660/690V	30	33	37	45	45
	AC-4, 660/690V	7.5	10	11	15	18.5
Mechanical life(×10⁶times)		8	8	8	10	8
Electrical life (×10³ times)	AC-3	600	600	600	600	600
Electrical life (×10³ times)	AC-4	150	150	150	100	100
Frequency of operation (time/h)	AC-3	600	600	600	600	600
Frequency of operation (time/h)	AC-4	300	300	300	300	300
Control circuit characteristics
Rated control voltage(Us)	50Hz	AC/DC: 24~60V, 110~250V
Rated control voltage(Us)	50/60Hz	AC/DC: 24~60V, 110~250V
Allowed control circuit voltage	Operation	(85%~110%)Us
Allowed control circuit voltage	Release	(20%~75%)Us
Power consumption of coil AC/DC	Actuation(VA)	≤300	≤300	≤300	≤300	≤300
	Keep(VA)	≤2	≤2	≤2	≤2	≤2
	Consumption(W)	≤3	≤3	≤3	≤3	≤3
AC/DC24-60V AC/DC110-250V	Suction time(ms)	≤120
AC/DC24-60V AC/DC110-250V	Release time(ms)	≤90
Energy efficiency rating AC/DC		Level 2

Table 3

Auxiliary contacts
Bulit-in auxiliary contact		1NO+1NC
Rated thermal current (Ith)		10A
Rated operating voltage (Ue)	AC	380V
	DC	220V
Rated control capacity	AC-15	360VA
	DC-13	33W

Dimensions

Product selection form

Reference No.	Specification
EKC2W-0911-60	Contactor 4KW AC3 9A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-0911-250	Contactor 4KW AC3 9A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-1211-60	Contactor 5.5KW AC3 12A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-1211-250	Contactor 5.5KW AC3 12A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-1811-60	Contactor 7.5KW AC3 18A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-1811-250	Contactor 7.5KW AC3 18A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-2511-60	Contactor 11KW AC3 25A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-2511-250	Contactor 11KW AC3 25A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-3211-60	Contactor 15KW AC3 32A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-3211-250	Contactor 15KW AC3 32A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-4011-60	Contactor 18.5KW AC3 40A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-4011-250	Contactor 18.5KW AC3 40A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-5011-60	Contactor 22KW AC3 50A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-5011-250	Contactor 22KW AC3 50A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-6511-60	Contactor 30KW AC3 65A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-6511-250	Contactor 30KW AC3 65A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-8011-60	Contactor 37KW AC3 80A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-8011-250	Contactor 37KW AC3 80A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-9511-60	Contactor 45KW AC3 95A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-9511-250	Contactor 45KW AC3 95A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC

Product Profile

Wide control voltage range: AC/DC: 24~60V, 110~250V
Can manage large control voltage variations: (85%~110%) Us
Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Technical Data

Table 1

AC/DC control supply	Type	EKC2W-09	EKC2W-12	EKC2W-18	EKC2W-25	EKC2W-32
Main circuit characteristic
Poles		3P
Main contact		3NO
Rated insulation voltage(Ui)		690V
Rated operating voltage(Ue)		AC220/230V; 380/400V; 660/690V
Rated thermal current(Ith), AC-1		20	20	32	40	50
Rated operation current(Ie)(A)	AC-3, 220/230V	9	12	18	25	32
	AC-4, 220/230V	3.5	5	7.7	8.5	12
	AC-3, 380/400V	9	12	18	25	32
	AC-4, 380/400V	3.5	5	7.7	8.5	12
	AC-3, 660/690V	6.6	8.9	12	18	22
	AC-4, 660/690V	1.5	2	3.8	4.4	7.5
Rated operational power(Pe)(A)	AC-3, 220/230V	2.2	3	4	5.5	7.5
	AC-4, 220/230V	0.6	1.1	1.5	2.2	3
	AC-3, 380/400V	4	5.5	7.5	11	15
	AC-4, 380/400V	1.5	2.2	3.3	4	5.4
	AC-3, 660/690V	5.5	7.5	10	15	18.5
	AC-4, 660/690V	1.1	1.5	3	3.7	5.5
Mechanical life(×10⁶times)		10	10	10	10	8
Electrical life (×10³ times)	AC-3	1000	1000	1000	1000	800
Electrical life (×10³ times)	AC-4	200	200	200	200	200
Frequency of operation (time/h)	AC-3	1200	1200	1200	1200	600
Frequency of operation (time/h)	AC-4	300	300	300	300	300
Control circuit characteristics
Rated control voltage(Us)	50Hz	AC/DC: 24~60V, 110~250V
Rated control voltage(Us)	50/60Hz	AC/DC: 24~60V, 110~250V
Allowed control circuit voltage	Operation	(85%~110%)Us
Allowed control circuit voltage	Release	(20%~75%)Us
Power consumption of coil AC/DC	Actuation(VA)	≤130	≤130	≤130	≤130	≤130
	Keep(VA)	≤2	≤2	≤2	≤2	≤2
	Consumption(W)	≤2	≤2	≤2	≤2	≤2
AC/DC24-60V AC/DC110-250V	Suction time(ms)	≤120
AC/DC24-60V AC/DC110-250V	Release time(ms)	≤90
Energy efficiency rating AC/DC		Level 2

Table 2

AC/DC control supply	Type	EKC2W-40	EKC2W-50	EKC2W-65	EKC2W-80	EKC2W-95
Main circuit characteristic
Poles		3P
Main contact		3NO
Rated insulation voltage(Ui)		690V
Rated operating voltage(Ue)		AC220/230V; 380/400V; 660/690V
Rated thermal current(Ith), AC-1		60	80	80	100	125
Rated operation current(Ie)(A)	AC-3, 220/230V	40	50	65	80	95
	AC-4, 220/230V	18.5	24	28	37	44
	AC-3, 380/400V	40	50	65	80	95
	AC-4, 380/400V	18.5	24	28	37	44
	AC-3, 660/690V	34	39	42	49	49
	AC-4, 660/690V	9	12	14	17.3	21.3
Rated operational power(Pe)(A)	AC-3, 220/230V	11	15	18.5	22	25
	AC-4, 220/230V	5.5	6	7.5	11	14
	AC-3, 380/400V	18.5	22	30	37	45
	AC-4, 380/400V	7.5	11	15	18.5	22
	AC-3, 660/690V	30	33	37	45	45
	AC-4, 660/690V	7.5	10	11	15	18.5
Mechanical life(×10⁶times)		8	8	8	10	8
Electrical life (×10³ times)	AC-3	600	600	600	600	600
Electrical life (×10³ times)	AC-4	150	150	150	100	100
Frequency of operation (time/h)	AC-3	600	600	600	600	600
Frequency of operation (time/h)	AC-4	300	300	300	300	300
Control circuit characteristics
Rated control voltage(Us)	50Hz	AC/DC: 24~60V, 110~250V
Rated control voltage(Us)	50/60Hz	AC/DC: 24~60V, 110~250V
Allowed control circuit voltage	Operation	(85%~110%)Us
Allowed control circuit voltage	Release	(20%~75%)Us
Power consumption of coil AC/DC	Actuation(VA)	≤300	≤300	≤300	≤300	≤300
	Keep(VA)	≤2	≤2	≤2	≤2	≤2
	Consumption(W)	≤3	≤3	≤3	≤3	≤3
AC/DC24-60V AC/DC110-250V	Suction time(ms)	≤120
AC/DC24-60V AC/DC110-250V	Release time(ms)	≤90
Energy efficiency rating AC/DC		Level 2

Table 3

Auxiliary contacts
Bulit-in auxiliary contact		1NO+1NC
Rated thermal current (Ith)		10A
Rated operating voltage (Ue)	AC	380V
	DC	220V
Rated control capacity	AC-15	360VA
	DC-13	33W

Dimensions

Product selection form

Reference No.	Specification
EKC2W-0911-60	Contactor 4KW AC3 9A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-0911-250	Contactor 4KW AC3 9A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-1211-60	Contactor 5.5KW AC3 12A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-1211-250	Contactor 5.5KW AC3 12A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-1811-60	Contactor 7.5KW AC3 18A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-1811-250	Contactor 7.5KW AC3 18A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-2511-60	Contactor 11KW AC3 25A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-2511-250	Contactor 11KW AC3 25A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-3211-60	Contactor 15KW AC3 32A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-3211-250	Contactor 15KW AC3 32A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-4011-60	Contactor 18.5KW AC3 40A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-4011-250	Contactor 18.5KW AC3 40A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-5011-60	Contactor 22KW AC3 50A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-5011-250	Contactor 22KW AC3 50A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-6511-60	Contactor 30KW AC3 65A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-6511-250	Contactor 30KW AC3 65A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-8011-60	Contactor 37KW AC3 80A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-8011-250	Contactor 37KW AC3 80A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC
EKC2W-9511-60	Contactor 45KW AC3 95A 3P+1NO+1NC Wide control voltage range 24~60VAC/DC
EKC2W-9511-250	Contactor 45KW AC3 95A 3P+1NO+1NC Wide control voltage range 110~250VAC/DC

EKC2W Wide Voltage Range Contactor with AC/DC Universal Coil

EKC2W Series wide voltage range contactors with AC/DC universal coil, are used for controlling 3-phase motors and power circuits up to 690 VAC and 250 VDC.

EKC2W Wide Voltage Range Contactor with AC/DC Universal Coil

Product Profile

Technical Data

Table 1

Table 2

Table 3

Dimensions

Product selection form

Product Profile

Technical Data

Table 1

Table 2

Table 3

Dimensions

Product selection form

Recommend Products

EKC2-M Mini Contactor 6~12A

EKC2 AC Magnetic Contactor 9~95A

EKC2S Cost-effective Magnetic AC Contactor with a range of 9 to 95A

EKC1 AC magnetic Contactor 9~95A

Recommend Products

EKC2-M Mini Contactor 6~12A

EKC2 AC Magnetic Contactor 9~95A

EKC2S Cost-effective Magnetic AC Contactor with a range of 9 to 95A

EKC1 AC magnetic Contactor 9~95A

EKC2W Wide Voltage Range Contactor with AC/DC Universal Coil

EKC2W Series wide voltage range contactors with AC/DC universal coil, are used for controlling 3-phase motors and power circuits up to 690 VAC and 250 VDC.

EKC2W Wide Voltage Range Contactor with AC/DC Universal Coil

Product Profile

Technical Data

Table 1

Table 2

Table 3

Dimensions

Product selection form

Product Profile

Technical Data

Table 1

Table 2

Table 3

Dimensions

Product selection form

Recommend Products

Recommend Products

Get in Touch
