Model: EKM1-63DC
ETEK 6KA DC MCB for Solar PV system
Inquire
● Standard: IEC60947-3
● Rated current: 32A
● Rated voltage: 1000VDC
● Number of poles: 1P
● Conditional Short-circuit Current: 30kA
● Utilization Category: DC-PV0
● Ambient air temperature: -5...+40 ºC
● Certificates: CE, CB, TUV

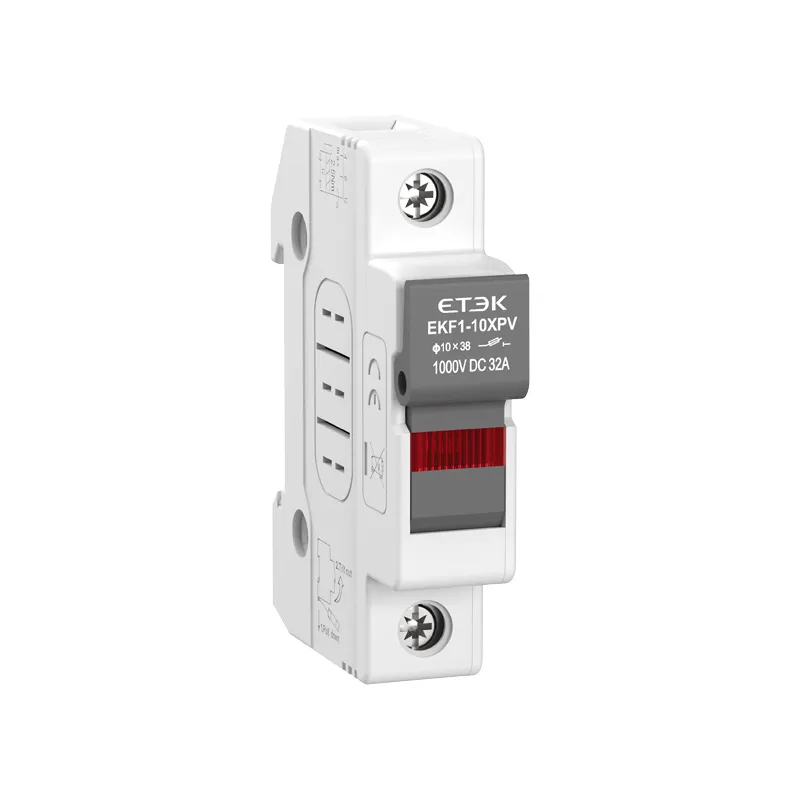

EKF1-10PV is a DC fuse holder designed for the protection of photovoltaic strings against short circuits and overloads. It has a rated working voltage of DC1000V and a maximum working current of 32A. It is installed securely using standard DIN Rail 35mm for optimal compatibility and stability.
The EKF1-10PV fuse holder boasts a compact installation width, thereby efficiently utilizing space within the junction box. The strategic ventilation slot design on both sides mitigates temperature rise when the products are installed adjacent to each other, while the flame-retardant plastic shell guarantees safe operation during usage.
This product is primarily intended for use with cylindrical fuse-links of size 10 x 38 mm DC fuses, and it finds common application in DC junction boxes, string inverters within the photovoltaic industry, and converters in the energy storage sector. Its primary function is to safeguard and isolate photovoltaic cell modules or arrays, as well as chemical energy (storage) batteries, ensuring their reliability and longevity.
| Tested according to | IEC / EN 60947-3 |
| Rated operating voltage Ue | 1000 VDC |
| Rated current In | up to 32 A |
| Number of poles | 1 |
| Rated insulation voltage Ui | 1000 VDC |
| Rated impulse withstand voltage Uimp | 6kV |
| Utilization category | DC-PV0 |
| Conditional Short-circuit Current | 30kA |
|
Pollution Degree
|
3 |
|
Degree of Protection
|
IP20,after installation
|
| Ambient temperature | -5...+40 ºC |
| Altitude | ≤ 2000 m |
| Relative humidity | ≤ 95 % |
| Tightening Torque | 2.5N.m |
| Terminal size for Cable | 6mm² |
| Mounting | 35mm Din rail |
| Fuse dimension | 10x38mm |

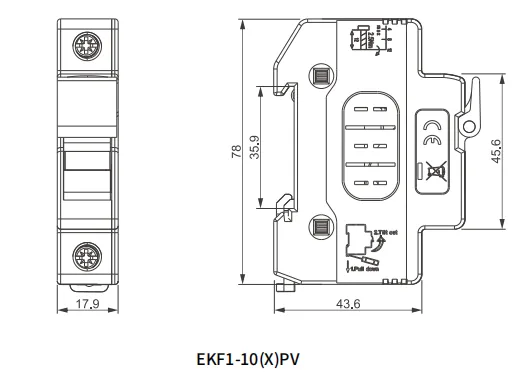

PV-Size.png)

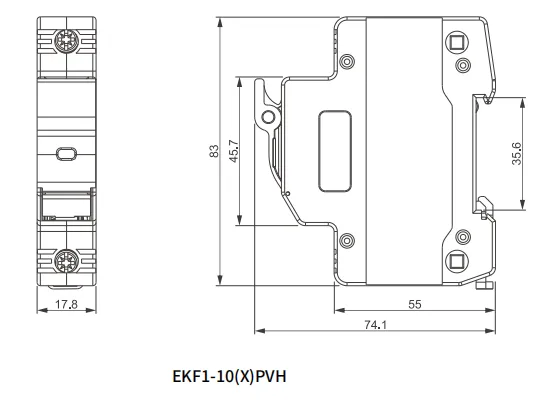

PVH-Size.png)
EKF1-10PV is a DC fuse holder designed for the protection of photovoltaic strings against short circuits and overloads. It has a rated working voltage of DC1000V and a maximum working current of 32A. It is installed securely using standard DIN Rail 35mm for optimal compatibility and stability.
The EKF1-10PV fuse holder boasts a compact installation width, thereby efficiently utilizing space within the junction box. The strategic ventilation slot design on both sides mitigates temperature rise when the products are installed adjacent to each other, while the flame-retardant plastic shell guarantees safe operation during usage.
This product is primarily intended for use with cylindrical fuse-links of size 10 x 38 mm DC fuses, and it finds common application in DC junction boxes, string inverters within the photovoltaic industry, and converters in the energy storage sector. Its primary function is to safeguard and isolate photovoltaic cell modules or arrays, as well as chemical energy (storage) batteries, ensuring their reliability and longevity.
