EKFL10D-1000VDC-Fuse-Link
EKFL10D-1000VDC-Fuse-Link
EKFL10D-1000VDC-Fuse-Link

1000VDC gPV 10x38mm Cylindrical Fuse Link

EKFL10D photovoltaic applications gPV 10x38 cylindrical fuse links from ETEK Electric to provide compact, safe, and cost-effective protection for photovoltaic modules (string protection) with voltages up to 1000VDC, current up to 32A.

● Standard: IEC60269-6
● Rated current: 8~32A
● Rated voltage: 1000VDC
● Size: 10x38mm
● Rated breaking capacity: 30kA
● Utilization category: gPV
● Rated power dissipation: ≤4.3W
● Operating temperature: -40ºC...+80 ºC
● Certificates: CE, CB, TUV

Inquire NOW PDF(Document currently available in English only)
Tags: gPV Fuse Link

1000VDC gPV 10x38mm Cylindrical Fuse Link

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

EKFL10D photovoltaic applications gPV 10x38 cylindrical fuse links from ETEK Electric to provide compact, safe, and cost-effective protection for photovoltaic modules (string protection) with voltages up to 1000VDC, current up to 32A.

These fuse links provide protection against overloads and short-circuits according to the requirements of IEC60269-6.

They are made with a ceramic tube that has high resistance to internal pressure and thermal shock, allowing for a high breaking capacity in a compact physical space.

The contacts are made of silver-plated copper, and the melting elements are made of pure silver to prevent aging and maintain unalterable electrical characteristics.

Technical parameters

Technical Data

Standard IEC60269-6
Rated voltage 1000VDC
Rated cureent 8A~32A
Rated breaking capacity 30kA
Utilization category gPV
Minimum interrupt rating 1.35In
Non fusing current 1.05In
Rated power dissipation ≤4.3W
Operating temperature -40°C ... 80°C
Storage temperature -40°C ... 90°C

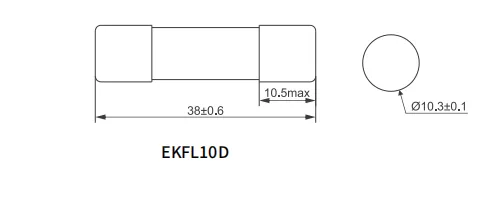

Dimensions

Download Files

Document currently available in English only.

Porduct Overview

EKFL10D photovoltaic applications gPV 10x38 cylindrical fuse links from ETEK Electric to provide compact, safe, and cost-effective protection for photovoltaic modules (string protection) with voltages up to 1000VDC, current up to 32A.

These fuse links provide protection against overloads and short-circuits according to the requirements of IEC60269-6.

They are made with a ceramic tube that has high resistance to internal pressure and thermal shock, allowing for a high breaking capacity in a compact physical space.

The contacts are made of silver-plated copper, and the melting elements are made of pure silver to prevent aging and maintain unalterable electrical characteristics.
