PortuguêsMain circuit protection in residential distribution systems

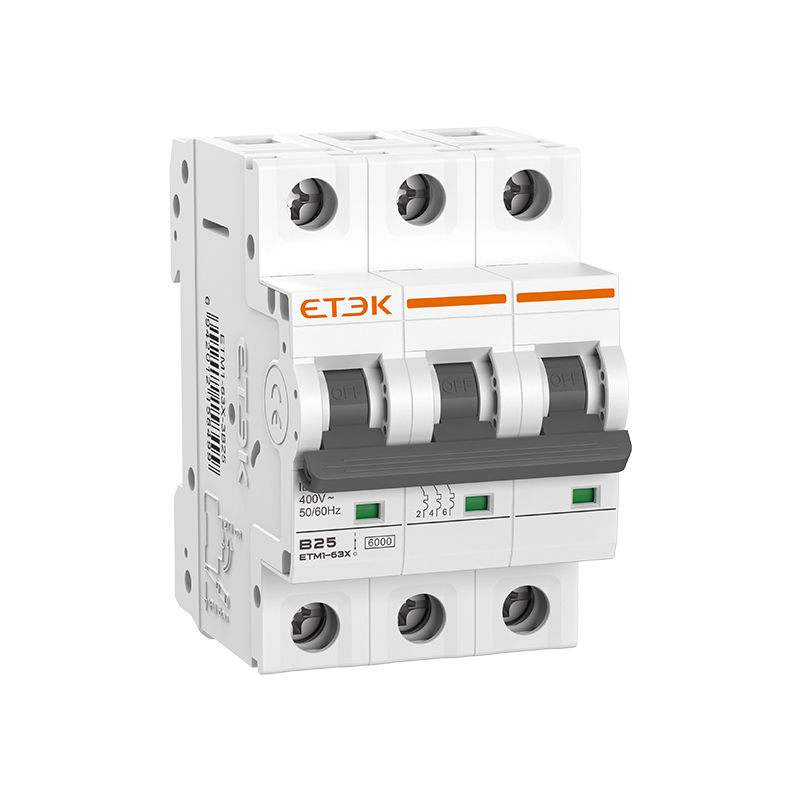

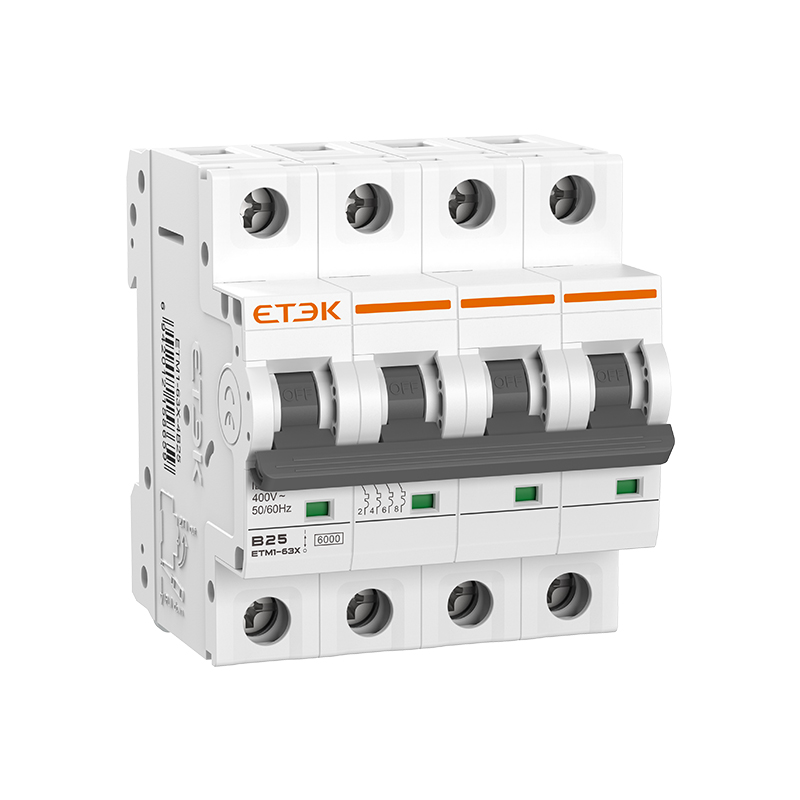

ETM1-63X Series Miniature Circuit Breaker is specifically designed for terminal power distribution protection in commercial office buildings, residential premises, and general industrial applications.
This product incorporates finger-safe combination terminals and provides contact open/close status indication, significantly enhancing operational safety. Additionally, various modular accessories can be configured to meet diverse application needs.
General data |
|
|
Protection
|
Overcurrent and short circuit
|
|
Type of trip
|
Thermal-magnetic
|
|

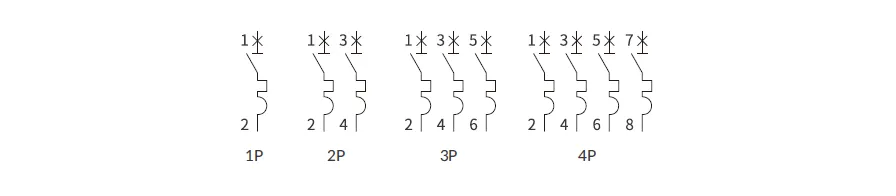

No. of poles
|
1P, 2P, 3P, 4P
|
|
Rated operational voltage (Ue)
|
1P: 2110/230V, 120/240V, 230/400V, 240/415V
2P,3P,4P: 230/400V, 240/415V, 400/415V
|
|
Rated current (In)
|
1, 2, 3, 4, 5, 6, 8, 10, 13, 16, 20, 25, 32, 40, 50, 63A
|
|
Rated frequency
|
50/60Hz
|
|
Rated insulation voltage (Ui)
|
415V
|
|
Rated impulse withstand voltage (Uimp) (1.2/50μs)
|
6kV
|
|
Dielectric test voltage
|
2kV (50/60Hz,1 min.)
|
|
Fire resistance (glow-wire test)
|
960±15°C (Enclosure); 650±10°C (Handle)
|
|
Pollution degree
|
2
|
Data acc. to IEC/EN 60898-1 |
|
|
Rated short-circuit capacity (Icn)
|
6kA |
|
Rated service short-circuit breaking capacity (Ics)
|
6kA |
|
Energy limiting class
|
3 |
|
Thermal tripping characteristics
|
1.13×In No tripping within an hour; 1.45×In Tripping within an hour
|
|
Instantaneous tripping characteristics
|
B: 3In-5In; C: 5In-10In; D: 10In-20In
|
Mechanical data |
|
|
Electrical life
|
4,000 Cycles
|
|
Mechanical life
|
20,000 Cycles
|
|
Contact position indication
|
green OFF / red ON
|
|
Protection degree
|
IP20
|
|
Reference temperature
|
30°C
|
|
Operating ambient temperature (with daily average≤35°C)
|
-25°C ~ +55°C
|
|
Storage temperature
|
-30°C ~ +70°C
|

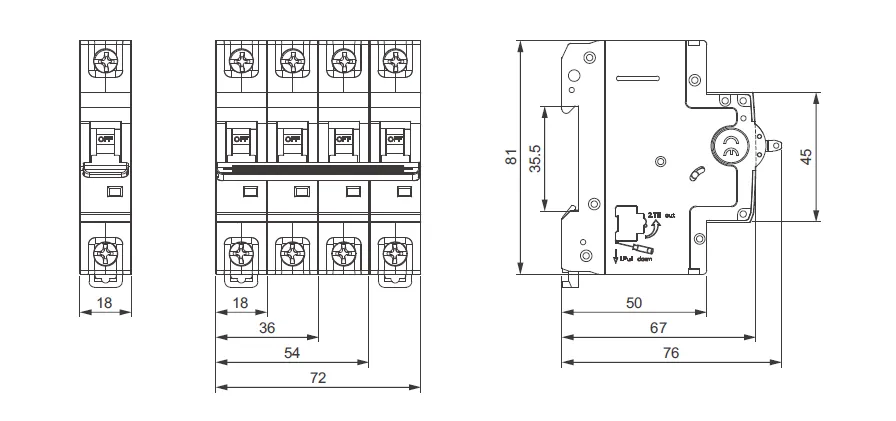

Installation |
|
|
Terminal connection type
|
Cable/ Pin-type
|
|
Terminal block
|
Screw press-connected
|
|
Max. terminal size for cable
|
16mm² flexible/ 25mm² rigid
|
|
Max. tightening torque
|
2.5N.m
|
|
Mounting type
|
Mounting on 35mm DIN rail
|
|
Incoming method
|
Bi-Directional
|
Auxiliary for remote tripping or signaling |
|
|
Auxiliary Contact
|
Yes |
|
Auxiliary & Alarm Contact
|
Yes |
|
Shunt Release
|
Yes |
|
Shunt Release & Auxiliary Contact
|
Yes |
|
Voltage Loss Release
|
Yes |
|
Over-voltage Release
|
Yes |
|
Undervoltage Release
|
Yes |
|
Over-undervoltage Release
|
Yes |
|
Mechanical Interlock
|
Yes |
