EKD6 plastic or aluminum box Isolator Switch
Inquire
● Standard: IEC60947-2
● Poles: 2P
● Rated Current: 100-1600A
● Rated voltage: 1000/1500V
● Rated insulation voltage: 1600V
● Rated impulse withstand voltage: 12kV
● Trip unit technology: Thermal-magnetic
● Ambient Temperature: -25...+70 ºC
● Application: photovoltaic / UPS / battery / data center etc.

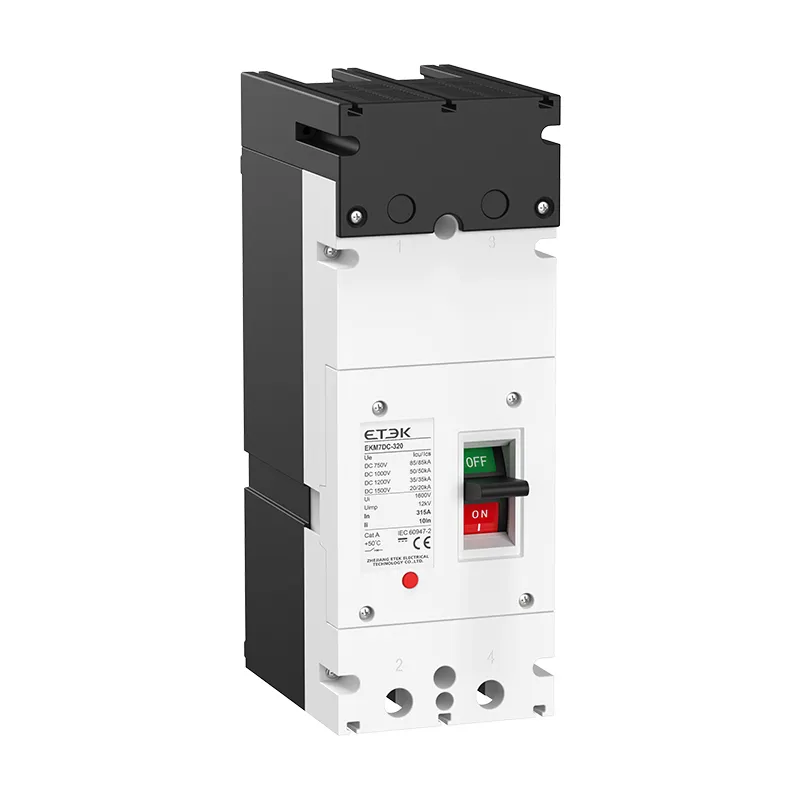

EKM7DC is a solar photovoltaic-specific molded case circuit breaker developed by ETEK Electric, compliant with the IEC 60947-2 standard. It features a rated working voltage of up to DC1500V, a rated insulation voltage of 1500V, a rated impulse withstand voltage of 12kV, and a rated current range of 100A to 1600A. These circuit-breakers are capable of breaking short-circuit currents up to 20kA in 1500V DC voltage applications.
Widely used in the main circuits of combiner boxes, DC cabinets, and inverter cabinets, the EKM7DC provides short-circuit protection, overload protection, and isolation functions. This helps prevent system failures caused by current from other circuits passing through short-circuit points. Its compact size, easy installation, safety, reliable operation, and high cost-effectiveness make it well-suited for the needs of photovoltaic power generation.
| Standrad | IEC60947-2 | |||||
| Model | EKM7DC-320 | EKM7DC-400 | EKM7DC-630 | EKM7DC-1600 | ||
| Poles | 2P | 3P,4P | ||||
| Rated Current (In) | A | 100,125,140,160,180,200,225,250,280,315 | 250,315,350,400 | 400,500,630 | 800,1000,1250,1500,1600A | |
| Rated Operation Volatge (Ue) | V,DC | 750, 1000, 1200, 1500 | ||||
| Rated insulation voltage (Ui) | V | 1600 | ||||
| Rated impulse withstand voltage (Uimp) | kV | 12 | ||||
| Short-ciruit breaking capacity Ics=Icu |
kA | 750V | 85 | 85 | 85 | 50 |
| 1000V | 50 | 50 | 50 | 30 | ||
| 1200V | 35 | 35 | 35 | 15 | ||
| 1500V | 20 | 20 | 20 | 10 | ||
| Trip unit technology | Thermal–magnetic | |||||
| Electrical life | times | 1000 | 1000 | 1000 | 500 | |
| Machine life | times | 4000 | 4000 | 4000 | 2500 | |
| Arcing distabce | mm | 50 / 0 (with arc extinguishing cover) | ||||
| Instantaneous tripper | 5In or 10In | |||||

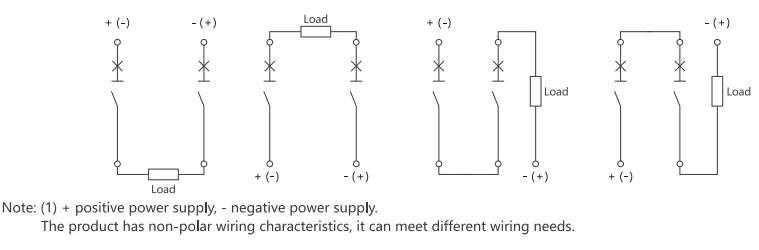

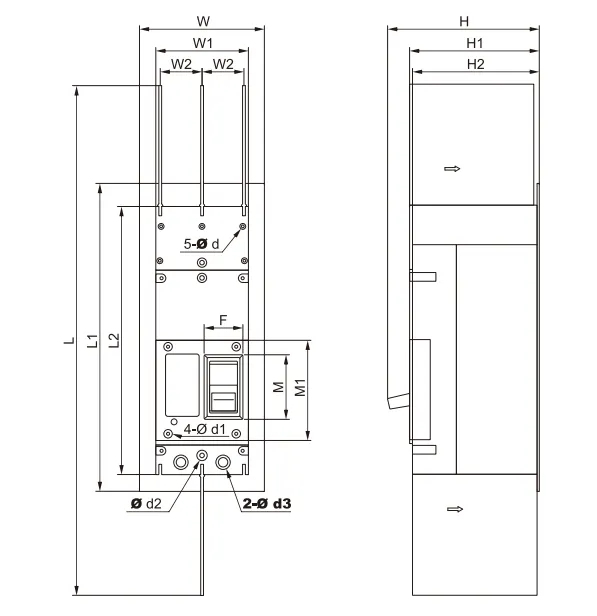

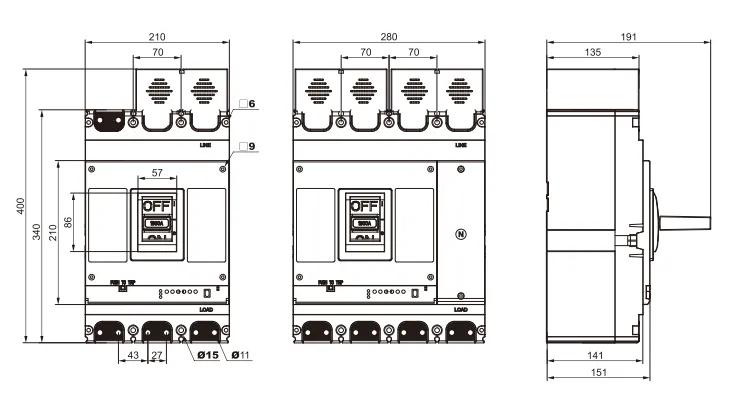

| Model | W | W1 | W2 | L | L1 | L2 | M | M1 | F | H | H1 | H2 | d1 | d2 | d3 |
| EKM7DC-320 | / | 99 | 38 | 465 | / | 245 | 51 | 101 | 28 | 135 | 118 | / | / | 10 | 12.5 |
| EKM7DC-400 | 148 | 110 | 49 | 605 | 365 | 319 | 76 | 119 | 45 | 178 | 154 | 150 | 8 | 13 | 19 |
| EKM7DC-630 | 148 | 110 | 49 | 605 | 365 | 319 | 76 | 119 | 45 | 178 | 154 | 150 | 8 | 13 | 19 |
EKM7DC is a solar photovoltaic-specific molded case circuit breaker developed by ETEK Electric, compliant with the IEC 60947-2 standard. It features a rated working voltage of up to DC1500V, a rated insulation voltage of 1500V, a rated impulse withstand voltage of 12kV, and a rated current range of 100A to 1600A. These circuit-breakers are capable of breaking short-circuit currents up to 20kA in 1500V DC voltage applications.
Widely used in the main circuits of combiner boxes, DC cabinets, and inverter cabinets, the EKM7DC provides short-circuit protection, overload protection, and isolation functions. This helps prevent system failures caused by current from other circuits passing through short-circuit points. Its compact size, easy installation, safety, reliable operation, and high cost-effectiveness make it well-suited for the needs of photovoltaic power generation.
