● Standard: IEC60947-2
● Poles: 3P
● Rated Current: 10-630A
● Rated voltage: 415,690,800,1000,1140V
● Rated insulation voltage: 1200V
● Rated impulse withstand voltage: 12kV
● Trip unit technology: Thermal-magnetic
● Ambient Temperature: -25...+70 ºC
The EKM7 series high voltage molded case circuit breaker is specifically engineered to cater to the requirements of power distribution networks operating at AC 50/60Hz. It boasts a rated insulation voltage of 1200V, providing dependable protection for circuits with rated voltages ranging from 690V to 1140V, and a rated current of up to 630A.
This circuit breaker is well-suited for infrequent circuit switching and occasional motor starting. It effectively guards against overloads, short circuits, overvoltage, and undervoltage, ensuring the safety and stability of power lines.
Furthermore, the EKM7 series high voltage molded case circuit breaker adheres to the IEC60947-2 standard, ensuring its quality and performance.

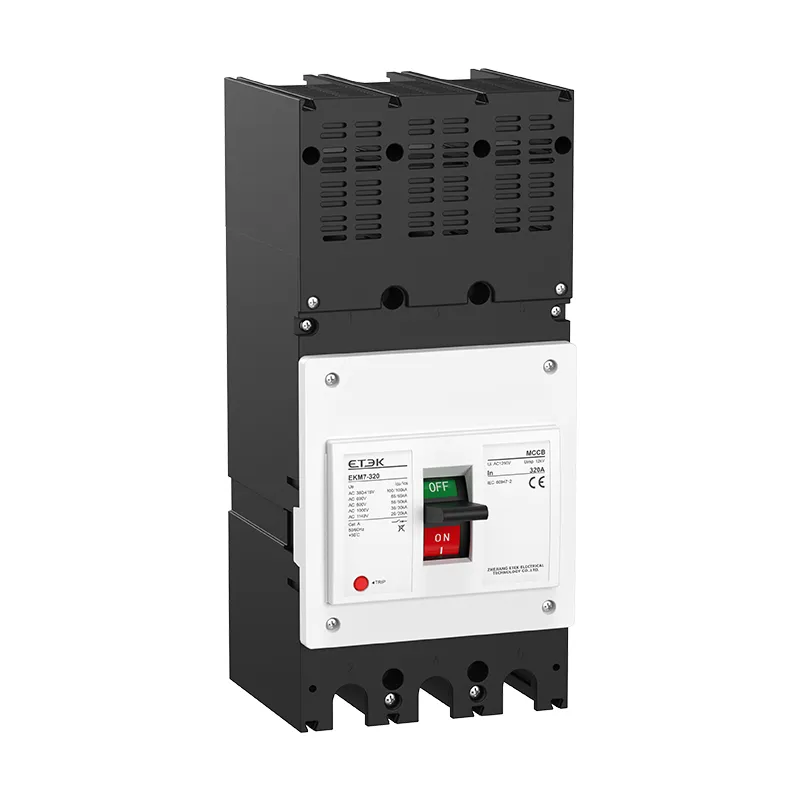

Model | EKM7-320 | |||||
Rated current (A) | 16,20,25,32,40,50,63,75,80,100,125,140,160,180,200,225,250,320 | |||||
Poles | 3P | |||||
Rated working voltage Ue (V) | 380/415 | 690 | 800 | 1000 | 1140 | |
Rated insulation voltage Ui (V) | 1200 | |||||
Rated impulse withstand voltage Uimp (kV) | 12 | |||||
Power frequency withstand voltage (1min)(V) |
3500 | |||||
Rated ultimate short-circuit breaking capacity Icu=Icu(kA) |
Breaking capacity level |
380/ 415V |
690V | 800V | 1000V | 1140V |
M | / | 60 | 50 | 20 | 12 | |
H | 100 | 65 | 50 | 30 | 20 | |
Mechanical life (cycles) | 15000 | |||||
Electrical life (cycles) | 5000 | 3000 | 3000 | 1000 | 1000 | |
Arc distance(mm) | 50 | |||||
Dimension W×L×H(mm) | 120×200×103 | |||||
Instantaneous release | 5In or 10In | |||||
Reference ambient temperature | 40°C | |||||
Working ambient temperature | -40°C ~ +70°C, no derating at +50°C | |||||
Altitudes | 5000m |
Model | EKM7-630 | |||||
Rated current (A) | 225,250,320,350,400,500,630 | |||||
Poles | 3P | |||||
Rated working voltage Ue (V) | 380/415 | 690 | 800 | 1000 | 1140 | |
Rated insulation voltage Ui (V) | 1200 | |||||
Rated impulse withstand voltage Uimp (kV) | 12 | |||||
Power frequency withstand voltage (1min)(V) |
3500 | |||||
Rated ultimate short-circuit breaking capacity Icu=Icu(kA) |
Breaking capacity level |
380/ 415V |
690V | 800V | 1000V | 1140V |
M | / | 60 | 50 | 20 | 12 | |
H | 100 | 65 | 50 | 32 | 20 | |
Mechanical life (cycles) | 15000 | |||||
Electrical life (cycles) | 5000 | 3000 | 3000 | 1000 | 1000 | |
Arc distance(mm) | 50 | |||||
Dimension W×L×H(mm) | 158×325×177 | |||||
Instantaneous release | 5In or 10In | |||||
Reference ambient temperature | 40°C | |||||
Working ambient temperature | -40°C ~ +70°C, no derating at +50°C | |||||
Altitudes | 5000m |
The EKM7 series high voltage molded case circuit breaker is specifically engineered to cater to the requirements of power distribution networks operating at AC 50/60Hz. It boasts a rated insulation voltage of 1200V, providing dependable protection for circuits with rated voltages ranging from 690V to 1140V, and a rated current of up to 630A.
This circuit breaker is well-suited for infrequent circuit switching and occasional motor starting. It effectively guards against overloads, short circuits, overvoltage, and undervoltage, ensuring the safety and stability of power lines.
Furthermore, the EKM7 series high voltage molded case circuit breaker adheres to the IEC60947-2 standard, ensuring its quality and performance.
