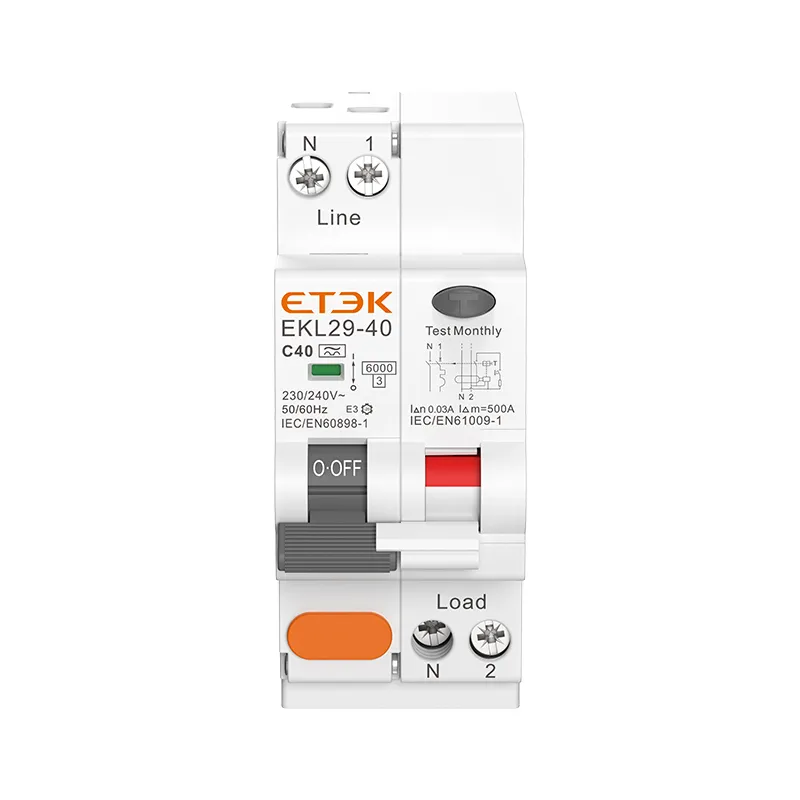

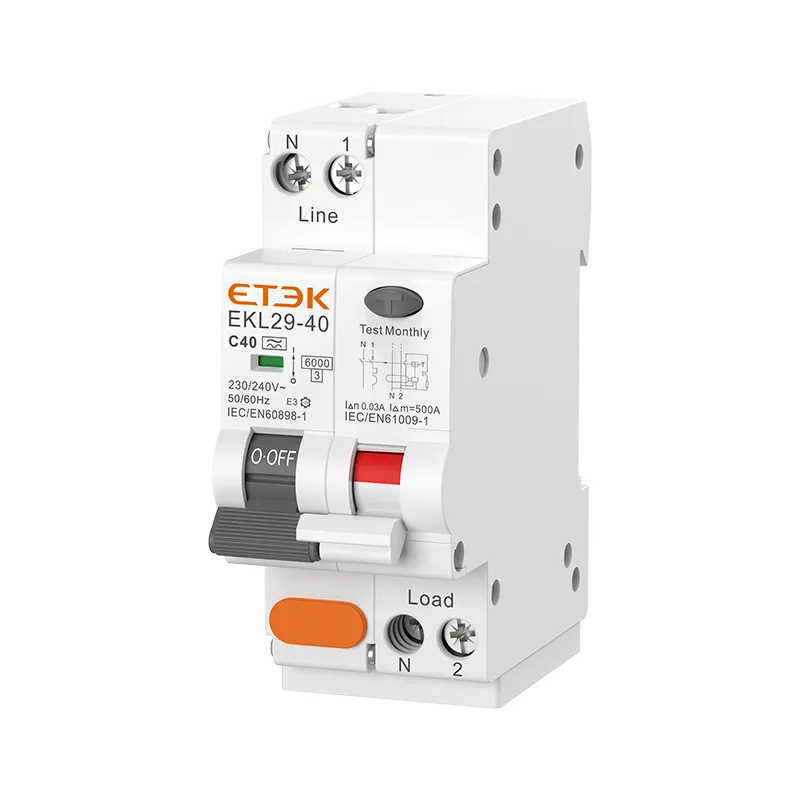

EKL19-40 RCBO 6kA Electronic Type Residual Current Operated Circuit Breaker
Inquire
● Standard: IEC61009-1, IEC60898-1
● Type: AC, A
● Rated current: 6~40A
● Rated voltage: 230/240~
● Number of poles: 2P(1P+N)
● Rated Residual Operating Current (IΔn): 30, 100, and 300mA
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C
● Ambient air temperature: -25...+55 ºC
● Connection: From top
The EKL29-40 RCBO is an electronic residual current circuit breaker with overcurrent protection. It is designed to safeguard final distribution single-phase installations in commercial and industrial buildings, with a maximum rating of 40A.
Modular design, easy to install.
Tripping sensitivity from 30mA to 300mA to cover all earth leakage protection needs.
| Standard | IEC/EN61009-1, IEC/EN60898-1 |
| Protection | Ground fault, Overcurrent and short circuit, Over-voltage (selectable) |
| Type of trip | Ground fault: Electronic |
| Overload and short circuit: Thermo-magnetic | |
| Type of protection (electric leakage) | AC, A |
| No. of poles | 1P+N 2module, N line with disconnected |
| Rated voltage (Ue) | 230/240V~ |
| Rated frequency | 50/60Hz |
| Rated currents (In) | 6,10,16,20,25,32,40A |
| Rated sensitivity currents I△n | 30,100,300mA |
| Residual current off-time under I△n | ≤ 0.1s |
| Rated residual making and breaking capacity (I△m) | 500A(In≤50A) |
| Rated breaking capacity | 6,000A |
| Energy Limiting Class | 3 |
| Rated impulse withstand voltage (1.2/50) Uimp | 4,000V |
| Dielectric test voltage at Ind. Freq. for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45) x In |
| Magnetic release characteristic | B:(3-5) x In, C:(5-10) x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Ground fault indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -25℃ to +55℃, Max.95% humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Max. terminal size for cable | 16mm2 |
| Max. tightening torque | 2.5N.m |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top |
The EKL29-40 RCBO is an electronic residual current circuit breaker with overcurrent protection. It is designed to safeguard final distribution single-phase installations in commercial and industrial buildings, with a maximum rating of 40A.
Modular design, easy to install.
Tripping sensitivity from 30mA to 300mA to cover all earth leakage protection needs.
