RCBO Electro-magnetic Type Residual Current Circuit Breaker with Overcurrent Protection

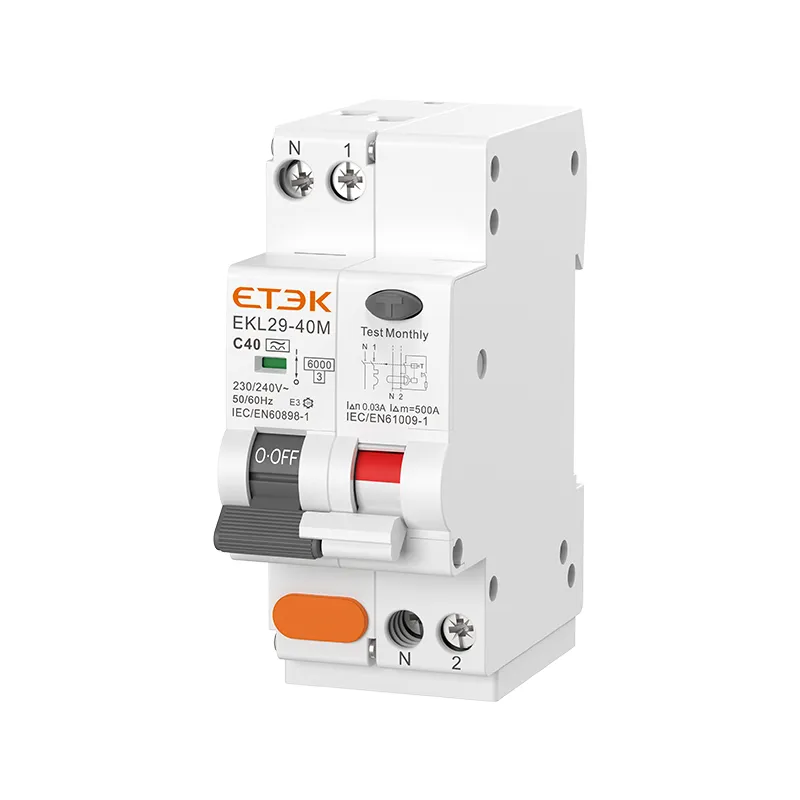

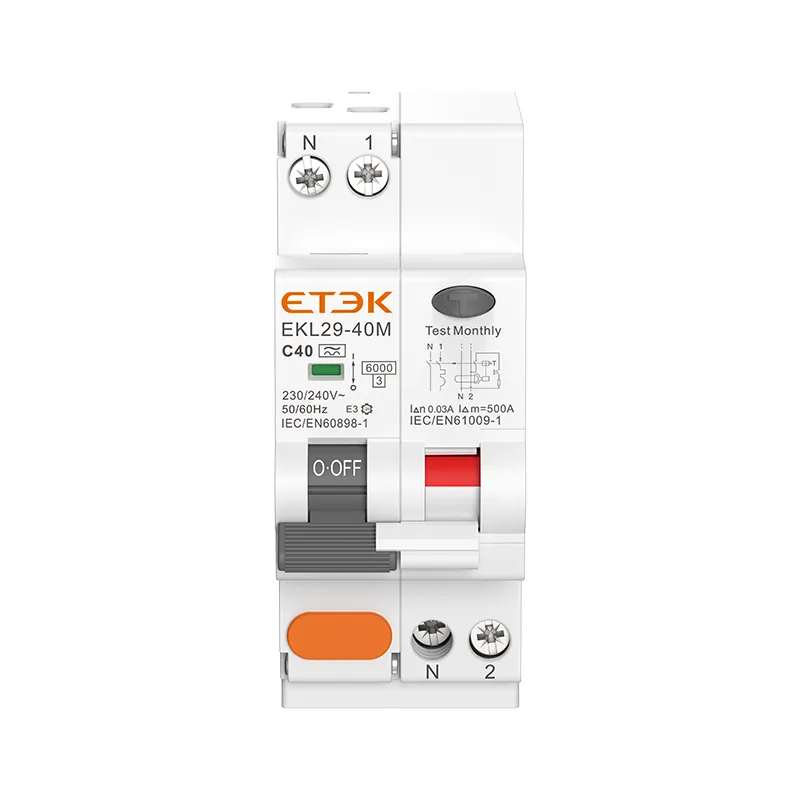

EKL29-40M RCBO is an Electro-magnetic residual current circuit breaker with overcurrent protection. It is designed to safeguard final distribution single-phase installations in commercial and industrial buildings, with a maximum rating of 40A.

● Standard: IEC61009-1, IEC60898-1
● Type: AC, A
● Rated current: 6~40A
● Rated voltage: 230/240~
● Number of poles: 2P(1P+N)
● Trip unit technology: Electro-magnetic Type
● Rated Residual Operating Current (IΔn): 30, 100, and 300mA
● Rated short-circuit breaking capacity: 6kA
● Tripping curve: B, C
● Ambient air temperature: -25...+55 ºC
● Connection: From top and bottom

Inquire NOW PDF(Document currently available in English only)

Tags: RCD with Overcurrent Protection Magnetic Type RCBO

RCBO Electro-magnetic Type Residual Current Circuit Breaker with Overcurrent Protection

Inquire NOW PDF

Porduct Overview

Technical parameters

Download Files

Porduct Overview

EKL29-40M RCBO is an Electro-magnetic residual current circuit breaker with overcurrent protection. It is designed to safeguard final distribution single-phase installations in commercial and industrial buildings, with a maximum rating of 40A.

Modular design, easy to install.
Tripping sensitivity from 30mA to 300mA to cover all earth leakage protection needs.

Technical parameters

Technical Data

Standard	IEC/EN61009-1, IEC/EN60898-1
Protection	Ground fault, Overcurrent and short circuit
Type of trip	Ground fault: Electro-magnetic
Type of trip	Overload and short circuit: Thermo-magnetic
Type of protection (electric leakage)	AC, A
No. of poles	1P+N 2module, N line with disconnected
Rated voltage (Ue)	230/240V~
Rated frequency	50/60Hz
Rated currents (In)	6,10,16,20,25,32,40A
Rated sensitivity currents I△n	30,100,300mA
Residual current off-time under I△n	≤ 0.1s
Rated residual making and breaking capacity (I△m)	500A(In≤50A)
Rated breaking capacity	6,000A
Energy Limiting Class	3
Rated impulse withstand voltage (1.2/50) Uimp	4,000V
Dielectric test voltage at Ind. Freq. for 1 min	2kV
Thermal release characteristic	(1.13-1.45) x In
Magnetic release characteristic	B:(3-5) x In, C:(5-10) x In
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Ground fault indicator	Yes
Protection degree	IP20
Ambient temperature	-25℃ to +55℃, Max.95% humidity
Terminal connection type	Cable/Pin-type busbar
Max. terminal size for cable	16mm²
Max. tightening torque	2.5N.m
Installation	Mounting on 35mm DIN rail
Connection	From top and bottom
