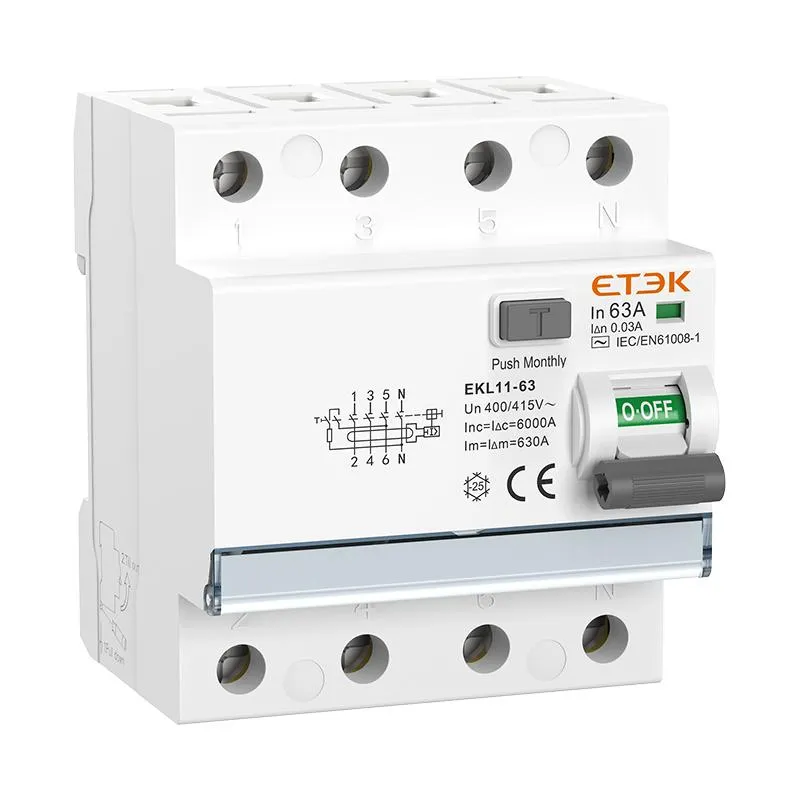

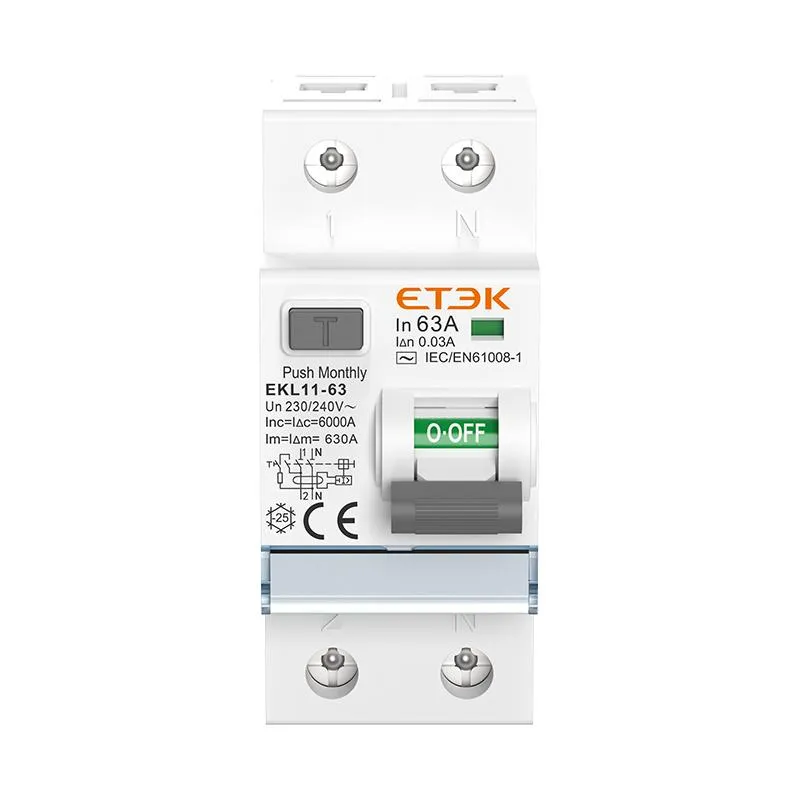

EKL1-80(H) RCCB 6KA/10kA Residual Current Circuit Breaker
Inquire
● Standard: IEC61008-1
● Type: AC, A
● Rated current: 16~63A
● Rated voltage: 230/400V~240/415V
● Poles: 2P(1P+N), 4P(3P+N), N Pole on right
● Rated sensitivity I△n: 30mA, 100 mA, 300mA
● Rated short-circuit breaking capacity: 6kA, 10kA
● Ambient air temperature: -25...+55 ºC
● Connection: From top and bottom
● Certificates: CB, CE
EKL11-63 Residual Current Circuit Breaker is the latest rccb developed by our company. It suitable for circuits with rated voltage of 240V for two poles, 415V for four poles, and rated current up to 63A. When the personal electric shock or the leakage current of the power grid exceeds the specified value, the RCCB can quickly cut off the faulty power supply in a very short time to protect the safety of the person and electrical equipment.
|
Standard |
IEC/EN61008-1 |
||
|
Protection |
Ground fault |
||
|
Type of trip |
Electro-magnetic |
||
|
Type of protection (electric leakage) |
AC, A |
||
|
No. of poles |
2P(1P+N), 4P(3P+N), N Pole on right |
||
| Rated current In | 16,25,32,40,63A | ||
|
Rated sensitivity currents I△n |
10,30,100,300mA (10mA only for In=16-25A) |
||
|
Residual current off-time under I△n |
≤0.1s |
||
|
Rated residual making and breaking capacity(I△m) |
500A(In≤50A),10In (In>50A) |
||
| Rated voltage Ue |
1P+N: 230/240V~, 3P+N: 400/415V~ |
||
| Rated frequency | 50/60Hz | ||
|
Rated breaking capacity |
6,000A, 10,000A | ||
|
SCPD fuse |
6kA (EKL11-63)/10kA (EKL11-63H) | ||
| Rated impulse withstands voltage (1.5/50) Uimp | 4000V | ||
| Dielectric test voltage at ind. Freq. for 1min | 2kV | ||
| Electrical life | 2,000 Cycles | ||
| Mechanical life | 4,000 Cycles | ||
| Contact position indicator | Yes | ||
| Protection degree | IP20 | ||
| Ambient temperature |
-25℃ to +55℃, Max.95% humidity |
||
| Terminal connection type |
Cable/Pin-type busbar/Fork-type busbar |
||
|
Max. terminal size for cable |
25mm2 | ||
|
Max. tightening torque |
2.5N.m | ||
|
Installation |
Mounting on 35mm DIN rail |
||
| Connection |
From top and bottom |
||
