● EKIS30 series Isolation switches applied to circuits of AC 50Hz with working voltage up to 440V and rated working current up to 100A.
● EKIS30 is suitable to control: air-conditioner, water pump and ventilating equipment, and AC Motors with small power.

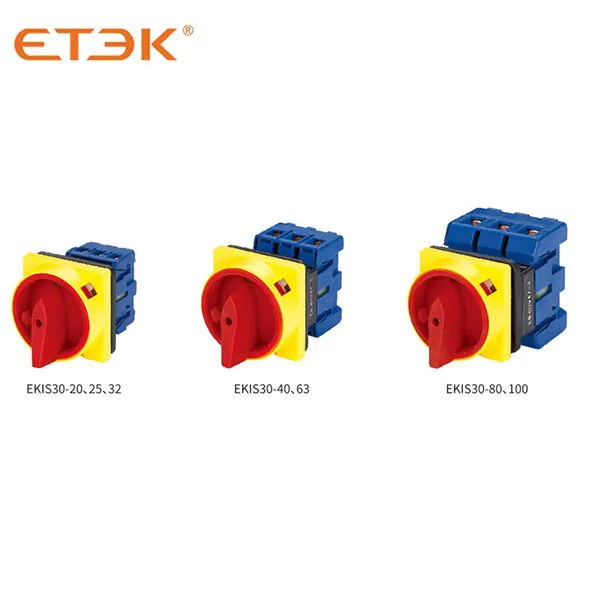

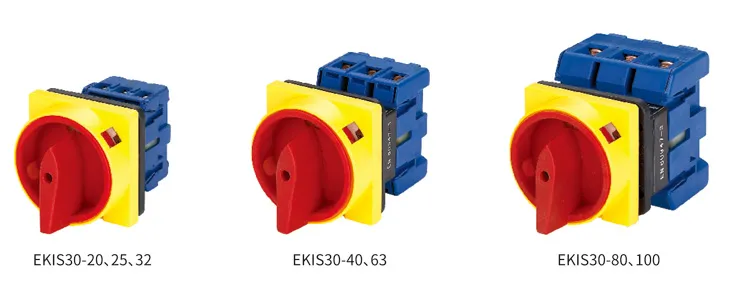

● EKIS30 series rotary switches have 7 current ratings: 20A,25A,32A,40A,63A,80A, and 100A.
● EKIS30 series has the finger protection terminals, which offers an extra advantage.
● EKIS30 series switches has larger insulation distance, quick disconnecting response. And is a good choice For DC circuits, EKIS30 has additional contact which enable us to install the contact separately
● EKIS series rotary switches comply with: IEC60947-3.
● Ambient temperature Do Not exceed 40℃, and the average temperature, measured over a period of 24 hours, Do Not exceed 35℃
● Ambient temperature should not be below -25℃
● Should Not be installed over 2000m above sea level
● The humidity should not exceed 50% when the ambient temperature is 40℃ and higher humidity is allowed for lower temperature.
● A clean environment is required
● Please follow our manual
● Classified by utilization
(1) AC-23A
(2) AC-3
● Classified by protective level
(1) Without plastic box: IP20

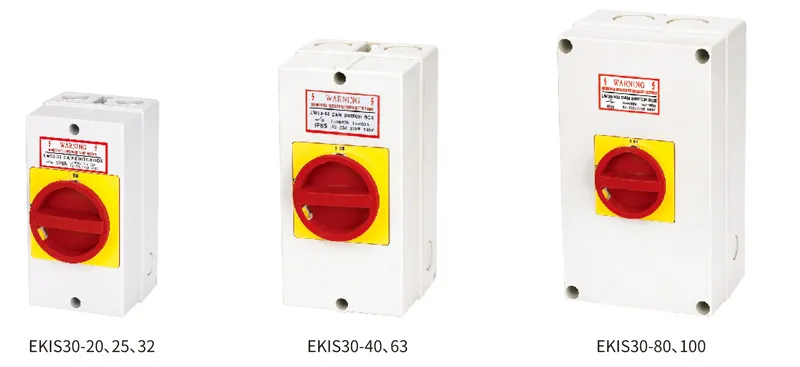

(2) With plastic box: IP65

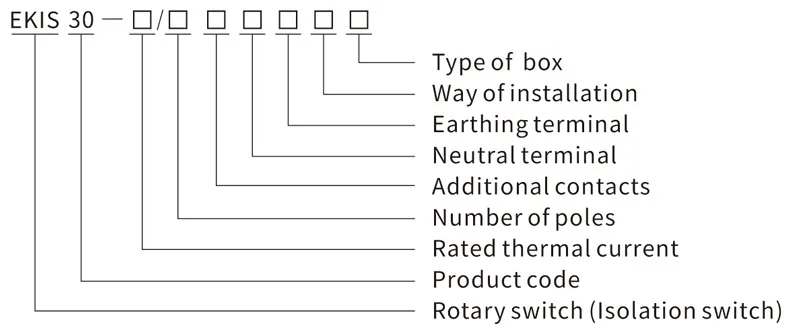

Number of poles :3P,4P
Additional contacts :0 for additional contacts not enclosed, 1 for with additional contacts
Neutral terminal:0 for neutral terminal not enclosed, 1 for with neutral terminal
Earthing terminal: 0 for earthing terminal not enclosed, 1 for with earthing terminal.

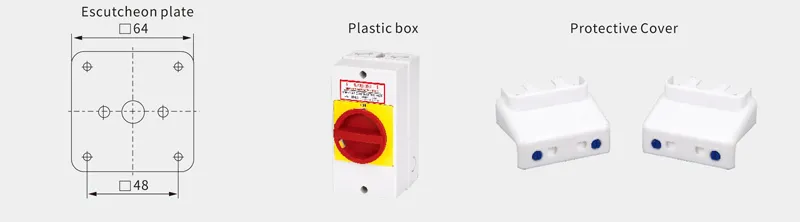

1.Pad-lock escutcheon plate
2.Escutcheon plate
3.Single lock parallel installation
4.Doorlock safety switch with padlock system
5.Single-hole installation
Type of box :0 without protective box, 1 with IP65 Plastic box
Technical parameters
Description | EKIS30-25(20) | EKIS30-32 | EKIS30-40 | EKIS30-63 | EKIS30-80 | EKIS30-100 | ||||||||
Rated thermal current Ith A | Ith | A | 25(20) | 32 | 40 | 63 | 80 | 100 | ||||||
Rated working voltage Ue V | Ue | V | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
Rated value Ie/Pe | Ie/Pe | |||||||||||||
AC-21A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- | |
AC-22A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | 100/- | 100/- | |
AC-23A | A/KW | 15/4 | 15/7.5 | 22/5.5 | 22/11 | 30/7.5 | 30/15 | 43/11 | 43/22 | 57/18.5 | 57/30 | 70/22 | 70/37 | |
AC-3 | A/KW | 11.7/5.3 | 11.7/5.5 | 15/4 | 15/7.5 | 22/7.5 | 22/11 | 36/11 | 36/18.5 |
43/15 |
43/22 | 57/18.5 | 57/30 |
● Current type: 50Hz AC
● Number of main contacts: ON and OFF
● Frequency :8 hours per day, 30 times per hour
● Mechanism Life:10000 times/ AC-23, 6000 times/AC-3,2000 times for additional contact
When you order our EKIS30 series, we need your data as follows
1. Rated working current, for example: EKIS30-20;
2. Accessorial code, please write it orderly
(1) Number of poles, for example:3P;
(2) Do you need additional contacts: 0 not enclosed, 1 enclosed
(3) Do you need neutral terminal: 0 not enclosed, 1 enclosed;
(4) Do you need earthing terminal: 0 not enclosed ,1 enclosed;
(5) Way of installation:
(6) Type of box: 0 not enclosed, 1enclosed.
(1) Type of Escutcheon plate: 1 Escutcheon plate;
(2) Do you need Escutcheon plate with airproof: 0 Not enclosed it, 1 encloser it
(3) Colour of bottom plate: 1 Denote silver color; 2 Denote yellow; 3 Male it against your color
(4) Character letter: 1 denote letter; 2 Chinese letter; 3 Special sign
If you order 40A/3P with additional contacts and earthing ter-mina land Escutcheon plate without neutral terminal and
plastic box. You must write: EKIS30-40/310120
If you want to order 32A/3 with Door lock safety switch, you must write: EKIS30-32/300040.
If you want to order 40A/3 with adding contacts, earthing terminal, Escutcheon plate, plate with airproof, Yellow,
Chinese letter, K handle; without neutral terminal and plastic box. You must write: EKIS30-40/310120.1123.

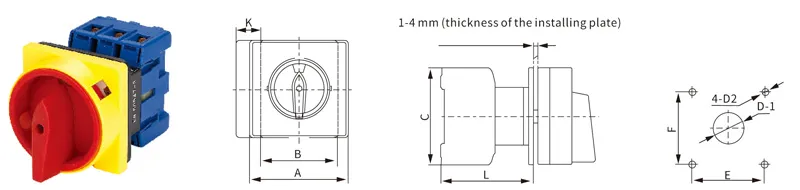

Description EKIS30-20 |
Dimensions(mm) | Installation(mm) | ||||||||
A | B | C | K | L | E | F | D1 | D2 | ||
64 | 42 | 54 | 13.5 | 61 | 48 | 48 | φ10 | φ4.2 | ||
EKIS30-25 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | φ10 | φ4.2 | |
EKIS30-32 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | φ10 | φ4.2 | |
EKIS30-40 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | φ10 | φ4.2 | |
EKIS30-63 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | φ10 | φ4.2 | |
EKIS30-80 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | φ10 | φ4.2 | |
EKIS30-100 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | φ10 | φ4.2 |

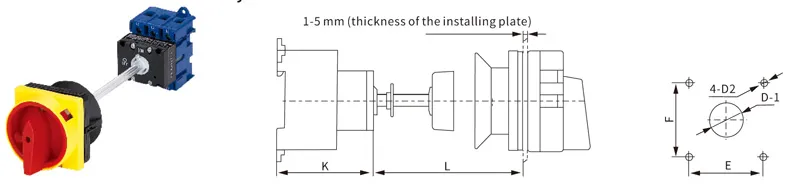

Description EKIS30-20 |
Dimensions(mm) | Installation(mm) | ||||||
K | L min | L max | E | F | D1 | D2 | ||
50 | 32 | 150 | 48 | 48 | φ22 | φ4.2 | ||
EKIS30-25 | 50 | 32 | 150 | 48 | 48 | φ22 | φ4.2 | |
EKIS30-32 | 50 | 32 | 150 | 48 | 48 | φ22 | φ4.2 | |
EKIS30-40 | 61 | 32 | 150 | 48 | 48 | φ22 | φ4.2 | |
EKIS30-63 | 61 | 32 | 150 | 48 | 48 | φ22 | φ4.2 | |
EKIS30-80 | 68 | 32 | 150 | 48 | 48 | φ22 | φ4.2 | |
EKIS30-100 | 68 | 32 | 150 | 48 | 48 | φ22 | φ4.2 |
Re: Product can be installed in 35 mm Din-rail

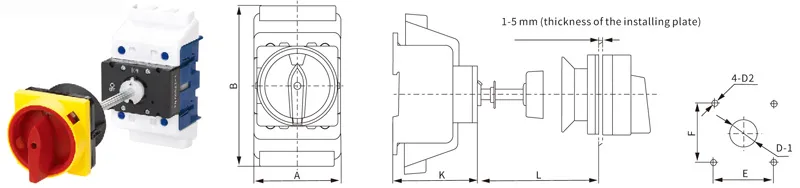

Description EKIS30-80 |
Dimensions(mm) | Installation(mm) | ||||||||
A | B | K | L Min | L Max | E | F | D1 | D2 | ||
70 | 133 | 68 | 32 | 150 | 48 | 48 | φ22 | φ4.2 | ||
EKIS30-100 | 70 | 133 | 68 | 32 | 150 | 48 | 48 | φ22 | φ4.2 |

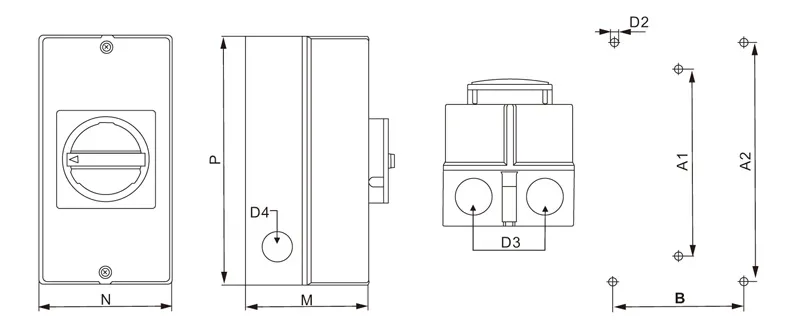

Description EKIS30-20 |
Dimensions(mm) | Installation(mm) | ||||||||
D3 | D4 | M | N | P | A1 | A2 | B | D2 | ||
φ23 | φ19 | 85 | 83 | 160 | 150 | -- | -- | φ4.2 | ||
EKIS30-25 | φ23 | φ19 | 85 | 83 | 160 | 150 | -- | -- | φ4.2 | |
EKIS30-32 | φ23 | φ19 | 85 | 83 | 160 | 150 | -- | -- | φ4.2 | |
EKIS30-40 | φ29 | φ23 | 100 | 95 | 190 | 178 | -- | -- | φ4.2 | |
EKIS30-63 | φ29 | φ23 | 100 | 95 | 190 | 178 | -- | -- | φ4.2 | |
EKIS30-80 | φ37.5 | φ23 | 144 | 105 | 250 | -- | 229 | 124 | φ6.5 | |
EKIS30-100 | φ37.5 | φ23 | 144 | 105 | 250 | -- | 229 | 124 | φ6.5 |
Reference No. | Specification |
EKIS30-3025-S | Isolation Switch 3P 25A Silver Colour Panel 64*64mm |
EKIS30-3032-S | Isolation Switch 3P 32A Silver Colour Panel 64*64mm |
EKIS30-3040-S | Isolation Switch 3P 40A Silver Colour Panel 64*64mm |
EKIS30-3063-S | Isolation Switch 3P 63A Silver Colour Panel 64*64mm |
EKIS30-3080-S | Isolation Switch 3P 80A Silver Colour Panel 64*64mm |
EKIS30-3100-S | Isolation Switch 3P 100A Silver Colour Panel 64*64mm |
EKIS30-4025-S | Isolation Switch 4P 25A Silver Colour Panel 64*64mm |
EKIS30-4032-S | Isolation Switch 4P 32A Silver Colour Panel 64*64mm |
EKIS30-4040-S | Isolation Switch 4P 40A Silver Colour Panel 64*64mm |
EKIS30-4063-S | Isolation Switch 4P 63A Silver Colour Panel 64*64mm |
EKIS30-4080-S | Isolation Switch 4P 80A Silver Colour Panel 64*64mm |
EKIS30-4100-S | Isolation Switch 4P 100A Silver Colour Panel 64*64mm |
EKIS30-3025-R | Isolation Switch 3P 25A Red/Yellow Colour Panel 64*64mm |
EKIS30-3032-R | Isolation Switch 3P 32A Red/Yellow Colour Panel 64*64mm |
EKIS30-3040-R | Isolation Switch 3P 40A Red/Yellow Colour Panel 64*64mm |
EKIS30-3063-R | Isolation Switch 3P 63A Red/Yellow Colour 64*64mm |
EKIS30-3080-R | Isolation Switch 3P 80A Red/Yellow Colour 64*64mm |
EKIS30-3100-R | Isolation Switch 3P 100A Red/Yellow Colour 64*64mm |
EKIS30-4025-R | Isolation Switch 4P 25A Red/Yellow Colour 64*64mm |
EKIS30-4032-R | Isolation Switch 4P 32A Red/Yellow Colour 64*64mm |
EKIS30-4040-R | Isolation Switch 4P 40A Red/Yellow Colour 64*64mm |
EKIS30-4063-R | Isolation Switch 4P 63A Red/Yellow Colour 64*64mm |
EKIS30-4080-R | Isolation Switch 4P 80A Red/Yellow Colour 64*64mm |
EKIS30-4100-R | Isolation Switch 4P 100A Red/Yellow Colour 64*64mm |
EKIS30-3025-RS | Isolation Switch 3P 25A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-3032-RS | Isolation Switch 3P 32A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-3040-RS | Isolation Switch 3P 40A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-3063-RS | Isolation Switch 3P 63A Din-rail Mount Red PL64 with Saft 150mm |
EKIS30-3080-RS | Isolation Switch 3P 80A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-3100-RS | Isolation Switch 3P 100A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-4025-RS | Isolation Switch 4P 25A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-4032-RS | Isolation Switch 4P 32A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-4040-RS | Isolation Switch 4P 40A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-4063-RS | Isolation Switch 4P 63A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-4080-RS | Isolation Switch 4P 80A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-4100-RS | Isolation Switch 4P 100A Din-rail Mount Red PL64 with Shaft 150mm |
EKIS30-3025-B | Isolation Switch with Box IP65 3P 25A Red PL64 |
EKIS30-3032-B | Isolation Switch with Box IP65 3P 32A Red PL64 |
EKIS30-3040-B | Isolation Switch with Box IP65 3P 40A Red PL64 |
EKIS30-3063-B | Isolation Switch with Box IP65 3P 63A Red PL64 |
EKIS30-3080-B | Isolation Switch with Box IP65 3P 80A Red PL64 |
EKIS30-3100-B | Isolation Switch with Box IP65 3P 100A Red PL64 |
EKIS30-4025-B | Isolation Switch with Box IP65 4P 25A Red PL64 |
EKIS30-4032-B | Isolation Switch with Box IP65 4P 32A Red PL64 |
EKIS30-4040-B | Isolation Switch with Box IP65 4P 40A Red PL64 |
EKIS30-4063-B | Isolation Switch with Box IP65 4P 63A Red PL64 |
EKIS30-4080-B | Isolation Switch with Box IP65 4P 80A Red PL64 |
EKIS30-4100-B | Isolation Switch with Box IP65 4P 100A Red PL64 |
EKIS30-3025-DR | Isolation Switch Din-rail Mount type 3P 25A |
EKIS30-3032-DR | Isolation Switch Din-rail Mount type 3P 32A |
EKIS30-3025-DR | Isolation Switch Din-rail Mount type 4P 25A |
EKIS30-3032-DR | Isolation Switch Din-rail Mount type 4P 32A |
EKIS30-6025-S-DC | DC Isolation Switch 6P 650VDC 16A Silver Colour Panel 64*64mm |
EKIS30-6032-S-DC | DC Isolation Switch 6P 650VDC 25A Silver Colour Panel 64*64mm |
EKIS30-6040-S-DC | DC Isolation Switch 6P 650VDC 32A Silver Colour Panel 64*64mm |
EKIS30-6025-R-DC | DC Isolation Switch 6P 650VDC 16A Red/Yellow Panel 64*64mm |
EKIS30-6032-R-DC | DC Isolation Switch 6P 650VDC 25A Red/Yellow Panel 64*64mm |
EKIS30-6040-R-DC | DC Isolation Switch 6P 650VDC 32A Red/Yellow Panel 64*64mm |
EKIS30-8025-S-DC | DC Isolation Switch 8P 800VDC 16A Silver Colour Panel 64*64mm |
EKIS30-8032-S-DC | DC Isolation Switch 8P 800VDC 25A Silver Colour Panel 64*64mm |
EKIS30-8040-S-DC | DC Isolation Switch 8P 800VDC 32A Silver Colour Panel 64*64mm |
EKIS30-8025-R-DC | DC Isolation Switch 8P 800VDC 16A Red/Yellow Panel 64*64mm |
EKIS30-8032-R-DC | DC Isolation Switch 8P 800VDC 25A Red/Yellow Panel 64*64mm |
EKIS30-8040-R-DC | DC Isolation Switch 8P 800VDC 32A Red/Yellow Panel 64*64mm |
EKIS30-4025-I-DC | DC Isolation Switch 4P 500VDC 16A White Colour Panel 44*44mm |
EKIS30-4032-I-DC | DC Isolation Switch 4P 500VDC 25A White Colour Panel 44*44mm |
EKIS30-4040-I-DC | DC Isolation Switch 4P 500VDC 32A White Colour Panel 44*44mm |

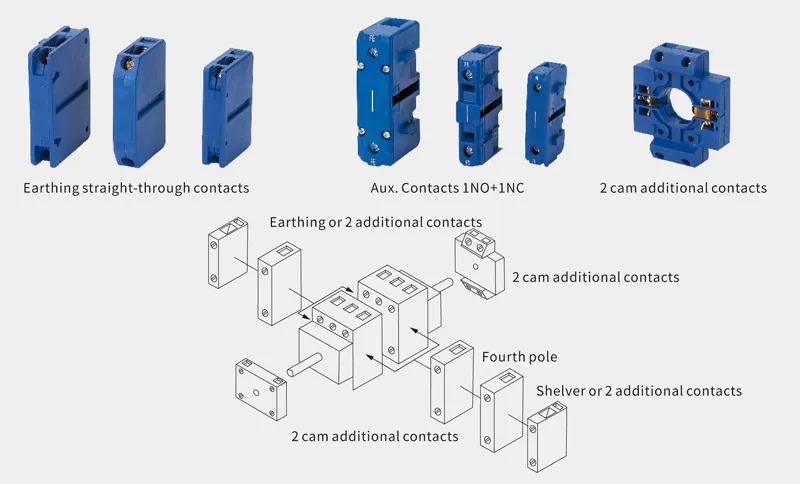

EKIS30-ET-32 | Earthing Straight-through Contacts Side Mount for EKRS-25-32 |
EKIS30-ET-63 | Earthing Straight-through Contacts Side Mount for EKRS-40-63 |
EKIS30-ET-100 | Earthing Straight-through Contacts Side Mount for EKRS-80-100 |
EKIS30-AU11-32 | Auxiliary Contacts 1NO+1NC Side Mount for EKRS-25-32 |
EKIS30-AU11-63 | Auxiliary Contacts 1NO+1NC Side Mount for EKRS-40-63 |
EKIS30-AU11-100 | Auxiliary Contacts 1NO+1NC Side Mount for EKRS-80-100 |
EKIS30-AU11-32C | Auxiliary Contacts 1NO+1NC with Cam Mount for EKRS-25-32 |
EKIS30-PC-32 | Protection Cover for EKRS-25-32 3P 2PCS/SET |
EKIS30-PC-63 | Protection Cover for EKRS-40-63 3P 2PCS/SET |
EKIS30-PC-100 | Protection Cover for EKRS-80-100 3P 2PCS/SET |
EKIS30-3025-RS-L | Isolation Switch 3P 25A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-3032-RS-L | Isolation Switch 3P 32A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-3040-RS-L | Isolation Switch 3P 40A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-3063-RS-L | Isolation Switch 3P 63A Din-rail Mount Red PL64 with Saft 300mm |
EKIS30-3080-RS-L | Isolation Switch 3P 80A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-3100-RS-L | Isolation Switch 3P 100A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-4025-RS-L | Isolation Switch 4P 25A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-4032-RS-L | Isolation Switch 4P 32A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-4040-RS-L | Isolation Switch 4P 40A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-4063-RS-L | Isolation Switch 4P 63A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-4080-RS-L | Isolation Switch 4P 80A Din-rail Mount Red PL64 with Shaft 300mm |
EKIS30-4100-RS-L | Isolation Switch 4P 100A Din-rail Mount Red PL64 with Shaft 300mm |
● EKIS30 series Isolation switches applied to circuits of AC 50Hz with working voltage up to 440V and rated working current up to 100A.
● EKIS30 is suitable to control: air-conditioner, water pump and ventilating equipment, and AC Motors with small power.
● EKIS30 series rotary switches have 7 current ratings: 20A,25A,32A,40A,63A,80A, and 100A.
● EKIS30 series has the finger protection terminals, which offers an extra advantage.
● EKIS30 series switches has larger insulation distance, quick disconnecting response. And is a good choice For DC circuits, EKIS30 has additional contact which enable us to install the contact separately
● EKIS series rotary switches comply with: IEC60947-3.
● Ambient temperature Do Not exceed 40℃, and the average temperature, measured over a period of 24 hours, Do Not exceed 35℃
● Ambient temperature should not be below -25℃
● Should Not be installed over 2000m above sea level
● The humidity should not exceed 50% when the ambient temperature is 40℃ and higher humidity is allowed for lower temperature.
● A clean environment is required
● Please follow our manual
● Classified by utilization
(1) AC-23A
(2) AC-3
● Classified by protective level
(1) Without plastic box: IP20
(2) With plastic box: IP65
Number of poles :3P,4P
Additional contacts :0 for additional contacts not enclosed, 1 for with additional contacts
Neutral terminal:0 for neutral terminal not enclosed, 1 for with neutral terminal
Earthing terminal: 0 for earthing terminal not enclosed, 1 for with earthing terminal.
1.Pad-lock escutcheon plate
2.Escutcheon plate
3.Single lock parallel installation
4.Doorlock safety switch with padlock system
5.Single-hole installation
Type of box :0 without protective box, 1 with IP65 Plastic box
