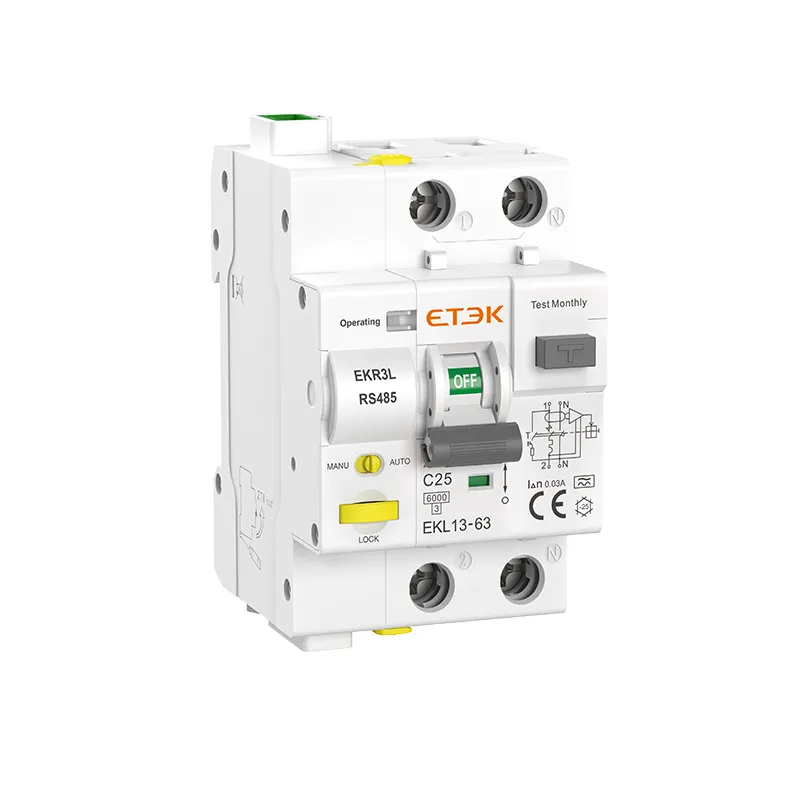

Porduct Overview

EKR3L smart RCBO offers not only overload, short-circuit, and leakage protection like traditional circuit breakers, but also the ability to be remotely controlled and monitored through the Tuya APP or RS485 platform. It also provides an automatic reclosing function to improve the reliability of the circuit power supply.

EKR3L Smart RCBO combines traditional RCBO protection features with modern smart home technology, providing users with enhanced safety, convenience, and control over their electrical systems. It is particularly useful for remote management of electrical circuits and can be integrated into broader smart homes or building automation systems.

Features

Traditional protection:

Overload protection
Short-circuit protection
Leakage protection (residual current)

Smart Capabilities:

Remote control through Tuya APP or RS485 platform
Wi-Fi, ZigBee, RS485, or Dry contact communication options
Supported Apps: Tuya, Smart Life

Advanced Functions:

Remote opening and closing control
Timing tasks (power on/off scheduling)
Real-time switch status monitoring
Optional built-in automatic reclosing function

Automatic, Manual Mode:

Automatic mode allow remote control (Tuya APP, RS485)
Manual Mode, only supports local manual operation

Mechanical Padlock:

When the mechanical lock is pulled out, the switch enters a locked state, preventing the switch from being turned on. To restore the device, press down the mechanical lock.

Applications:

Smart home systems, which can be integrated into the overall home automation solution.
Commercial buildings, which can achieve centralized energy management.
Industrial facilities, which can remotely monitor and control individual circuits.
Locations where electricity consumption requires regular control, such as billboard lighting and public area lighting.

Technical parameters

Technical Data

Type of protection (electric leakage)		A, AC
Poles		1P+N, N line with disconnected
Supply terminal		L-N(It is advisable to draw power from the incoming line)
Power supply voltage		220/230V
Standby power consumption		＜3W
Status Indicator		LED
Operating voltage		230/ 240V
Rated frequency		50/60Hz
Rated operating current		10, 16, 25, 32, 40, 50, 63A
Rated sensitivity currents IΔn		10,30,100,300mA
Rated current off-time under IΔn		≤0.1S
Rated residual making and breaking capacity IΔm		500A (In ≤ 50A), 10In (In>50A)
Rated breaking capacity		6kA, 10kA
Energy Limiting Class		3
Rated impulse withstand voltage(1.2/50) Uimp		4kV
Dielectric test voltage at Ind. Freq.for 1 min		2kV
Trip Curve		B: (3-5) x In, C: (5-10) x In
Trip time		＜ 0.2s
Electrical life		4000 Cycles
Mechanical life		10000 Cycles
Communication method		WiFi (Tuya), 2.4GHz
		ZigBee (Tuya)
		Dry Contact
		RS485, Baud rate: 2400/ 4800/ 9600 (default)
Operational Safety		Mechanical Padlock, Ensure safety during onsite maintenance
Monitoring Physical Data		Real-time Voltage, Switch State, Device Operating Status
Function Description		Overload Protection
		Short Circuit Protection
		Leakage protection
		Multiple Timing
		Remote Control
		Auto Reclose
Auto Reclose	Reclosing times	3 times (WiFi-Tuya)	5 times (RS485)
	Reclosing time	First time: 10 seconds;	First time: 60 seconds;
		Second time: 60 seconds;	Second time: 90 seconds;
		Third time: 300 seconds;	The third time: 1800 seconds;
			Fourth time: 2700 seconds;
			Fifth time: 3600 seconds;
	Reset reclosing time	No more tripping or manual reset within 15 minutes after successful closing.	No tripping or manual reset within 60 seconds after successful closing,Adjustable time setting range: 5-600 seconds.
Protection degree		IP20
Ambient temperature		-25℃ to +55℃ (Current capacity is significantly reduced at 70℃)
Storage temperature		-25℃ to +70℃
Max. Supply terminal size for cable		2.5mm²
Terminal Connection type		Cable/Pin-type busbar/Fork-type busbar
Max. terminal Size Top/Bottom for Cable		25mm²
Altitude		≤2000m
Mounting		Mounting on 35mm DIN rail
Connection		From top

Dimensions
