Model: EKA5
Wi-Fi Smart Relay Switch for Smart Home Automation
Inquire
● Communication method: Wi-Fi (Tuya), Local operation
● Display type: LCD, Digital tube
● Control Type: Remote, Manual
● Poles: 1P+N, N Pole on the left
● Rated operating current: 1-63A
● Operating voltage range: 90V~265V
● Function: Over-voltage/Under-voltage/Over-current protection
● Ambient temperature: -20℃ to +70℃
EKA1 Series Smart Protection Switch combines multiple circuit protection functions, including over-voltage, under-voltage, and over-current. It is designed for current working environments up to 63A and is available in two versions: one with Wi-Fi communication and one without. The Wi-Fi version allows for remote control of the switch status via smartphone and enables real-time monitoring of electrical parameters such as voltage, current, and power using the Tuya app. Users can also set the thresholds of the main electrical parameters through the front panel of the device or the smartphone app.
EKA1 Series Smart Switch is widely used in both home and industrial settings due to its easy installation and user-friendly operation and can be wired to any existing DB or distribution board.
Integrated Protection: Combines over-voltage, under-voltage, and over-current protection in one device.
High Current Capacity: Suitable for environments with working currents up to 63A.
Remote Control: Wi-Fi-enabled model allows for remote on/off control via smartphone.
Real-time Monitoring: Uses the Tuya app to monitor voltage, current, and power in real-time.
Adjustable Parameters: Thresholds for main electrical parameters can be set via the device's front panel or smartphone app.
Metering Function: Provides accurate measurement of electrical parameters.
Timing Control: Improve energy management efficiency, enhance power safety.
Suitable for smart home installations, providing enhanced control and monitoring capabilities.
Ideal for commercial and industrial environments where energy efficiency and safety are paramount.
Perfect for users looking to integrate smart technology into their existing electrical systems for improved performance and management.
| Standard | IEC 60947-5-1 | |

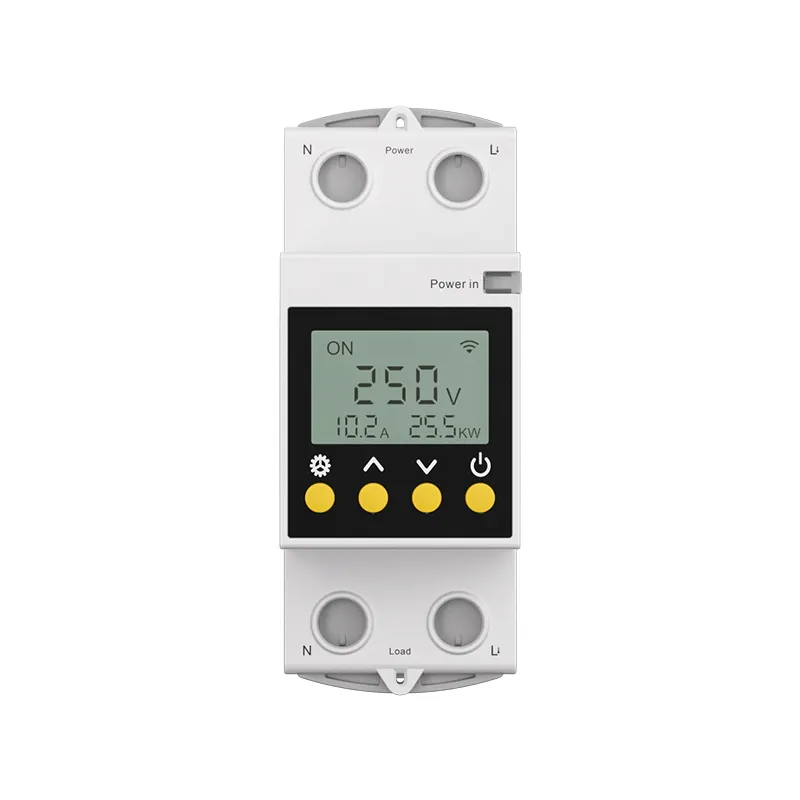

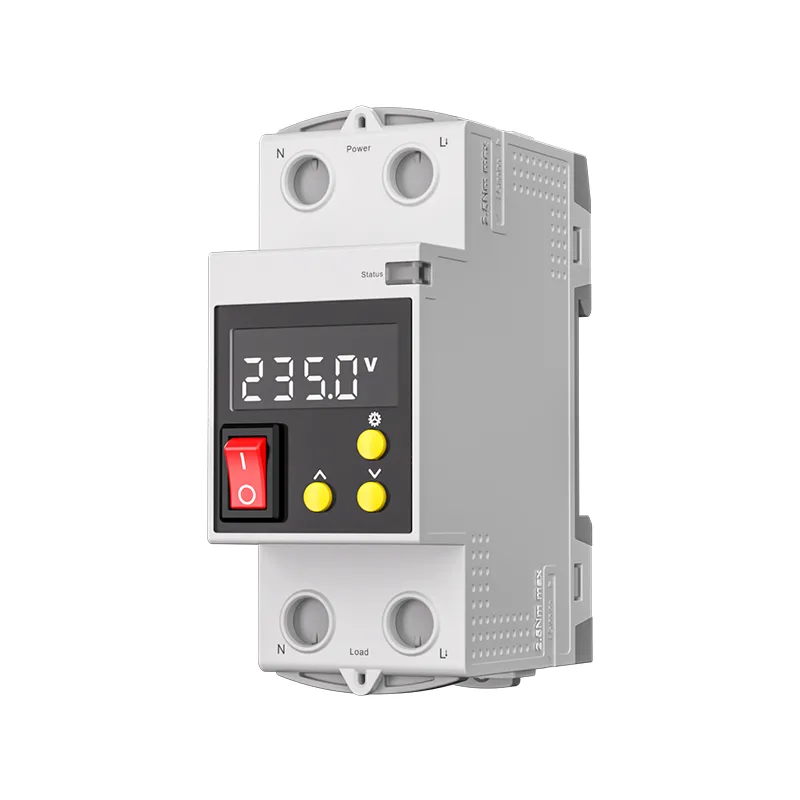

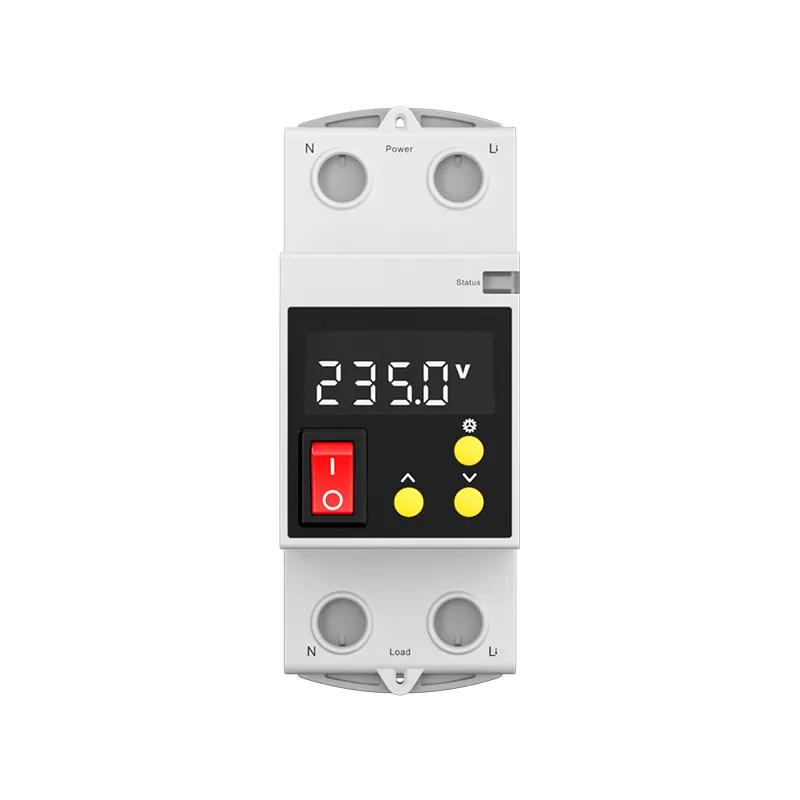

| Model | EKA1-TW-E3 | EKA1-R-V2 |
| Communication method | Wi-Fi (Tuya) | Local operation |
| Display type | LCD | Digital tube |
| Display data | Real-time Voltage | Real-time Voltage |
| Real-time Current | / | |
| Real-time Power | / | |
| Switch State | / | |
| Network Status | / | |
| Screen off | No operation for 60 seconds | / |
| Power button | Yes | |
| Network configuration button | Yes | |
| Control Type | Remote, Manual | Manual |
| Poles | 1P+N, N Pole on the left | |
| Standby power consumption | ≤1.5W | |
| Operating voltage range | 90V~265V | |
| Rated frequency | 50/60Hz | |
| Rated operating current | 1-63A | |
| Voltage and current measuring accuracy | Class 1.0 | |
| Energy measurement accuracy | Class 2.0 | |
| Protection degree | IP20 | |
| Ambient temperature | -20℃ to +70℃, Max. 95% humidity | |
| Terminal block protection | Lead seal | |
| Over-voltage range | 230V~300V (default:280V) | |
| Over-voltage recovery range | 225V~295V (default:275V) | |
| Over-voltage tripping time | 5s~600s (default:60s) | |
| Over-voltage recovery delay time | 5s~600s (default:60s) | |
| Under-voltage range | 100V~210V (default:115V) | |
| Under-voltage recovery range | 100V~215V (default:120V) | |
| Under-voltage tripping time | 5s~600s (default:60s) | |
| Under-voltage recovery delay time | 5s~600s (default:60s) | |
| Over-current adjustable range | 1A-63A (default:63A) | / |
| Over-current tripping time | 5s~600s (default:60s) | / |
| Over-current recovery delay time | 5s~600s (default:60s) | / |
