Dual-Connectivity Smart Relay Switch for Intelligent Energy Management
Inquire
● Standard: IEC 60529,IEC 62262:2021,IEC 60695-2-10:2013
● lP65 degree of protection
● Lock structure
● Reserved position for functional stickers
● Reserved for installation of anti-theft locks
● With knockout hole
● With copper terminal assemblies
● The specifications include 4, 6, 9, 13, 18, 26 and 39 ways
EKDB10 Series IP65 Waterproof Distribution Box is an advanced electrical protection solution engineered for demanding industrial, commercial, photovoltaic, and EV charging applications. Constructed from premium PC engineering plastics, these distribution boxes deliver exceptional mechanical strength and superior weather resistance in all environments.
Flame-Retardant Performance: Successfully passed glow wire flammability test at 960±15°C
Security-Enhanced Design: Features reserved padlock positions to prevent unauthorized access and tampering
Premium Construction: High-quality PC material delivers excellent toughness, high strength, and superior impact resistance for harsh environmental conditions
Integrated Copper Components: High-quality full copper terminals are pre-integrated for convenient and reliable wiring
Versatile Configuration Options: Available in 7 different sizes with single, double, or triple layer configurations
Application Versatility: Optimized for photovoltaic systems and EV charging infrastructure
| Model | EKDB10 |
| Standard | IEC60529,IEC 62262:2021,IEC 60695-2-10:2013 |
| Ways | 4,6,9,13,18,26,39 |
| Layers | Single layer for 4,6,9,13,18 ways |
| Double layers for 26 ways | |
| Triple layers for 39 ways | |
| Neutral bar configuration | 6 holes(4,6,9),10 holes(13,18),2*10 holes(26,39) |
| Ground bar configuration | 6 holes(4,6,9),10 holes(13,18),2*10 holes(26,39) |
| Current capacity | 125A (Maximum) |
| Installation | Surface-mounted |
| Protection degree | IP65 |
| IK rating | IK08 |
| Material | Polycarbonate |
| Colour | Base and frame:Grey, RAL 7035 ( Black available) |
| Windows: Transparent | |
| Fire resistence | 960℃/30s |
| Ambient temperature | -25℃ to +55℃ |
| Storage temperature | -40℃ to +75℃ |

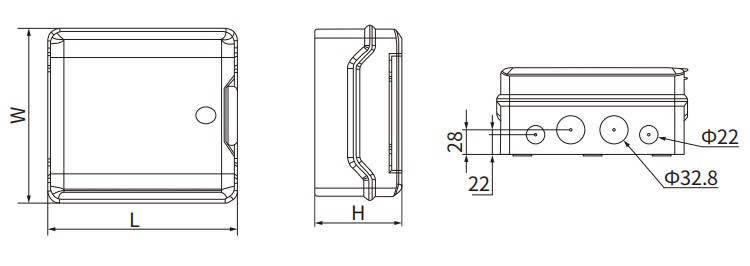

| Model | Ways | Layers | Terminal | Neutral Bar Holes | Ground Bar Holes | Dimensions (mm) |
| EKDB10-4(T) | 4 | Single | Y/N | 4 | 4 | 128x200x103.5 |
| EKDB10-6(T) | 6 | Single | Y/N | 6 | 6 | 164x200x103.5 |
| EKDB10-9(T) | 9 | Single | Y/N | 6 | 6 | 218x200x103.5 |
| EKDB10-13(T) | 13 | Single | Y/N | 8 | 8 | 296x230x121.5 |
| EKDB10-18(T) | 18 | Single | Y/N | 10 | 10 | 380x230x121.5 |

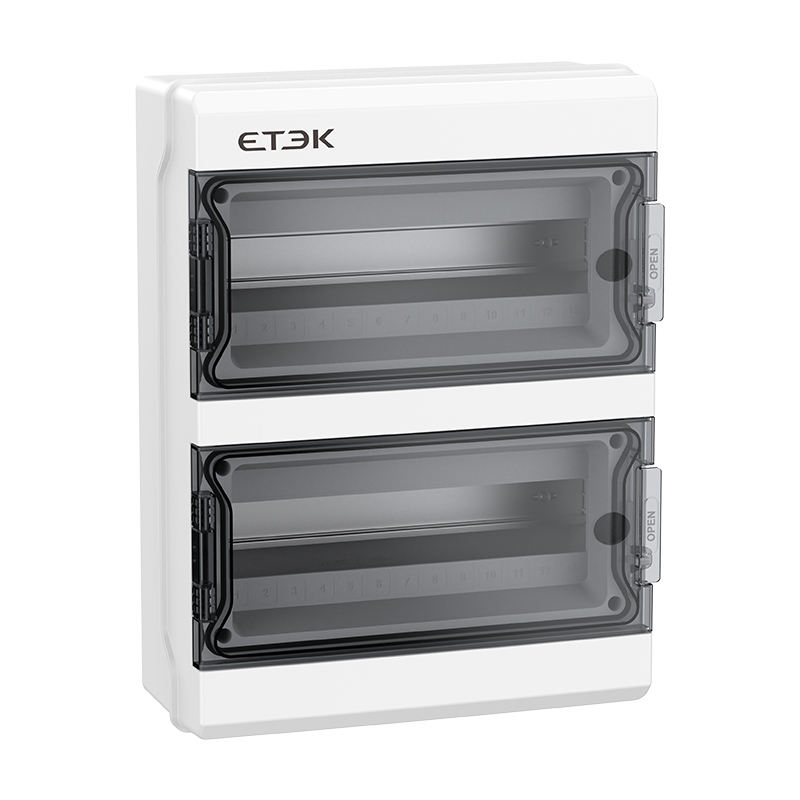

| EKDB10-26(T) | 26 | Double | Y/N | 2x8 | 2x8 | 296.5x390.5x131.5 |

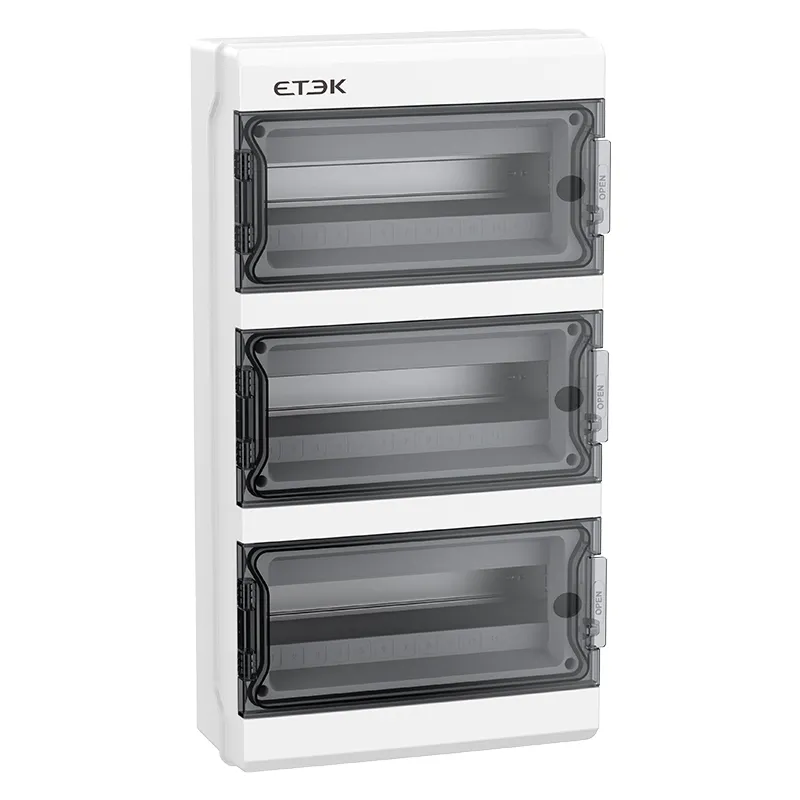

| EKDB10-39(T) | 39 | Triple | Y/N | 2x10 | 2x10 | 296.6x550.6x131.5 |
T indicates the unit is equipped with neutral and earth busbars.
EKDB10 Series IP65 Waterproof Distribution Box is an advanced electrical protection solution engineered for demanding industrial, commercial, photovoltaic, and EV charging applications. Constructed from premium PC engineering plastics, these distribution boxes deliver exceptional mechanical strength and superior weather resistance in all environments.
Flame-Retardant Performance: Successfully passed glow wire flammability test at 960±15°C
Security-Enhanced Design: Features reserved padlock positions to prevent unauthorized access and tampering
Premium Construction: High-quality PC material delivers excellent toughness, high strength, and superior impact resistance for harsh environmental conditions
Integrated Copper Components: High-quality full copper terminals are pre-integrated for convenient and reliable wiring
Versatile Configuration Options: Available in 7 different sizes with single, double, or triple layer configurations
Application Versatility: Optimized for photovoltaic systems and EV charging infrastructure
