Wallbox charger is a wall-mounted charging point for electric vehicles. It can be installed in private homes or company parking lots. It is usually the cheapest way to install a charger in location. Wallbox chargers refer to the physical system that provides electrical power to the vehicle plugged in by industry standard cable. This device brings together several components that make the whole system an integral EV charging system. Wallbox charger is powered by alternating current (AC). Electric vehicles charge significantly faster at a wallbox than when plugged into a regular wall socket. Where wall-mounting is not an option, a stand-alone box or a post or pillar type of charging station can be used.
The use of electric vehicles is becoming increasingly common. Mobility is increasingly adapting to drivers deciding to leave their fuel-powered cars behind and opt for new solutions that are less polluting for the environment and less harmful to people's health. Among these solutions, 100% electric private vehicles are perhaps the most successful, thanks to their convenience and simplicity.
To supply power to these vehicles, a device is needed that makes the electricity from the general grid compatible with the vehicle’s battery, while managing its consumption. This device is a charger that, for reasons of convenience and safety, must meet a number of technical requirements, while at the same time being designed to supply our vehicle in the comfort of our homes. This is the ideal solution for supplying electricity to the battery, as it allows us to make the most of idle hours, such as at night, to charge our vehicles.

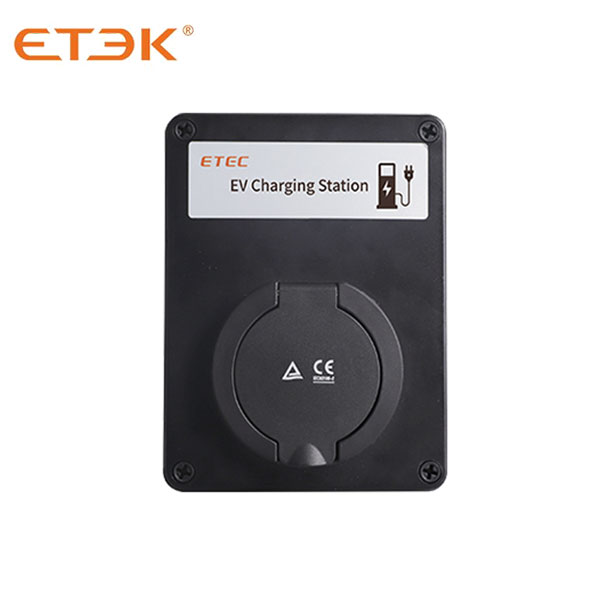

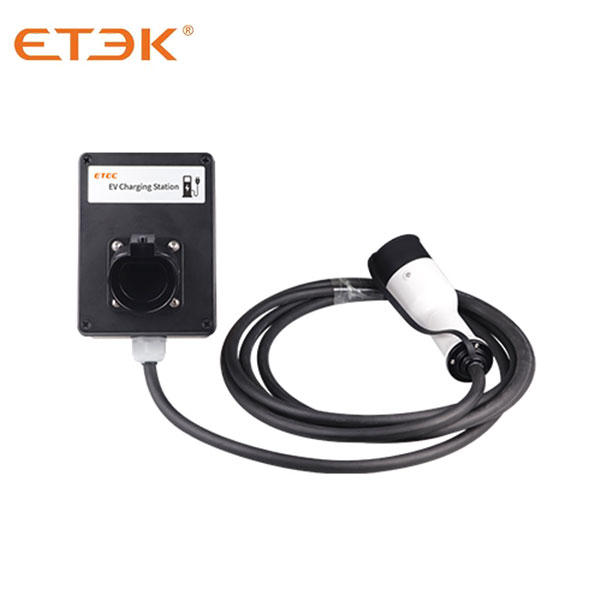

EKEC4 EVSE (Wallbox Charger) is suitable for long-term parking Charging occasions, such as residential areas, commercial areas, office areas, etc., provide safe and stable charging services for plug-in hybrid vehicles and pure electric vehicles that meet the standards. The product can be wall-mounting or pillar-mounting。
These products are fully certified, with multi-layer electrical protection, safe and reliable (modular design, selection of high-quality components and materials, high-reliability components, overload protection, over-voltage protection, short-circuit protection, etc.); humane Design, convenient operation; excellent applicability, simple installation, economical and practical.
| Model Specification | Cable type | Socket type | ||
| EKEC4-C-T1/T2-1P | EKEC4-C-T1/T2-3P | EKEC4-S-T1/T2-1P | EKEC4-T1/T2-3P | |
| Power mode | 1P+N+PE | 3P+N+PE | 1P+N+PE | 3P+N+PE |
| Operation voltage | AC230±10% 50Hz | AC400±10% 50Hz | AC230±10% 50Hz | AC400±10% 50Hz |
| Output current | 10A,16A,20A,25A,32A,63A | |||
| Output voltage | AC230±10% 50Hz | AC400±10% 50Hz | AC230±10% 50Hz | AC400±10% 50Hz |
| Output power | 7.3kW/14.5kW | 22kW/43.5kW | 7.3kW/14.5kW | 22kW/43.5kW |
| Cable length | 5m | 5m | — | — |
| Plug/Socket Standard | （American standard/European standard）Type1/Type2 | |||
| Additional function (Optional) | 1. RCMU leakage monitoring mode(0-20mA/0-200mA) 2. Non-contact IC Card 3.DLB current balance mode 4. Current sensor access mode (DC+12V Output 0-5V) 5. With LCD display | |||
| Communication function (Optional) | 1-way RS485 (Moebus-RTU)/RS232 | |||
| Ambient temperature | -40℃ ~+50℃ | |||
| Humidity | ≤85% | |||
| IP degree | IP55 | |||
| Cooling method | Natural cooling | |||
| Installation method | Portable type /wall mounted type /Column type | |||

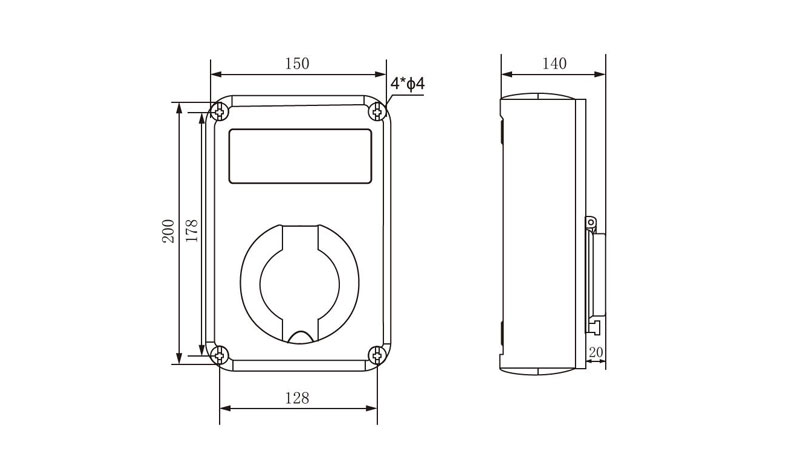

| Overall dimension | 150x200x140 | |||
| Installation dimension | 128x178 | 128x128 | ||
| Weight | 2.6kg | 2.9kg | 1.4kg | 1.5kg |
