Floor fire safety alarm system (The fire alarm switch on each floor is the call switch, which can only be turned on but can't be turned off. The reset switch is installed in the control room and supervised by a specially assigned person.)

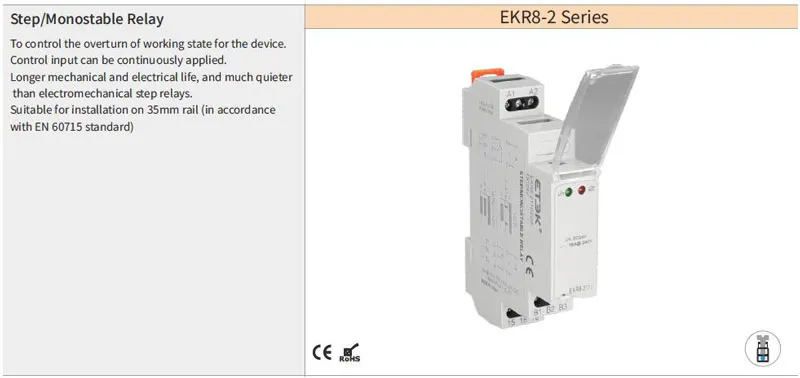

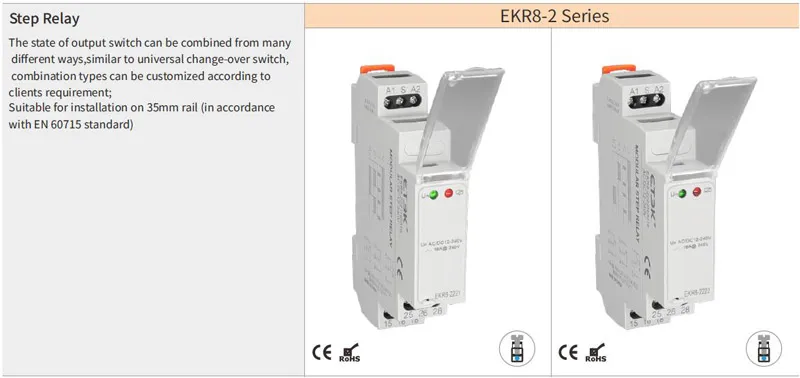

1. To control the overturn of working state for the device.
2. Control input can be continuously applied.
3. Longer mechanical and electrical life, and much quieter than electromechanical step relays.
4. Suitable for installation on 35mm rail (in accordance with EN60715 standard)
1. The self-resetting switch is used to replace the traditional mechanical structure wall switch.
2. Mains power and lower safety voltage can be used. It has high safety and long life. It can easily realize multi-point control and get rid of the embarrassment of dual switches.

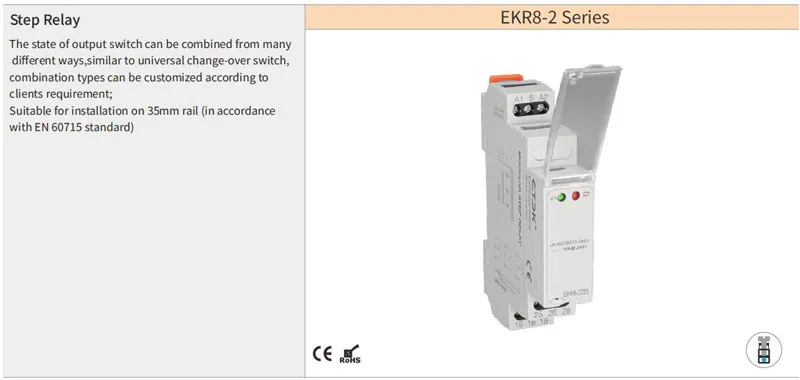

3. The state of output switch can be combined from many different ways, similar to universal changeover switch.
Specifications

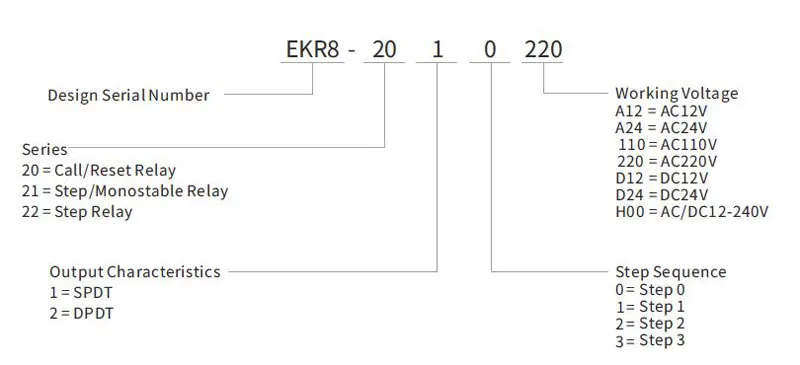

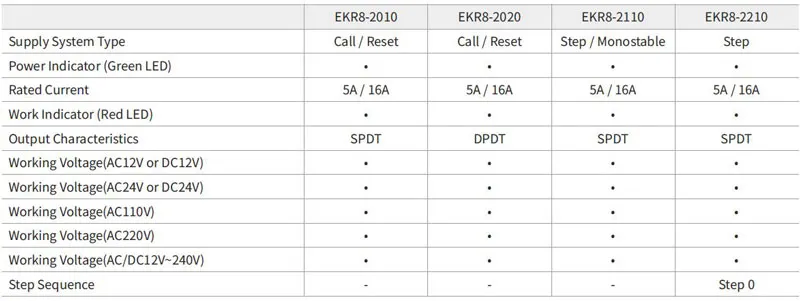

| Reference No. | Specification |

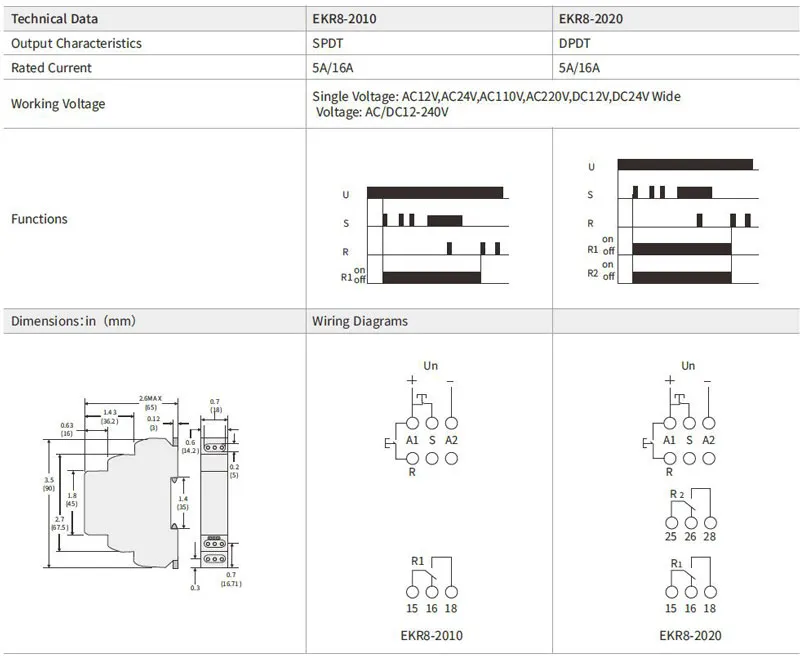

| EKR8-201A125 | Call/Reset Relay SPDT 12VAC 5A |
| EKR8-201A245 | Call/Reset Relay SPDT 24VAC 5A |
| EKR8-2011105 | Call/Reset Relay SPDT 110VAC 5A |
| EKR8-2012205 | Call/Reset Relay SPDT 220VAC 5A |
| EKR8-201D125 | Call/Reset Relay SPDT 12VDC 5A |
| EKR8-201D245 | Call/Reset Relay SPDT 24VDC 5A |
| EKR8-201H005 | Call/Reset Relay SPDT 12-240VAC/DC 5A |
| EKR8-201A1216 | Call/Reset Relay SPDT 12VAC 16A |
| EKR8-201A2416 | Call/Reset Relay SPDT 24VAC 16A |
| EKR8-20111016 | Call/Reset Relay SPDT 110VAC 16A |
| EKR8-20122016 | Call/Reset Relay SPDT 220VAC 16A |
| EKR8-201D1216 | Call/Reset Relay SPDT 12VDC 16A |
| EKR8-201D2416 | Call/Reset Relay SPDT 24VDC 16A |
| EKR8-201H0016 | Call/Reset Relay SPDT 12-240VAC/DC 16A |
| EKR8-202A125 | Call/Reset Relay DPDT 12VAC 5A |
| EKR8-202A245 | Call/Reset Relay DPDT 24VAC 5A |
| EKR8-2021105 | Call/Reset Relay DPDT 110VAC 5A |
| EKR8-2022205 | Call/Reset Relay DPDT 220VAC 5A |
| EKR8-202D125 | Call/Reset Relay DPDT 12VDC 5A |
| EKR8-202D245 | Call/Reset Relay DPDT 24VDC 5A |
| EKR8-202H005 | Call/Reset Relay DPDT 12-240VAC/DC 5A |
| EKR8-202A1216 | Call/Reset Relay DPDT 12VAC 16A |
| EKR8-202A2416 | Call/Reset Relay DPDT 24VAC 16A |
| EKR8-20211016 | Call/Reset Relay DPDT 110VAC 16A |
| EKR8-20222016 | Call/Reset Relay DPDT 220VAC 16A |
| EKR8-202D1216 | Call/Reset Relay DPDT 12VDC 16A |
| EKR8-202D2416 | Call/Reset Relay DPDT 24VDC 16A |
| EKR8-202H0016 | Call/Reset Relay DPDT 12-240VAC/DC 16A |

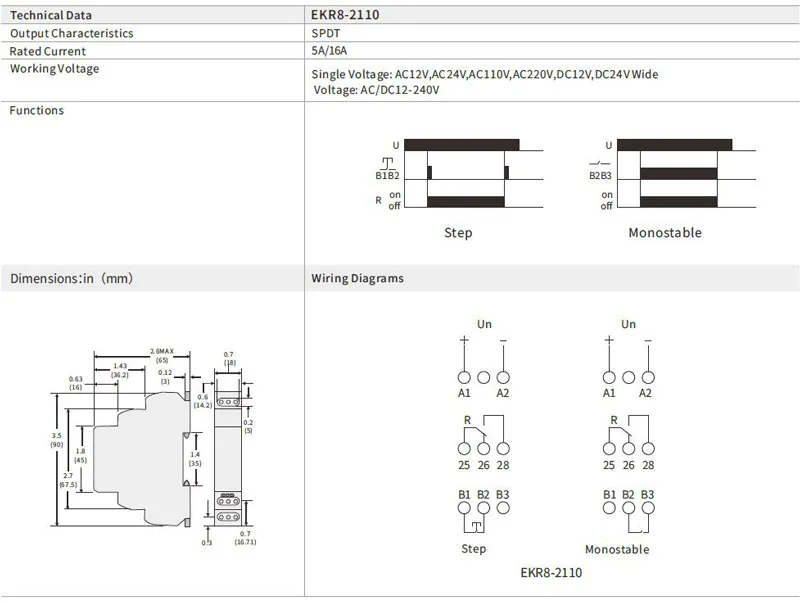

| EKR8-211A125 | Step/Monostable Relay SPDT 12VAC 5A |
| EKR8-211A245 | Step/Monostable Relay SPDT 24VAC 5A |
| EKR8-2111105 | Step/Monostable Relay SPDT 110VAC 5A |
| EKR8-2112205 | Step/Monostable Relay SPDT 220VAC 5A |
| EKR8-211D125 | Step/Monostable Relay SPDT 12VDC 5A |
| EKR8-211D245 | Step/Monostable Relay SPDT 24VDC 5A |
| EKR8-211H005 | Step/Monostable Relay SPDT 12-240VAC/DC 5A |
| EKR8-211A1216 | Step/Monostable Relay SPDT 12VAC 16A |
| EKR8-211A2416 | Step/Monostable Relay SPDT 24VAC 16A |
| EKR8-21111016 | Step/Monostable Relay SPDT 110VAC 16A |
| EKR8-21122016 | Step/Monostable Relay SPDT 220VAC 16A |
| EKR8-211D1216 | Step/Monostable Relay SPDT 12VDC 16A |
| EKR8-211D2416 | Step/Monostable Relay SPDT 24VDC 16A |
| EKR8-211H0016 | Step/Monostable Relay SPDT 12-240VAC/DC 16A |

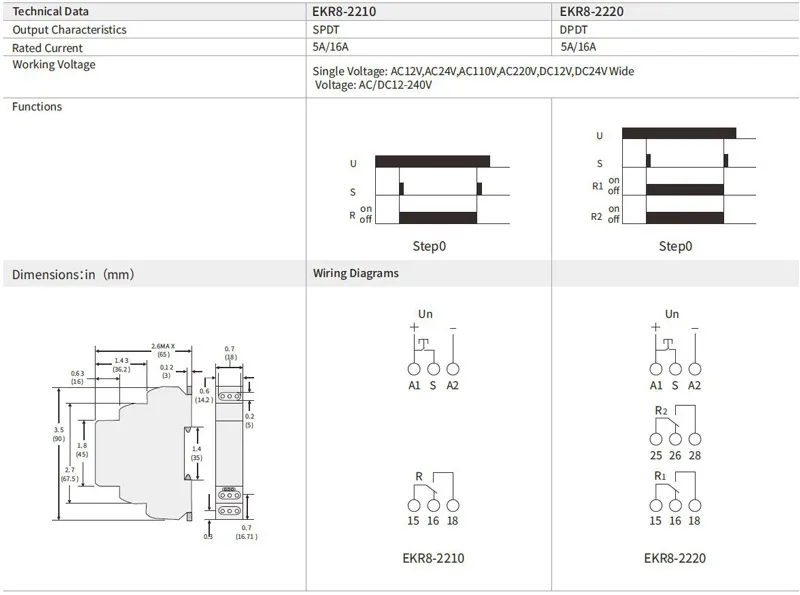

| EKR8-2210A125 | Step Relay SPDT step 0 12VAC 5A |
| EKR8-2210A245 | Step Relay SPDT step 0 24VAC 5A |
| EKR8-22101105 | Step Relay SPDT step 0 110VAC 5A |
| EKR8-22102205 | Step Relay SPDT step 0 220VAC 5A |
| EKR8-2210D125 | Step Relay SPDT step 0 12VDC 5A |
| EKR8-2210D245 | Step Relay SPDT step 0 24VDC 5A |
| EKR8-2210H005 | Step Relay SPDT step 0 12-240VAC/DC 5A |
| EKR8-2210A1216 | Step Relay SPDT step 0 12VAC 16A |
| EKR8-2210A2416 | Step Relay SPDT step 0 24VAC 16A |
| EKR8-221011016 | Step Relay SPDT step 0 110VAC 16A |
| EKR8-221022016 | Step Relay SPDT step 0 220VAC 16A |
| EKR8-2210D1216 | Step Relay SPDT step 0 12VDC 16A |
| EKR8-2210D2416 | Step Relay SPDT step 0 24VDC 16A |
| EKR8-2210H0016 | Step Relay SPDT step 0 12-240VAC/DC 16A |

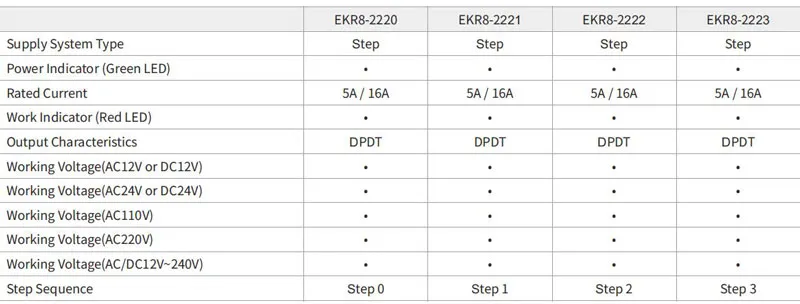

| EKR8-2220A125 | Step Relay DPDT step 0 12VAC 5A |
| EKR8-2220A245 | Step Relay DPDT step 0 24VAC 5A |
| EKR8-22201105 | Step Relay DPDT step 0 110VAC 5A |
| EKR8-22202205 | Step Relay DPDT step 0 220VAC 5A |
| EKR8-2220D125 | Step Relay DPDT step 0 12VDC 5A |
| EKR8-2220D245 | Step Relay DPDT step 0 24VDC 5A |
| EKR8-2220H005 | Step Relay DPDT step 0 12-240VAC/DC 5A |
| EKR8-2220A1216 | Step Relay DPDT step 0 12VAC 16A |
| EKR8-2220A2416 | Step Relay DPDT step 0 24VAC 16A |
| EKR8-222011016 | Step Relay DPDT step 0 110VAC 16A |
| EKR8-222022016 | Step Relay DPDT step 0 220VAC 16A |
| EKR8-2220D1216 | Step Relay DPDT step 0 12VDC 16A |
| EKR8-2220D2416 | Step Relay DPDT step 0 24VDC 16A |
| EKR8-2220H0016 | Step Relay DPDT step 0 12-240VAC/DC 16A |
| EKR8-2221A125 | Step Relay DPDT step 1 12VAC 5A |
| EKR8-2221A245 | Step Relay DPDT step 1 24VAC 5A |
| EKR8-22211105 | Step Relay DPDT step 1 110VAC 5A |
| EKR8-22212205 | Step Relay DPDT step 1 220VAC 5A |
| EKR8-2221D125 | Step Relay DPDT step 1 12VDC 5A |
| EKR8-2221D245 | Step Relay DPDT step 1 24VDC 5A |
| EKR8-2221H005 | Step Relay DPDT step 1 12-240VAC/DC 5A |
| EKR8-2221A1216 | Step Relay DPDT step 1 12VAC 16A |
| EKR8-2221A2416 | Step Relay DPDT step 1 24VAC 16A |
| EKR8-222111016 | Step Relay DPDT step 1 110VAC 16A |
| EKR8-222122016 | Step Relay DPDT step 1 220VAC 16A |
| EKR8-2221D1216 | Step Relay DPDT step 1 12VDC 16A |
| EKR8-2221D2416 | Step Relay DPDT step 1 24VDC 16A |
| EKR8-2221H0016 | Step Relay DPDT step 1 12-240VAC/DC 16A |
| EKR8-2222A125 | Step Relay DPDT step 2 12VAC 5A |
| EKR8-2222A245 | Step Relay DPDT step 2 24VAC 5A |
| EKR8-22221105 | Step Relay DPDT step 2 110VAC 5A |
| EKR8-22222205 | Step Relay DPDT step 2 220VAC 5A |
| EKR8-2222D125 | Step Relay DPDT step 2 12VDC 5A |
| EKR8-2222D245 | Step Relay DPDT step 2 24VDC 5A |
| EKR8-2222H005 | Step Relay DPDT step 2 12-240VAC/DC 5A |
| EKR8-2222A1216 | Step Relay DPDT step 2 12VAC 16A |
| EKR8-2222A2416 | Step Relay DPDT step 2 24VAC 16A |
| EKR8-222211016 | Step Relay DPDT step 2 110VAC 16A |
| EKR8-222222016 | Step Relay DPDT step 2 220VAC 16A |
| EKR8-2222D1216 | Step Relay DPDT step 2 12VDC 16A |
| EKR8-2222D2416 | Step Relay DPDT step 2 24VDC 16A |
| EKR8-2222H0016 | Step Relay DPDT step 2 12-240VAC/DC 16A |

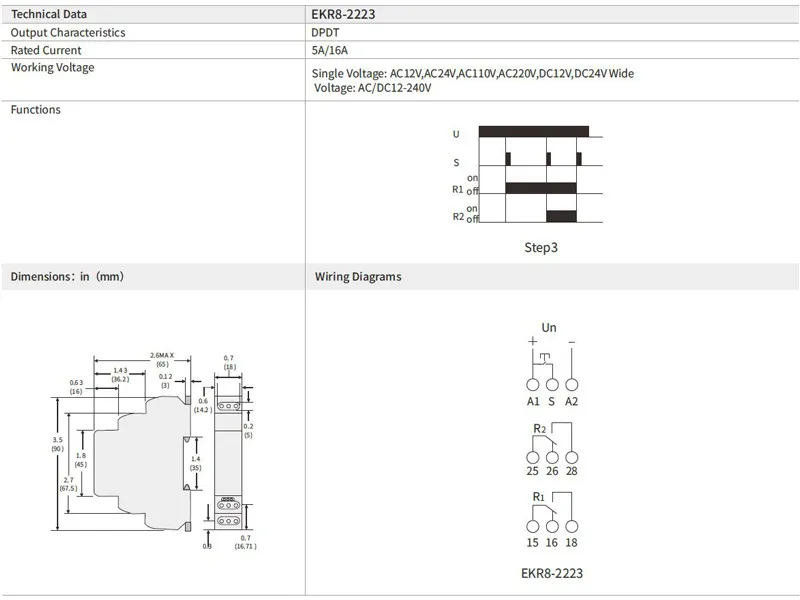

| EKR8-2223A125 | Step Relay DPDT step 3 12VAC 5A |
| EKR8-2223A245 | Step Relay DPDT step 3 24VAC 5A |
| EKR8-22231105 | Step Relay DPDT step 3 110VAC 5A |
| EKR8-22232205 | Step Relay DPDT step 3 220VAC 5A |
| EKR8-2223D125 | Step Relay DPDT step 3 12VDC 5A |
| EKR8-2223D245 | Step Relay DPDT step 3 24VDC 5A |
| EKR8-2223H005 | Step Relay DPDT step 3 12-240VAC/DC 5A |
| EKR8-2223A1216 | Step Relay DPDT step 3 12VAC 16A |
| EKR8-2223A2416 | Step Relay DPDT step 3 24VAC 16A |
| EKR8-222311016 | Step Relay DPDT step 3 110VAC 16A |
| EKR8-222322016 | Step Relay DPDT step 3 220VAC 16A |
| EKR8-2223D1216 | Step Relay DPDT step 3 12VDC 16A |
| EKR8-2223D2416 | Step Relay DPDT step 3 24VDC 16A |
| EKR8-2223H0016 | Step Relay DPDT step 3 12-240VAC/DC 16A |
