EKR8-3 Light Activated Switch and Staircase Light Time Switch

EKR8-3 contains two types of products: Light Activated Switch and Staircase Light Time Switch.

Inquire NOW PDF

EKR8-3 Light Activated Switch and Staircase Light Time Switch

Inquire NOW PDF

Product Profile

Description

EKR8-3 contains two types of products: Light Activated Switch and Staircase Light Time Switch.

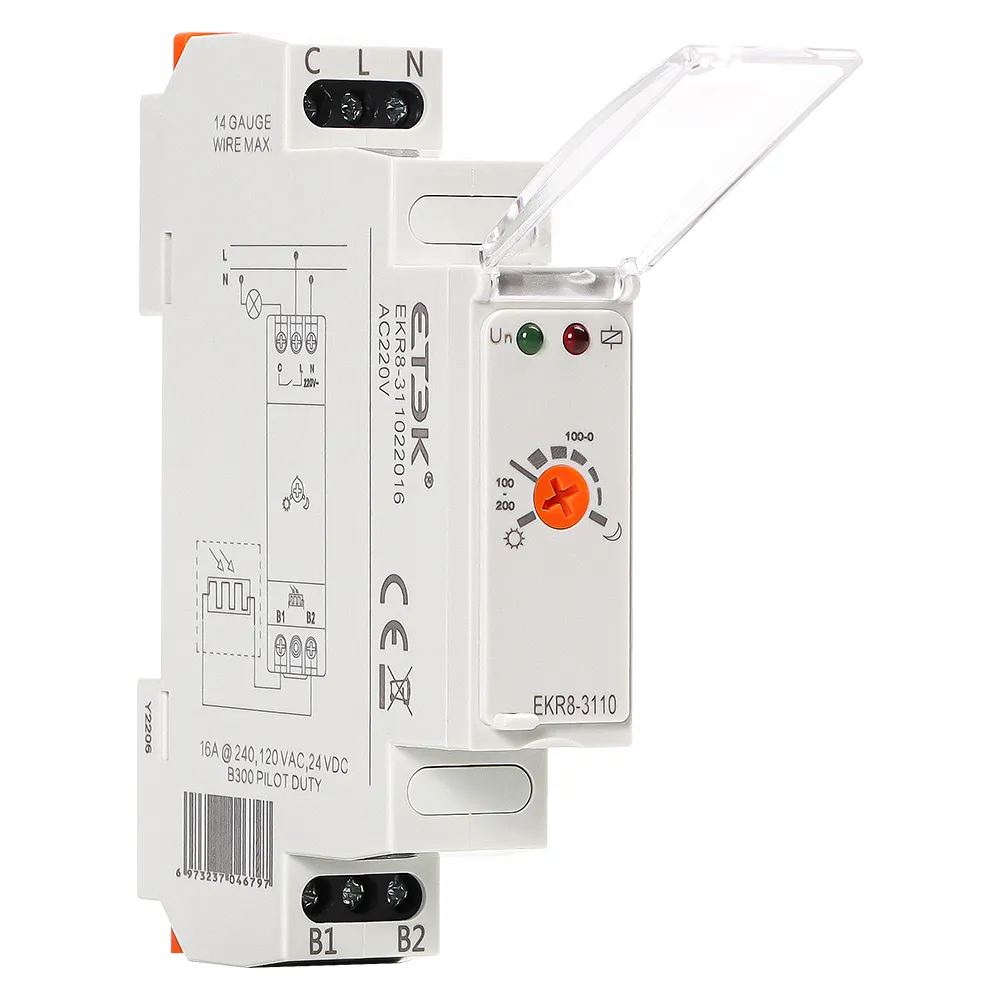

Light Activated Switch

1. Turn on or turn off electrical equipment according to the change of light intensity. The action threshold can be set according to the demand.

2. When the ambient brightness decreases and drops below the selected threshold, the control contact is closed; when the ambient brightness increases and rises above the selected threshold, the control contact opens.

3. Suitable for installation on 35mm rail (in accordance with EN60715 standard).

4. Lighting or lighting control system.

Staircase Light Time Switch

1. When the switch is triggered, the control contact is closed, the lighting is on, and the delay begins.

2. When the specified time is up, the control contact is disconnected and the lighting is off.

3. Suitable for installation on 35mm rail (in accordance with EN60715 standard).

4. Lighting or lighting control system.

Technical Data

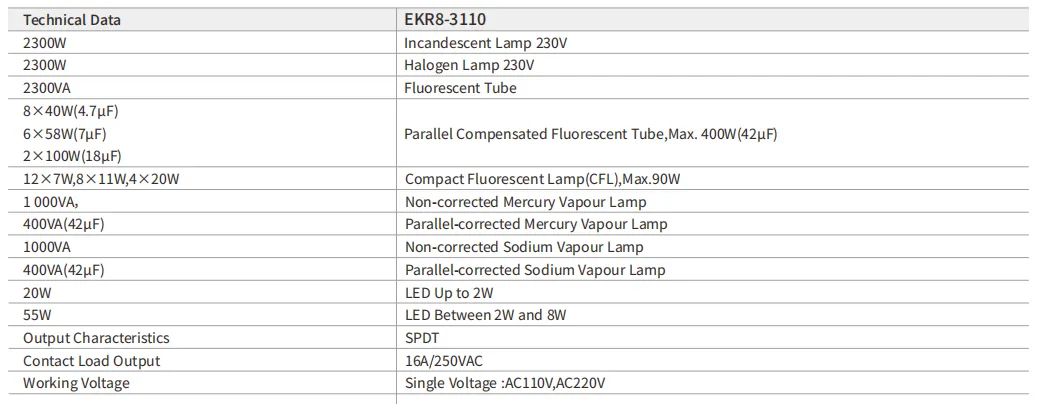

EKR8-3110

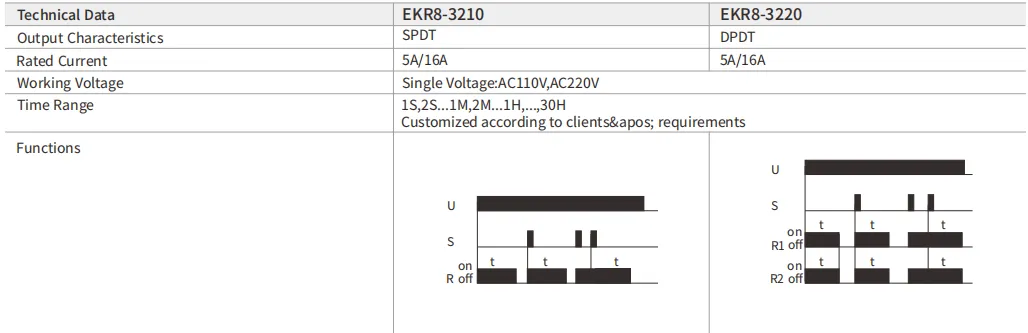

EKR8-3210/ 3220

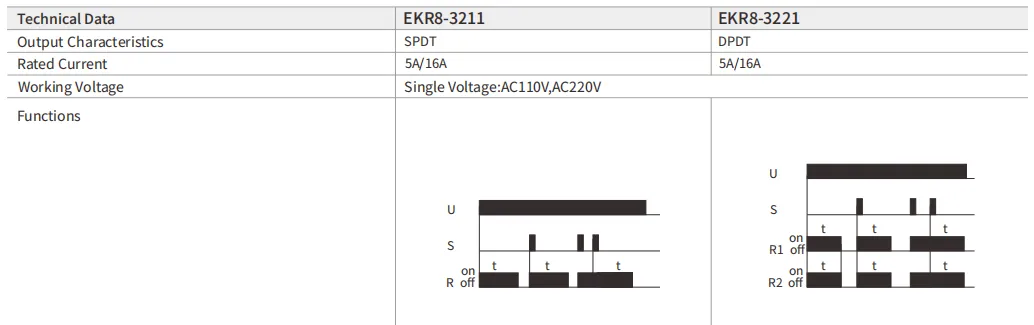

EKR8-3211/3221

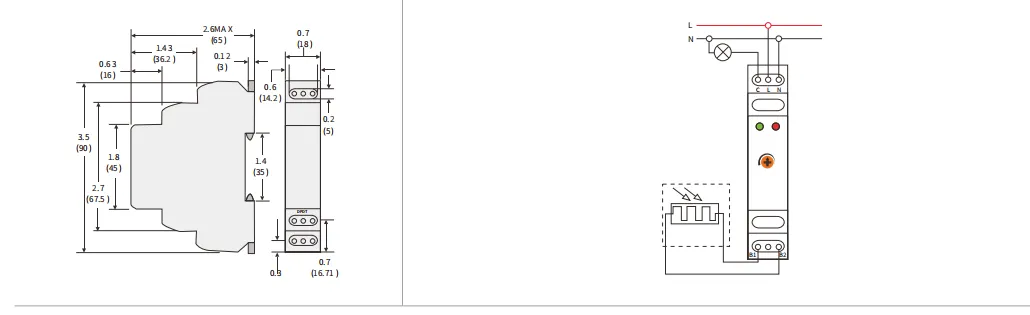

Dimensions

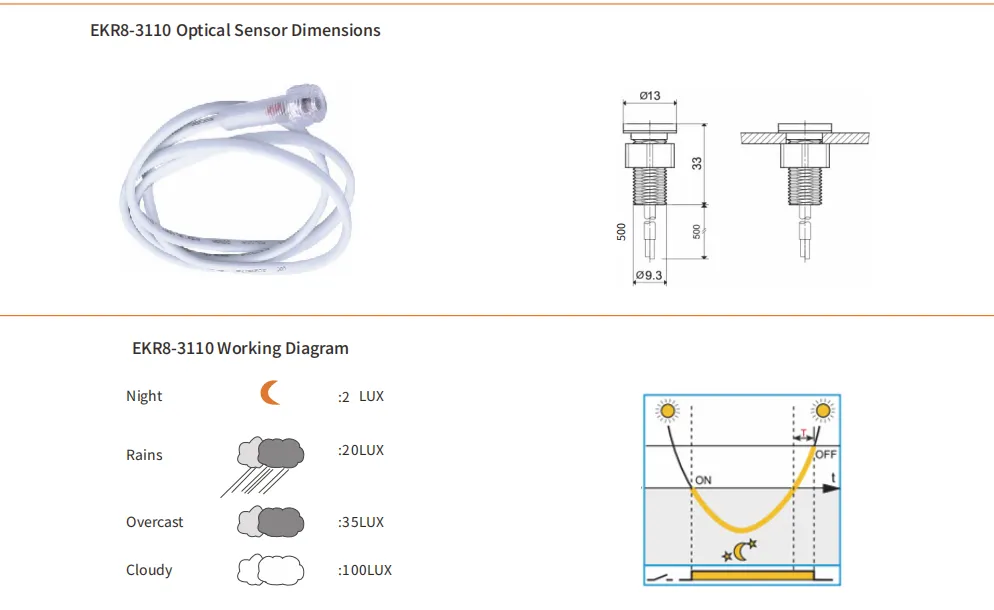

EKR8-3110

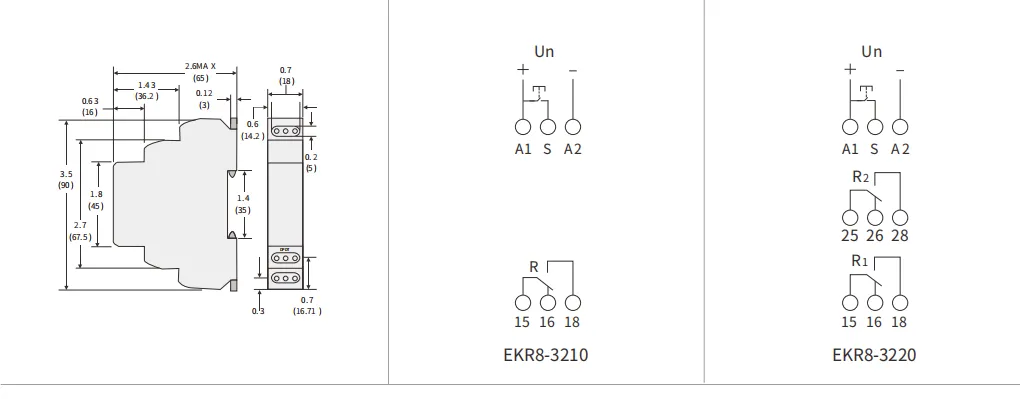

EKR8-3210/3220

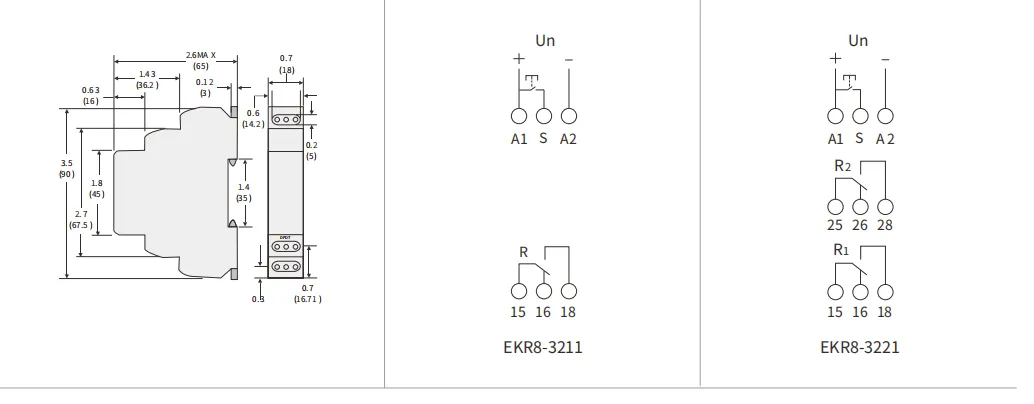

EKR8-3211/3221

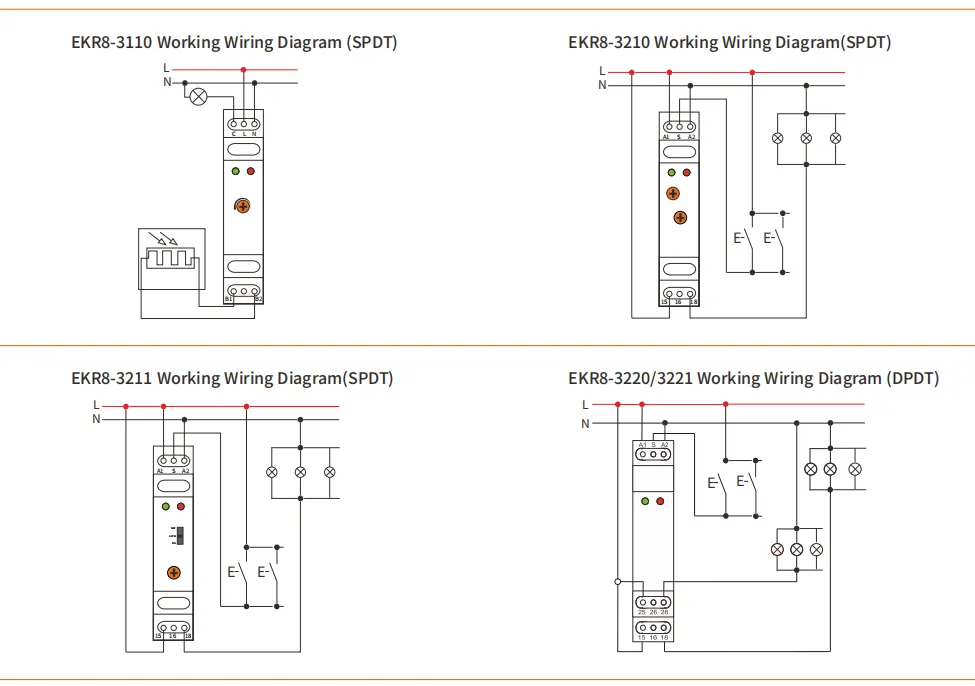

Working Wiring Diagram

Product selection form

Reference No. Specification
EKR8-311011016 Light Activated Switch 1 knob SPDT rotary switch 110V 16A
EKR8-311022016 Light Activated Switch 1 knob SPDT rotary switch 220V 16A
EKR8-32101105 Staircase Light Time Switch 2 knob SPDT rotary switch 110V 5A
EKR8-32102205 Staircase Light Time Switch 2 knob SPDT rotary switch 220V 5A
EKR8-3210H005 Staircase Light Time Switch 2 knob SPDT rotary switch 110-240VAC/DC 5A
EKR8-321011016 Staircase Light Time Switch 2 knob SPDT rotary switch 110V 16A
EKR8-321022016 Staircase Light Time Switch 2 knob SPDT rotary switch 220V 16A
EKR8-3210H0016 Staircase Light Time Switch 2 knob SPDT rotary switch 110-240VAC/DC 16A
EKR8-32201105 Staircase Light Time Switch 2 knob DPDT rotary switch 110V 5A
EKR8-32202205 Staircase Light Time Switch 2 knob DPDT rotary switch 220V 5A
EKR8-3220H005 Staircase Light Time Switch 2 knob DPDT rotary switch 110-240VAC/DC 5A
EKR8-322011016 Staircase Light Time Switch 2 knob DPDT rotary switch 110V 16A
EKR8-322022016 Staircase Light Time Switch 2 knob DPDT rotary switch 220V 16A
EKR8-3220H0016 Staircase Light Time Switch 2 knob DPDT rotary switch 110-240VAC/DC 16A
EKR8-32111105 Staircase Light Time Switch 2 knob SPDT toggle switch 110V 5A
EKR8-32112205 Staircase Light Time Switch 2 knob SPDT toggle switch 220V 5A
EKR8-3211H005 Staircase Light Time Switch 2 knob SPDT toggle switch 110-240VAC/DC 5A
EKR8-321111016 Staircase Light Time Switch 2 knob SPDT toggle switch 110V 16A
EKR8-321122016 Staircase Light Time Switch 2 knob SPDT toggle switch 220V 16A
EKR8-3211H0016 Staircase Light Time Switch 2 knob SPDT toggle switch 110-240VAC/DC 16A
EKR8-32211105 Staircase Light Time Switch 2 knob DPDT toggle switch 110V 5A
EKR8-32212205 Staircase Light Time Switch 2 knob DPDT toggle switch 220V 5A
EKR8-3221H005 Staircase Light Time Switch 2 knob DPDT toggle switch 110-240VAC/DC 5A
EKR8-322111016 Staircase Light Time Switch 2 knob DPDT toggle switch 110V 16A
EKR8-322122016 Staircase Light Time Switch 2 knob DPDT toggle switch 220V 16A
EKR8-3221H0016 Staircase Light Time Switch 2 knob DPDT toggle switch 110-240VAC/DC 16A

Product Profile

Description

EKR8-3 contains two types of products: Light Activated Switch and Staircase Light Time Switch.

Light Activated Switch

1. Turn on or turn off electrical equipment according to the change of light intensity. The action threshold can be set according to the demand.

2. When the ambient brightness decreases and drops below the selected threshold, the control contact is closed; when the ambient brightness increases and rises above the selected threshold, the control contact opens.

3. Suitable for installation on 35mm rail (in accordance with EN60715 standard).

4. Lighting or lighting control system.

Staircase Light Time Switch

1. When the switch is triggered, the control contact is closed, the lighting is on, and the delay begins.

2. When the specified time is up, the control contact is disconnected and the lighting is off.

3. Suitable for installation on 35mm rail (in accordance with EN60715 standard).

4. Lighting or lighting control system.

Technical Data

Dimensions

Product selection form
