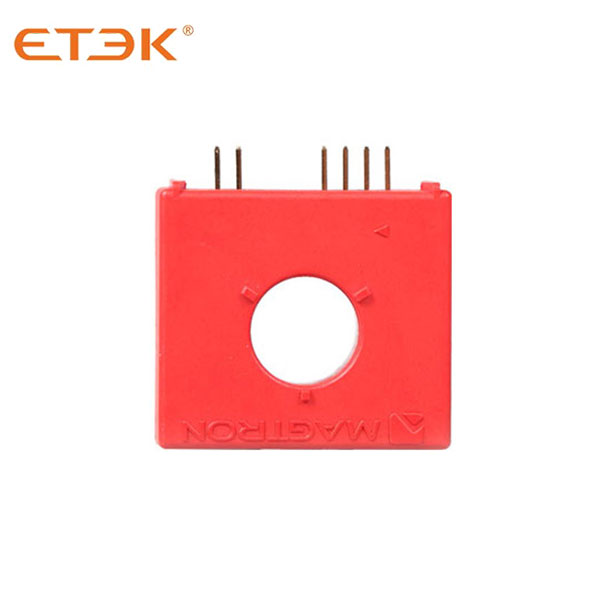

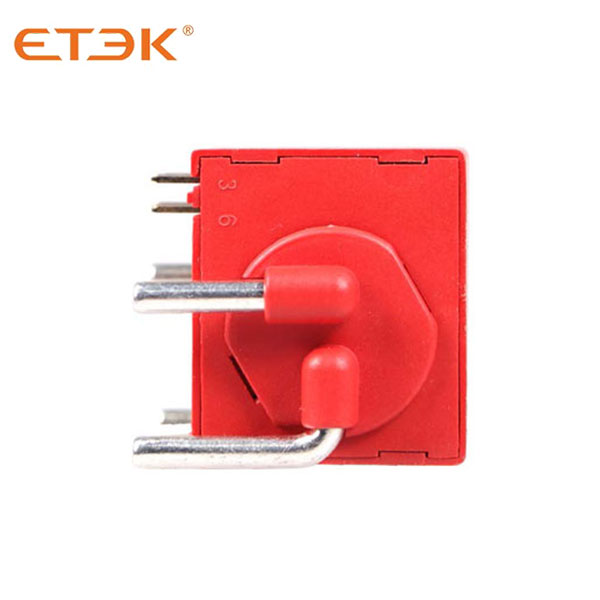

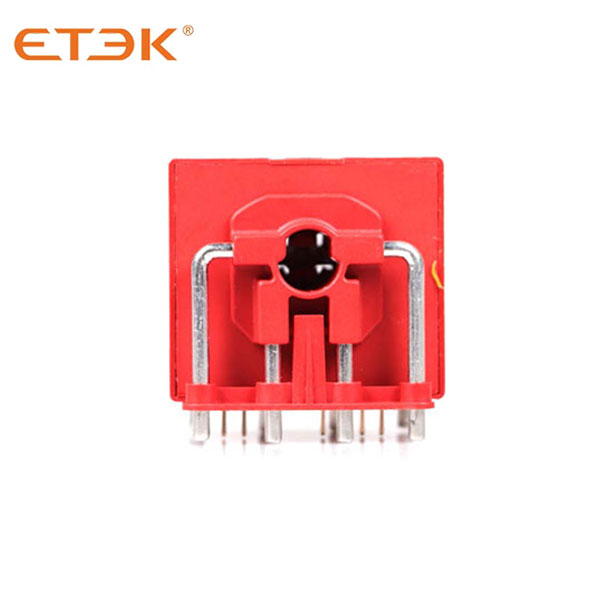

Additional Functional Modules of Charging Station-RCMU

When the charging station is working, if there is a DC leakage current signal, the RCMU will immediately output a fault signal and cut off the output power within 300ms, ensuring the safety and reliability of personal and property.

Inquire NOW PDF

Additional Functional Modules of Charging Station-RCMU

Inquire NOW PDF

Product Profile

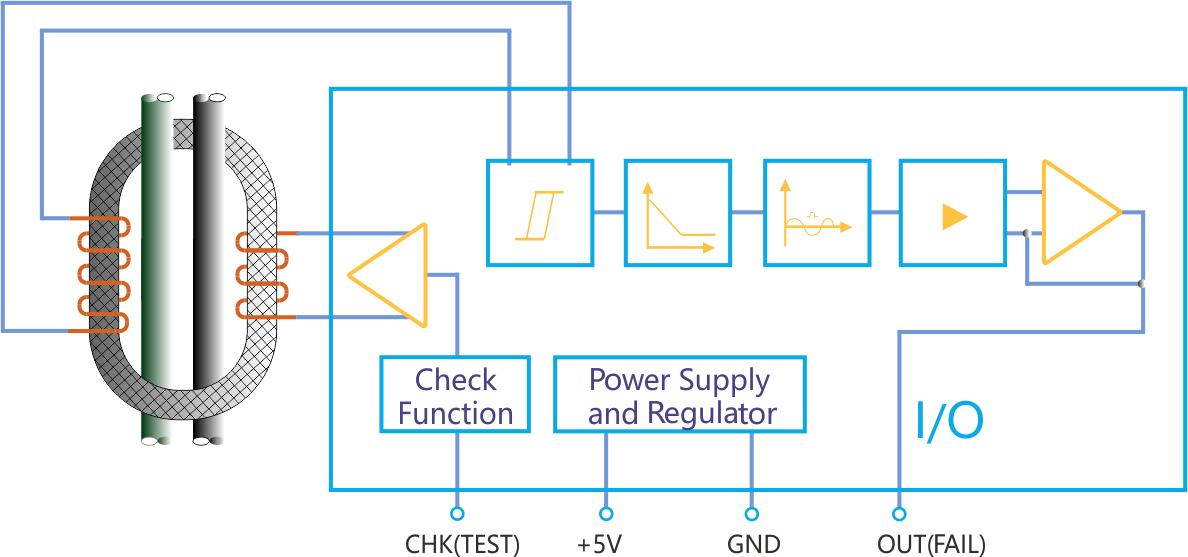

RCMU Function brief outline

When the charging station is working, if there is a DC leakage current signal, the RCMU will immediately output a fault signal and cut off the output power within 300ms, ensuring the safety and reliability of personal and property. If the fault is eliminated, the charging station will automatically restart charging according to the program within 3S. Before charging, the RCMU module of the device will automatically carry out the accuracy and detection of the DC leakage current to ensure the safe and reliable operation of the device.

Technical Data

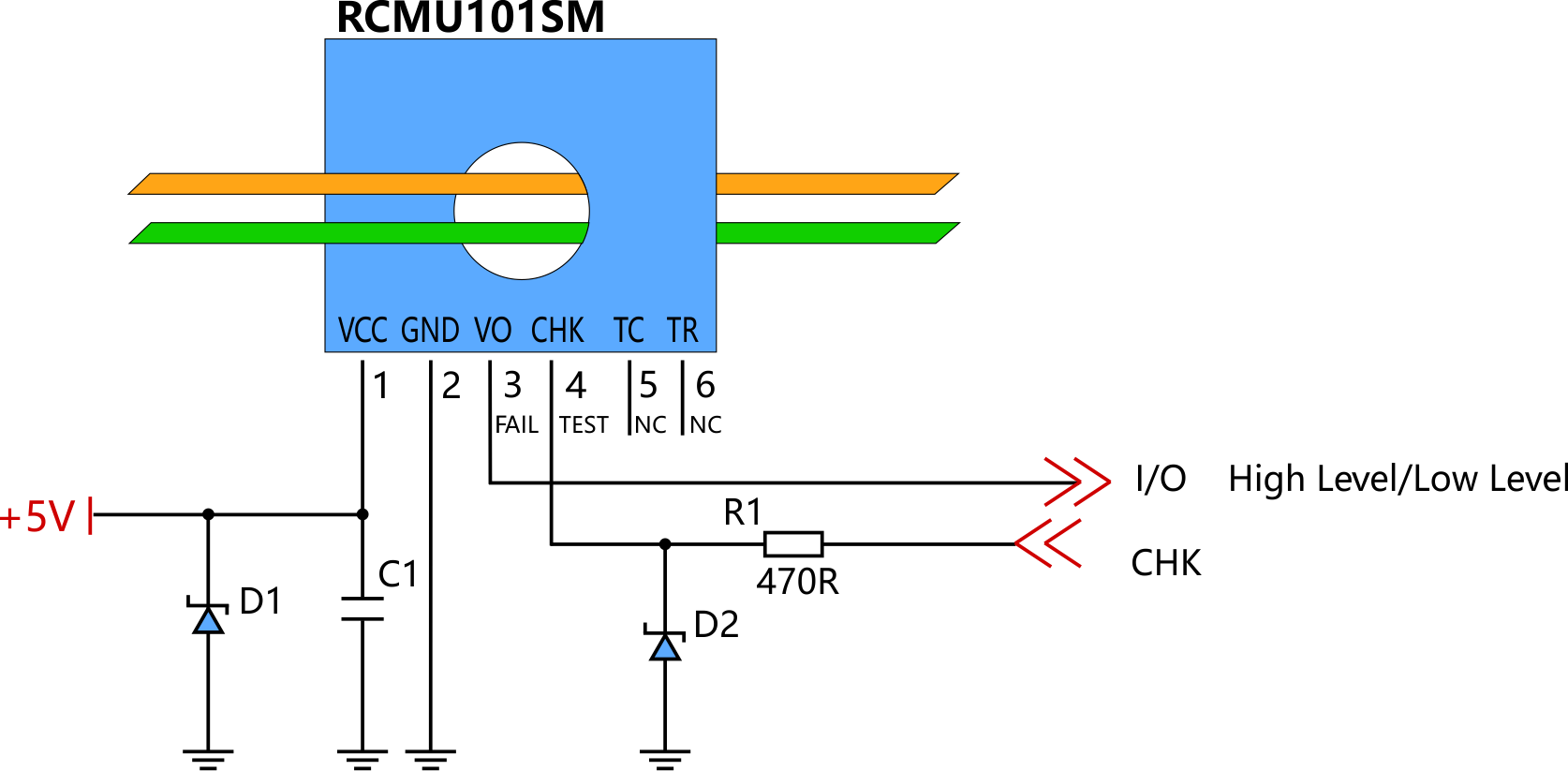

RCMU USE







RCMU Self-check function

When the main circuit is not working, the leakage current is 0, and Vout is at low level (0V) at this time.
(a)When the CHK PIN is set to high level (3.3-5V), Vout rises from low level to high voltage (Vcc) at this time.
(b) When the CHK PIN is set to low level (0.2v), the Vout generated at this time drops to low level (0V);
When the above (a) and (b) are completed, it is judged that the residual current sensor is functioning normally.
When the readme function is not working, you can add a 0-ohm resistor to the CHK PIN and ground it.

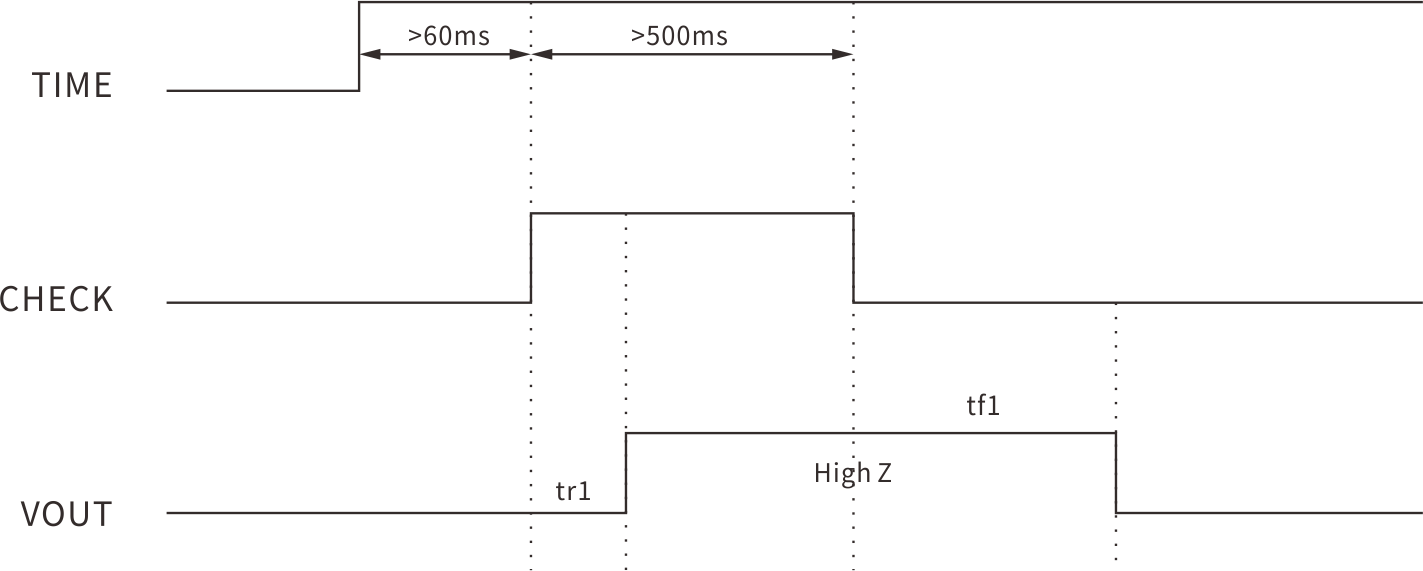

Self-test sequence diagram

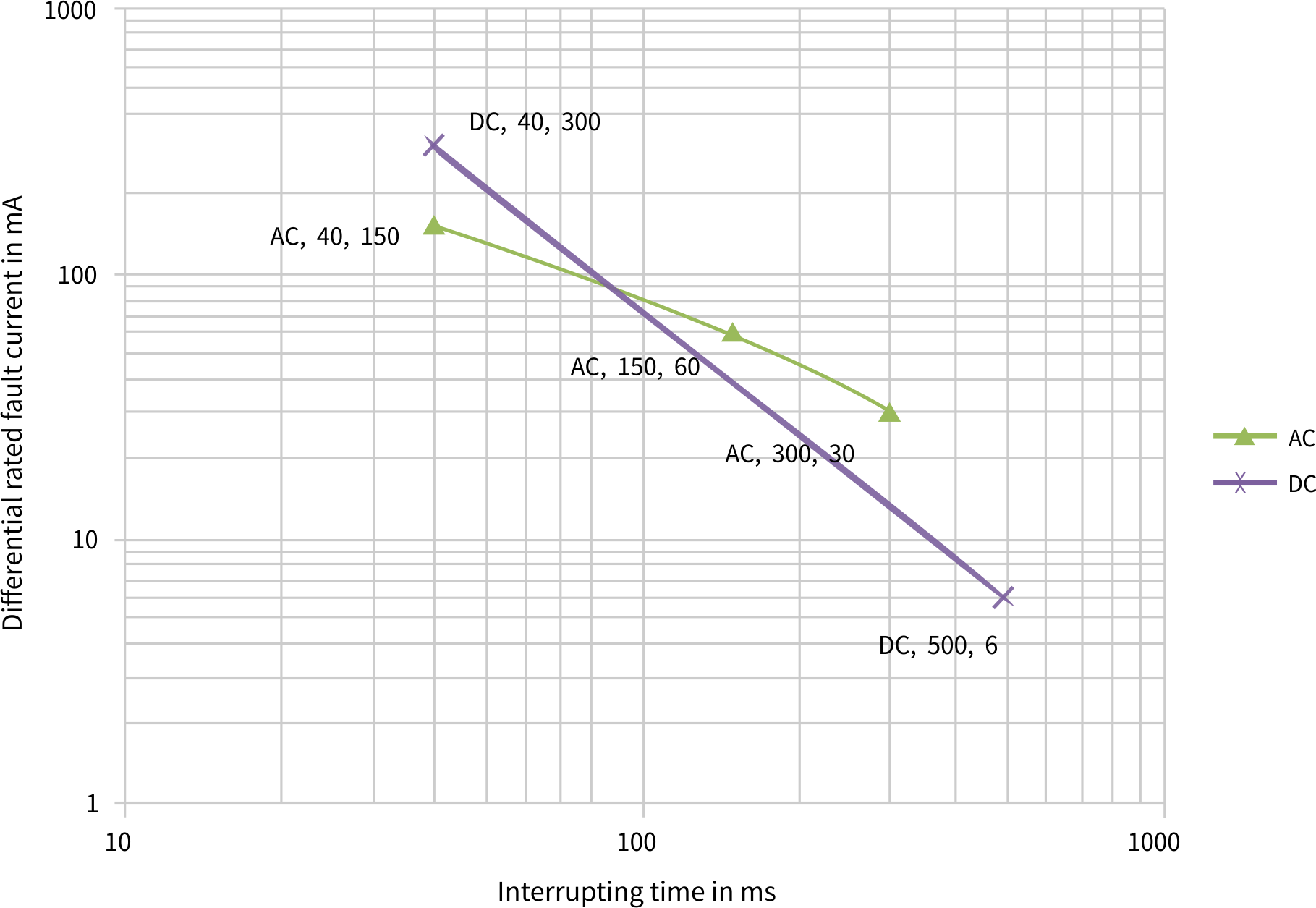

Interrupt time according to IEC62752 & IEC 62955


Dimensions

Product selection form

Product Profile

RCMU Function brief outline

When the charging station is working, if there is a DC leakage current signal, the RCMU will immediately output a fault signal and cut off the output power within 300ms, ensuring the safety and reliability of personal and property. If the fault is eliminated, the charging station will automatically restart charging according to the program within 3S. Before charging, the RCMU module of the device will automatically carry out the accuracy and detection of the DC leakage current to ensure the safe and reliable operation of the device.

Technical Data

Dimensions

Product selection form
