Porduct Overview

Naming rules

Brief description

Human appearance design, beautiful and fashionable, in line with the modern aesthetics and ergonomic design concept, easy to use.
The product conforms to IEC62196-2 SHEET2-lla standard.
Protection degree: IP54
Mainly used in the charging mode 3 of the IEC61851 standard

Technical parameters

Technical Data

Electrical performance	Operation voltage	230V±10% 50Hz/400V±10%50Hz
	Operation current	16A,32A
	Continuously using time	Continuously working 24h
	Conductive terminal temperature rise	≤50K
	Insulation Resistance	≥500MΩ, DC500V
	Withstand Voltage	2500V/min
	Contact Resistance	≤0.3Ω
Mechanical Features	Mechanical life	5,0000 times or more
	Insertion / pulling force during connection	＜100N(P), ＜75N(V)
	Withstanding impact	Tolerable to 2-ton car rolling or 1m height drop without damage
Major material	Conductor material	Copper alloy+silver plating
Major material	Enclosure material	Thermoplastic flame-retardant plastic, flame retardant grade UL94V-0
Ambient condition	Ambient temperature	-40℃-+50℃
Ambient condition	Humidity	<85%

Dimensions

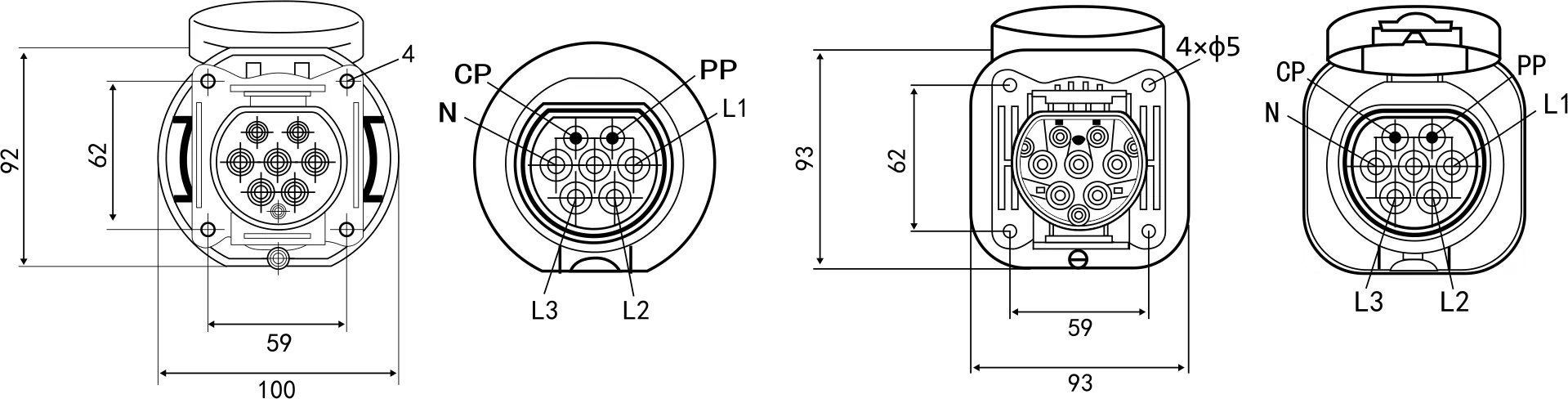

Socket Size

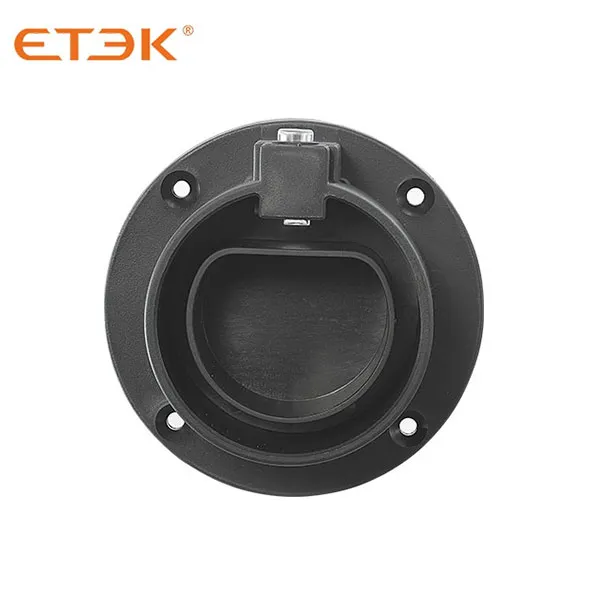

Fixed seat Size

Product selection form

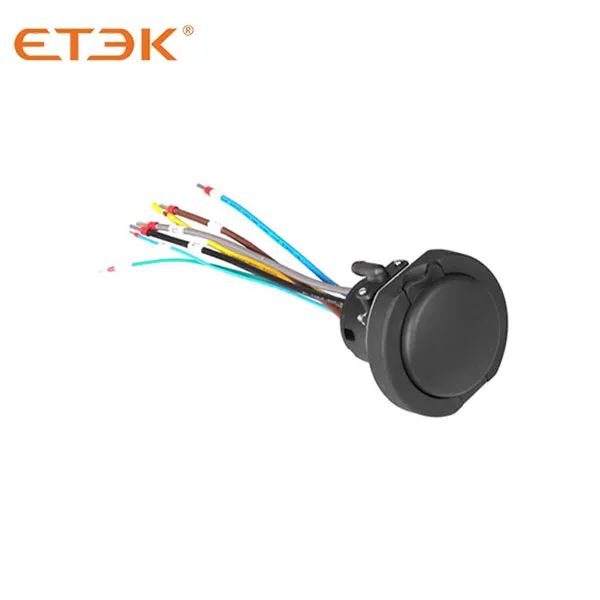

Socket Product Selection
Model	Specification	Cable
EKES1-S-16-T2	Single phase：16A/230V	3x2.5mm2+2x0.5mm2
EKES1-S-32-T2	Single phase：32A/230V	3x6mm2+2x0.5mm2
EKES1-C-16-T2	Single phase：16A/230V	3x2.5mm2+2x0.5mm2
EKES1-C-32-T2	Single phase：32A/230V	3x6mm2+2x0.5mm2
EKES3-S-16-T2	Three phases：16A/400V	5x2.5mm2+2x0.5mm2
EKES3-S-32-T2	Three phases：32A/400V	5x6mm2+2x0.5mm2
EKES3-C-16-T2	Three phases：16A/400V	5x2.5mm2+2x0.5mm2
EKES3-C-32-T2	Three phases：32A/400V	5x6mm2+2x0.5mm2
