Product Profile

Function Brief introduction

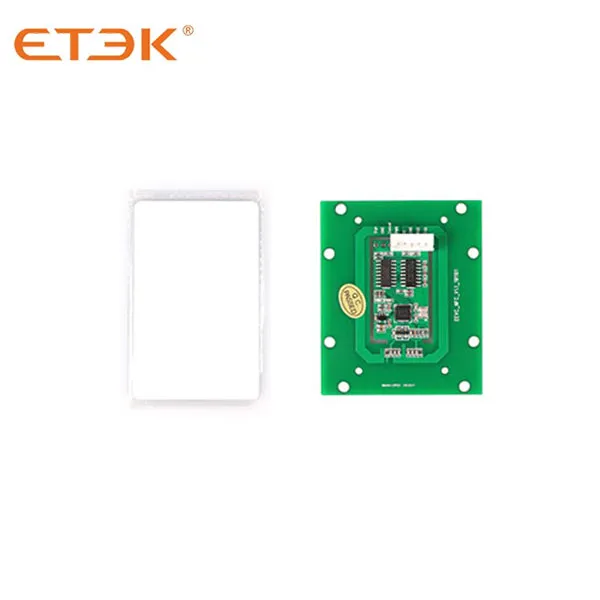

The charging station can be configured with contactless IC card swiping function, and charging can only be carried out through authorized IC card. If the IC card is lost, the internal dip switch can be used to set the IC card losing module. There are 3 IC cards which are authorized by the factory, unless specify that we can provide more IC cards.


DLB Function Brief introduction

This function is the automatic distribution of charging current, through an external current transformer (the output current is AC5A), the longest wiring length of the transformer is 100mm (2.5 square).
During the charging process, the charging station will monitor the online charging current in real time and make corresponding adjustments.
When it is detected that the current of the main circuit is greater than the set current, the charging station will reduce the charging current until the charging is stopped.
When it is detected that the current of the main circuit is less than the set current, the charging station will continue to increase the charging current until 32A or 63A.
In this state, the maximum charging current of the charging station is 32A and 63A.
While the charging current is uncertain, the current setting switch of the charging station becomes the transformation ratio setting switch of the current transformer. The transformation ratio of the external current transformer is set by software or factory setting.
The factory default current transformer transformation ratio is 100A/5A.

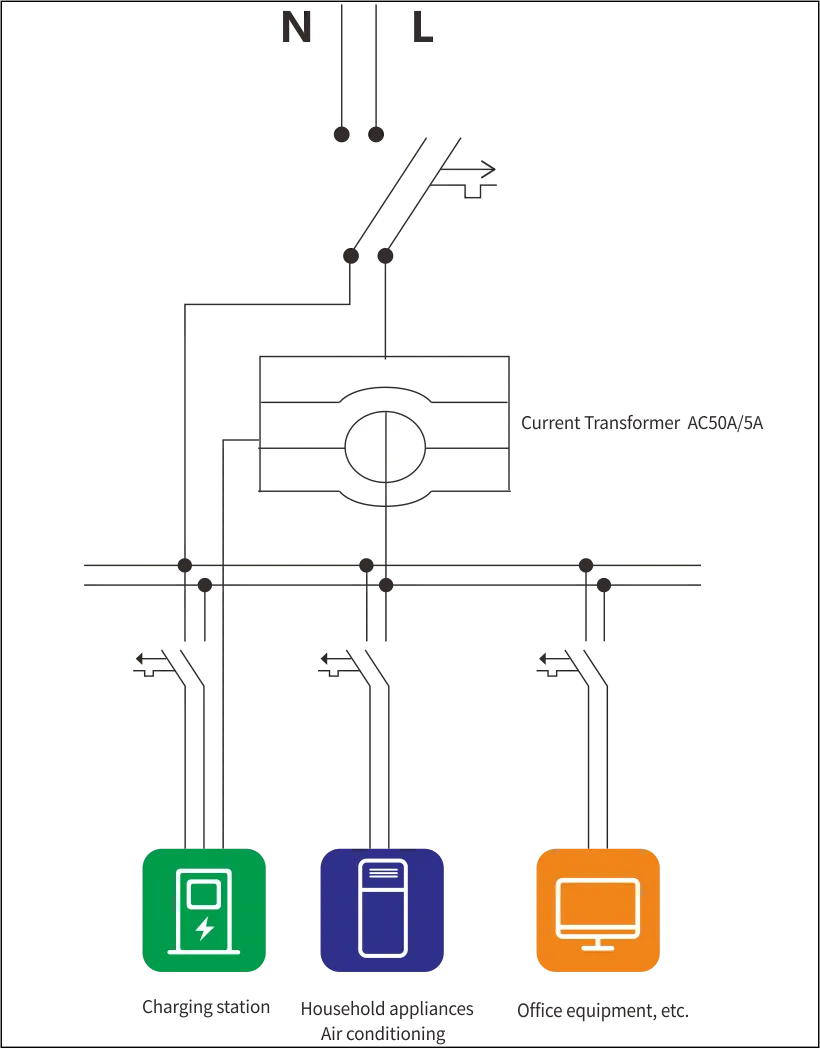

DLB Function application legend



Current sensor access function

The charging station can provide an analog input function, the input analog is AC0-5A, which is used to display the current working current. When the detected working current is greater than the set current value, the charging station will reduce the charging current to the set current value.
Thereby ensuring the safe and reliable operation of the charging station.



LCD display function

The charging station can provide an analog input function, the input analog is AC0-1.0V, which is used to display the current working current.
When the detected working current is greater than the set current value, the charging station will reduce the charging current to the set current value.
Thereby ensuring the safe and reliable operation of the charging station.

Display content
EKEC Series Charging Station
Operation voltage:220V Set current:32.0A Output Current:32.0A
Electricity consumption:15.8kW·h
Charging time:1h01min01s
Operation status: Charging
Device status: Normal
Communication status: Connecting
The charging station with a LCD to display which can show the working status and charging related
data, it is convenient and intuitive.

Technical Data




Dimensions

Product selection form

Product Profile

Function Brief introduction

The charging station can be configured with contactless IC card swiping function, and charging can only be carried out through authorized IC card. If the IC card is lost, the internal dip switch can be used to set the IC card losing module. There are 3 IC cards which are authorized by the factory, unless specify that we can provide more IC cards.


DLB Function Brief introduction

This function is the automatic distribution of charging current, through an external current transformer (the output current is AC5A), the longest wiring length of the transformer is 100mm (2.5 square).
During the charging process, the charging station will monitor the online charging current in real time and make corresponding adjustments.
When it is detected that the current of the main circuit is greater than the set current, the charging station will reduce the charging current until the charging is stopped.
When it is detected that the current of the main circuit is less than the set current, the charging station will continue to increase the charging current until 32A or 63A.
In this state, the maximum charging current of the charging station is 32A and 63A.
While the charging current is uncertain, the current setting switch of the charging station becomes the transformation ratio setting switch of the current transformer. The transformation ratio of the external current transformer is set by software or factory setting.
The factory default current transformer transformation ratio is 100A/5A.

DLB Function application legend



Current sensor access function

The charging station can provide an analog input function, the input analog is AC0-5A, which is used to display the current working current. When the detected working current is greater than the set current value, the charging station will reduce the charging current to the set current value.
Thereby ensuring the safe and reliable operation of the charging station.



LCD display function

The charging station can provide an analog input function, the input analog is AC0-1.0V, which is used to display the current working current.
When the detected working current is greater than the set current value, the charging station will reduce the charging current to the set current value.
Thereby ensuring the safe and reliable operation of the charging station.

Display content
EKEC Series Charging Station
Operation voltage:220V Set current:32.0A Output Current:32.0A
Electricity consumption:15.8kW·h
Charging time:1h01min01s
Operation status: Charging
Device status: Normal
Communication status: Connecting
The charging station with a LCD to display which can show the working status and charging related
data, it is convenient and intuitive.

Technical Data

Dimensions

Product selection form
