Porduct Overview

Description

RCBOs type B grant protection to persons and machineries in presence of DC current and high frequency AC fault current. Among the several types of RCBOs, type B provides the utmost level of protection.

1. Residual current sensitivity – UNIVERSAL

AC pure sinus residual current, 50/60Hz
A sinus and pulsating direct current, 50/60Hz
B: AC + A + smooth direct current + high frequency (1kHz)

2. Standards

IEC/EN 61009-1 Basic standards for RCBOs AC and A type
IEC/EN 62423 additional requirements for type B

3. Typical applications

Fault protection (protection against indirect contact of live parts
Additional protection (protection in case of direct contact of live parts, I∆n≤30mA)
Fire Protection (for locations exposed to fire hazard, I∆n≤300mA)

4.Which are vulnerable to smooth DC residual currents?

Photovoltaic systems, AC side.
Charging stations for electric vehicles.
Variable speed machine tools.
UPS, computer data centers.
Elevator controls.
Cranes of all kinds.
Electronic equipment on construction sites.
Test set-ups in laboratories.
General installations where DC smooth direct residual currents can be expected.

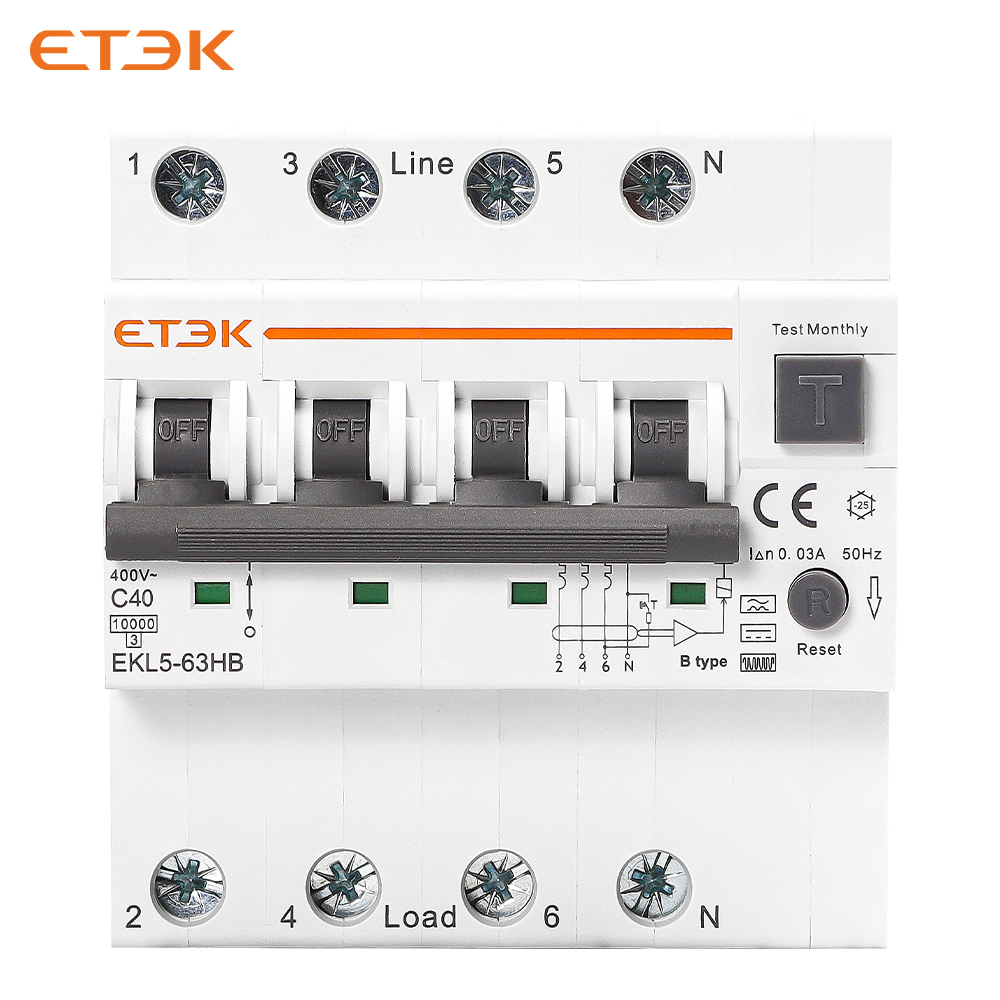

EKL5-63 B type RCBO maximum current can reach 63 amps, and three leakage current options of 30mA, 100mA and 300mA are available to meet the needs of different scenarios.

Technical parameters

Technical Data

Electrical Features
Mode	Electronic
Type	B
Rated current In	16,20,25,32,40,50,63A
Poles	2P(1P+N),4P(3P+N)
Rated voltage Ue	2P 240V~
	4P 415V~
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated residual operating current(I△n)	30,100,300mA
Break time under I△n	≤0.1s (S type ＜0.5s)
Rated breaking capacity	6,000A, 10,000A
Energy limiting class	3
Rated impulse withstands voltage (1.5/50) Uimp	4,000V
Dielectric test voltage at ind.Freq. for 1min	2kV
Pollution degree	2
Thermo-magnetic release characteristic	B, C, D
Mechanical Features
Electrical life	4,000 Cycles
Mechanical life	10,000 Cycles
Contact position indicator	Yes
Protection degree	IP20
Reference temperature for setting of thermal elements	30℃
Ambient temperature (with daily average≤35℃)	-5℃~+40℃
Storage temperature	-25℃~+70℃
Installation
Terminal connection type	Cable/Pin-type busbar/U-type busbar
Terminal size top/bottom for cable	25mm2 18-3AWG
Terminal size top/bottom for busbar	25mm2 18-3AWG
Tightening torque	2.5Nm 22In-lbs
Mounting	On DIN rail EN60715(35mm) by means of a fast clip device
Connection	Power supply from top
Combination with accessories
Auxiliary contact	EKM1-OF
Alarm contact	EKM1-FB
Shunt release	EKM1-MX
Over voltage protection	Yes
Under voltage protection	Yes
Over/Under voltage protection	Yes

Dimensions

Circuit Diagram

Installation size

Product selection form

Breaking capacity	Poles	Rated Current (A)	Sensitivity
			30mA	100mA	300mA
			B Curve
10KA	1P+N	6A	EKL5-63B-1NB0630	EKL5-63B-1NB06100	EKL5-63B-1NB06300
		10A	EKL5-63B-1NB1030	EKL5-63B-1NB10100	EKL5-63B-1NB10300
		16A	EKL5-63B-1NB1630	EKL5-63B-1NB16100	EKL5-63B-1NB16300
		20A	EKL5-63B-1NB2030	EKL5-63B-1NB20100	EKL5-63B-1NB20300
		25A	EKL5-63B-1NB2530	EKL5-63B-1NB25100	EKL5-63B-1NB25300
		32A	EKL5-63B-1NB3230	EKL5-63B-1NB32100	EKL5-63B-1NB32300
		40A	EKL5-63B-1NB4030	EKL5-63B-1NB40100	EKL5-63B-1NB40300
		50A	EKL5-63B-1NB5030	EKL5-63B-1NB50100	EKL5-63B-1NB50300
		63A	EKL5-63B-1NB6330	EKL5-63B-1NB63100	EKL5-63B-1NB63300
			C Curve
		6A	EKL5-63B-1NC0630	EKL5-63B-1NC06100	EKL5-63B-1NC06300
		10A	EKL5-63B-1NC1030	EKL5-63B-1NC10100	EKL5-63B-1NC10300
		16A	EKL5-63B-1NC1630	EKL5-63B-1NC16100	EKL5-63B-1NC16300
		20A	EKL5-63B-1NC2030	EKL5-63B-1NC20100	EKL5-63B-1NC20300
		25A	EKL5-63B-1NC2530	EKL5-63B-1NC25100	EKL5-63B-1NC25300
		32A	EKL5-63B-1NC3230	EKL5-63B-1NC32100	EKL5-63B-1NC32300
		40A	EKL5-63B-1NC4030	EKL5-63B-1NC40100	EKL5-63B-1NC40300
		50A	EKL5-63B-1NC5030	EKL5-63B-1NC50100	EKL5-63B-1NC50300
		63A	EKL5-63B-1NC6330	EKL5-63B-1NC63100	EKL5-63B-1NC63300
	3P+N		B Curve
		6A	EKL5-63B-3NB0630	EKL5-63B-3NB06100	EKL5-63B-3NB06300
		10A	EKL5-63B-3NB1030	EKL5-63B-3NB10100	EKL5-63B-3NB10300
		16A	EKL5-63B-3NB1630	EKL5-63B-3NB16100	EKL5-63B-3NB16300
		20A	EKL5-63B-3NB2030	EKL5-63B-3NB20100	EKL5-63B-3NB20300
		25A	EKL5-63B-3NB2530	EKL5-63B-3NB25100	EKL5-63B-3NB25300
		32A	EKL5-63B-3NB3230	EKL5-63B-3NB32100	EKL5-63B-3NB32300
		40A	EKL5-63B-3NB4030	EKL5-63B-3NB40100	EKL5-63B-3NB40300
		50A	EKL5-63B-3NB5030	EKL5-63B-3NB50100	EKL5-63B-3NB50300
		63A	EKL5-63B-3NB6330	EKL5-63B-3NB63100	EKL5-63B-3NB63300
			C Curve
		6A	EKL5-63B-3NC0630	EKL5-63B-3NC06100	EKL5-63B-3NC06300
		10A	EKL5-63B-3NC1030	EKL5-63B-3NC10100	EKL5-63B-3NC10300
		16A	EKL5-63B-3NC1630	EKL5-63B-3NC16100	EKL5-63B-3NC16300
		20A	EKL5-63B-3NC2030	EKL5-63B-3NC20100	EKL5-63B-3NC20300
		25A	EKL5-63B-3NC2530	EKL5-63B-3NC25100	EKL5-63B-3NC25300
		32A	EKL5-63B-3NC3230	EKL5-63B-3NC32100	EKL5-63B-3NC32300
		40A	EKL5-63B-3NC4030	EKL5-63B-3NC40100	EKL5-63B-3NC40300
		50A	EKL5-63B-3NC5030	EKL5-63B-3NC50100	EKL5-63B-3NC50300
		63A	EKL5-63B-3NC6330	EKL5-63B-3NC63100	EKL5-63B-3NC63300

Download Files
