Model: EKRCMU-1
Type A & 6mA DC RCMU (Residual Current Monitor Unit)
Inquire

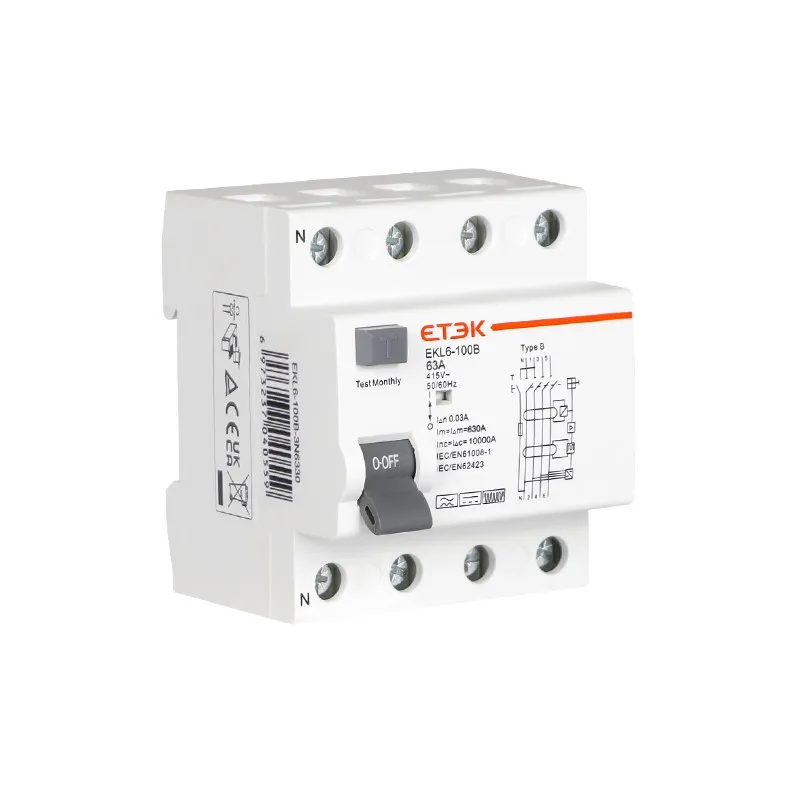

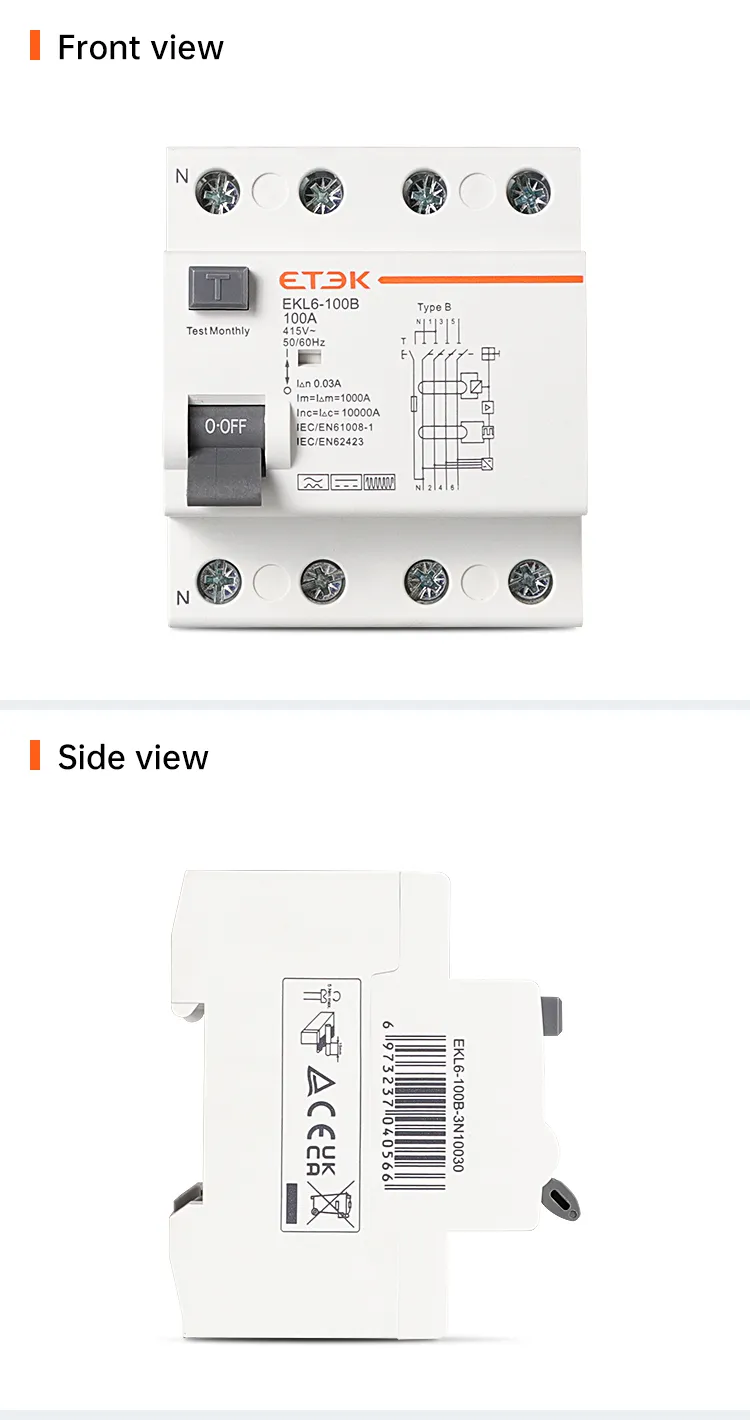

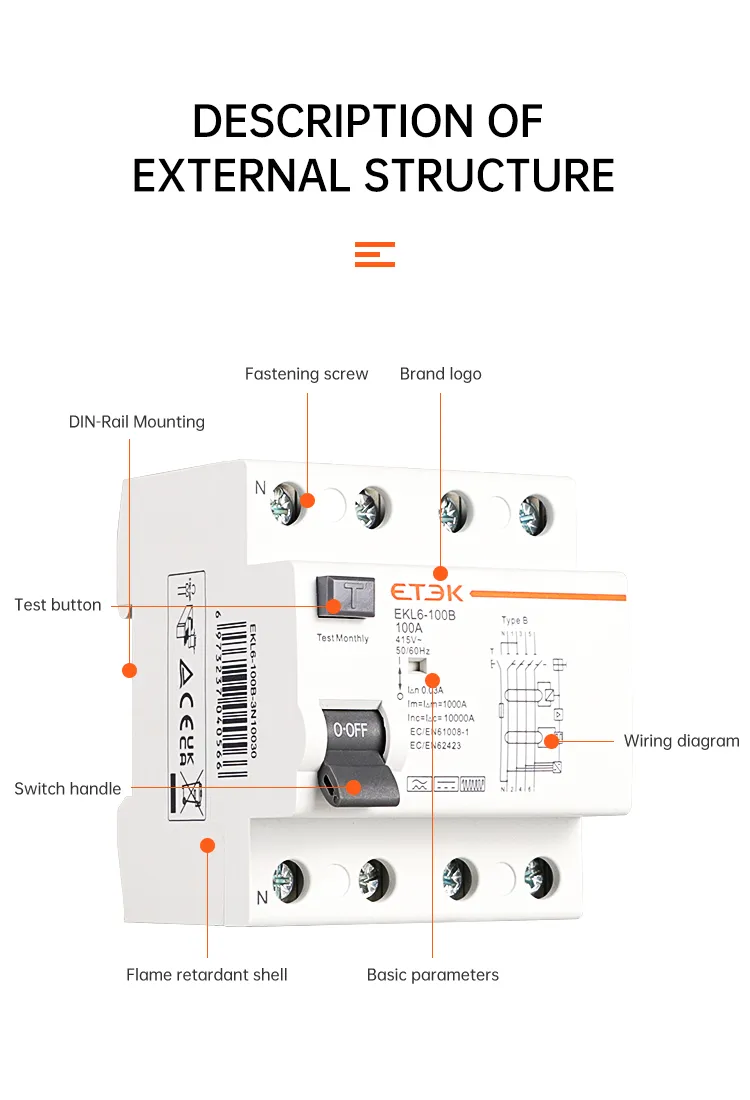

EKL6-100B Type B RCD has novel appearance design, compact structure, good reliability, and high safety. The products comply with IEC61008-1, IEC62423. They ensure higher protection levels with maximum operational continuity under all working conditions. Type B RCDs can ensure maximum safety in many applications, such as EV Charging Station, Crane and Elevator, PV and Wind power plants, etc.
|
Standard |
IEC61008-1, IEC62423 |
|
|
Protection |
Ground fault |
|
|
Type of trip |
Electro-magnetic |
|
|
Type of protection (electric leakage) |
B | |
|

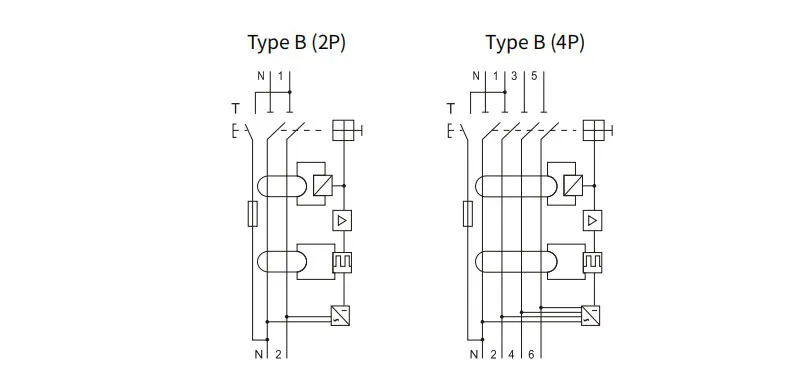

No. of poles |
2P(1P+N), 4P(3P+N), N Pole on left |
|
| Rated current In | 16,25,32,40,63,80,100A | |
| Rated voltage Ue | 2P(1P+N): 110/230/240V, 4P(3P+N): 240/400/415V | |
| Insulation voltage Ui | 500V | |
| Rated frequency | 50/60Hz | |
| Rated residual operation current(I△n) | 30, 100, 300mA | |
| Rated residual making and breaking capacity (I△m) |
500A (In≤50A), 10In (In>50A) |
|
| Short-circuit current Inc= I△c | 10,000A | |
| SCPD fuse |  10,000A |
|
|
Residual current off-time under I△n |

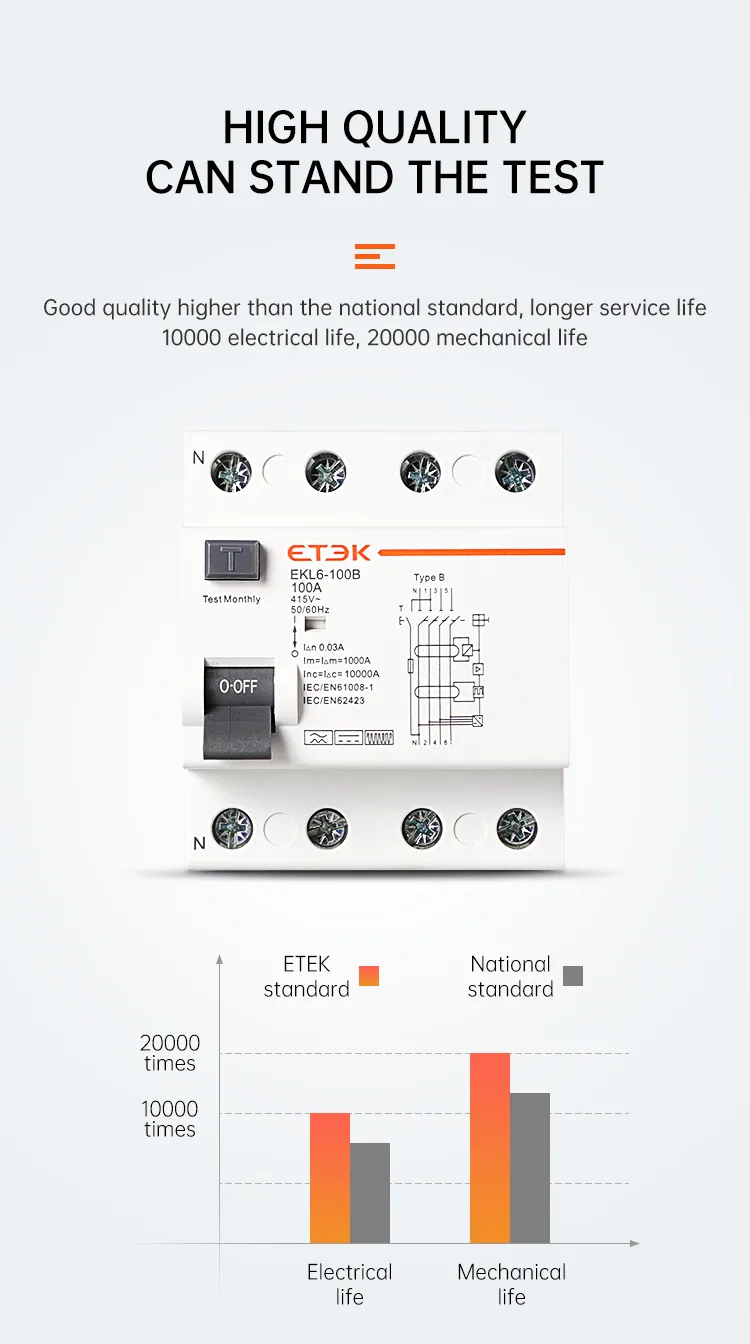

≤0.1s | |
| Rated impulse withstands voltage (1.5/50) Uimp | 4000V | |
| Dielectric test voltage at ind. Freq. for 1min | 2.5kV | |
| Electrical life | 2,000 Cycles | |
| Mechanical life | 4,000 Cycles | |
| Contact position indicator | Yes | |
|
Ground fault indicator |
Yes | |
| Protection degree | IP20 | |
| Ambient temperature | -25℃~+40℃, Max.95% humidity | |
| Terminal connection type |
Cable/Pin-type busbar/Fork-type busbar |
|
|
Max. terminal size for cable |
35mm2 | |
|
Max. tightening torque |
2.5N.m | |
|

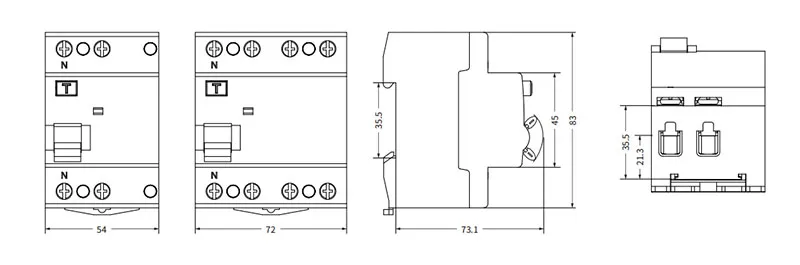

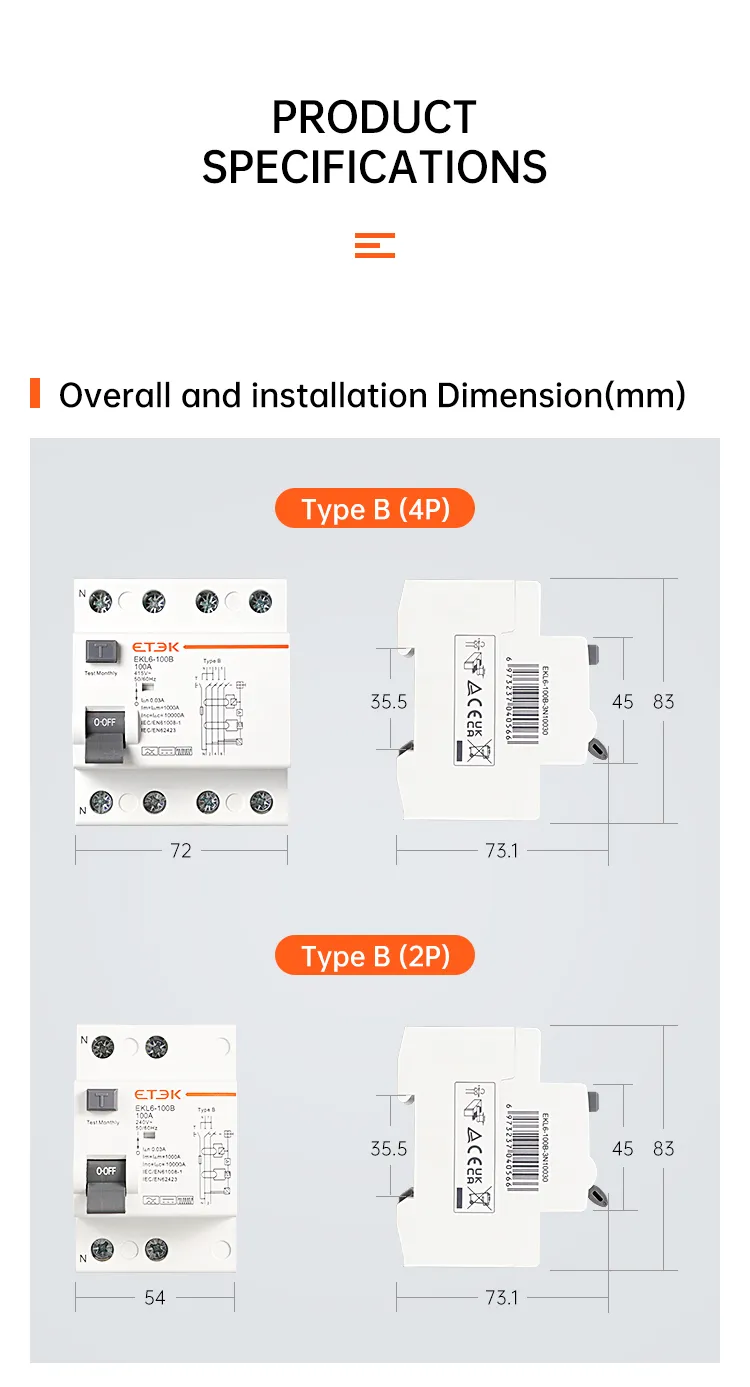

Installation |
Mounting on 35mm DIN rail |
|
| Connection |
From top and bottom |
|
| Model | Rated Current | Poles | RCD Type | Residual Current | Code |
| EKL6-100B(S)-1N1630 | 16A | 1P+N(36mm) | B | 30mA | 125227 |
| EKL6-100B(S)-1N2530 | 25A | 1P+N(36mm) | B | 30mA | 125228 |
| EKL6-100B(S)-1N3230 | 32A | 1P+N(36mm) | B | 30mA | 125229 |
| EKL6-100B(S)-1N4030 | 40A | 1P+N(36mm) | B | 30mA | 125230 |
| EKL6-100B(S)-1N6330 | 63A | 1P+N(36mm) | B | 30mA | 125231 |
| EKL6-100B(S)-1N8030 | 80A | 1P+N(36mm) | B | 30mA | 125232 |
| EKL6-100B(S)-1N10030 | 100A | 1P+N(36mm) | B | 30mA | 125233 |
| EKL6-100B(S)-1N16100 | 16A | 1P+N(36mm) | B | 100mA | 125234 |
| EKL6-100B(S)-1N25100 | 25A | 1P+N(36mm) | B | 100mA | 125235 |
| EKL6-100B(S)-1N32100 | 32A | 1P+N(36mm) | B | 100mA | 125236 |
| EKL6-100B(S)-1N40100 | 40A | 1P+N(36mm) | B | 100mA | 125237 |
| EKL6-100B(S)-1N63100 | 63A | 1P+N(36mm) | B | 100mA | 125238 |
| EKL6-100B(S)-1N80100 | 80A | 1P+N(36mm) | B | 100mA | 125239 |
| EKL6-100B(S)-1N100100 | 100A | 1P+N(36mm) | B | 100mA | 125240 |
| EKL6-100B(S)-1N16300 | 16A | 1P+N(36mm) | B | 300mA | 125241 |
| EKL6-100B(S)-1N25300 | 25A | 1P+N(36mm) | B | 300mA | 125242 |
| EKL6-100B(S)-1N32300 | 32A | 1P+N(36mm) | B | 300mA | 125243 |
| EKL6-100B(S)-1N40300 | 40A | 1P+N(36mm) | B | 300mA | 125244 |
| EKL6-100B(S)-1N63300 | 63A | 1P+N(36mm) | B | 300mA | 125245 |
| EKL6-100B(S)-1N80300 | 80A | 1P+N(36mm) | B | 300mA | 125246 |
| EKL6-100B(S)-1N100300 | 100A | 1P+N(36mm) | B | 300mA | 125247 |
| EKL6-100B-1N1630 | 16A | 1P+N(54mm) | B | 30mA | 125401 |
| EKL6-100B-1N2530 | 25A | 1P+N(54mm) | B | 30mA | 125402 |
| EKL6-100B-1N3230 | 32A | 1P+N(54mm) | B | 30mA | 125403 |
| EKL6-100B-1N4030 | 40A | 1P+N(54mm) | B | 30mA | 125404 |
| EKL6-100B-1N6330 | 63A | 1P+N(54mm) | B | 30mA | 125405 |
| EKL6-100B-1N8030 | 80A | 1P+N(54mm) | B | 30mA | 125406 |
| EKL6-100B-1N10030 | 100A | 1P+N(54mm) | B | 30mA | 125407 |
| EKL6-100B-1N16100 | 16A | 1P+N(54mm) | B | 100mA | 125415 |
| EKL6-100B-1N25100 | 25A | 1P+N(54mm) | B | 100mA | 125416 |
| EKL6-100B-1N32100 | 32A | 1P+N(54mm) | B | 100mA | 125417 |
| EKL6-100B-1N40100 | 40A | 1P+N(54mm) | B | 100mA | 125418 |
| EKL6-100B-1N63100 | 63A | 1P+N(54mm) | B | 100mA | 125419 |
| EKL6-100B-1N80100 | 80A | 1P+N(54mm) | B | 100mA | 125420 |
| EKL6-100B-1N100100 | 100A | 1P+N(54mm) | B | 100mA | 125421 |
| EKL6-100B-1N16300 | 16A | 1P+N(54mm) | B | 300mA | 125429 |
| EKL6-100B-1N25300 | 25A | 1P+N(54mm) | B | 300mA | 125430 |
| EKL6-100B-1N32300 | 32A | 1P+N(54mm) | B | 300mA | 125431 |
| EKL6-100B-1N40300 | 40A | 1P+N(54mm) | B | 300mA | 125432 |
| EKL6-100B-1N63300 | 63A | 1P+N(54mm) | B | 300mA | 125433 |
| EKL6-100B-1N80300 | 80A | 1P+N(54mm) | B | 300mA | 125434 |
| EKL6-100B-1N100300 | 100A | 1P+N(54mm) | B | 300mA | 125435 |
| EKL6-100B-3N1630 | 16A | 3P+N | B | 30mA | 125408 |
| EKL6-100B-3N2530 | 25A | 3P+N | B | 30mA | 125409 |
| EKL6-100B-3N3230 | 32A | 3P+N | B | 30mA | 125410 |
| EKL6-100B-3N4030 | 40A | 3P+N | B | 30mA | 125411 |
| EKL6-100B-3N6330 | 63A | 3P+N | B | 30mA | 125412 |
| EKL6-100B-3N8030 | 80A | 3P+N | B | 30mA | 125413 |
| EKL6-100B-3N10030 | 100A | 3P+N | B | 30mA | 125414 |
| EKL6-100B-3N16100 | 16A | 3P+N | B | 100mA | 125422 |
| EKL6-100B-3N25100 | 25A | 3P+N | B | 100mA | 125423 |
| EKL6-100B-3N32100 | 32A | 3P+N | B | 100mA | 125424 |
| EKL6-100B-3N40100 | 40A | 3P+N | B | 100mA | 125425 |
| EKL6-100B-3N63100 | 63A | 3P+N | B | 100mA | 125426 |
| EKL6-100B-3N80100 | 80A | 3P+N | B | 100mA | 125427 |
| EKL6-100B-3N100100 | 100A | 3P+N | B | 100mA | 125428 |
| EKL6-100B-3N16300 | 16A | 3P+N | B | 300mA | 125436 |
| EKL6-100B-3N25300 | 25A | 3P+N | B | 300mA | 125437 |
| EKL6-100B-3N32300 | 32A | 3P+N | B | 300mA | 125438 |
| EKL6-100B-3N40300 | 40A | 3P+N | B | 300mA | 125439 |
| EKL6-100B-3N63300 | 63A | 3P+N | B | 300mA | 125440 |
| EKL6-100B-3N80300 | 80A | 3P+N | B | 300mA | 125441 |
| EKL6-100B-3N100300 | 100A | 3P+N | B | 300mA | 125442 |
EKL6-100B Type B RCD has novel appearance design, compact structure, good reliability, and high safety. The products comply with IEC61008-1, IEC62423. They ensure higher protection levels with maximum operational continuity under all working conditions. Type B RCDs can ensure maximum safety in many applications, such as EV Charging Station, Crane and Elevator, PV and Wind power plants, etc.
