ETEC EKEP3-T2-16 Type 2 Female Plug with 5 Meters Cable Three Phase 16A 400V 11KW for Electric Car Vehicle Charging
Inquire
.jpg)

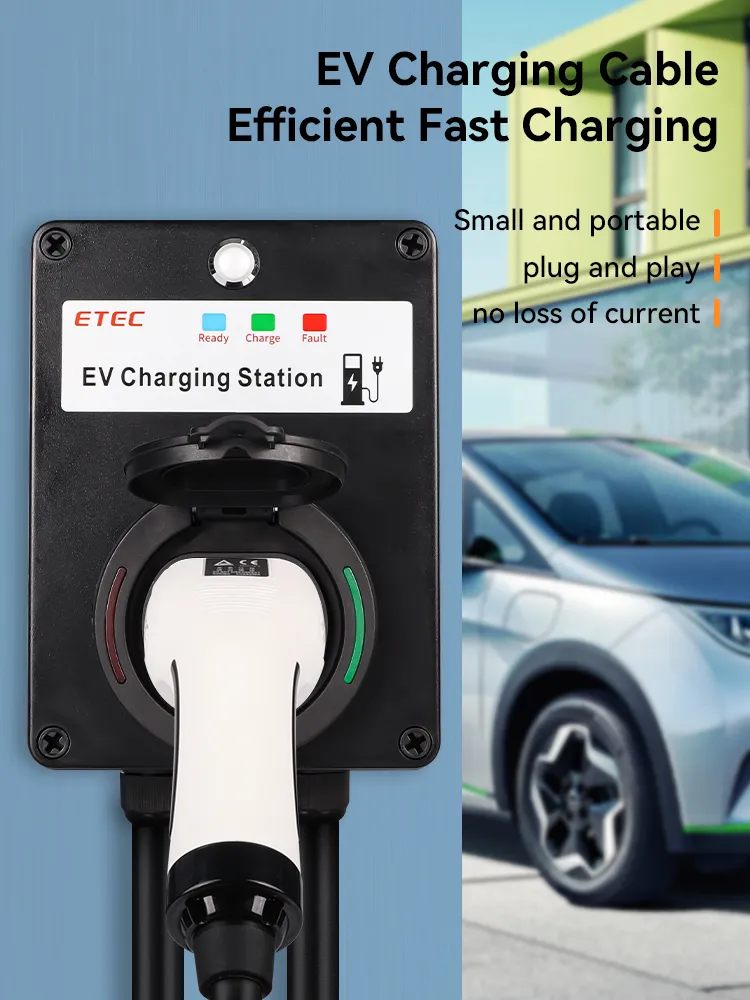

EV charging cable is the carrier connecting electric vehicle and charging pile. And its basic function is to transmit electric energy. EV Charging cables are generally used in charging stations, parking lots, hotels, communities, garages, and other areas. At present, the safety of electric vehicles has become the focus of the industry. During electric vehicles' charging and discharging process, it is important to pay attention to safety issues because of the long usage time, high current intensity, and high frequency of cables. Based on ensuring good insulation performance, electric vehicle charging cable shall have high heat resistance and aging resistance. At the same time, it shall have good low smoke and flame-retardant characteristics during combustion to minimize loss and injury.

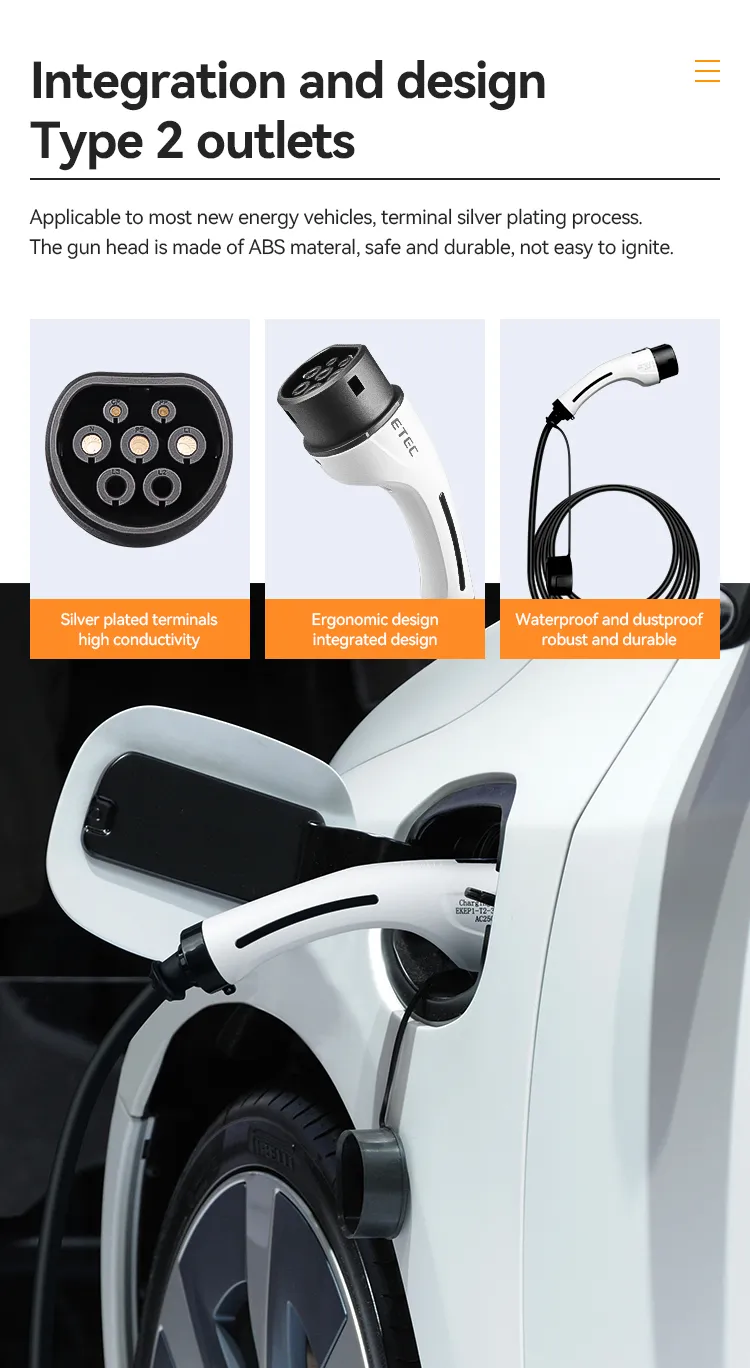

Type 2 Female European plug with charging cable, it is a Female Type 2 end plug to connect directly on the charging vehicle, suitable for users who like to DIY their own charging piles or Charging pile manufacturer, products meet the IEC 62196-2 charging connector standards. They are mainly two current options of 16A and 32A, which are divided into single-phase and three-phase version and defaults to a 5m black straight cable.
Single Plug EV charging cable |
|
| Material | |
| Case Material | Thermoplastic, Flame Retardant Grade Ul94 V-0 |
| Pin | Copper Alloy, Silver + Thermoplastic on the Top |
| Electrical Performance | |
| Rated Current | 16A |
| Operation Voltage | 230V±10% |
| Insulation Resistance | ＞500MΩ(DC500V) |
|
Conductive Terminal Temperature Rise
|
≤50K
|
| Withstand Voltage |
2500V/min
|
| Contact Resistance |
≤0.3Ω
|
| Mechanical Performance | |
| Mechanical Life | No-load Plug in / Pull Out＞50000 Times |
| Coupled Insertion Force |
45N~80N
|
|
Withstanding Impact
|
Tolerable to 2-ton car rolling or 1m height drop without damage
|
| Environmental Performance | |
| Temperature Range |
-40℃-+50℃
|
| Protection Degree | IP55 |
| Humidity |
<85%
|
| Application | |
| Professional Charging Station | Berth |
| Parking Lots Parking Spaces | Residential Parking Lot |
EV charging cable is the carrier connecting electric vehicle and charging pile. And its basic function is to transmit electric energy. EV Charging cables are generally used in charging stations, parking lots, hotels, communities, garages, and other areas. At present, the safety of electric vehicles has become the focus of the industry. During electric vehicles' charging and discharging process, it is important to pay attention to safety issues because of the long usage time, high current intensity, and high frequency of cables. Based on ensuring good insulation performance, electric vehicle charging cable shall have high heat resistance and aging resistance. At the same time, it shall have good low smoke and flame-retardant characteristics during combustion to minimize loss and injury.
Type 2 Female European plug with charging cable, it is a Female Type 2 end plug to connect directly on the charging vehicle, suitable for users who like to DIY their own charging piles or Charging pile manufacturer, products meet the IEC 62196-2 charging connector standards. They are mainly two current options of 16A and 32A, which are divided into single-phase and three-phase version and defaults to a 5m black straight cable.
