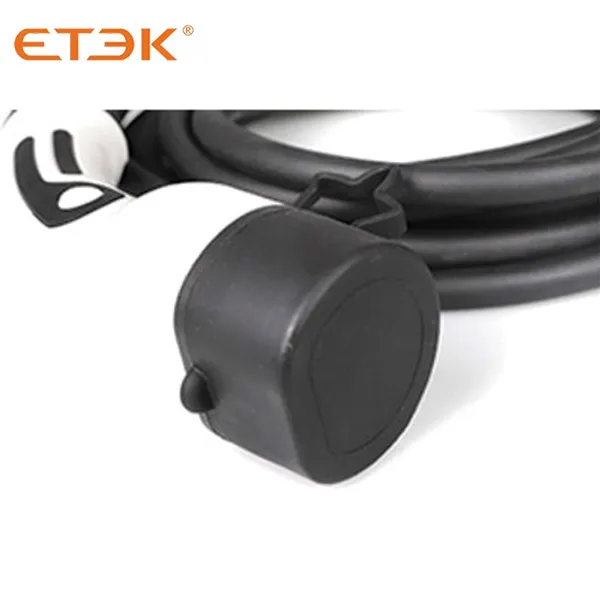

ETEC EKEP1-T2-32 Type 2 female Charging Plug Single Phase Connector with 5 Meters Cable 32A 7.3KW 230V for charging vehicle end
Inquire
This EV Charging Plug have Human appearance design, beautiful and fashionable, in line with the modern aesthetics and ergonomic design concept, easy to use.
The product conforms to IEC62196-1, IEC62196-2 European standard.
Protection degree: IP54
|
Electrical performance |
Operation voltage |
230V±10% 50Hz/400V±10%50Hz |
|
Operation current |
16A,32A |
|
|
Continuously using time |
Continuously working 24h |
|
|
Conductive terminal temperature rise |
≤50K |
|
|
Insulation Resistance |
≥500MΩ, DC500V |
|
|
Withstand Voltage |
2500V/min |
|
|
Contact Resistance |
≤0.3Ω |
|
|
Mechanical Features |
Mechanical life |
5,0000 times or more |
|
Insertion / pulling force during connection |
45N~80N |
|
|
Withstanding impact |
Tolerable to 2-ton car rolling or 1m height drop without damage |
|
|
Major material |
Conductor material |
Copper alloy silver plating |
|
Enclosed material |
Thermoplastic flame-retardant plastic, flame retardant grade UL94V-0 |
|
|
Ambient condition |
Ambient temperature |
-40℃-+50℃ |
|
Humidity |
<85% |
|
Model
|
Specification
|
Cable
|
|
EKEP1-T2
|
Single phase：16A
|
3x2.5mm2+0.5mm2 |
|
Single phase：32A
|
3x6mm2+0.5mm2 | |
|
EKEP3-T2
|
Three phases：16A
|
5x2.5mm2+0.5mm2 |
|
Three phases：32A
|
5x6mm2+0.5mm2 |
