ETM-TZ

Mechanical interlock

Composed of two-stage (multi - stage) circuit breaker and interlock conversion accessories.

Typical Applications：

It is mainly used two main circuits cannot work at the same time.

Inquire NOW

Porduct Overview

1. Circuit breaker body 2. ETM-TZ mechanical interlock

3. ETM-MV+MN over-undervoltage release 4. ETM-MX+OF shunt release and auxiliary contact

ETM-MN undervoltage release ETM-MX shunt release

ETM-MV overvoltage release 5. ETM-OF auxiliary contact

ETM-MNs voltage loss release ETM-FB auxiliary and alarm contact

Technical Data
Model	ETM-TZ
Standard	IEC/EN 60947-5-1
Poles	1P

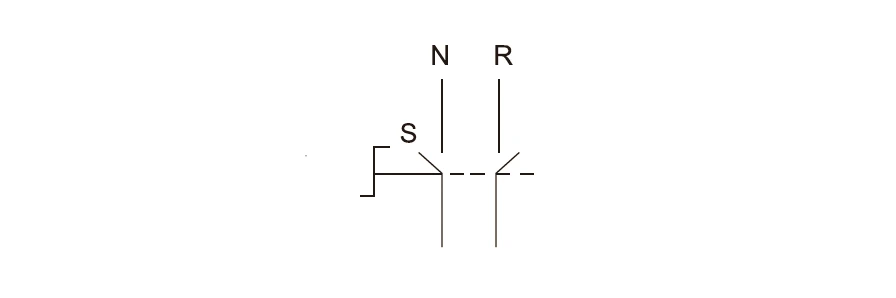

Mechanical interlock	Manual swltching of dual power supply
Assembly method	Between two or more stage circuit breakers
Pollution degree	2
Installation category	Class Il and II
Ambient temperature	-5℃~+40℃
Storage temperature	-25℃~+70℃

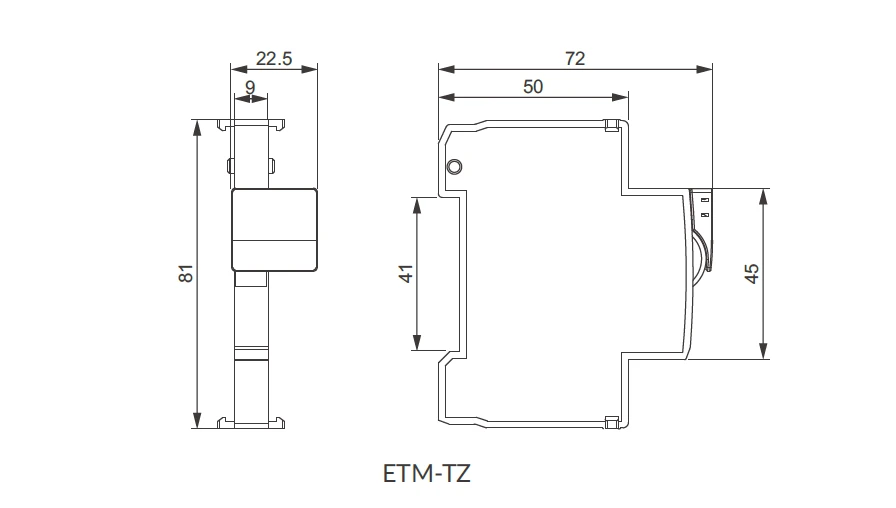

Product width	22.5mm
Compatible product	T Series MCB
