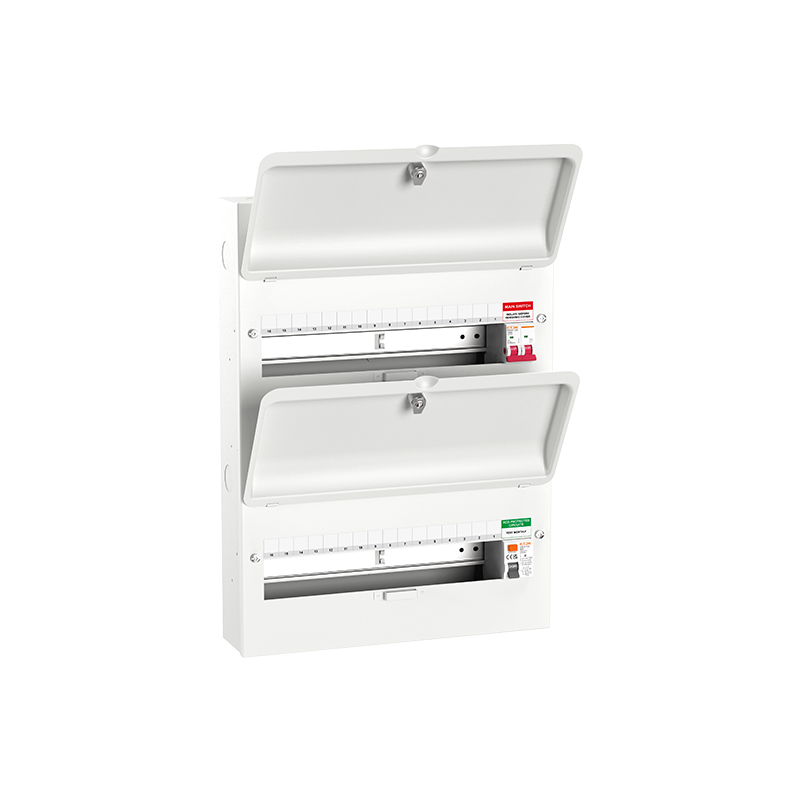

Model: EKDB16S(L)-IS
EKDB16S-IS Main Switch Consumer Unit with Type 2 SPD 40 kA — 10 to 24 Ways
Inquire
● Standards: BS EN 61439-3.
● Incomer: 100A DP main switch feeding one row directly and one row via a DP 80A RCD.
● Design: Double-row split load.
● Ways: 28 (2x13 pins) and 36 (2x17 pins).
● Enclosure: Non-combustible steel, double-row height
● Terminals: Multiple neutral and earth bars to service both rows.
This double-row EKDB16S(L) board offers a high-capacity split load solution. It combines a 100A main switch with a single 80A RCD, dedicating one full row to RCD-protected circuits (ideal for sockets and high-risk areas) and the other row to circuits needing only overcurrent protection (fed from the main switch). This design is perfect for large, mixed-use installations where many circuits of different types are required. The spacious BS EN 61439-3 compliant steel enclosure simplifies complex wiring jobs.
Key Advantages:
1. High-Capacity Split Load: Provides a large number of ways clearly separated into RCD and non-RCD groups.
2. Organized Layout: Dedicating one row per protection type simplifies installation, commissioning, and fault-finding.
3. Flexible Application: Ideal for mixing RCBOs on the main switch row with MCBs on the RCD row.
4. Spacious Enclosure: Ample room for wiring, even with full-capacity installations.
5. Robust & Compliant: Steel enclosure meets BS EN 61439-3; optional lock on SL models.
Use Cases:
1. Large properties needing to separate critical circuits (e.g., smoke alarms, security systems) from general-purpose circuits.
2. Light commercial installations with a mix of lighting and power requirements.
FAQs:
Q1: How are the ways divided?
A1: One row is fed directly from the main switch, and the second row is fed from the 80A RCD. The 28-way model offers 12 free ways per row, and the 36-way offers 16 per row.
Q2: Can I protect the whole board with RCDs?
A2: This model is designed for a split. For full RCD protection, consider an all-RCBO installation on the double-row main switch board, or the double-row dual RCD model.
Q3: Can I add an SPD?
A3: Yes, an SPD kit can be fitted on the main switch-fed row.
Q4: What is the RCD rating?
A4: The board includes one double-pole 80A, 30mA Type A RCD.
Q5: Is a lockable version available?
A5: Yes, select the "SL" variant for an integrated door lock.
| Ref No. | Ref No. (with lock) | Box size | Main switch | Busbar pins | Free ways |

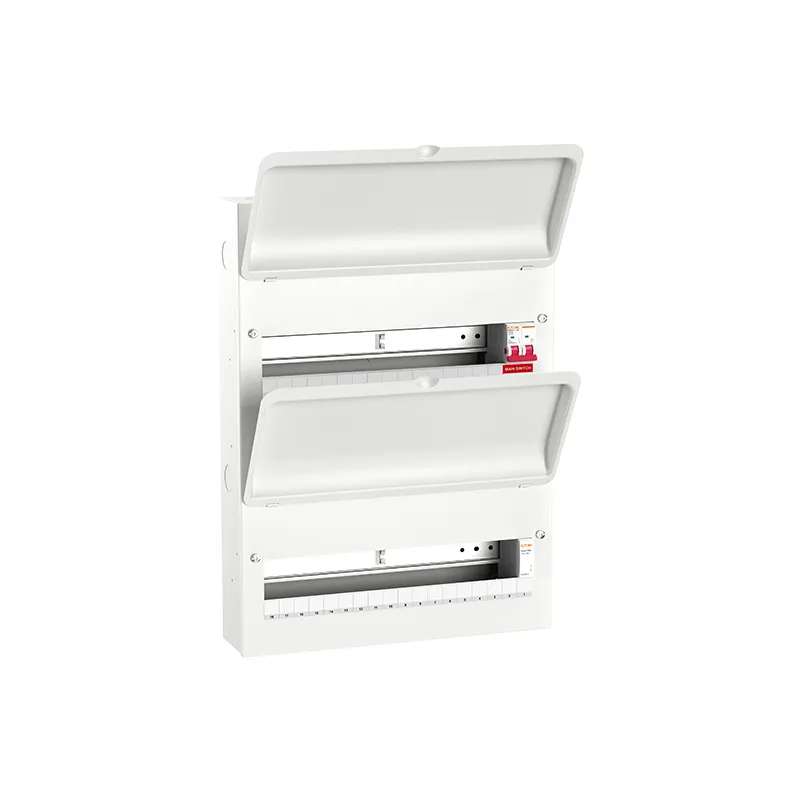

| EKDB16S28-IR | EKDB16S28L-IR | 28 | DP 100A | 2x13 | 12+12 |
| EKDB16S36-IR | EKDB16S36L-IR | 36 | DP 100A | 2x17 | 16+16 |
