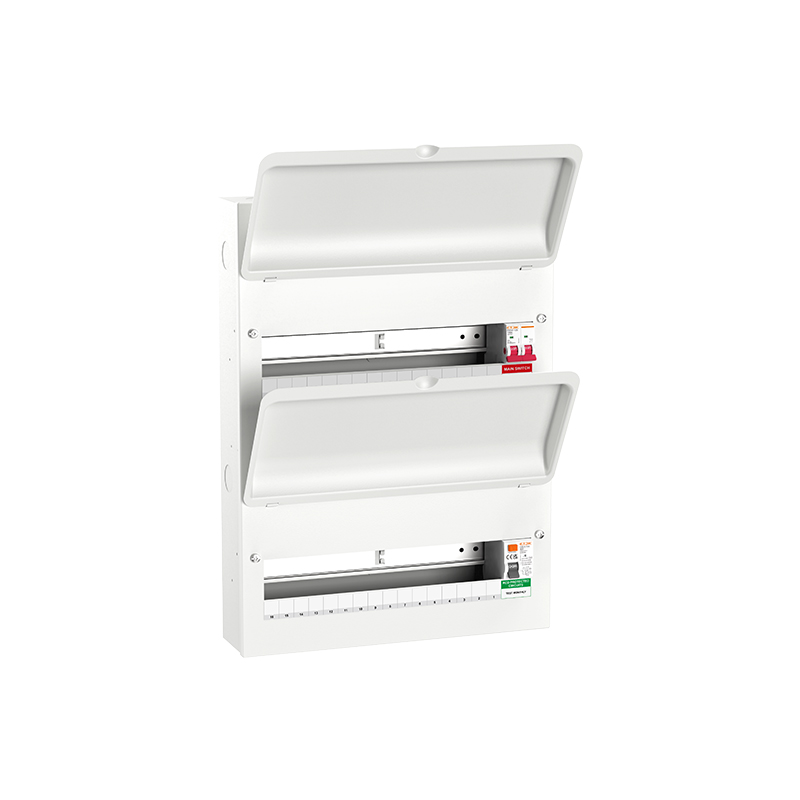

EKDB16S-IS Main Switch Consumer Unit with Type 2 SPD 40 kA — 10 to 24 Ways

EKDB16S(L) configuration combines a 100A double‑pole main switch with Type 2 SPD rated at 40 kA, delivering isolation and surge protection in a single compact board. It reduces wiring time, saves internal space, and provides coordinated protection for sensitive electronics in homes and light‑commercial sites. The non‑combustible steel enclosure meets BS EN 61439‑3 and keeps installations neat with top‑mounted color‑coded neutral and earth bars, a removable DIN rail, and backed‑out captive screws. Choose “SL” variants for an integrated door lock to secure critical circuits.


Key Advantages

• Built‑in surge protection: Type 2 SPD 40 kA protects downstream circuits and equipment against transient overvoltages.

• Faster, cleaner installs: integrated SPD reduces components and wiring; backed‑out captive screws and removable DIN rail speed up work.

• Flexible capacity: 10–24 ways with generous free ways for RCBO‑centric layouts.

• Robust and compliant: steel enclosure to BS EN 61439‑3; optional integrated lock on SL models.

• Ready for modern homes: ideal in areas with frequent storms or sensitive electronics and EV chargers upstream/downstream.

Q1: What level of surge protection is provided?
A1: Integrated Type 2 SPD rated at 40 kA handles transient overvoltages as part of a coordinated protection scheme.

Q2: Does the SPD reduce available circuit ways?
A2: Minimal impact; see the free‑ways values per model in the spec table below.

Q3: Can I monitor SPD status?
A3: Yes, You can choose the version with RS485 communication to achieve remote monitoring, replace the module if end‑of‑life is indicated.

Q4: Is it compatible with RCBOs and AFDDs?
A4: Yes. Circuits can be protected with MCBs, RCBOs, or AFDDs downstream of the 100A DP main switch.

Q5: Is a lockable door available?

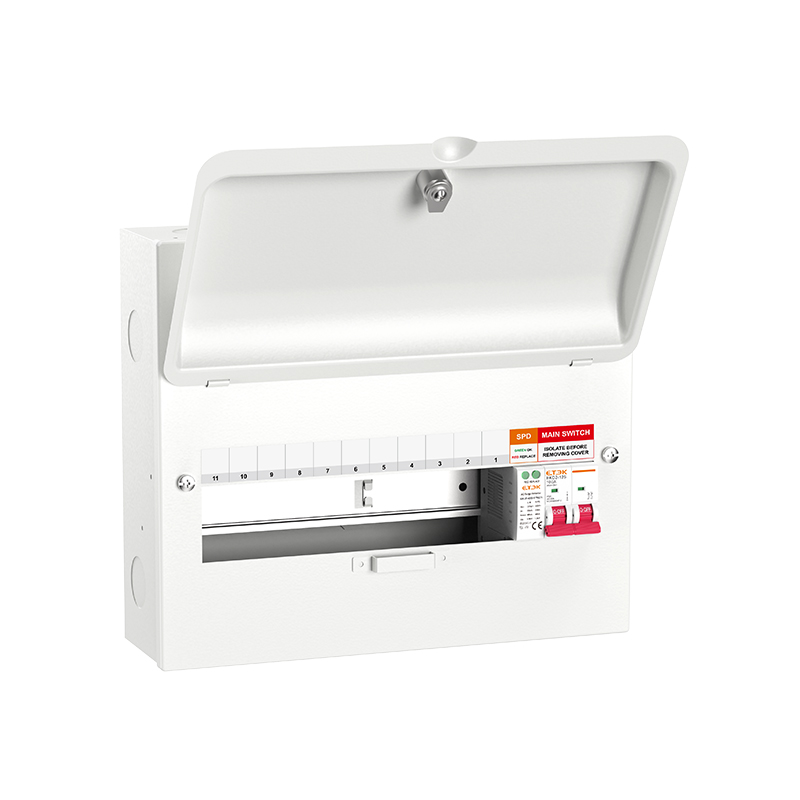

A5: Choose EKDB16SL variants for an integrated door lock.
