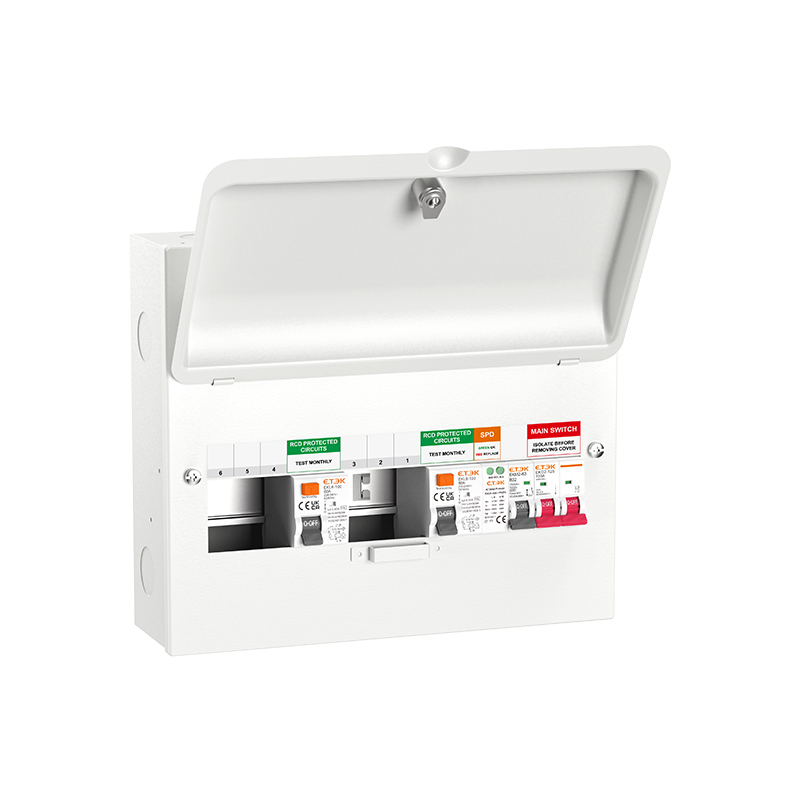

EKDB16S-I2RS Dual RCD Consumer Unit with SPD & Pre-fitted MCB — 14 to 24 Ways

All-in-one dual RCD consumer unit with 100A main switch, two 80A RCDs, integrated Type 2 SPD 40 kA, and a pre-fitted B32 MCB. The ultimate solution for safety and compliance.

● Standards: BS EN 61439-3.
● Incomer: 100A DP main switch.
● Protection: Two DP 80A Type A RCDs, a Type 2 40 kA SPD, and a pre-fitted SP B32 MCB.
● Design: Dual RCD for balanced circuit protection.
● Ways: 14, 18, 24 single-row.
● Enclosure: Non-combustible steel; EKDB16S standard / EKDB16SL with lock.
● Installation Aids: Mains tail clamp, key-hole/tripod mounting, DIN rail support, busbar caps, DIN blanks.

Porduct Overview

EKDB16S-I2RS is the flagship configuration of the range, offering the highest level of protection in a single unit. It combines a high-integrity dual RCD layout with a factory-fitted Type 2 SPD 40 kA, which is correctly protected by a pre-fitted B32 MCB. This board provides robust circuit balancing, prevents total power loss from a single fault, and protects the entire installation from damaging surges. It is the definitive solution for modern, high-value properties, saving significant installation time and ensuring full compliance out of the box.

Key Advantages:
1. Ultimate All-in-One Protection: Combines high integrity dual RCD design with integrated surge protection.
2. Maximum Uptime: Two independent RCDs ensure essential circuits remain powered during a fault.
3. Installation Efficiency: Pre-fitted SPD and its protective MCB save time, space, and sourcing hassle.
4. Fully Compliant: Meets modern wiring regulations for both circuit separation and surge protection.
5. Robust & Secure: Housed in a BS EN 61439-3 steel enclosure with an optional integrated lock ("SL" models).

Use Cases:
1. High-end new builds and premium renovations.
2. Properties with extensive electronic systems, home automation, or EV chargers.
3. Installations where maximizing safety, compliance, and reliability is the top priority.

FAQs:
Q1: Does the SPD protect all circuits?
A1: Yes, the SPD is installed at the incoming stage to provide surge protection for the entire board, including circuits on both RCDs.

Q2: Why is the B32 MCB included?
A2: It provides the required overcurrent protection for the SPD module, ensuring it operates safely and is compliant with wiring regulations.

Q3: How many free ways are left for my circuits?
A3: An 18-way model provides 10 free ways, split across the two RCDs (2x6 busbar pins, with 2 ways used per RCD).

Q4: Is this board difficult to wire?
A4: No, because all the main components are pre-fitted and pre-wired, installation is faster and simpler than building a similar setup from individual parts.

Q5: Is a lockable version available?
A5: Yes, select the "SL" variant for an integrated door lock.

Technical parameters

Product selection form

Ref No.	Ref No. (with lock)	Box size	Main switch	RCD	SPD	MCB	Busbar pins	Free ways
EKDB16S14-I2RS	EKDB16S14L-I2RS	14	DP 100A	2xDP 80A	T2 40kA	SP B32	2x4	6
EKDB16S18-I2RS	EKDB16S18L-I2RS	18	DP 100A	2xDP 80A	T2 40kA	SP B32	2x6	10
EKDB16S24-I2RS	EKDB16S24L-I2RS	24	DP 100A	2xDP 80A	T2 40kA	SP B32	2x9	16
