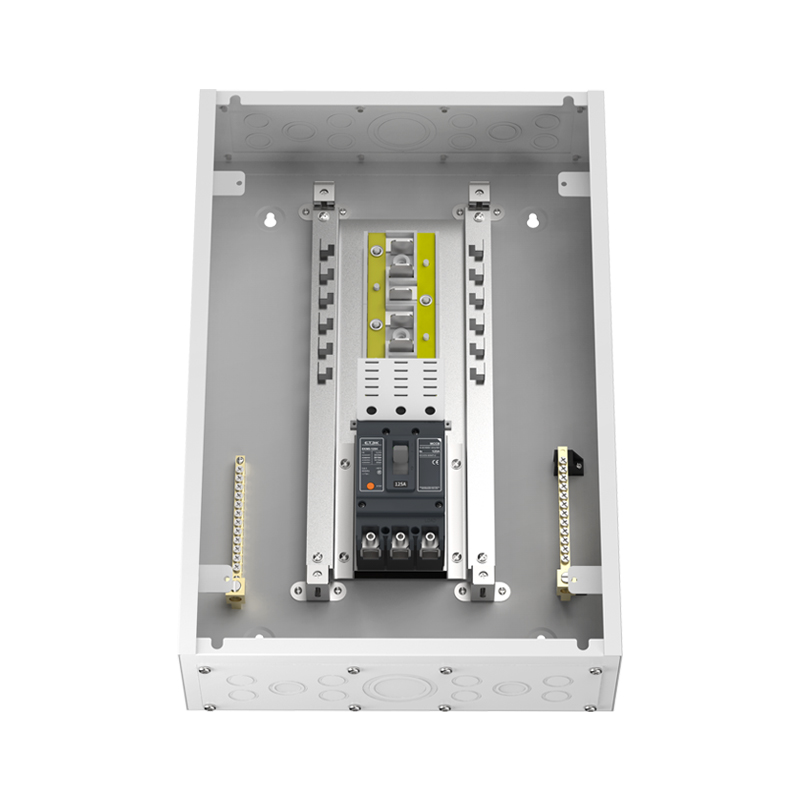

Porduct Overview

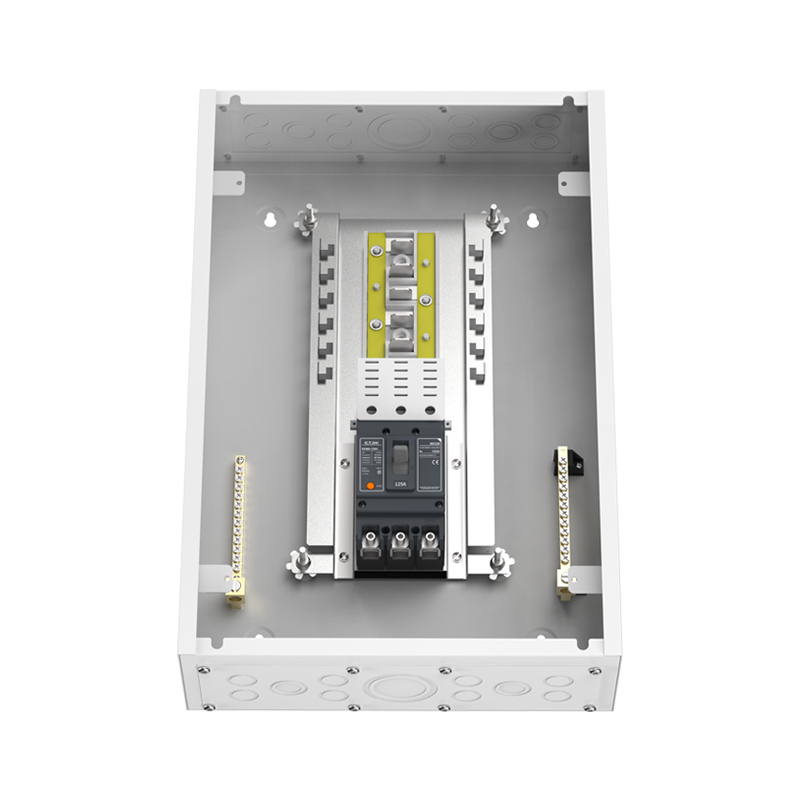

EKDB11T is a robust, IEC 61439-3 compliant three-phase plug-in distribution board engineered for demanding commercial and light industrial applications. Designed for reliability and installation efficiency, it features fully shrouded busbars and multiple main switch options to accommodate varying load requirements.

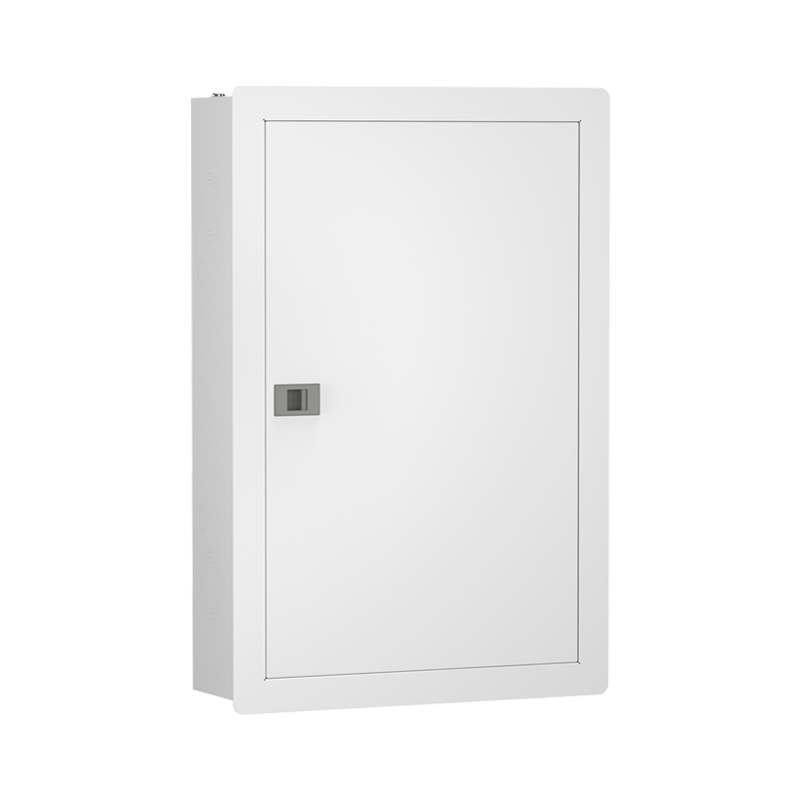

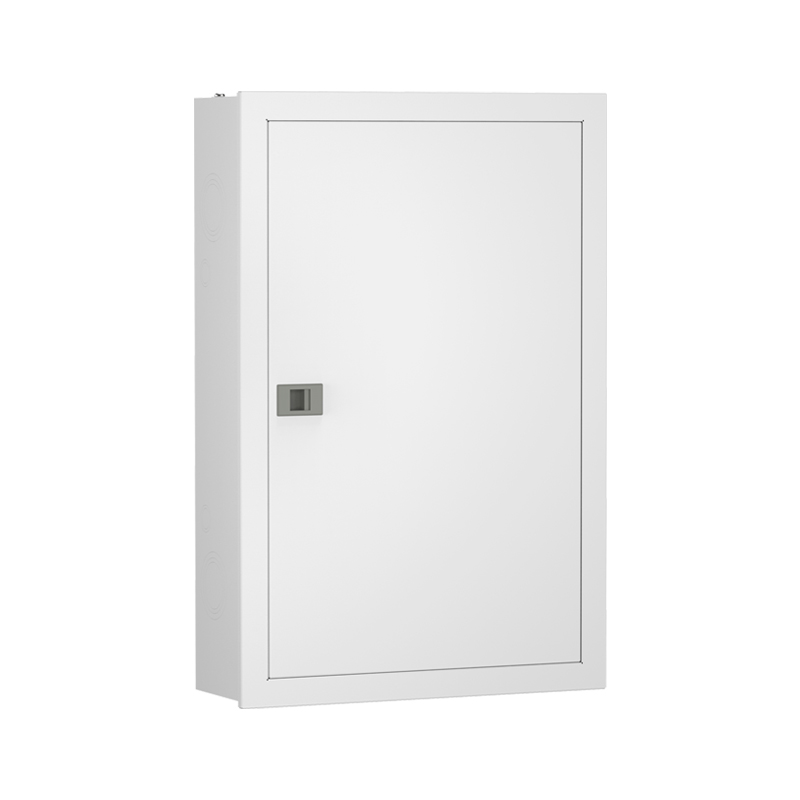

Available in both surface-mounted (EKDB11TS) and flush-mounted (EKDB11TF) configurations, the EKDB11T supports three main switch options: 125A Isolator Switch, 125A MCCB, or 250A MCCB. The innovative design includes exclusive height adjustment mechanisms for flush-mounted versions, ensuring perfect alignment between breakers and the dead-front cover.

With branch circuit capacity ranging from 12 to 48 ways, the EKDB11T accepts both plug-in MCB and plug-in RCBO devices, offering exceptional flexibility for various commercial and industrial applications. The distribution board features removable/breakable gland plates, multiple knockout options, and generous wiring space to facilitate neat cable management and streamlined installation.

Superior Protection: Fully shrouded busbars provide enhanced safety for maintenance personnel
Flexible Configuration: Multiple main switch options (125A Isolator, 125A MCCB, 250A MCCB) to suit varying load requirements
Height-Adjustable Installation: Exclusive inner-door height adjustment screws for flush-mounted versions ensure perfect breaker alignment
Robust Construction: 1.2mm steel sheet enclosure provides durability in demanding environments
Easy Maintenance: Plug-in branch devices allow for quick replacement and future expansion with minimal rework
Advanced Cable Management: Removable/breakable gland plates and multiple knockout options for clean, professional installations
Scalable Capacity: Options from 12 to 48 ways to accommodate complex electrical distribution needs
Complete Safety Compliance: Fully IEC 61439-3 compliant with IP40 protection rating

Technical parameters

Technical Data

Model		EKDB11TF	EKDB11TS
Standard		IEC 61439-3
No. of phase		Three phase
Mounting type		Flush-mounted	Surface-mounted
Current Capacity		125A,250A
Voltage rating		415 VAC,50/60Hz
Rated insulation voltage (Ui)		690V
No.of ways		12,18,24,30,36,42,48
Ingress protection		IP40
Steel sheet thickness		1.2mm
Surface finishing		Powder coated with electrostatic Epoxy polyester (RAL7035)
Operational temperature range		-25℃ to 55℃ (Derating required; refer to breaker derating curves)
Main incoming switch		Isolator Switch
		MCCB
Branch breaker	Plug in type MCB	1,2, 3 Pole: 6, 10, 16, 20, 25, 32, 40, 50, 63A
	Plug in type RCBO	1P+N:6,10,16,20,25,32,40,50,63A (I△n: 30,100,300mA)
Main breaker terminal capacity	Isolator Switch	50mm²
	125AF MCCB	50mm²
	250AF MCCB	120mm²
Branch breaker terminal capacity	Plug in type MCB	25mm²
	Plug in type RCBO	25mm²
Neutral terminal capacity	Incoming cable lug	50mm²
	Outgoing terminals	16mm²
Earth terminal capacity	Incoming cable lug	50mm²
	Outgoing terminals	16mm²
No.of outgoing terminals		≥ No.of ways

Dimensions

Knockout Details

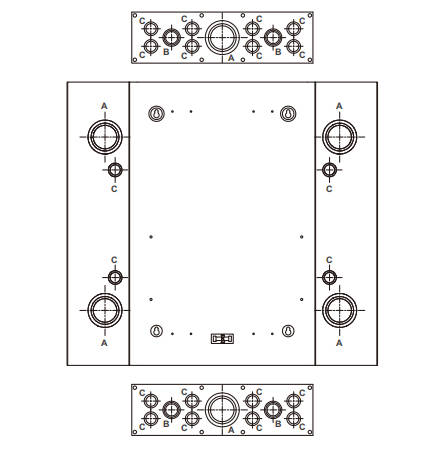

EKDB11T Distribution Board is designed with multiple easy to remove knockouts on its body to facilitate cable installation and reduce clutter. The illustration shows the knockout design on the housing.

knockout	Diameter (mm) （From inside to outside）
A	ø43/ø51/ø62
B	ø22/ø27/ø32
C	ø19/ø25

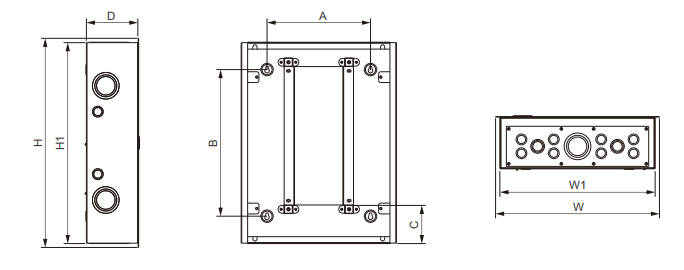

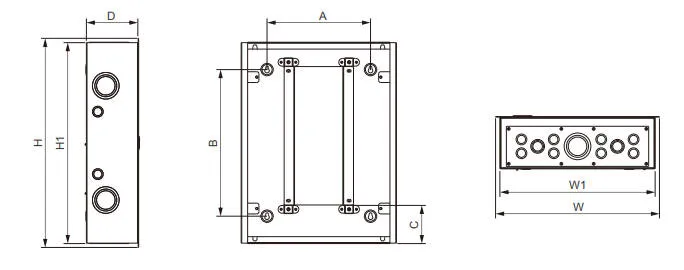

Flush-mounted-Isolator Switch

Ref No.	Outgoing ways	W	W1	H	H1	D	A	B	C
EKDB11TF-121	12	380	360	485	465	120	240	340	88
EKDB11TF-18I	48	380	360	561	541	120	240	416	88
EKDB11TF-24I	24	380	360	637	617	120	240	492	88
EKDB11TF-301	30	380	360	713	693	120	240	568	88
EKDB11TF-361	36	380	360	789	769	120	240	644	88
EKDB11TF-42I	42	380	360	865	845	120	240	720	88

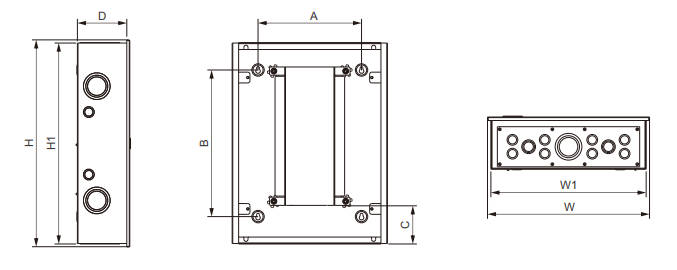

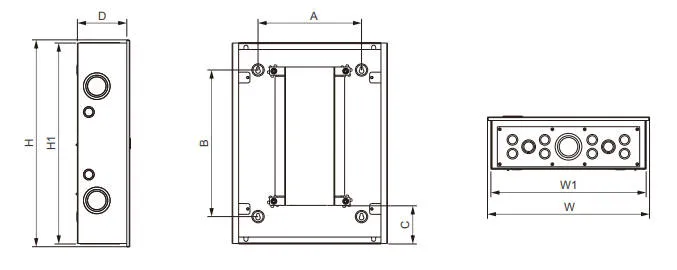

Surface-mounted-Isolator Switch

Ref No.	Outgoing ways	W	W1	H	H1	D	A	B	C
EKDB11TS-121	12	370	360	475	465	120	240	340	88
EKDB11TS-18l	48	370	360	551	541	120	240	416	88
EKDB11TS-241	24	370	360	627	617	120	240	492	88
EKDB11TS-301	30	370	360	703	693	120	240	568	88
EKDB11TS-361	36	370	360	779	769	120	240	644	88
EKDB11TS-42I	42	370	360	855	845	120	240	720	88

Flush-mounted 125AF MCCB

Ref No.	Outgoing ways	W	W1	H	H1	D	A	B	C
EKDB11TF-12M1	12	380	360	565	545	120	240	420	120
EKDB11TF-18M1	48	380	360	641	621	120	240	496	120
EKDB11TF-24M1	24	380	360	717	697	120	240	572	120
EKDB11TF-30M1	30	380	360	793	773	120	240	648	120
EKDB11TF-36M1	36	380	360	869	849	120	240	725	120
EKDB11TF-42M1	42	380	360	945	925	120	240	800	120
EKDB11TF-48M1	48	380	360	1021	1001	120	240	876	120

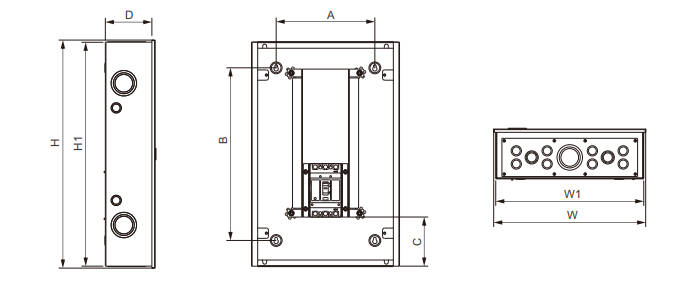

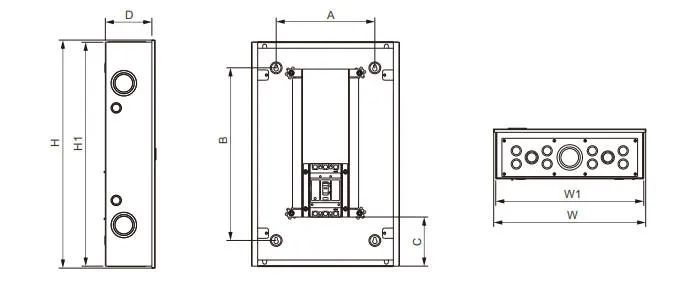

Surface-mounted 125AF MCCB

Ref No.	Outgoing ways	W	W1	H	H1	D	A	B	C
EKDB11TS-12M1	12	370	360	555	545	120	240	420	120
EKDB11TS-18M1	48	370	360	631	621	120	240	496	120
EKDB11TS-24M1	24	370	360	707	697	120	240	572	120
EKDB11TS-30M1	30	370	360	783	773	120	240	648	120
EKDB11TS-36M1	36	370	360	859	849	120	240	725	120
EKDB11TS-42M1	42	370	360	935	925	120	240	800	120
EKDB11TS-48M1	48	370	360	1011	1001	120	240	876	120

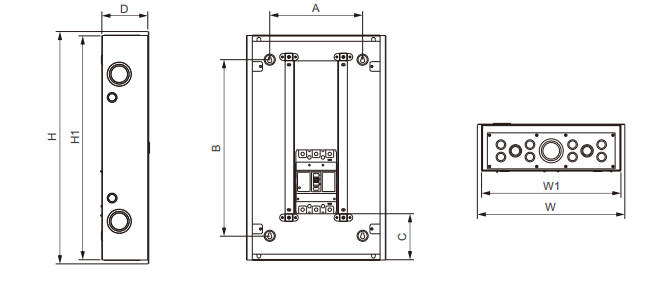

Flush-mounted 250AF MCCB

Ref No.	Outgoing ways	W	W1	H	H1	D	A	B	C
EKDB11TF-12M2	12	380	360	600	580	120	240	455	120
EKDB11TF-18M2	48	380	360	676	656	120	240	531	120
EKDB11TF-24M2	24	380	360	752	632	120	240	607	120
EKDB11TF-30M2	30	380	360	828	808	120	240	683	120
EKDB11TF-36M2	36	380	360	904	884	120	240	759	120
EKDB11TF-42M2	42	380	360	980	960	120	240	835	120
EKDB11TF-48M2	48	380	360	1056	1036	120	240	911	120

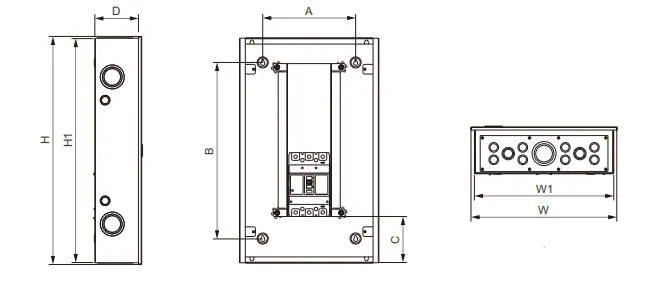

Surface-mounted 250AF MCCB

Ref No.	Outgoing ways	W	W1	H	H1	D	A	B	C
EKDB11TS-12M2	12	370	360	590	580	120	240	455	120
EKDB11TS-18M2	48	370	360	666	656	120	240	531	120
EKDB11TS-24M2	24	370	360	742	632	120	240	607	120
EKDB11TS-30M2	30	370	360	818	808	120	240	683	120
EKDB11TS-36M2	36	370	360	894	884	120	240	759	120
EKDB11TS-42M2	42	370	360	970	960	120	240	835	120
EKDB11TS-48M2	48	370	360	1046	1036	120	240	911	120
