Porduct Overview

EKDB11S is a compact, IEC 61439-3 compliant single-phase plug-in distribution board designed for fast, safe, and clean low-voltage power distribution in residential and small commercial spaces. Perfect for apartments, retail units, small offices, and especially retrofit projects requiring quick installation with minimal disruption.

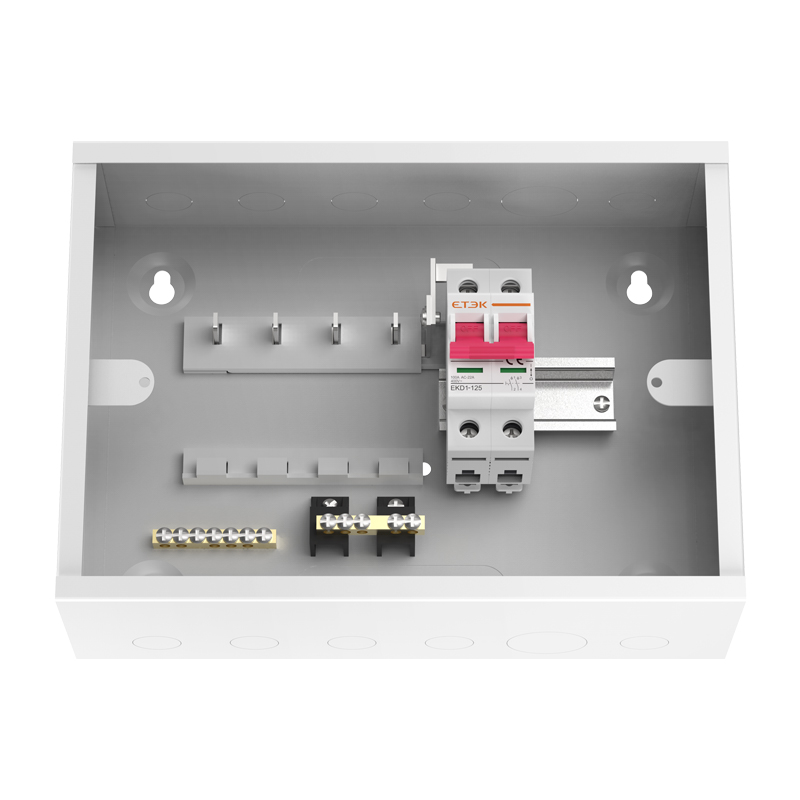

Engineered for efficiency, the EKDB11S features a standardized plug-in interface for branch circuit devices, supporting both plug-in MCB and plug-in RCBO options. Available in surface-mounted (EKDB11SS) and flush-mounted (EKDB11SF) versions with consistent internal layouts, this distribution board accommodates main switches up to 125A with options for an Isolation Switch or an RCCB (without overcurrent protection).

The thoughtful design includes ample space for cable routing, multiple easy-access knockouts, and generous neutral/earth terminal capacity. With 4 to 16 outgoing ways available, the EKDB11S provides versatile options for various residential and small commercial applications while maintaining installation simplicity and future maintenance ease.

Fast Installation: Plug-in branch circuit interfaces minimize wiring time, perfect for retrofit projects
Easy Maintenance: Replace breakers or add circuits with limited wiring rework thanks to standardized busbar layout

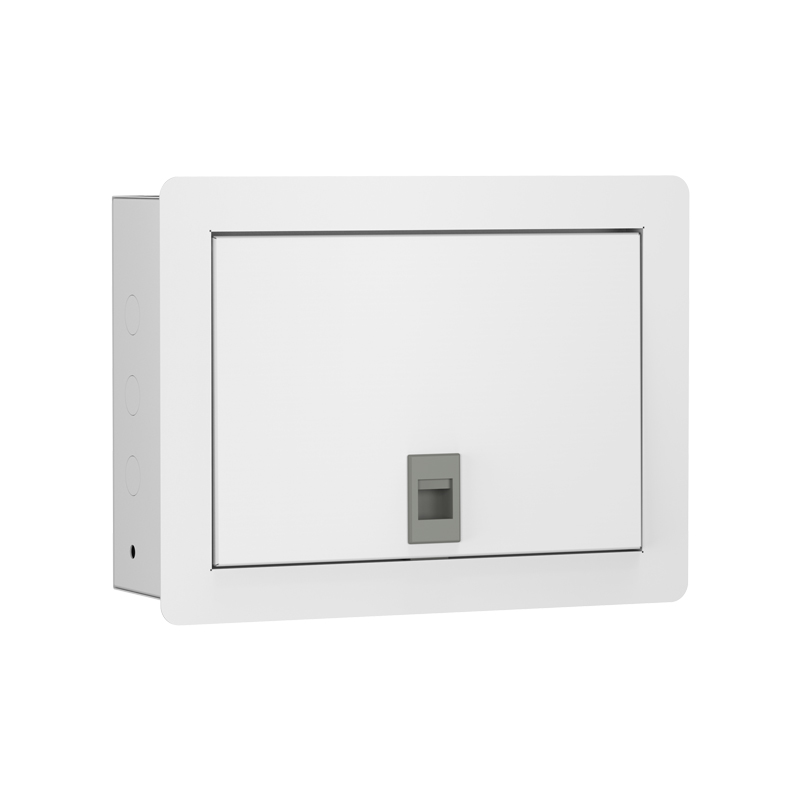

Flexible Mounting: Choose surface-mounted (EKDB11SS) or flush-mounted (EKDB11SF) versions with identical internal configurations
Compliant & Safe: Fully IEC 61439-3 compliant design with IP40 protection rating
Generous Terminal Capacity: Ample earth and neutral terminals with outgoing terminals ≥ number of ways
Space-Efficient Design: Compact form factor with multiple knockout options for neat cable management
Expandable: Scalable options from 4 to 16 ways to suit varying installation requirements

Technical parameters

Technical Data

Model		EKDB11SF	EKDB11SS
Standard		IEC 61439-3
No. of phase		Single phase
Mounting type		Flush-mounted	Surface-mounted
Busbar rating		125A max.
Voltage rating		240 VAC, 50/60Hz
Rated insulation voltage (Ui)		690V
No. of ways		4,6,8,10,12,14,16
Ingress protection		IP40
Steel sheet Thickness		0.8mm
Surface finishing		Powder coated with electrostatic Epoxy polyester (RAL7035)
Operational temperature range		-5°C to 40°C
Main incoming switch		RCCB
		Isolator Switch
Branch breaker	Plug in type MCB	1,2P: 6, 10, 16, 20, 25, 32, 40, 50, 63A
	Plug in type RCBO	1P+N:6,10,16,20,25,32,40,50,63A (I△n: 30,100,300mA)
Main breaker terminal capacity	Isolator Switch	50mm²
	RCCB	35mm²
Branch breaker terminal capacity	Plug in type MCB	25mm²
	Plug in type RCBO	25mm²
Neutral terminal capacity		16mm²
Earth terminal capacity		16mm²
No. of outgoing terminals		≥ No. of ways

Dimensions

Knockout Details

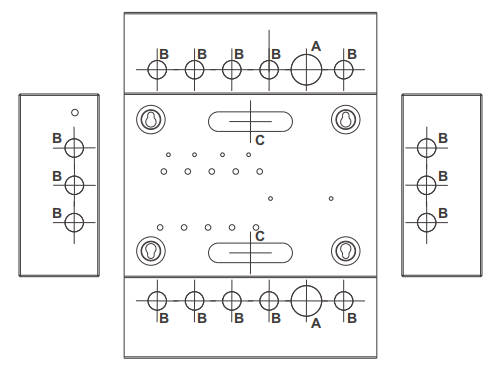

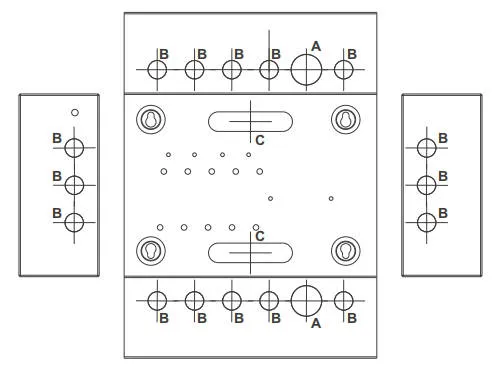

EKDB11S Distribution Board is designed with multiple easy to remove knockouts on its body to facilitate cable installation and reduce clutter. The illustration shows the knockout design on the housing.

knockout	Diameter (mm)
A	ø33
B	ø20
C	21x90

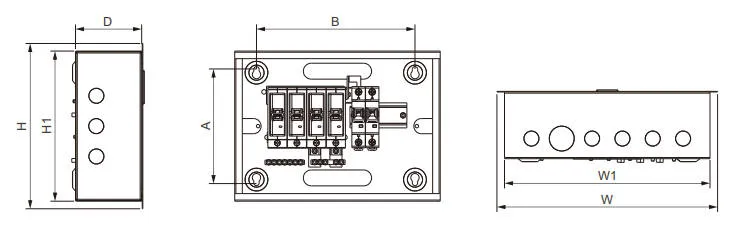

Flush-mounted

Ref No.	Outgoing ways	W	W1	H	H1	D	A	B
EKDB11SF-4	4	291	271	218	198	88	150	209
EKDB11SF-6	6	343	323	218	198	88	150	261
EKDB11SF-8	8	394	374	218	198	88	150	312
EKDB11SF-10	10	446	426	218	198	88	150	364
EKDB11SF-12	12	497	477	218	198	88	150	415
EKDB11SF-14	14	548	528	218	198	88	150	466
EKDB11SF-16	16	600	580	218	198	88	150	518

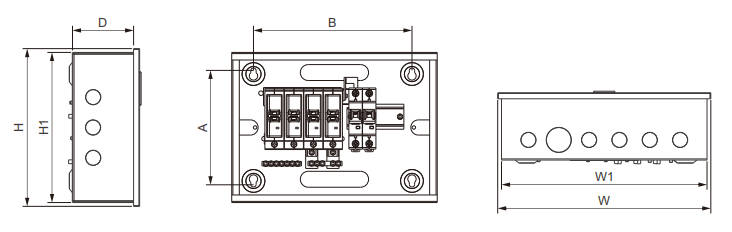

Surface-mounted

Ref No.	Outgoing ways	W	W1	H	H1	D	A	B
EKDB11SS-4	4	281	271	208	198	88	150	209
EKDB11SS-6	6	333	323	208	198	88	150	261
EKDB11SS-8	8	384	374	208	198	88	150	312
EKDB11SS-10	10	436	426	208	198	88	150	364
EKDB11SS-12	12	487	477	208	198	88	150	415
EKDB11SS-14	14	538	528	208	198	88	150	466
EKDB11SS-16	16	590	580	208	198	88	150	518
