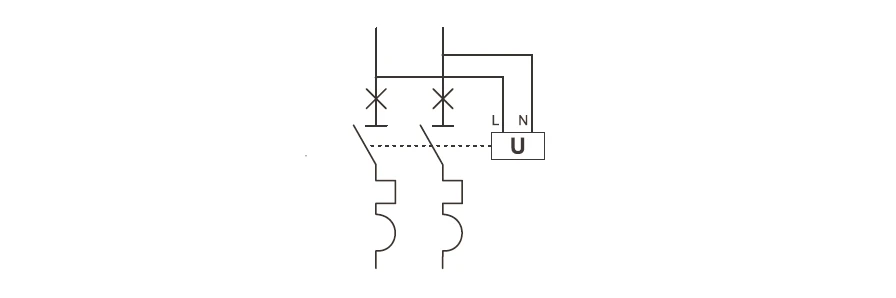

Overvoltage release

Automatically trips the circuit breaker when the voltage exceeds a preset upper limit (overvoltage threshold).

Typical Applications：

Protection of equipment and circuits from damage caused by excessive voltage levels.

Inquire NOW

Product Features

Circuit breaker body
ETM-TZ mechanical interlock
ETM-MV+MN over-undervoltage release
ETM-MN undervoltage release
ETM-MV overvoltage release
ETM-MNs voltage loss release
ETM-MX+OF shunt release and auxiliary contact
ETM-MX shunt release
ETM-OF auxiliary contact
ETM-FB auxiliary and alarm contact

Technical Data
Model	ETM-MV
Standard	IEC/EN 60947-5-1
Rated voltage (Ue)	230VAC
Operating frequency	50/60Hz
Rated working trip undervoltage	280V±5%
Rated insulation voltage (Ui)	400V
Rated impulse withstand voltage (Uimp)	2.5KV
Pollution degree	2
Mechanical state indicator	Yes
Terminal type	Lug type
Terminal capacity	Up to 2.5mm²
Tightening torque	0.8 N.m
Ambient temperature	-5℃~+40℃
Storage temperature	-25℃~+70℃

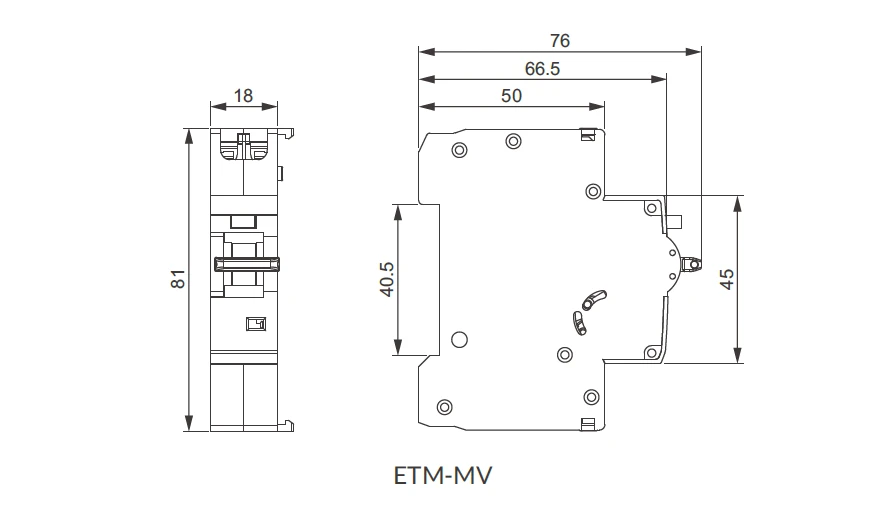

Product width	18mm
Compatible product	T Series MCB,RCBO

Document currently available in English only.
