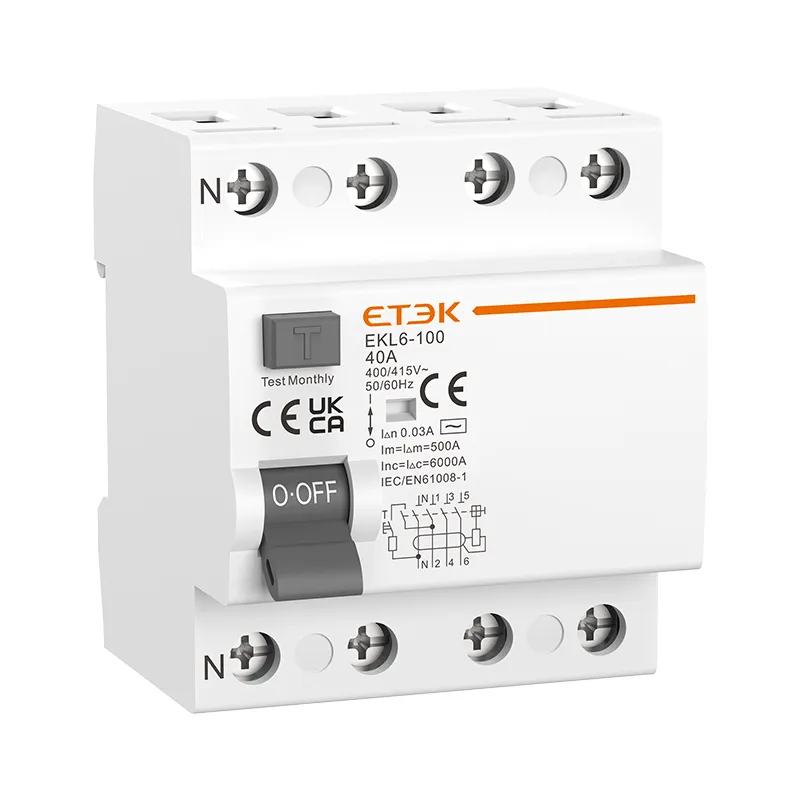

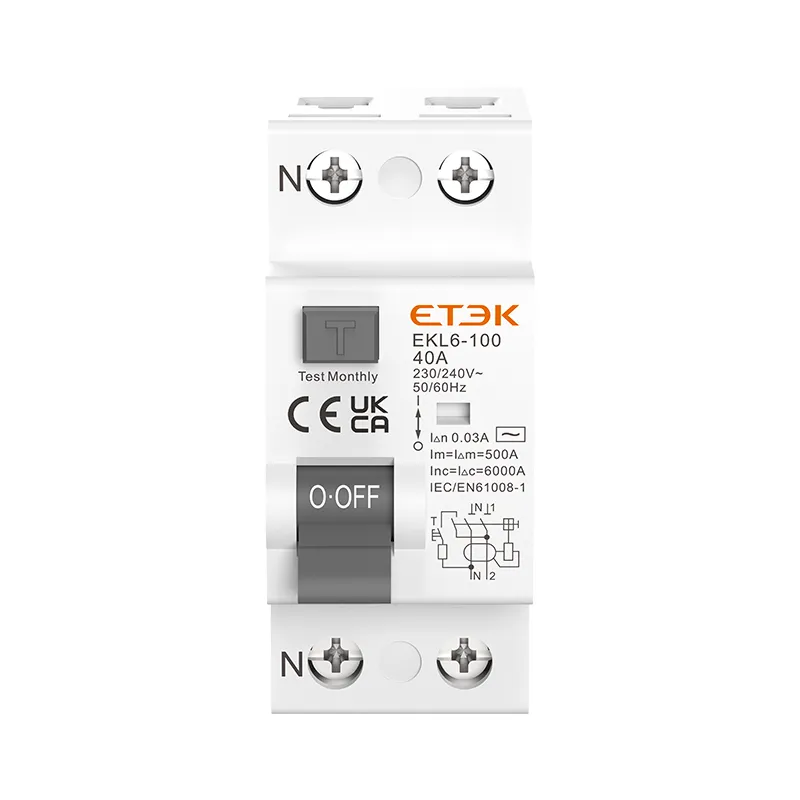

EKL6-100 Magnetic Type Residual Current Circuit Breaker (RCCB)

EKL6-100 is a high-capacity magnetic type RCCB designed for industrial and commercial applications. It is capable of handling currents up to 100A, providing reliable electrical leakage protection for personnel and equipment.

● Standard: IEC61008-1
● Type: AC, A
● Rated current: 16~100A
● Rated voltage: 230/400V~240/415V
● Poles: 2P(1P+N), 4P(3P+N), N Pole on left
● Rated sensitivity I△n: 30mA, 100 mA, 300mA
● Ambient air temperature: -25...+40 ºC
● Connection: From top and bottom
● Certificates: CE, CB, TUV, UKCA

Inquire NOW PDF

EKL6-100 Magnetic Type Residual Current Circuit Breaker (RCCB)

Inquire NOW PDF
Porduct Overview
Technical parameters
Download Files
Recommended products
Inquiry

Porduct Overview

The EKL6-100 is a high-capacity magnetic residual current circuit breaker designed for industrial and commercial applications. It is capable of handling currents up to 100A, providing reliable protection against electrical leakage and ensuring the safety of personnel and equipment in high-power environments. Compliant with IEC 61008-1 standards, the EKL6-100 combines advanced technology with durable construction to deliver uncompromising performance.

Features:

  • High Current Rating: Handles currents up to 100A, making it suitable for heavy-duty applications.

  • Electromagnetic Tripping Mechanism: Ensures fast and dependable disconnection in the event of a leakage current.

  • 1P+N and 3P+N Configurations: Available in both configurations to accommodate different wiring systems and applications.

  • IEC 61008-1 Compliance: Meets international safety standards for residual current circuit breakers, guaranteeing reliable performance.

  • Enhanced Safety: Provides effective protection against electrical shocks and potential fire hazards caused by leakage currents.

  • Robust Construction & Durability: Built with high-quality materials to withstand harsh operating conditions and ensure a long service life.

  • Easy Installation & Operation: Designed for straightforward installation and user-friendly operation with clear ON/OFF indicators.


Applications:

  • Industrial machinery and equipment

  • Manufacturing plants and facilities

  • Commercial buildings with high power demands

  • Data centers and server rooms

  • EV charging stations

  • Power distribution systems



EKL6-100 Electromagnetic RCCB from ETEK Electric is a testament to our commitment to providing robust and reliable electrical safety solutions.  Choose the EKL6-100 for superior protection and peace of mind in your high-current electrical systems.

Technical parameters

Technical Data

Standard

IEC/EN61008-1

Protection

Ground fault

Type of trip

Electro-magnetic

Type of protection (electric leakage)

AC, A

No. of poles

2P(1P+N), 4P(3P+N), N Pole on left
Rated current In 16,25,32,40,63,80,100A

Rated sensitivity currents I△n

10,30,100,300mA (10mA only for In=16-25A)

Residual current off-time under I△n

≤0.1s

Rated residual making and breaking capacity(I△m)

500A(In≤50A),10In (In>50A)
Rated voltage Ue

1P+N: 230/240V~, 3P+N: 400/415V~
Rated frequency 50/60Hz
Rated breaking capacity EKL6-100: 6,000A, EKL6-100H: 10,000A
Rated impulse withstands voltage (1.5/50) Uimp 4000V
Dielectric test voltage at ind.Freq. for 1min 2kV
Electrical life 2,000 Cycles
Mechanical life 4,000 Cycles
Contact position indicator Yes
Ground fault indicator
Yes
Protection degree IP20
Ambient temperature

-25℃ to 40℃, Max.95% humidity
Terminal connection type

Cable/Pin-type busbar/Fork-type busbar

Max. terminal size for cable

 35mm2

Max. tightening torque

 2.5N.m

Installation

Mounting on 35mm DIN rail
Connection

From top and bottom

Dimensions

Circuit Diagram

ETEK RCCB EKL6-100(H) Circuit Diagram

Installation size



ETEK RCCB EKL6-100 Size

Product selection form

AC Type
Breaking capacity Poles Rated Current(A) Sensitivity
30mA 100mA 300mA
6KA 1P+N 16A EKL6-100-1N1630 EKL6-100-1N16100 EKL6-100-1N16300
25A EKL6-100-1N2530 EKL6-100-1N25100 EKL6-100-1N25300
32A EKL6-100-1N3230 EKL6-100-1N32100 EKL6-100-1N32300
40A EKL6-100-1N4030 EKL6-100-1N40100 EKL6-100-1N40300
63A EKL6-100-1N6330 EKL6-100-1N63100 EKL6-100-1N63300
80A EKL6-100-1N8030 EKL6-100-1N80100 EKL6-100-1N80300
100A EKL6-100-1N10030 EKL6-100-1N100100 EKL6-100-1N100300
3P+N 16A EKL6-100-3N1630 EKL6-100-3N16100 EKL6-100-1N16300
25A EKL6-100-3N2530 EKL6-100-3N25100 EKL6-100-1N25300
32A EKL6-100-3N3230 EKL6-100-3N32100 EKL6-100-1N32300
40A EKL6-100-3N4030 EKL6-100-3N40100 EKL6-100-1N40300
63A EKL6-100-3N6330 EKL6-100-3N63100 EKL6-100-1N63300
80A EKL6-100-3N8030 EKL6-100-3N80100 EKL6-100-1N80300
100A EKL6-100-3N10030 EKL6-100-3N100100 EKL6-100-1N100300
10KA 1P+N 16A EKL6-100H-1N1630 EKL6-100H-1N16100 EKL6-100H-1N16300
25A EKL6-100H-1N2530 EKL6-100H-1N25100 EKL6-100H-1N25300
32A EKL6-100H-1N3230 EKL6-100H-1N32100 EKL6-100H-1N32300
40A EKL6-100H-1N4030 EKL6-100H-1N40100 EKL6-100H-1N40300
63A EKL6-100H-1N6330 EKL6-100H-1N63100 EKL6-100H-1N63300
80A EKL6-100H-1N8030 EKL6-100H-1N80100 EKL6-100H-1N80300
100A EKL6-100H-1N10030 EKL6-100H-1N100100 EKL6-100H-1N100300
3P+N 16A EKL6-100H-3N1630 EKL6-100H-3N16100 EKL6-100H-3N16300
25A EKL6-100H-3N2530 EKL6-100H-3N25100 EKL6-100H-3N25300
32A EKL6-100H-3N3230 EKL6-100H-3N32100 EKL6-100H-3N32300
40A EKL6-100H-3N4030 EKL6-100H-3N40100 EKL6-100H-3N40300
63A EKL6-100H-3N6330 EKL6-100H-3N63100 EKL6-100H-3N63300
80A EKL6-100H-3N8030 EKL6-100H-3N80100 EKL6-100H-3N80300
100A EKL6-100H-3N10030 EKL6-100H-3N100100 EKL6-100H-3N100300
A Type
Breaking capacity Poles Rated Current(A) Sensitivity
30mA 100mA 300mA
6KA 1P+N 16A EKL6-100-1N1630A EKL6-100-1N16100A EKL6-100-1N16300A
25A EKL6-100-1N2530A EKL6-100-1N25100A EKL6-100-1N25300A
32A EKL6-100-1N3230A EKL6-100-1N32100A EKL6-100-1N32300A
40A EKL6-100-1N4030A EKL6-100-1N40100A EKL6-100-1N40300A
63A EKL6-100-1N6330A EKL6-100-1N63100A EKL6-100-1N63300A
80A EKL6-100-1N8030A EKL6-100-1N80100A EKL6-100-1N80300A
100A EKL6-100-1N10030A EKL6-100-1N100100A EKL6-100-1N100300A
3P+N 16A EKL6-100-3N1630A EKL6-100-3N16100A EKL6-100-3N16300A
25A EKL6-100-3N2530A EKL6-100-3N25100A EKL6-100-3N25300A
32A EKL6-100-3N3230A EKL6-100-3N32100A EKL6-100-3N32300A
40A EKL6-100-3N4030A EKL6-100-3N40100A EKL6-100-3N40300A
63A EKL6-100-3N6330A EKL6-100-3N63100A EKL6-100-3N63300A
80A EKL6-100-3N8030A EKL6-100-3N80100A EKL6-100-3N80300A
100A EKL6-100-3N10030A EKL6-100-3N100100A EKL6-100-3N100300A
10KA 1P+N 16A EKL6-100H-1N1630A EKL6-100H-1N16100A EKL6-100H-1N16300A
25A EKL6-100H-1N2530A EKL6-100H-1N25100A EKL6-100H-1N25300A
32A EKL6-100H-1N3230A EKL6-100H-1N32100A EKL6-100H-1N32300A
40A EKL6-100H-1N4030A EKL6-100H-1N40100A EKL6-100H-1N40300A
63A EKL6-100H-1N6330A EKL6-100H-1N63100A EKL6-100H-1N63300A
80A EKL6-100H-1N8030A EKL6-100H-1N80100A EKL6-100H-1N80300A
100A EKL6-100H-1N10030A EKL6-100H-1N100100A EKL6-100H-1N100300A
3P+N 16A EKL6-100H-3N1630A EKL6-100H-3N16100A EKL6-100H-3N16300A
25A EKL6-100H-3N2530A EKL6-100H-3N25100A EKL6-100H-3N25300A
32A EKL6-100H-3N3230A EKL6-100H-3N32100A EKL6-100H-3N32300A
40A EKL6-100H-3N4030A EKL6-100H-3N40100A EKL6-100H-3N40300A
63A EKL6-100H-3N6330A EKL6-100H-3N63100A EKL6-100H-3N63300A
80A EKL6-100H-3N8030A EKL6-100H-3N80100A EKL6-100H-3N80300A
100A EKL6-100H-3N10030A EKL6-100H-3N100100A EKL6-100H-3N100300A
