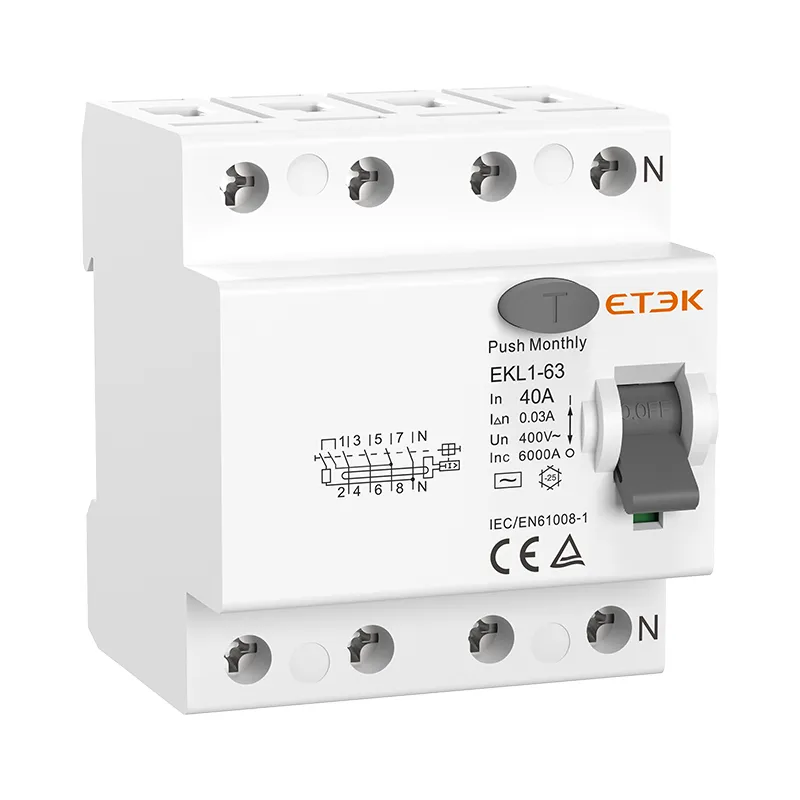

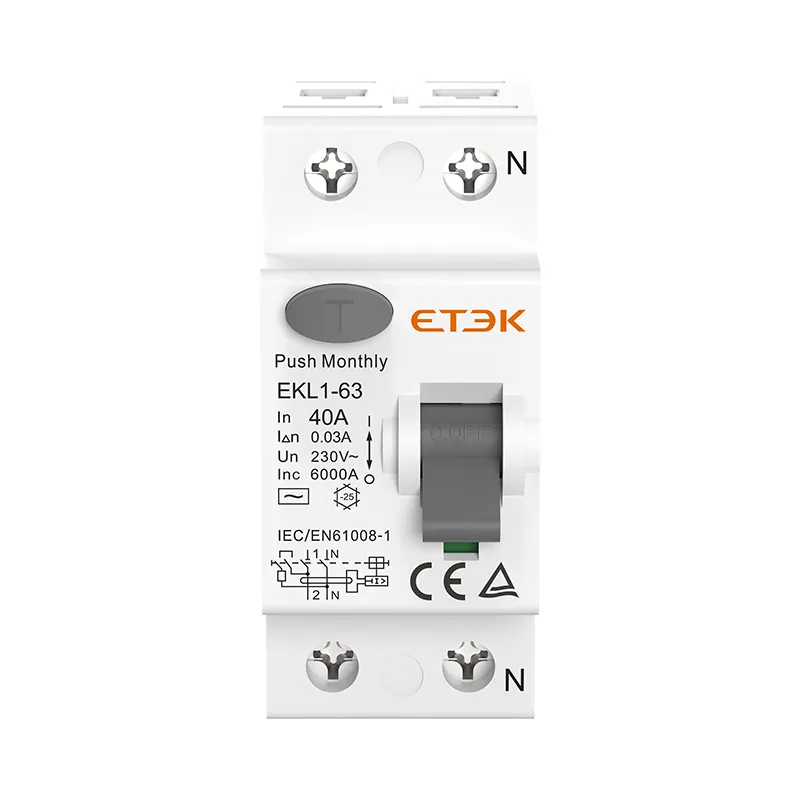

EKL1-63 Residual Current Circuit Breaker (RCCB)

EKL1-63 RCCB is a state-of-the-art residual current circuit breaker engineered to deliver robust protection against electrical leakage and faults. Available with breaking capacities of 6kA and 10kA, this RCCB is suitable for a wide range of electrical installations. Compliant with IEC 61008-1 standards, the EKL1-63 ensures optimal safety and reliability, making it an essential component for safeguarding electrical systems.

● Standard: IEC61008-1
● Type: AC, A
● Rated current: 16~63A
● Rated voltage: 230/400V~240/415V
● Poles: 2P(1P+N), 4P(3P+N), N Pole on right
● Rated sensitivity I△n: 30mA, 100 mA, 300mA, 10mA (2P, 1P+N; 16A, 25A)
● Rated short-circuit breaking capacity: 6kA, 10kA
● Ambient air temperature: -25...+40ºC
● Connection: From top and bottom
● Certificates: CB, CE, TUV

Inquire NOW PDF

EKL1-63 Residual Current Circuit Breaker (RCCB)

Inquire NOW PDF

Porduct Overview

EKL1-63 Residual Current Circuit Breaker is suitable to the circuit of AC50/60Hz.rated voltage 240V for 1P+N and 415V for 3P+N, and rated current up to 63A. when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipment's also can be used in the infrequent starting of the circuit and motors. The circuit breaker is suitable for industry, commerce, high-rise buildings, households and other kinds of places. This product meets the standard of IEC/EN61008-1.

Features:
  • High Breaking Capacity: Available in 6kA and 10kA options, providing flexibility for different application needs.

  • Versatile Current Range: Supports current ratings from 16A to 63A, accommodating various electrical setups.

  • Multiple Configuration Options: Offered in 1P+N, 3P+N configurations for diverse installation requirements.

  • IEC 61008-1 Compliance: Adheres to international standards for residual current circuit breakers, ensuring dependable performance.

  • Effective Leakage Detection: Protects against hazardous leakage currents, enhancing overall electrical safety.

  • Robust Construction: Crafted from high-quality materials for durability and long-term reliability.

  • Simple Installation: Designed for easy integration into existing electrical systems with straightforward mounting.

  • Clear Indicator Display: Features visible ON/OFF and trip indicators for efficient monitoring and quick fault diagnosis.

  • Comprehensive Protection: Offers enhanced protection against overloads and short circuits when used with an MCB.


Applications:
  • Residential electrical installations

  • Commercial and office buildings

  • Industrial plants and manufacturing facilities

  • Public sector buildings (schools, hospitals, etc.)

  • Retail outlets and shopping centers

  • Hospitality venues such as hotels and resorts

  • IT infrastructure and data centers

  • Renewable energy systems


The EKL1-63 RCCB from ETEK Electric is designed to meet the highest safety standards, providing reliable protection for both people and equipment. By choosing the EKL1-63, you are investing in a high-quality circuit protection solution that ensures the safety and efficiency of your electrical systems. Ideal for both new installations and upgrades, the EKL1-63 RCCB is a trusted choice for modern electrical safety needs.

Technical parameters

Technical Data

Standard
IEC/EN61008-1
Protection
Ground fault
Type of trip
Electro-magnetic
Type of protection (electric leakage)
AC, A
No. of poles
2P(1P+N), 4P(3P+N), N Pole on right
Rated current In 16,25,32,40,63A
Rated sensitivity currents I△n
10,30,100,300mA (10mA only for In=16-25A)
Residual current off-time under I△n
≤0.1s
Rated residual making and breaking capacity(I△m)
500A(In≤50A),10In (In>50A)
Rated voltage Ue
1P+N: 230/240V~, 3P+N: 400/415V~
Rated frequency 50/60Hz
SCPD fuse
EKL1-63: 6,000A
EKL1-63H: 10,000A
Rated impulse withstands voltage (1.5/50) Uimp 4000V
Dielectric test voltage at ind.Freq. for 1min 2kV
Electrical life 2,000 Cycles
Mechanical life 4,000 Cycles
Contact position indicator Yes
Protection degree IP20
Ambient temperature
-25℃ to +40℃, Max.95% humidity
Terminal connection type
Cable/Pin-type busbar/Fork-type busbar
Max. terminal size for cable
25mm2
Max. tightening torque
2.5Nm
Installation
Mounting on 35mm DIN rail
Connection
From top and bottom

Dimensions

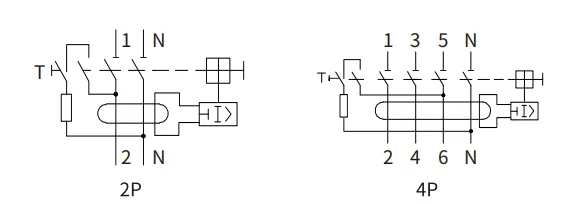

Circuit Diagram

RCCB-EKL1-63-Circuit-Diagram



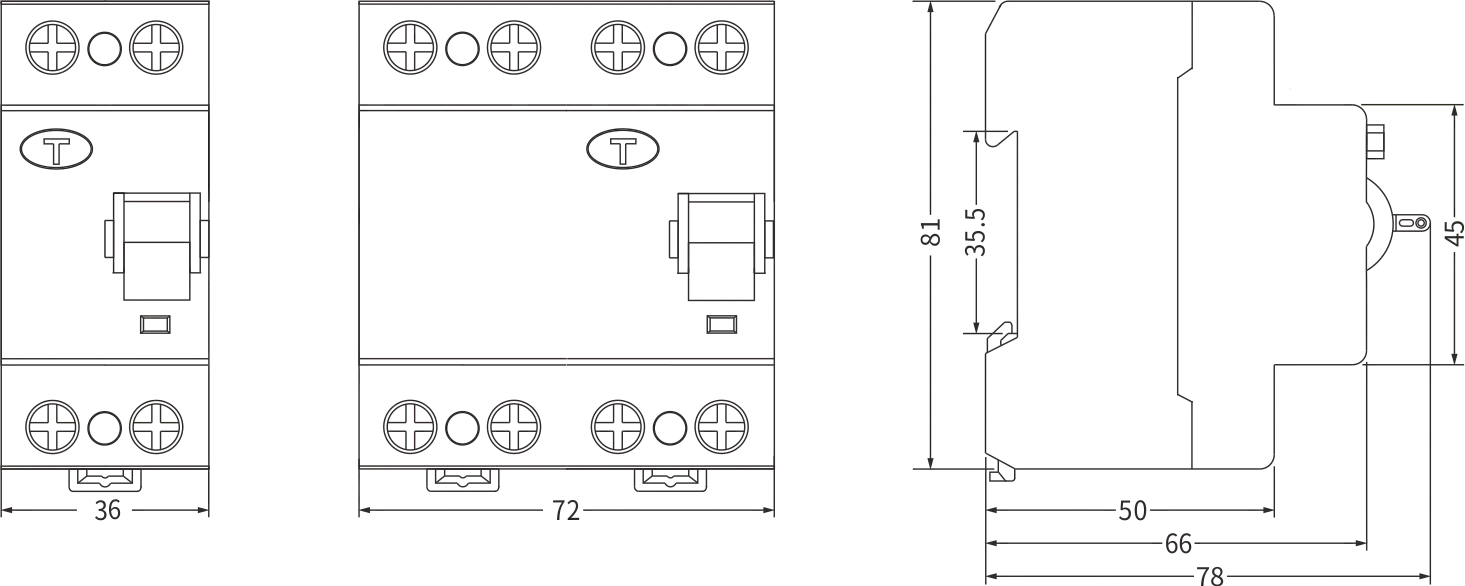

Installation size



RCCB-EKL1-63-Size

Product selection form

Breaking capacity Poles Rated Current(A) AC Type
Sensitivity
30mA 100mA 300mA
6KA 1P+N 16A EKL1-63-1N1630 EKL1-63-1N16100 EKL1-63-1N16300
25A EKL1-63-1N2530 EKL1-63-1N25100 EKL1-63-1N25300
32A EKL1-63-1N3230 EKL1-63-1N32100 EKL1-63-1N32300
40A EKL1-63-1N4030 EKL1-63-1N40100 EKL1-63-1N40300
50A EKL1-63-1N5030 EKL1-63-1N50100 EKL1-63-1N50300
63A EKL1-63-1N6330 EKL1-63-1N63100 EKL1-63-1N63300
3P+N 16A EKL1-63-3N1630 EKL1-63-3N16100 EKL1-63-3N16300
25A EKL1-63-3N2530 EKL1-63-3N25100 EKL1-63-3N25300
32A EKL1-63-3N3230 EKL1-63-3N32100 EKL1-63-3N32300
40A EKL1-63-3N4030 EKL1-63-3N40100 EKL1-63-3N40300
50A EKL1-63-3N5030 EKL1-63-3N50100 EKL1-63-3N50300
63A EKL1-63-3N6330 EKL1-63-3N63100 EKL1-63-3N63300
10KA 1P+N 16A EKL1-63H-1N1630 EKL1-63-1N16100A EKL1-63-1N16300A
25A EKL1-63H-1N2530 EKL1-63H-1N16100 EKL1-63H-1N16300
32A EKL1-63H-1N3230 EKL1-63H-1N25100 EKL1-63H-1N25300
40A EKL1-63H-1N4030 EKL1-63H-1N32100 EKL1-63H-1N32300
50A EKL1-63H-1N5030 EKL1-63H-1N40100 EKL1-63H-1N40300
63A EKL1-63H-1N6330 EKL1-63H-1N50100 EKL1-63H-1N50300
3P+N 16A EKL1-63H-3N1630 EKL1-63H-3N16100 EKL1-63H-3N16300
25A EKL1-63H-3N2530 EKL1-63H-3N25100 EKL1-63H-3N25300
32A EKL1-63H-3N3230 EKL1-63H-3N32100 EKL1-63H-3N32300
40A EKL1-63H-3N4030 EKL1-63H-3N40100 EKL1-63H-3N40300
50A EKL1-63H-3N5030 EKL1-63H-3N50100 EKL1-63H-3N50300
63A EKL1-63H-3N6330 EKL1-63H-3N63100 EKL1-63H-3N63300
Breaking capacity Poles Rated Current(A) A Type
Sensitivity
30mA 100mA 300mA
6KA 1P+N 16A EKL1-63-1N1630A EKL1-63-1N16100A EKL1-63-1N16300A
25A EKL1-63-1N2530A EKL1-63-1N25100A EKL1-63-1N25300A
32A EKL1-63-1N3230A EKL1-63-1N32100A EKL1-63-1N32300A
40A EKL1-63-1N4030A EKL1-63-1N40100A EKL1-63-1N40300A
50A EKL1-63-1N5030A EKL1-63-1N50100A EKL1-63-1N50300A
63A EKL1-63-1N6330A EKL1-63-1N63100A EKL1-63-1N63300A
3P+N 16A EKL1-63-3N1630A EKL1-63-3N16100A EKL1-63-3N16300A
25A EKL1-63-3N2530A EKL1-63-3N25100A EKL1-63-3N25300A
32A EKL1-63-3N3230A EKL1-63-3N32100A EKL1-63-3N32300A
40A EKL1-63-3N4030A EKL1-63-3N40100A EKL1-63-3N40300A
50A EKL1-63-3N5030A EKL1-63-3N50100A EKL1-63-3N50300A
63A EKL1-63-3N6330A EKL1-63-3N63100A EKL1-63-3N63300A
10KA 1P+N 16A EKL1-63H-1N1630A EKL1-63H-1N16100A EKL1-63H-1N16300A
25A EKL1-63H-1N2530A EKL1-63H-1N25100A EKL1-63H-1N25300A
32A EKL1-63H-1N3230A EKL1-63H-1N32100A EKL1-63H-1N32300A
40A EKL1-63H-1N4030A EKL1-63H-1N40100A EKL1-63H-1N40300A
50A EKL1-63H-1N5030A EKL1-63H-1N50100A EKL1-63H-1N50300A
63A EKL1-63H-1N6330A EKL1-63H-1N63100A EKL1-63H-1N63300A
3P+N 16A EKL1-63H-3N1630A EKL1-63H-3N16100A EKL1-63H-3N16300A
25A EKL1-63H-3N2530A EKL1-63H-3N25100A EKL1-63H-3N25300A
32A EKL1-63H-3N3230A EKL1-63H-3N32100A EKL1-63H-3N32300A
40A EKL1-63H-3N4030A EKL1-63H-3N40100A EKL1-63H-3N40300A
50A EKL1-63H-3N5030A EKL1-63H-3N50100A EKL1-63H-3N50300A
63A EKL1-63H-3N6330A EKL1-63H-3N63100A EKL1-63H-3N63300A
