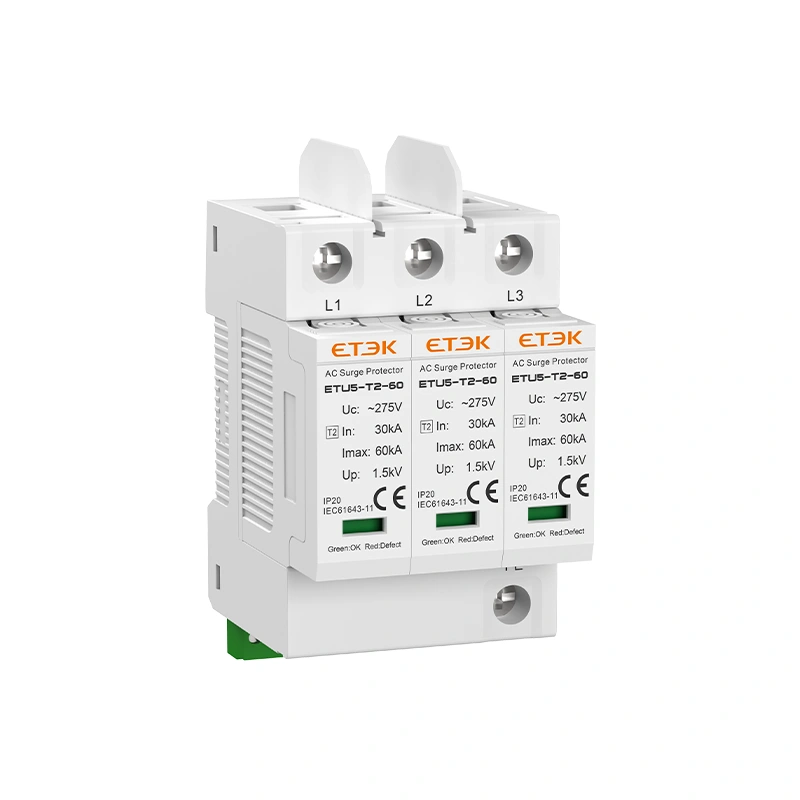

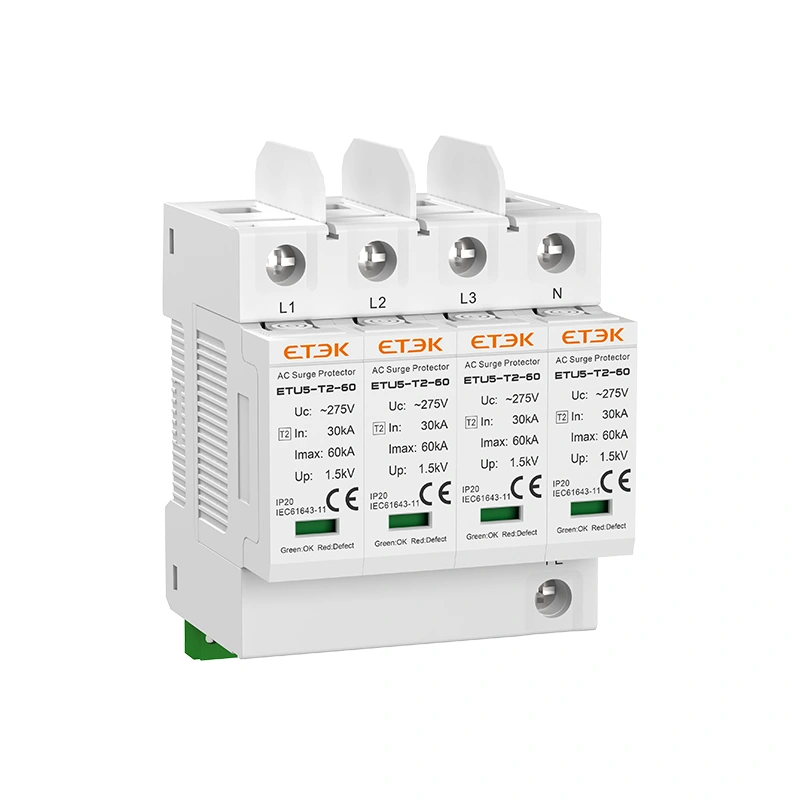

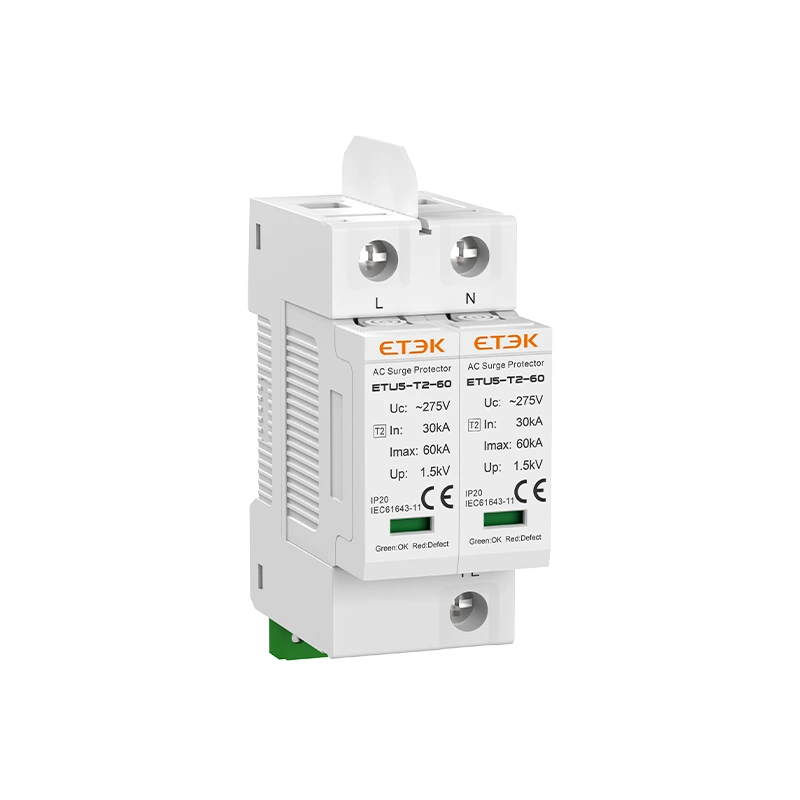

ETU5-T2-60 Series AC Surge Protective Device is designed for surge protection in low-voltage power distribution systems. With Type 2 / Class II protection, in 30kA (8/20μs), and Imax 60kA (8/20μs), it provides reliable protection against lightning-induced surges and switching overvoltages in building and industrial distribution applications.

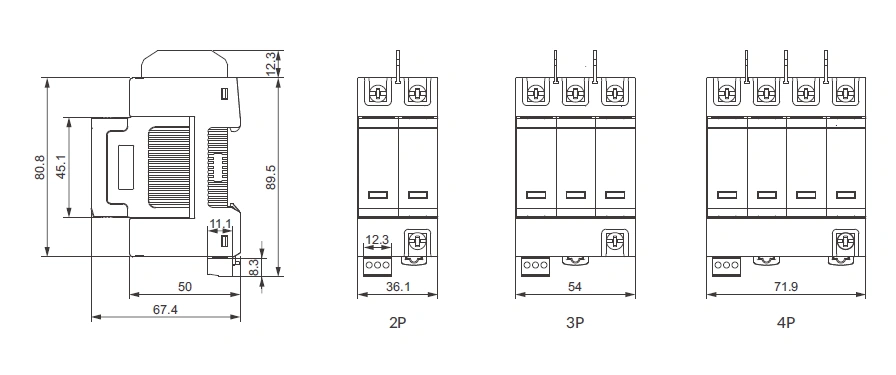

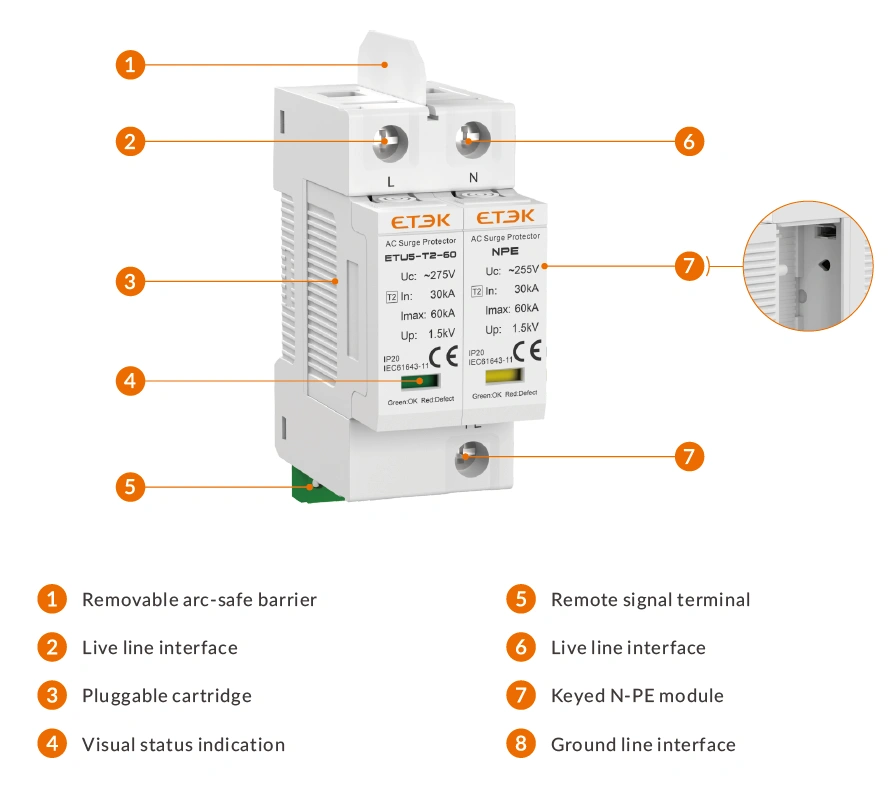

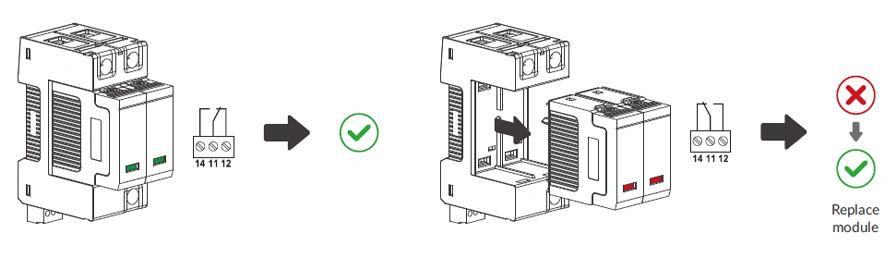

The product features a keyed N-PE module design and a removable arc-safe barrier to help prevent incorrect replacement while improving installation safety and maintenance convenience. Its appearance and mounting dimensions are consistent with T Series devices, allowing side-by-side installation and a uniform panel layout.

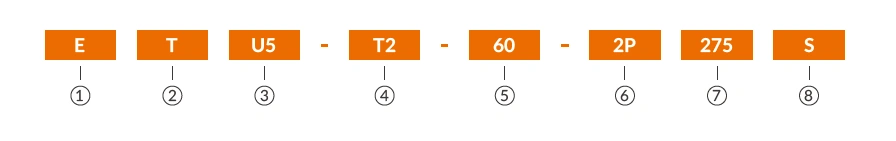

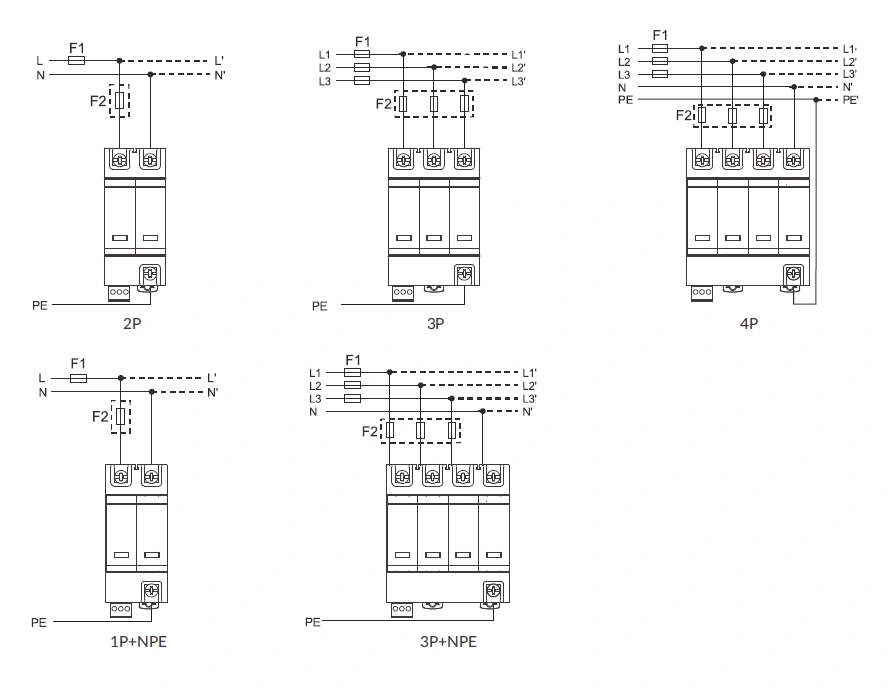

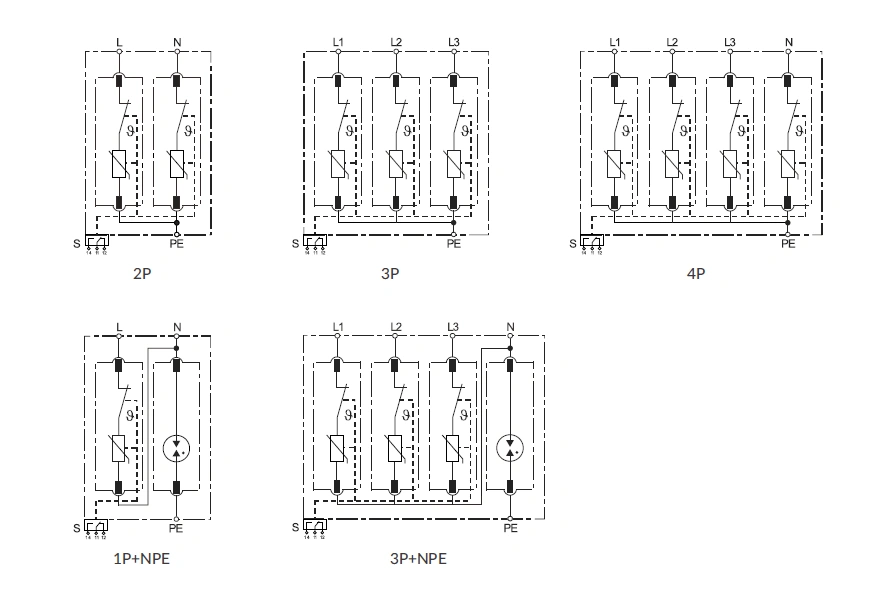

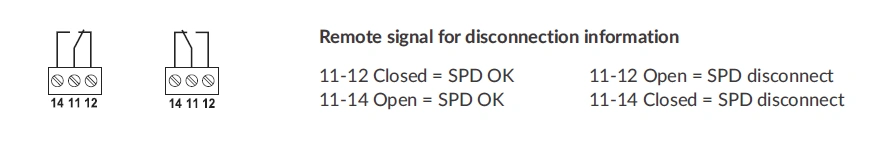

| ① | ETEK | ⑤ | Imax: 60kA |
| ② | T series | ⑥ | No. of Poles: 2:2P; 3:3P; 4:4P; 1PN:1P+NPE; 3PN:3P+NPE |
| ③ | SPD series No.5 | ⑦ | Uc: 150:150V; 275:275V; 320:320V; 385:385V |
| ④ | Class II / Type 2 | ⑧ | With Remote Signaling |
| No. of poles | 2P | 3P | 4P | 1P+NPE | 3P+NPE |
| Network systems | TN-S | TN-C | TN-S | TT, TN-S | |
| Mode of protection | L-PE, N-PE | L-PEN | L-PE, N-PE | L-N, N-PE | |
| Protective elements | High Energy MOV | High Energy MOV and GDT | |||
| Maximum continuous operating voltage (L-N) |
Uc | 150V | 275V | 320V | 385V |
| Maximum continuous operating voltage (N-PE) |
Uc | 255V | |||
| Norminal discharge current (8/20μs)(L-N)/(N-PE) |
In | 30kA | |||
| Maximum discharge current (8/20μs) (L-N)/(N-PE) |
Imax | 60kA | |||
| Voltage protection level (L-N)/(N-PE) |
Up | 1.0kV/1.5kV | 1.5kV/1.5kV | 1.7kV/1.5kV | 2.0kV/1.5kV |
| Voltage protection level 5kA | Up | 0.6kV | 1.0kV | 1.2kV | 1.4kV |
| Response time (L-N)/(N-PE) |
tA | ≤25ns/ ≤100ns | |||
| Operating temperature range | Tu | -40℃ to +80℃ | |||
| Max. Back-up fuse | 125A gL/gG | ||||
| Operating state/fault indication | Green/Red(L-N),Yellow(N-PE) | ||||
| Cross-section area (Min.)/(Max.) | 4mm²/35mm² | ||||
| Mounting | 35mm DIN Rail, EN 60715 | ||||
| Enclosure material | Thermal Plastic UL94-V0 | ||||
| Degree of protection | IP20 (built-in) | ||||
| Remote contacts (RC) | Optional | ||||
| RC switching capacity | AC: 250V/0.5A; DC: 250V/0.1A; 125V/0.2A; 75V/0.5A | ||||
| RC conductor cross section (max.) | 16 AWG (Solid) / 1.5mm2 (Solid) | ||||
| Max. continuous operating AC voltage | ||||
| No. of poles | 150V | 275V | 320V | 385V |
| 2P | ETU5-T2-60-2P150 | ETU5-T2-60-2P275 | ETU5-T2-60-2P320 | ETU5-T2-60-2P385 |
| 3P | ETU5-T2-60-3P150 | ETU5-T2-60-3P275 | ETU5-T2-60-3P320 | ETU5-T2-60-3P385 |
| 4P | ETU5-T2-60-4P150 | ETU5-T2-60-4P275 | ETU5-T2-60-4P320 | ETU5-T2-60-4P385 |
| 1P+NPE | ETU5-T2-60-1PN150 | ETU5-T2-60-1PN275 | ETU5-T2-60-1PN320 | ETU5-T2-60-1PN385 |
| 3P+NPE | ETU5-T2-60-3PN150 | ETU5-T2-60-3PN275 | ETU5-T2-60-3PN320 | ETU5-T2-60-3PN385 |
| With Remote Signaling | ||||
| No. of poles | 150V | 275V | 320V | 385V |
| 2P | ETU5-T2-60-2P150S | ETU5-T2-60-2P275S | ETU5-T2-60-2P320S | ETU5-T2-60-2P385S |
| 3P | ETU5-T2-60-3P150S | ETU5-T2-60-3P275S | ETU5-T2-60-3P320S | ETU5-T2-60-3P385S |
| 4P | ETU5-T2-60-4P150S | ETU5-T2-60-4P275S | ETU5-T2-60-4P320S | ETU5-T2-60-4P385S |
| 1P+NPE | ETU5-T2-60-1PN150S | ETU5-T2-60-1PN275S | ETU5-T2-60-1PN320S | ETU5-T2-60-1PN385S |
| 3P+NPE | ETU5-T2-60-3PN150S | ETU5-T2-60-3PN275S | ETU5-T2-60-3PN320S | ETU5-T2-60-3PN385S |
