Wallbox charger is a wall-mounted charging point for electric vehicles. It can be installed in private homes or company parking lots. It is usually the cheapest way to install a charger in location. Wallbox chargers refer to the physical system that provides electrical power to the vehicle plugged in by industry standard cable. This device brings together several components that make the whole system an integral EV charging system. Wallbox charger is powered by alternating current (AC). Electric vehicles charge significantly faster at a wallbox than when plugged into a regular wall socket. Where wall-mounting is not an option, a stand-alone box or a post or pillar type of charging station can be used.
The use of electric vehicles is becoming increasingly common. Mobility is increasingly adapting to drivers deciding to leave their fuel-powered cars behind and opt for new solutions that are less polluting for the environment and less harmful to people's health. Among these solutions, 100% electric private vehicles are perhaps the most successful, thanks to their convenience and simplicity.
To supply power to these vehicles, a device is needed that makes the electricity from the general grid compatible with the vehicle’s battery, while managing its consumption. This device is a charger that, for reasons of convenience and safety, must meet a number of technical requirements, while at the same time being designed to supply our vehicle in the comfort of our homes. This is the ideal solution for supplying electricity to the battery, as it allows us to make the most of idle hours, such as at night, to charge our vehicles.

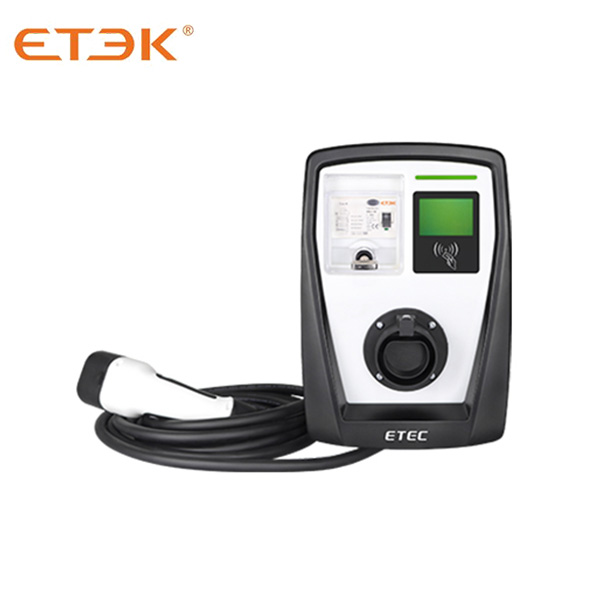

EKEC1 series EVSE (Electric Vehicle Supply Equipements, Wallbox Charger) are suitable for long-term parking. Charging occasions, such as residential areas, commercial areas, office areas, etc., provide safe and stable charging services for plug-in hybrid vehicles and pure electric vehicles that meet the standards. The product can be wall-mounting or pillar-mounting.
EKEC1 series EVSE are fully certified, with multi-layer electrical protection, safe and reliable (modular design, selection of high-quality components and materials, high-reliability components, 30mA leakage protection, overload protection, over-voltage protection, short-circuit protection, etc.); humane Design, convenient operation; excellent applicability, simple installation, economical and practical.
|
EV Charging Modes
|
Mode 3 Charging
|
|
Rated Voltage
|
AC 240V±10%, AC 420V±10%
|
|
Rated Current
|
Max 16A / 32A
|
|
Rated Frequency
|
50Hz
|
| AC Power Output Rating | Max 7.2 kW / 22kW |
|
Over Voltage Category (OVC)
|
OVC III
|
|
Insulation Resistance
|
R>1MΩ
|
|
AC Withstand Voltage
|
1430V
|
|
Impulse Dielectric Withstand Voltage (1,2μs/50μs) (Uimp)
|
4kV
|
|
Protection Against Electric Shock
|
Class I
|
|
Electrical Life (Contactor）
|
100,000
|
|
Electrical Life (Interface)
|
100,000
|
|
Standby Power Consumption
|
<8W
|
|
Type of EV Connection
|

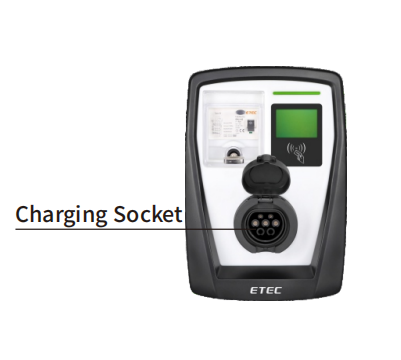

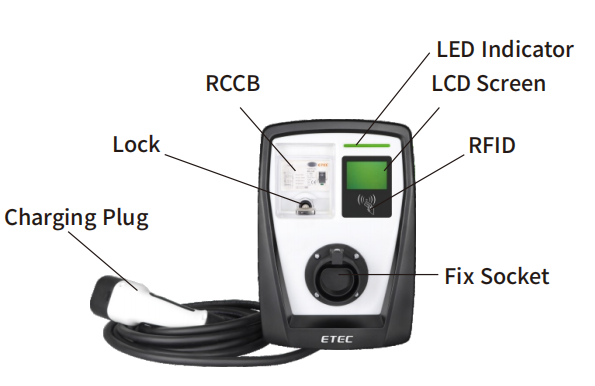

Case B (Socket Version), Case C (Cable Version)
|
|
Universal Interface
|
T1: SAE J1772, T2: IEC/EN 62196-2, GB/T:20234.2-2015
|
|
Pollution Degree
|
PD 3
|
|
IP Protection Class
|
IP54
|
|
Altitude During Operation (m)
|
<2000m
|
|
Altitude of Test Laboratory
|
<50m
|
|
Work Humidity
|
3%~95%
|
|
Operation Temperature
|
-25℃~55℃
|
|
Colling
|
Natural Air Cooling
|
|
Mounting Method
|
Wall-Mounted / Ground-mounting Pole |
|
Normal Environmental Conditions
|
Indoor or Outdoor
|
|
Product Dimension(mm)
|
357*245*123
|
|
Installation Dimension(mm)
|
180*280
|
|
The AC chargers require external MCB for overload protection and short-circuit protection to be installed in upstream distribution box.
|
|
