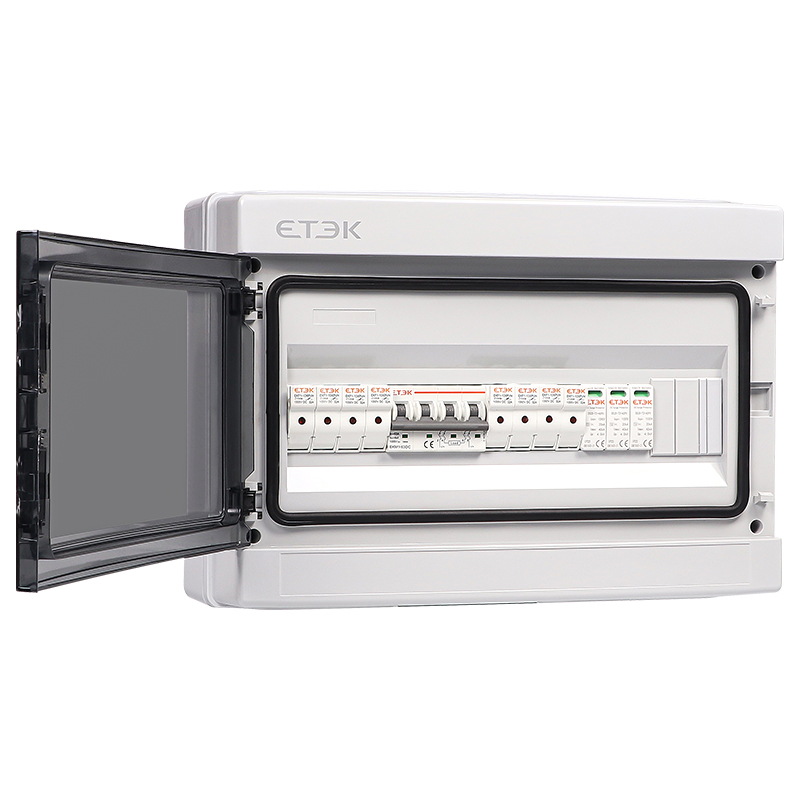

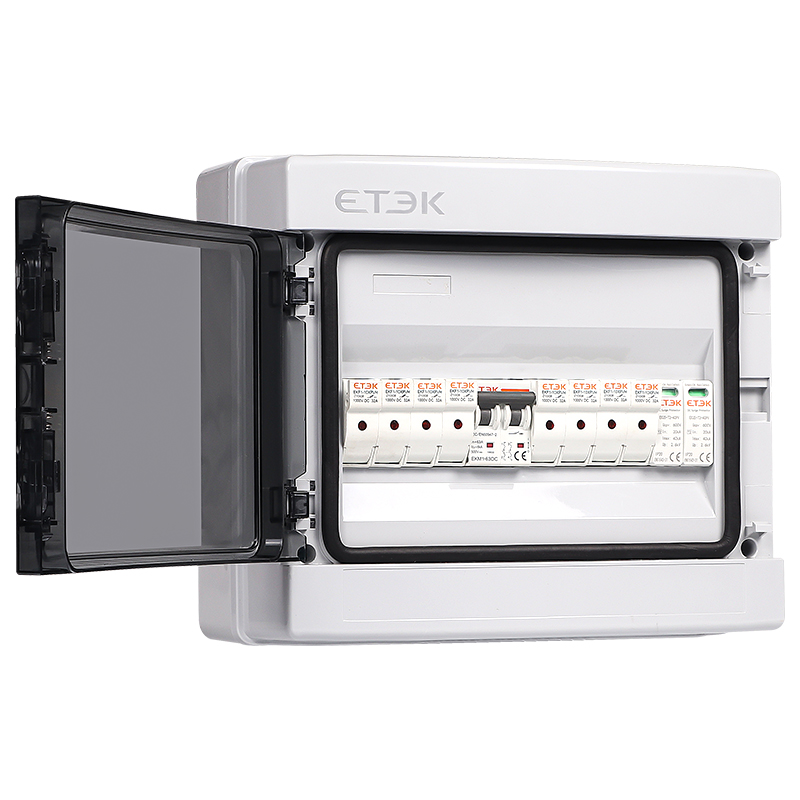

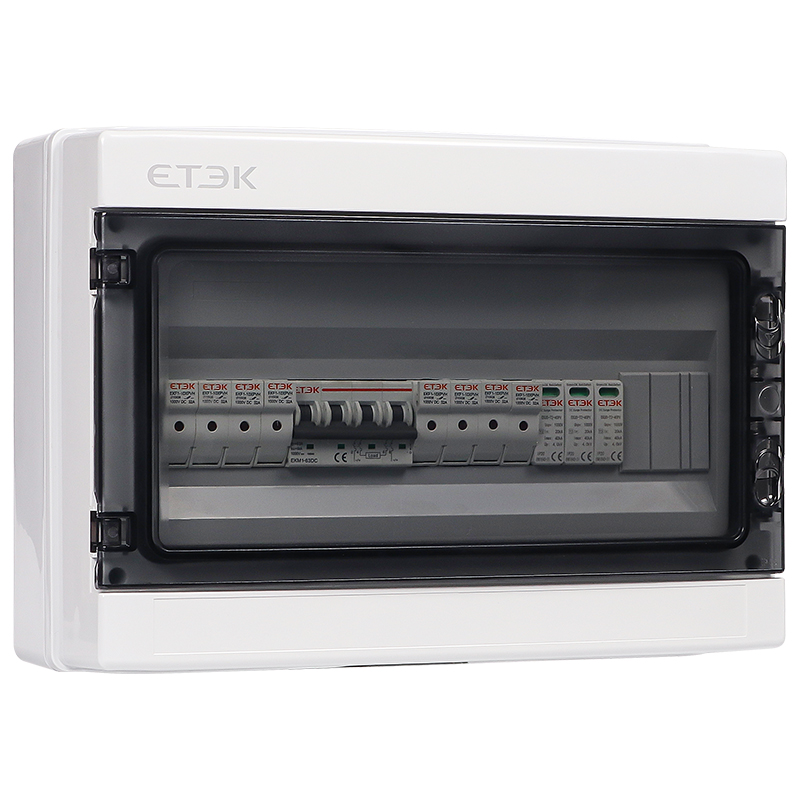

ETEK EKDB-PV4/1-M 4 String PV Combiner Box is suitable for 500V or 1000V photovoltaic grid-connected and off-grid power generation systems. are equipped with DC circuit breakers, type 2 DC surge arrester and DC fuse to provide short circuit fault protection and lightning protection. Within enclosure, we pre-assemble reliable DC components to reduce installation cost and time. It makes your solar panel system connection easier.
Products design and configuration strictly in accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF 037:2014.

Advantages

1. The PV combiner box is configured with photovoltaic dedicated high-voltage lightning arrester, DC fuse and DC circuit breaker to provide short circuit fault protection and lightning protection.

2. The PV combiner box has an IP65 design, waterproof, anti-dust and anti-ultraviolet. Easy installation with mounting buckle that suits any regular surface. It makes your solar panel system connection easier. Improve the reliability and maintainability of the system.

Technical Data

Dimensions

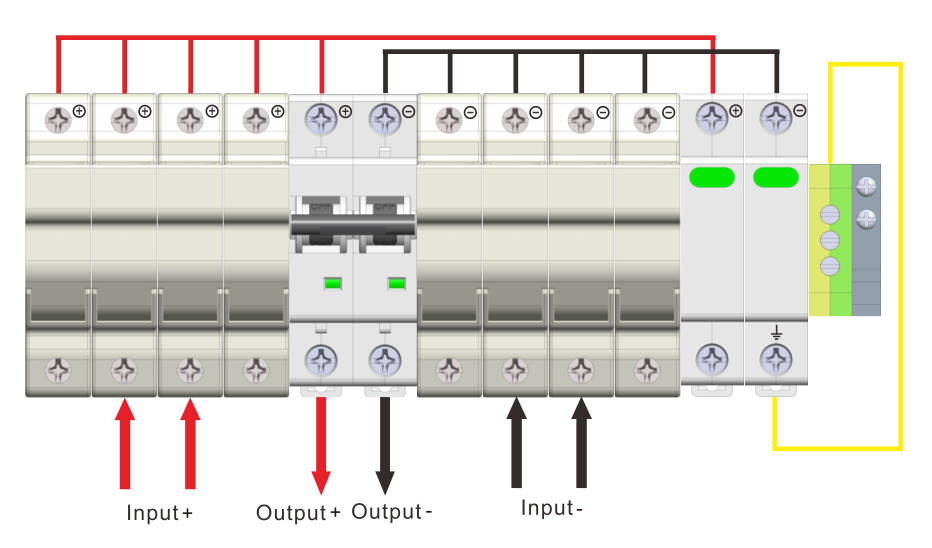

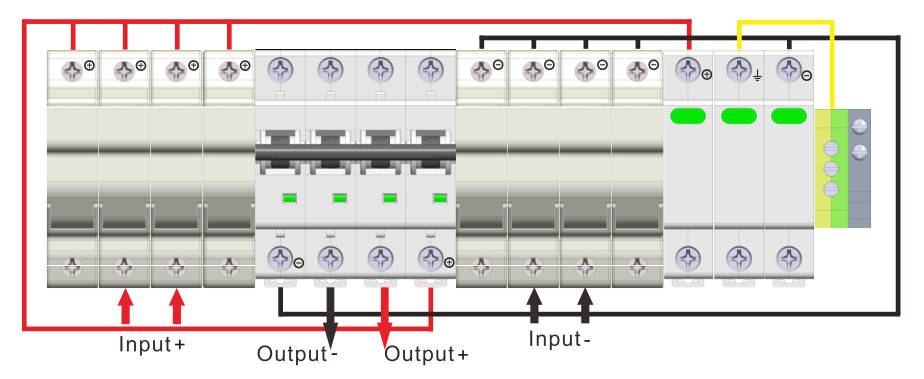

Wiring diagram

500V

1000V

Installation Dimension

500V

1000V
