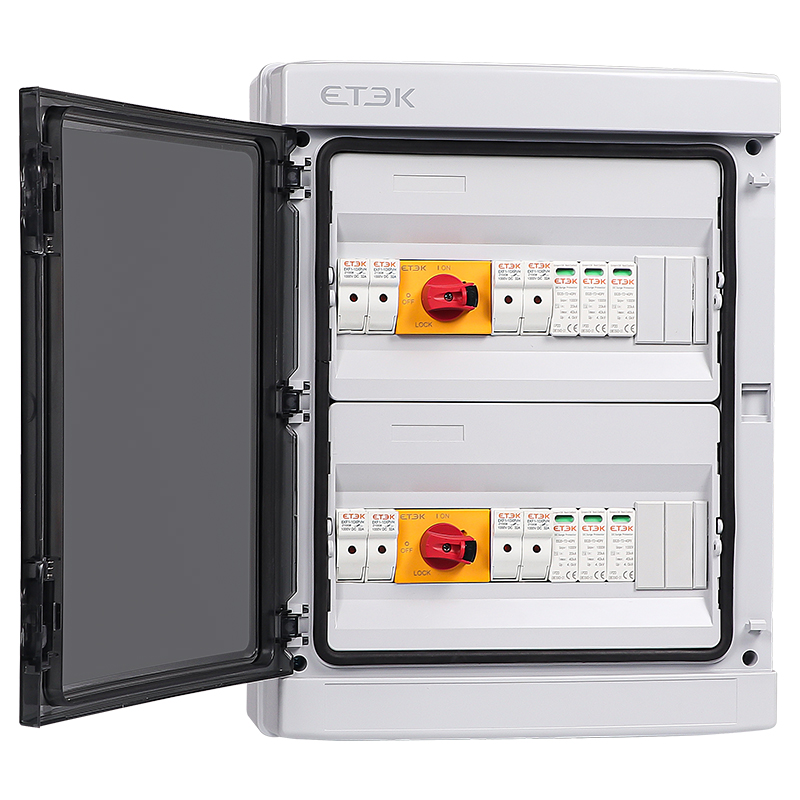

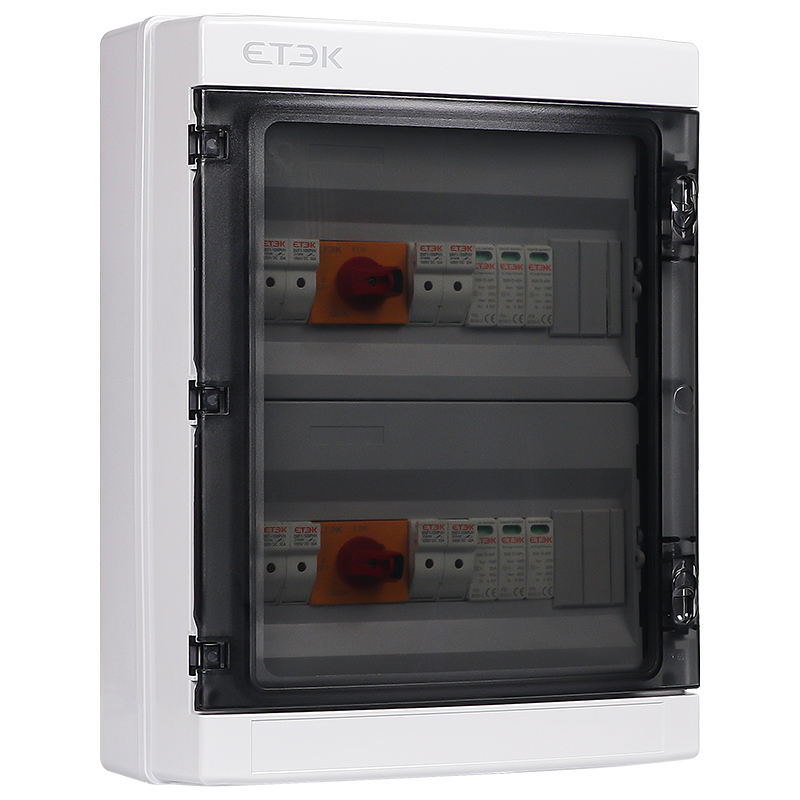

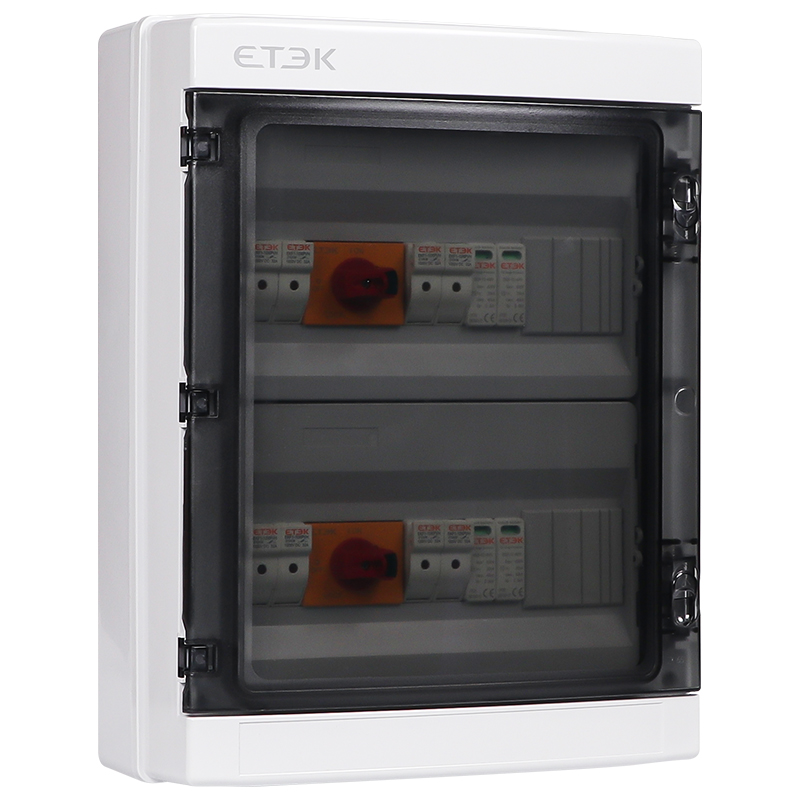

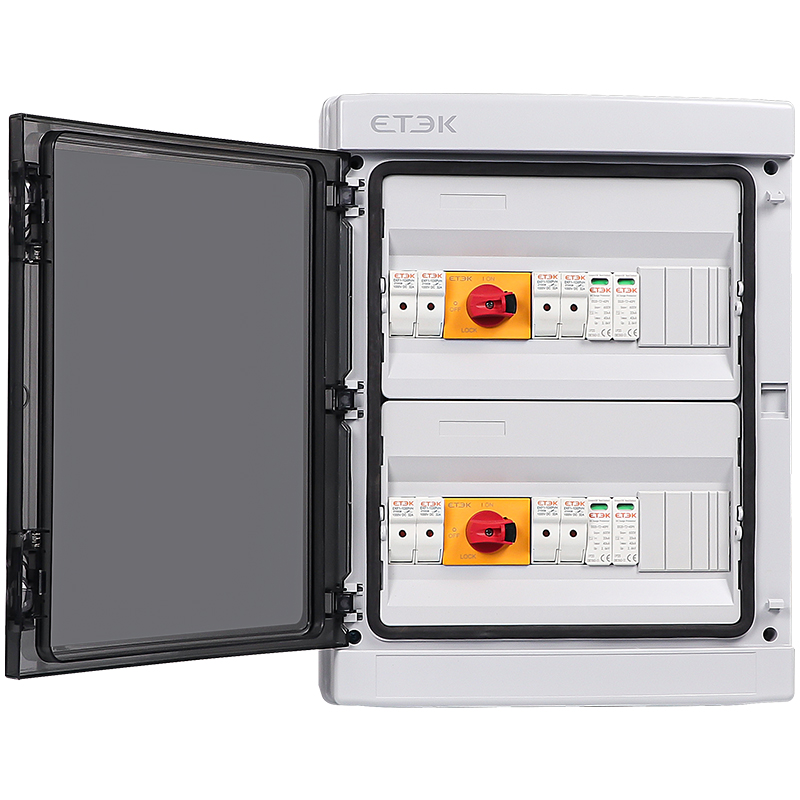

EKDB-PV4/2-I 600V/1000V 4 IN 2 OUT PV Combiner Box with DC Isolator Switch

EKDB-PV4/2-I PV Combiner Box equipped with DC disconnect switches, DC fuse and DC surge protector, suitable for 600V or 1000V 4 string PV system applications.

Inquire NOW PDF

EKDB-PV4/2-I 600V/1000V 4 IN 2 OUT PV Combiner Box with DC Isolator Switch

Inquire NOW PDF

Product Profile

ETEK EKDB-PV4/2-I 4 String PV Combiner Box is suitable for 600V or 1000V photovoltaic grid-connected and off-grid power generation systems. are equipped with DC disconnect switches, type 2 DC surge arrester and DC fuse to provide short circuit fault protection and lightning protection. Within enclosure, we pre-assemble reliable DC components to reduce installation cost and time. It makes your solar panel system connection easier.
Products design and configuration strictly in accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF 037:2014.

Advantages

  1. The PV combiner box is configured with photovoltaic dedicated high-voltage lightning arrester, DC fuse and DC disconnect switches to provide short circuit fault protection and lightning protection.

  2. The PV combiner box has an IP65 design, waterproof, anti-dust and anti-ultraviolet. Easy installation with mounting buckle that suits any regular surface. It makes your solar panel system connection easier. Improve the reliability and maintainability of the system.

Technical Data

Model EKDB-PV4/2-I
Basic Data
Maximum Voltage 600VDC 1000VDC
Maximum input current for each string 15A
Maximum output switch current 32A
Number of Input String 4
Number of Output String 2
Lightning protection
Category of test Class II
Nominal discharge current(8/20μs) 20KA
Maximum discharge current(8/20µs) 40KA
Voltage protection level 2.6KV 4.0KV
Maximum continuous operating voltage Uc 600VDC 1000VDC
No. of Modules 2 Mods 3 Mods
Structure characteristic Plug-push module
System
Protection grade IP65
Output switch DC isolator switch
Waterproof Connectors PG Cable Glands Standard, MC4 Optional
PV fuse Standard
PV surge protector Standard
Monitoring module Optional
Box shell material Polycarbonate/ABS
Installation method Wall mounting type
Operating Temperature -25℃~ +60℃
Permissible relative humidity 0-95%, non-condensing

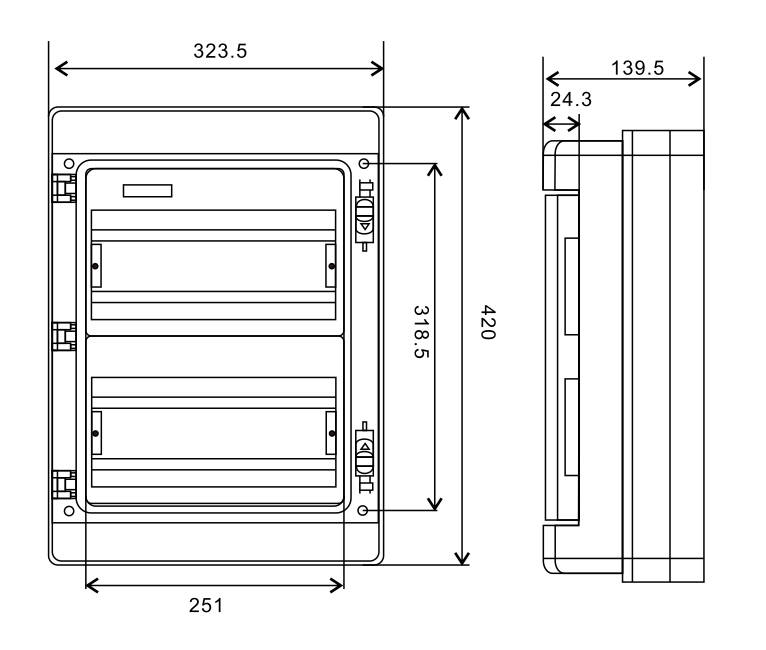

Dimensions
Width x Height x Depth(mm) 323.5x420x139.5

Dimensions

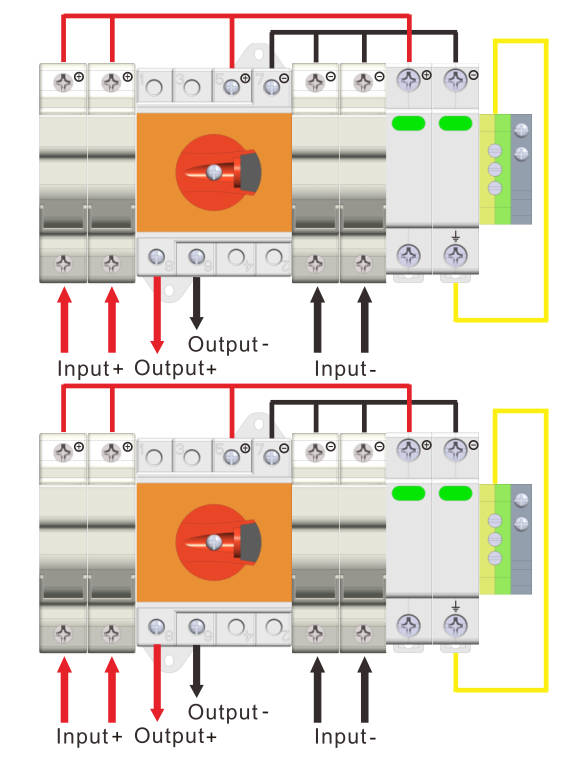

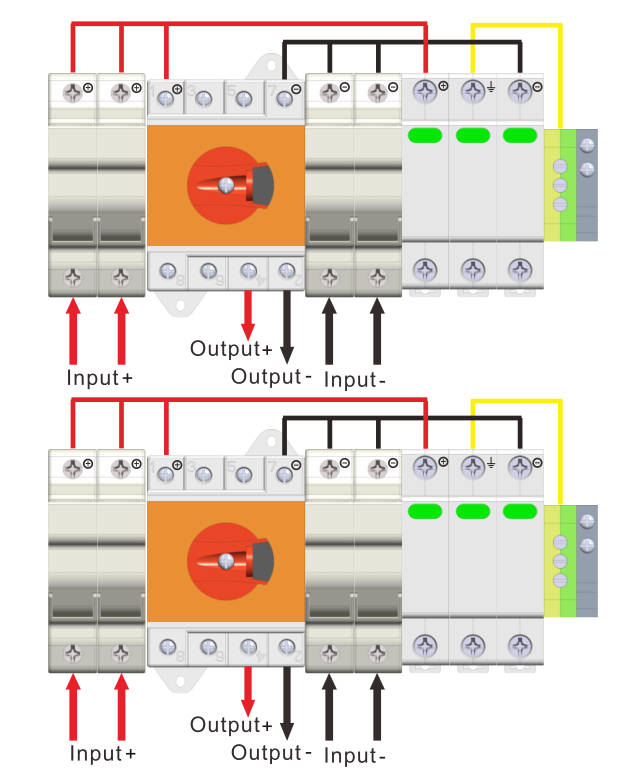

Wiring diagram
600V
1000V



Installation Dimension



Product selection form

Product Profile

ETEK EKDB-PV4/2-I 4 String PV Combiner Box is suitable for 600V or 1000V photovoltaic grid-connected and off-grid power generation systems. are equipped with DC disconnect switches, type 2 DC surge arrester and DC fuse to provide short circuit fault protection and lightning protection. Within enclosure, we pre-assemble reliable DC components to reduce installation cost and time. It makes your solar panel system connection easier.
Products design and configuration strictly in accordance with the "Technical specification for photovoltaic junction equipment" CGC/GF 037:2014.

Advantages

  1. The PV combiner box is configured with photovoltaic dedicated high-voltage lightning arrester, DC fuse and DC disconnect switches to provide short circuit fault protection and lightning protection.

  2. The PV combiner box has an IP65 design, waterproof, anti-dust and anti-ultraviolet. Easy installation with mounting buckle that suits any regular surface. It makes your solar panel system connection easier. Improve the reliability and maintainability of the system.

Technical Data

Dimensions

Product selection form
